Double Union Standard ABS Manual Ball Valves

Double Union Industrial ABS Manual Ball Valves, ranging in size from 3/8" to 4" (DN08 to DN100) and weighing from 112g to 4590g, are engineered for top performance in chemical processing, water treatment, irrigation, and wastewater treatment. Their double union design, coupled with PTFE seat material and EPDM seals, ensures superior sealing and enduring reliability, perfect for demanding industrial settings.
Shop Help Me

Key Features

Key features and benefits of Double Union Standard ABS Manual Ball Valves
1

Key Features

The combination of PTFE seat material and EPDM seals in these ball valves ensures superior sealing capabilities, which is crucial for maintaining system integrity in demanding environments. This feature is especially beneficial in chemical processing and water treatment applications, where preventing leaks and ensuring system reliability are paramount.
2

Key Features

These valves come in a wide range of sizes, from 3/8" to 4" (DN08 to DN100), and weights from 112g to 4590g, making them versatile for various industrial applications. The lightweight design facilitates easier installation and handling, reducing the overall labor effort and time needed for setup and maintenance.
3

Key Features

The double union design of these valves allows for quick disassembly and reassembly, which simplifies maintenance and replacement processes. This is particularly advantageous in industrial settings like irrigation and wastewater treatment, where downtime for valve maintenance needs to be minimized to maintain operational efficiency.

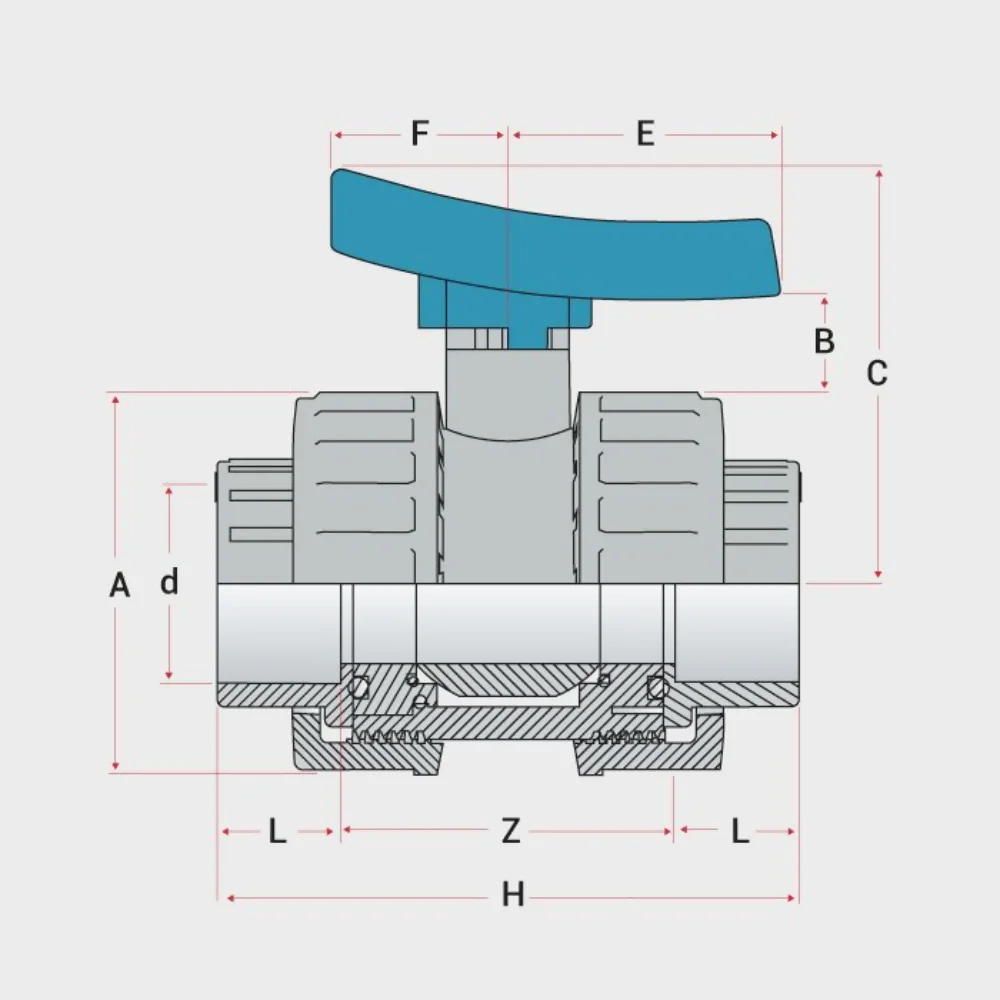

Valve Specifications

d L Z H A B C E F
3/8" 14 53 81 50 10 48 37 25
1/2" 16 49 81 50 10 48 37 25
3/4" 19 56 94 60 12 54 44 30
1" 22 63 107 68 13 75 55 27
1 1/4" 26 72 124 80 18 75 60 30
1 1/2" 31 84 144 96 20 87 68 35
2" 38 94 170 116 20 101 80 40
2 1/2" 44 130 218 145 25 123 90 45
3" 51 148 250 166 28 138 100 50
4" 61 168 290 210 28 160 120 60

Valve Documentation

  • Document
Instructions Manual

EPCO ABS Jointing Procedures
  • Document
Certification

EPCO ISO 2009:2015
  • Document
Certification

ABS WRAS Certificate

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Frequently Asked Questions

ABS Manual Ball Valves are available in sizes ranging from 3/8" to 4" (DN08 to DN100).

ABS Manual Ball Valves weigh between 80g and 4800g, depending on the type and size.

Single Union valves have one connection point, while Double Union valves have two, offering easier maintenance and installation.

These valves are suitable for chemical processing, water treatment, irrigation, and wastewater treatment.

The seats are made of PTFE, and the seals are made of EPDM or FPM, depending on the model.

Yes, especially the Double Union Industrial ABS Manual Ball Valves, which are designed for more demanding industrial environments.

ABS Manual Ball Valves are designed for durability, with high-quality materials ensuring long-lasting performance in various applications.

Yes, they are designed to withstand the demands of chemical processing applications.

PTFE seats provide excellent sealing and chemical resistance, enhancing the valve's overall performance.

Double Union valves offer easier installation and maintenance, making them ideal for more complex systems.

The heaviest ABS Manual Ball Valve weighs 4800g, specifically the Double Union Industrial model.

These valves can be used in a wide range of environments, including water treatment plants, irrigation systems, and industrial facilities.
