Double Union Industrial U-PVC Metric Manual Ball Valves

The Double Union Industrial U-PVC Metric Manual Ball Valves are expertly designed for a variety of applications including chemical processing, water treatment, irrigation, and wastewater management. Available in sizes from 16mm to 110mm with weights ranging from 180g to 6000g, these valves are constructed with PTFE seat materials and EPDM & FPM seals, enhancing their durability and efficiency in harsh conditions. The double union configuration simplifies both the installation and maintenance processes, making them a practical choice for effective flow control.
Shop Help Me

Key Features

Key features and benefits of Double Union Industrial U-PVC Metric Manual Ball Valves
1

Key Features

This feature allows for straightforward installation and maintenance. By simplifying access to the valve mechanism, it reduces downtime and labour costs associated with valve servicing.
2

Key Features

PTFE seats are highly resistant to chemical corrosion and provide a tight seal, enhancing the valve's reliability and longevity under aggressive chemical exposure and high temperatures.
3

Key Features

These seals offer excellent resistance to a wide range of chemicals and temperatures, ensuring a consistent and reliable performance across various industrial applications, from handling corrosive fluids to general water flow management.

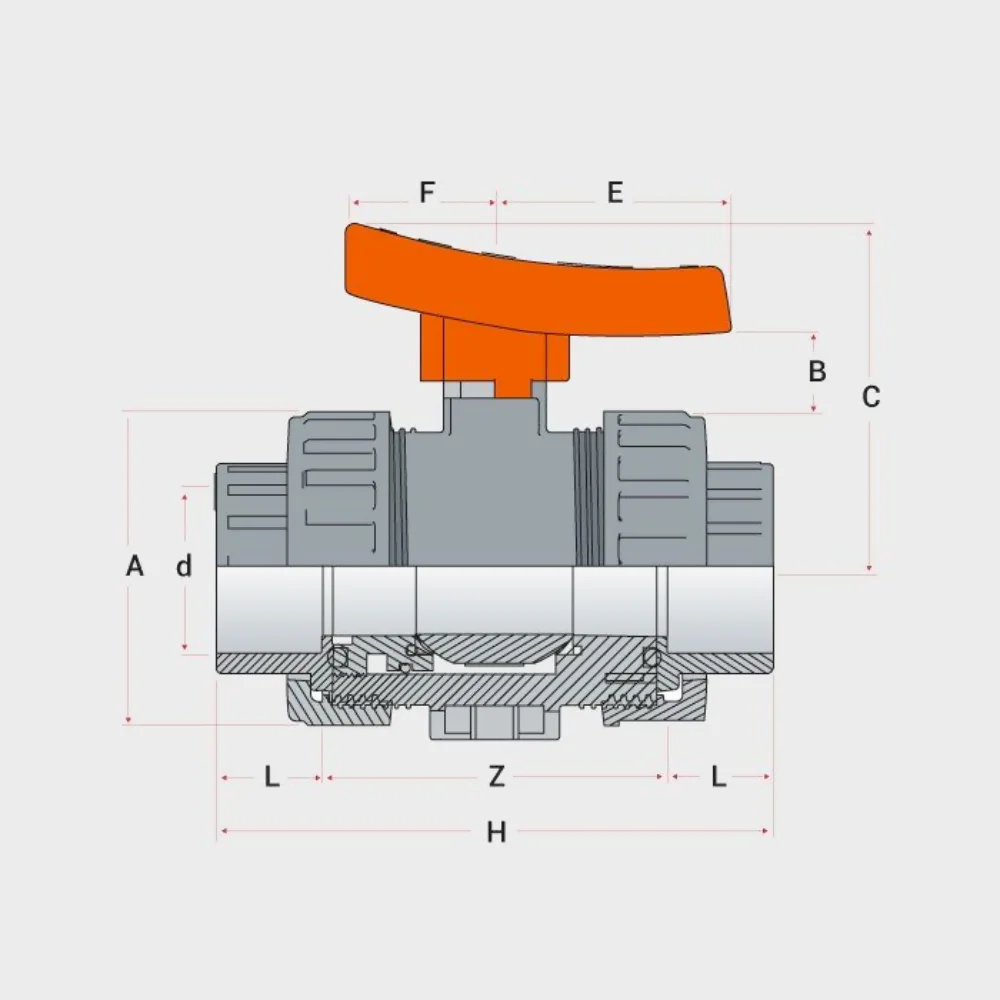

Valve Specifications

d L Z H A B C E F PN
3/8" 14 74 102 50 10 54 39 19 15
1/2" 16 70 102 50 10 54 39 19 15
3/4" 19 82 120 60 11 64 47 22 15
1" 22 86 130 68 13 74 55 25 15
1 1/4" 26 97 149 80 18 87 60 30 15
1 1/2" 31 103 165 96 20 100 68 35 15
2" 38 123 199 116 20 118 80 40 15
2 1/2" 44 130 218 145 25 150 90 45 10
3" 51 148 250 166 28 175 100 50 10
4" 61 168 290 210 28 200 120 60 10

Valve Documentation

  • Document
Instructions Manual

EPCO U-PVC Jointing Procedures
  • Document
Certification

EPCO ISO 2009:2015
  • Document
Certification

U-PVC WRAS Certificate

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Frequently Asked Questions

A U-PVC Metric Manual Ball Valve is a type of valve used to control the flow of liquids in piping systems. It is made from unplasticized polyvinyl chloride (U-PVC) and follows metric measurement standards.

U-PVC Metric Manual Ball Valves are commonly used in water treatment, chemical processing, irrigation, and swimming pool systems due to their corrosion resistance and durability.

To install a U-PVC Metric Manual Ball Valve, ensure the piping is clean, cut the pipe to the appropriate length, apply primer and solvent cement, then insert the valve into the pipe and allow it to cure according to the manufacturer’s instructions.

Advantages include chemical resistance, lightweight construction, easy installation, low maintenance, and cost-effectiveness, making them ideal for various industrial and residential applications.

U-PVC Metric Manual Ball Valves differ in material composition (U-PVC vs. metal or other plastics), metric sizing standards, and their suitability for handling corrosive and chemical-laden fluids.

U-PVC Metric Manual Ball Valves have a temperature limit, typically up to 60°C (140°F). They are not recommended for use in high-temperature applications.

Maintenance involves regular inspection for leaks, cleaning the valve seat and ball, and ensuring the valve operates smoothly. Replace any worn-out parts as needed.

Yes, U-PVC Metric Manual Ball Valves are often used in drinking water systems as they are non-toxic and resistant to corrosion.

U-PVC Metric Manual Ball Valves are available in various sizes, typically ranging from 16mm to 110mm, following metric standards.

Consider factors such as the fluid type, pressure rating, temperature, and size requirements of your piping system when choosing a U-PVC Metric Manual Ball Valve.

Yes, U-PVC Metric Manual Ball Valves can be used outdoors; however, it is important to protect them from prolonged exposure to UV rays to prevent degradation.

The pressure rating of U-PVC Metric Manual Ball Valves typically ranges between 10 to 16 bar, depending on the size and specific valve model.
