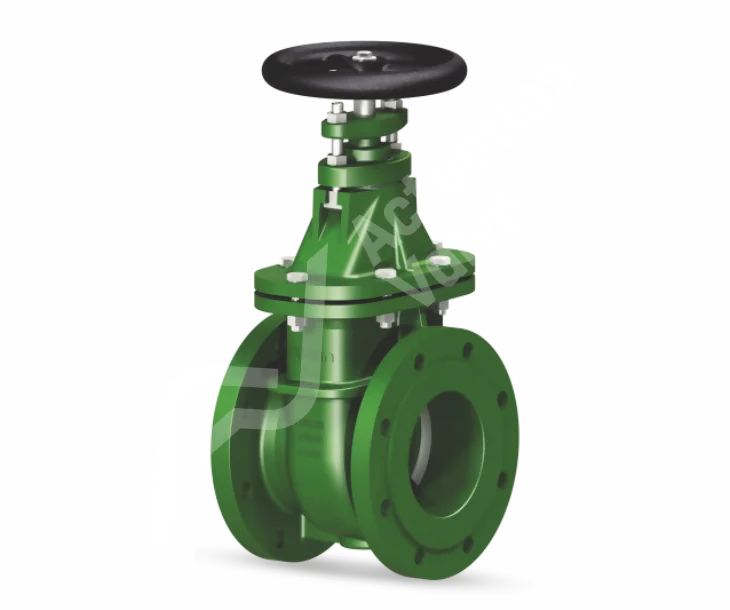

Dikkan Cast Iron Non Rising Stem F4 Type Gate Valves

Dikkan Cast Iron Non-Rising Stem F4 Type Gate Valves offer reliable and robust performance in a variety of applications, making them a preferred choice for fluid control. These gate valves are constructed with high-quality cast iron and feature stainless steel seats, ensuring durability and corrosion resistance for extended service life.
Shop Help Me

Key Features

Key features and benefits of Dikkan Cast Iron Non Rising Stem F4 Type Gate Valves.
1

Key Features

The valves are equipped with raised face flanges according to DIN standards, providing a secure and leak-free connection in the piping system. The bolted bonnet design enhances accessibility for maintenance and repair, while the adjustable gland ensures effective sealing to prevent any unwanted leaks.
2

Key Features

The short face-to-face dimension of these gate valves makes them space-efficient and easy to integrate into existing piping layouts. The inside screwed stem, combined with the non-rising stem configuration, allows for smooth operation even in confined spaces. The handwheel provides a manual control option, allowing operators to regulate the flow with ease.
3

Key Features

Designed to meet versatile fluid handling needs, these gate valves are suitable for applications involving cold and hot water, fresh water, seawater, and lubricating oil. Their adaptability makes them a reliable choice for various industries where fluid control and regulation are essential.

Dikkan Gate Valves Certificates and Approvals

  • PDF
CERTIFICATES & APPROVALS

Bureau Veritas - Castings
  • PDF
Certificates and Approvals

WRAS
  • PDF
Certificates and Approvals

Lloyd's Register - Iron Castings
  • PDF
Certificates and Approvals

Lloyd's Register - Steel Castings
  • PDF
CERTIFICATES & APPROVALS

DNV - Iron Castings

Frequently Asked Questions

A gate valve is a type of valve used to control the flow of a fluid by lifting a gate out of the path of the fluid. They are often used in pipelines to control the flow of liquids like oil, gas, or water.

The main types of gate valves include solid wedge, flexible wedge, and split wedge designs. Each type is suited for different applications and fluid types.

Gate valves are best used in applications where a straight flow of fluid and minimum restriction is desired. They are ideal for on/off control rather than flow regulation.

Common materials for gate valves include bronze, iron, and stainless steel each offering different advantages in terms of strength, durability, and corrosion resistance.

Sizing a gate valve involves considering factors like the type of fluid, flow rate, pressure, and the size of the pipeline. It's crucial to consult with one of our experts or refer to manufacturer guidelines.

While possible, using gate valves for throttling is not recommended as it can cause damage to the valve and lead to increased wear.

Regular maintenance of a gate valve includes periodic inspection, cleaning, and lubrication. Replace worn parts as needed and ensure proper operation to extend its lifespan.

Signs of a failing gate valve include leaks, difficulty in operating the valve, unusual noises during operation, and a visible deterioration of valve components.

Yes, gate valves can be designed for high-pressure applications, but it's essential to select a valve that meets the specific pressure requirements of your system.

The main difference lies in their design and operation. Gate valves use a lifting mechanism to control flow, while ball valves use a rotating ball with a hole through it for flow control.

Yes, gate valves can be fitted with actuators for remote or automated control, which is especially useful in large-scale industrial applications.

Gate valves offer minimal pressure drop, tight sealing, and are suitable for high-temperature and high-pressure applications, making them a preferred choice in many industrial settings.
