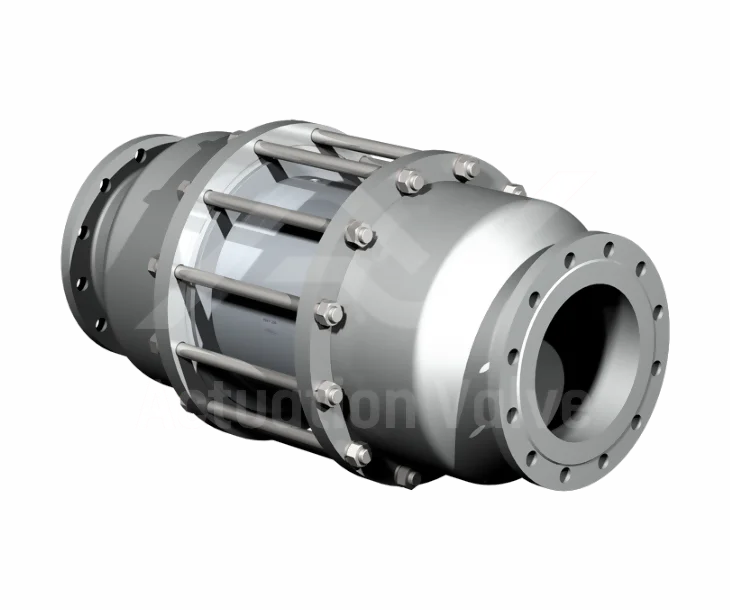

COAX VSV-M / VSV-F 2/2 Way Externally Controlled Coaxial Valves

The COAX VSV-M / VSV-F 2/2-way externally controlled coaxial valves provide efficient flow control for gaseous, liquid, highly viscous, and contaminated media across a pressure range of PN 0 to 40 bar. Featuring a pressure-balanced, spring-return design, these valves are available in orifice sizes DN 40 to 250 with threaded or flanged ports. Built from materials such as aluminium, galvanised and stainless steel, and nickel-plated steel, they operate at DC 24 V or AC 230 V, with seals in NBR, PTFE, FPM, CR, and EPDM.

Key Features

Key features and benefits of the COAX VSV-M / VSV-F 2/2 Way Externally Controlled Coaxial Valves
1

Key Features

The COAX VSV-M / VSV-F valves are engineered to handle a wide range of media, from gaseous and liquid substances to highly viscous and contaminated fluids, making them ideal for demanding industrial applications.
2

Key Features

Available in both threaded and flanged port types and constructed from durable materials like stainless steel, aluminium, and nickel-plated steel, these valves offer adaptability and resilience in various installation environments.
3

Key Features

Operated pneumatically or hydraulically via a 5/2-way valve or valve terminal, the COAX VSV-M / VSV-F allows for precise, reliable control, supporting pressures up to 40 bar across orifice sizes from DN 40 to 250.

Valve Specifications

Valve Type: 2/2-way valve
Operating Method: Externally Controlled
Orifice Size: DN 40 - 250
Pressure Range: PN 0 - 40 bar
Port Type: Threaded / Flanged
Valve Design: Pressure Balanced, with Spring Return
Body Material: Aluminium, Galvanised & Stainless Steel, & Nickel Plated Steel
Seal Material: NBR, PTFE, FPM, CR, EPDM, Special Materials
Media: Gaseous, Liquid, Highly Viscous, Contaminated
Nominal Voltage: DC 24 V / AC 230 V

Frequently Asked Questions

COAX VSV-M / VSV-F valves are designed for diverse applications, handling gaseous, liquid, highly viscous, and contaminated media in industrial and process control environments.

These valves support a wide pressure range from PN 0 to 40 bar, offering reliable performance across various operational needs.

The COAX VSV-M / VSV-F range offers orifice sizes from DN 40 to DN 250, catering to different flow requirements and system configurations.

Yes, these valves are specifically designed to handle highly viscous media as well as gaseous and liquid substances, making them highly versatile.

These valves are made from aluminium, galvanised steel, stainless steel, and nickel-plated steel, ensuring durability and corrosion resistance.

The valves are available with seals in NBR, PTFE, FPM, CR, and EPDM, along with specialised materials, allowing for compatibility with different media.

The COAX VSV-M / VSV-F valves are externally controlled, typically via a 5/2-way valve or an integrated valve terminal, providing flexible actuation options.

These valves come in both threaded and flanged port types, allowing for easy integration into various piping systems.

The valves operate with a nominal voltage of DC 24 V or AC 230 V, supporting both direct current and alternating current setups.

Yes, these valves feature a spring-return mechanism, which aids in reliable and efficient operation in controlled applications.

Yes, the COAX VSV-M / VSV-F valves are designed to handle contaminated media, providing versatility in challenging environments.
