COAX VMK / VFK 3/2 Way Externally Controlled Coaxial Valves

COAX VMK/VFK 3/2-way externally controlled coaxial valves offer precise control with an orifice size range from DN10 to DN50 and a pressure range up to PN100 bar. These valves feature a pressure-balanced design with spring return and switching overlap, and they support both threaded and flanged connections. Constructed from brass, galvanised or stainless steel, and nickel-plated brass and steel, they use seals in NBR, PTFE, FPM, CR, EPDM, or other special materials, handling gaseous, liquid, viscous, or contaminated media effectively at DC 24V or AC 230V.

Key Features

Key features and benefits of the COAX VMK / VFK 3/2 Way Externally Controlled Coaxial Valves
1

Key Features

COAX VMK/VFK 3/2-way valves are engineered to handle a variety of media, from gaseous and liquid to highly viscous and contaminated types, making them adaptable to diverse industrial applications.
2

Key Features

With a pressure capacity up to PN100 bar and available in robust materials like stainless steel, galvanised steel, and nickel-plated brass, these valves are suited for demanding environments where reliability is critical.
3

Key Features

Featuring a pressure-balanced mechanism and spring return, these valves ensure consistent performance and control, with a design that provides seamless switching and stable operation in complex systems.

Valve Specifications

Valve Type: 3/2-way valve
Operating Method: Externally Controlled
Orifice Size: DN 10 - 50
Pressure Range: PN 0 - 100 bar
Port Type: Threaded / Flanged
Valve Design: Pressure Balanced, with Spring Return, Switching Overlap
Body Material: Brass, Galvanised & Stainless Steel, & Nickel Plated Brass & Steel
Seal Material: NBR, PTFE, FPM, CR, EPDM, Special materials
Media: Gaseous, Liquid, Highly Viscous, Contaminated
Nominal Voltage: DC 24 V /AC 230 V

Frequently Asked Questions

A 3/2-way coaxial valve, like the COAX VMK/VFK series, allows for precise control of three connections and two switching positions, often in pneumatic or hydraulic systems.

These valves are externally controlled through pneumatic or hydraulic operation, typically using a 5/2-way valve or valve terminal.

The COAX VMK/VFK valves support a broad pressure range up to PN100 bar, making them suitable for high-pressure applications.

These coaxial valves are designed for versatility, handling gaseous, liquid, highly viscous, and contaminated media.

The VMK/VFK valves are available in brass, galvanised steel, stainless steel, and nickel-plated brass and steel, providing durability and resistance in challenging environments.

These coaxial valves are available with orifice sizes ranging from DN10 to DN50, offering flexibility across different flow requirements.

The COAX VMK/VFK valves feature a pressure-balanced design with a spring return and switching overlap for stable performance.

The VMK/VFK series is available with either threaded or flanged port connections, allowing for varied installation preferences.

These valves utilise seals made from NBR, PTFE, FPM, CR, and EPDM, ensuring compatibility with a wide range of media and conditions.

The VMK/VFK coaxial valves operate with either DC 24V or AC 230V, meeting the electrical requirements of various setups.

The switching overlap in COAX VMK/VFK valves ensures smooth transitions between switching positions, enhancing operational stability and efficiency.

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

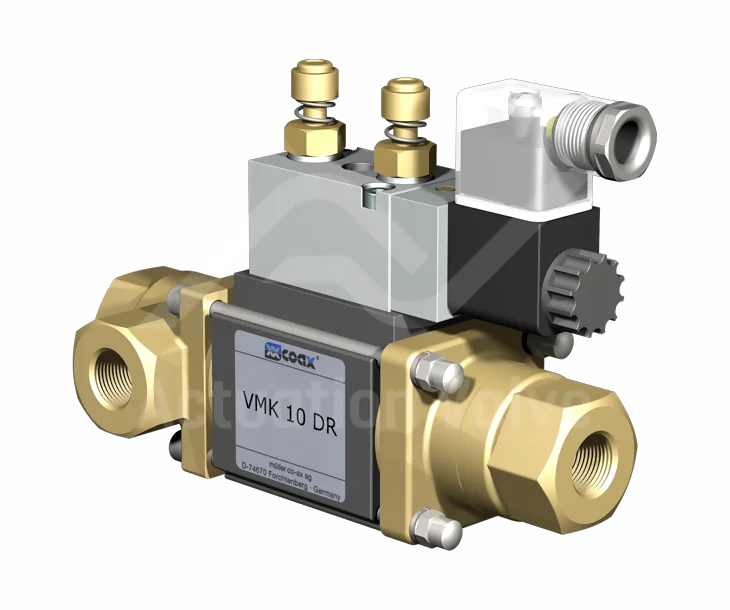

COAX VMK / VFK DR Coaxial Valves
