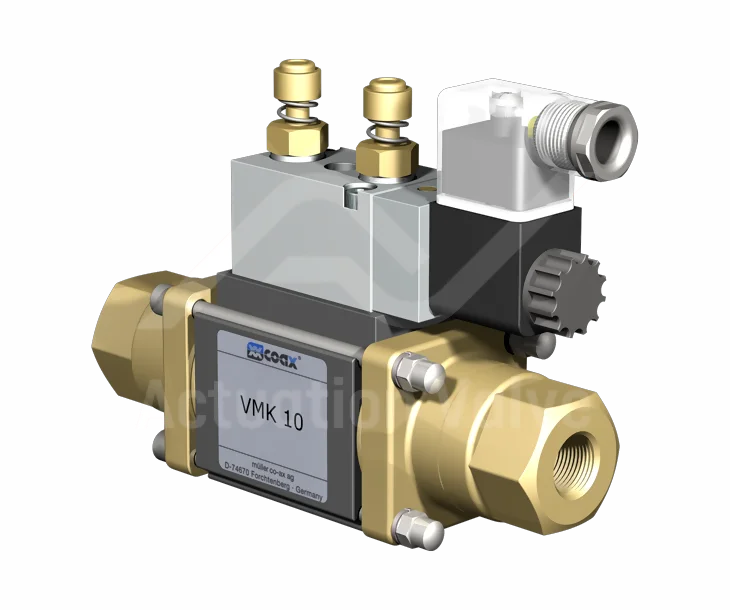

COAX VMK 2/2 Way Externally Controlled Coaxial Valves

The COAX VMK 2/2-way externally controlled coaxial valves are engineered for versatile applications, handling gaseous, liquid, highly viscous, and contaminated media with ease. Available in orifice sizes from DN10 to DN50, these valves operate within a pressure range of PN 0-100 bar and offer threaded or flanged port types. Constructed with brass, galvanised and stainless steel, and nickel-plated materials, the valves feature pressure-balanced designs with spring return and NBR, PTFE, FPM, CR, EPDM, and specialised seal options.

Key Features

Key features and benefits of the COAX VMK 2/2 Way Externally Controlled Coaxial Valves
1

Key Features

The COAX VMK 2/2-way coaxial valves are designed to handle a wide range of media, including gaseous, liquid, highly viscous, and even contaminated substances, making them ideal for diverse industrial applications where fluid purity and type vary.
2

Key Features

Built with a pressure-balanced configuration and a reliable spring return, these valves ensure stable operation under pressure fluctuations, supporting a range of up to PN 100 bar for consistent performance.
3

Key Features

Available in brass, galvanised and stainless steel, and nickel-plated brass and steel, the COAX VMK valves provide durable construction suitable for challenging environments, with various seal options like NBR, PTFE, FPM, CR, and EPDM to enhance compatibility with different media types.

Valve Specifications

Valve Type: 2/2-way valve
Operating Method: Externally Controlled
Orifice Size: DN 10 - 50
Pressure Range: PN 0 - 100 bar
Port Type: Threaded / Flanged
Valve Design: Pressure Balanced, with Spring Return
Body Material: Brass, Galvanised & Stainless Steel, & Nickel Plated Brass & Steel
Seal Material: NBR, PTFE, FPM, CR, EPDM, Special Materials
Media: Gaseous, Liquid, Highly Viscous, Contaminated
Nominal Voltage: DC 24 V / AC 230 V

Frequently Asked Questions

The COAX VMK 2/2-way externally controlled valve manages fluid flow through two connections and switching positions, suitable for a range of media types including gases, liquids, and highly viscous substances.

COAX VMK valves come in orifice sizes ranging from DN10 to DN50, catering to various application requirements and fluid flow rates.

These valves support a pressure range of PN 0 to 100 bar, making them ideal for applications requiring precise pressure management.

COAX VMK valves are available in materials such as brass, galvanised and stainless steel, and nickel-plated brass and steel, designed to provide durability and corrosion resistance.

Seal options include NBR, PTFE, FPM, CR, EPDM, and specialised materials, allowing compatibility with different media and operating conditions.

Yes, COAX VMK 2/2-way valves are designed to handle contaminated media, as well as gaseous, liquid, and highly viscous substances, enhancing their versatility.

These valves are offered with either threaded or flanged ports, providing flexibility in installation and compatibility with different piping systems.

The COAX VMK valves are externally controlled, typically actuated by an attached 5/2-way valve or existing valve terminal, using pneumatic or hydraulic signals.

The COAX VMK 2/2-way valves support nominal voltages of DC 24 V and AC 230 V, allowing integration into varied electrical setups.

Yes, with a pressure range reaching up to PN 100 bar, these valves are well-suited for high-pressure applications requiring stable flow control.

Yes, the COAX VMK valves are equipped with a spring return mechanism that enhances operational stability by returning the valve to a default position when not actuated.
