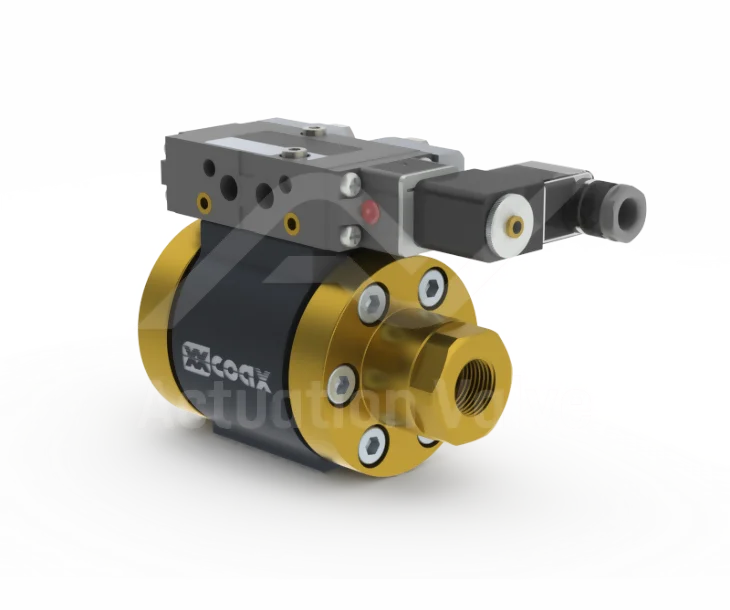

COAX VMK-H 10 High Pressure Coaxial Valves

The COAX VMK-H 10 High Pressure Coaxial Valve is a 2/2-way, externally controlled valve designed for optimal performance across a wide pressure range, up to 200 bar. With a threaded port and a DN 10 orifice, it suits applications involving gaseous, liquid, and highly viscous media. This pressure-balanced, spring-return valve, made with a durable brass body and NBR seal, operates reliably at DC 24 V or AC 230 V. Its compact design and specialised components ensure stability in high-pressure environments, delivering dependable performance.

Key Features

Key features and benefits of the COAX VMK-H 10 High Pressure Coaxial Valves
1

Key Features

With a Kv value of 3.5 m³/h, the VMK-H 10 provides an exceptionally high flow rate, making it suitable for applications requiring efficient fluid transfer.
2

Key Features

The valve's low air consumption and the pilot valve's minimal power usage help reduce operational costs, enhancing overall energy efficiency.
3

Key Features

Its compact structure allows for space-saving installations. Additionally, the VMK-H 10 can integrate up to two limit switches and offers various connection options, providing flexibility to meet diverse application requirements.

Valve Specifications

Valve Type: 2/2-way valve
Operating Method: Externally Controlled
Orifice Size: DN 10
Pressure Range: PN 0 - 200 bar
Port Type: Threaded
Valve Design: Pressure Balanced, with Spring Return
Body Material: Brass
Seal Material: NBR
Media: Gaseous, Liquid, Highly Viscous
Nominal Voltage: DC 24 V / AC 230 V

Frequently Asked Questions

The COAX VMK-H 10 is a 2/2-way, externally controlled valve designed for high-pressure applications up to 200 bar, suitable for gaseous, liquid, and highly viscous media.

Key features include a DN 10 orifice, pressure-balanced design with spring return, brass body, NBR seals, and compatibility with DC 24 V or AC 230 V power supplies.

The VMK-H 10 offers a Kv value of 3.5 m³/h, providing a high flow rate for efficient fluid transfer.

Yes, it features low air consumption and minimal power usage of the pilot valve, reducing operational costs and enhancing energy efficiency.

The valve offers flexibility with options to integrate up to two limit switches, various connection types, and modular design adaptations to meet specific application requirements.

The valve body is made of brass, with NBR seals, ensuring durability and compatibility with a range of media.

The VMK-H 10 is suitable for high-pressure applications in mechanical and plant engineering, construction, transport, and washing technology.

The pressure-balanced design allows the valve to operate effectively from 0 bar, regardless of pressure differences across the valve, enhancing reliability in various conditions.

The valve operates with nominal voltages of DC 24 V or AC 230 V, accommodating different power supply requirements.

Yes, with appropriate sealing materials and design considerations, the VMK-H 10 can handle abrasive media in high-pressure applications.

The valve comes with threaded ports, specifically G 3/8 to G 1/2 threads, facilitating easy integration into various systems.
