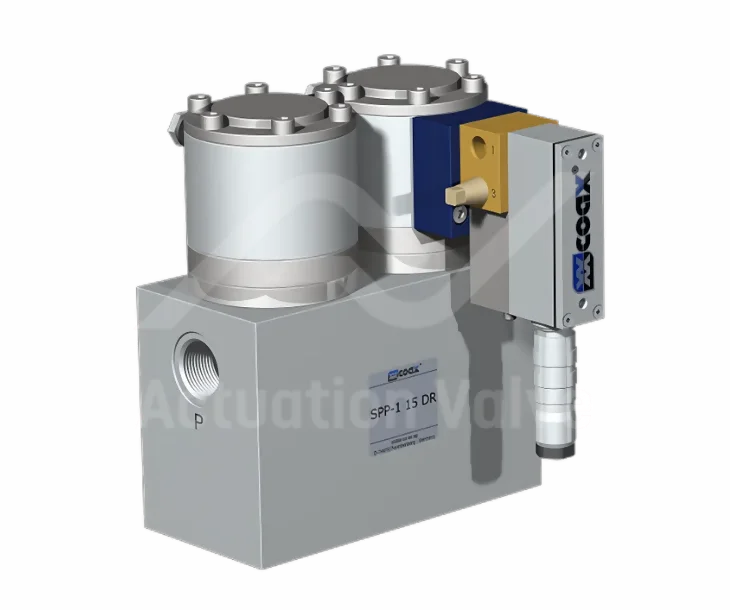

COAX SPP DR 3/2 Way Pressure Control Valves

The COAX SPP DR 3/2 Way Pressure Control Valve is a versatile, proportional, externally controlled valve designed for precise management of gaseous and liquid media. With an orifice size of DN 15 and a pressure range from 0 to 100 bar, this aluminium-bodied valve is suited to varied applications. It operates with a DC 24 V nominal voltage and features a spring return with switching overlap. Available in threaded ports, it includes EPDM, PU, HNBR, and FPM seals for enhanced compatibility across media types.
Shop Help Me

Key Features

Key features and benefits of the COAX SPP DR 3/2 Way Pressure Control Valves
1

Key Features

This valve allows for precise pressure regulation through proportional external control, ensuring accurate adjustments to meet specific system requirements. The integrated spring return mechanism provides reliable and consistent valve repositioning after each operation.
2

Key Features

Constructed with an aluminium body and equipped with seals made from EPDM, PU, HNBR, and FPM, the valve is compatible with a wide range of gaseous and liquid media. This versatility makes it suitable for diverse industrial applications.
3

Key Features

The valve features a settling time of less than 200 milliseconds, enabling swift adjustments to pressure changes. This rapid response enhances system efficiency and performance in dynamic operating conditions.

Valve Specifications
Valve Type: 3/2-way Pressure Control Valve
Operating Method: Proportional Externally Controlled
Orifice Size: DN 15
Pressure Range: PN 0 - 100 bar
Port Type: Threaded
Valve Design: Externally Controlled, with Spring Return, Switching Overlap
Body Material: Aluminium
Seal Material: EPDM, PU, HNBR, FPM
Media: Gaseous, Liquid
Nominal Voltage: DC 24 V

Documents & Drawings

  • Document
DATASHEET

Type SPP-1 15 DR
  • Document
MANUAL

Operating Instructions

Frequently Asked Questions

This valve regulates the pressure of gaseous and liquid media in various industrial applications, ensuring precise control within a system.

The valve adjusts pressure proportionally based on external control signals, allowing for accurate modulation of flow rates.

The COAX SPP DR valve features an orifice size of DN 15, suitable for a range of flow requirements.

It operates effectively within a pressure range of 0 to 100 bar, accommodating various system pressures.

The valve is designed with threaded ports, facilitating straightforward integration into existing piping systems.

The valve body is constructed from aluminium, offering a balance of strength and lightweight properties.

It includes seals made from EPDM, PU, HNBR, and FPM, ensuring compatibility with a wide range of media.

Yes, the COAX SPP DR valve is engineered to handle both gaseous and liquid media efficiently.

The valve operates with a nominal voltage of DC 24 V, aligning with standard industrial power supplies.

Yes, it is equipped with a spring return, ensuring the valve returns to its default position after operation.

The switching overlap ensures smooth transitions between valve positions, reducing the risk of pressure spikes.
