COAX Special Valves

COAX Special Valves provide advanced valve solutions that cater to complex requirements across a wide range of industries, including pharmaceuticals, chemical processing, oil and gas, and more. Known for their robust design and precision, COAX valves are engineered to handle demanding conditions such as extreme pressures, high temperatures, and corrosive media, offering reliable performance in critical applications.

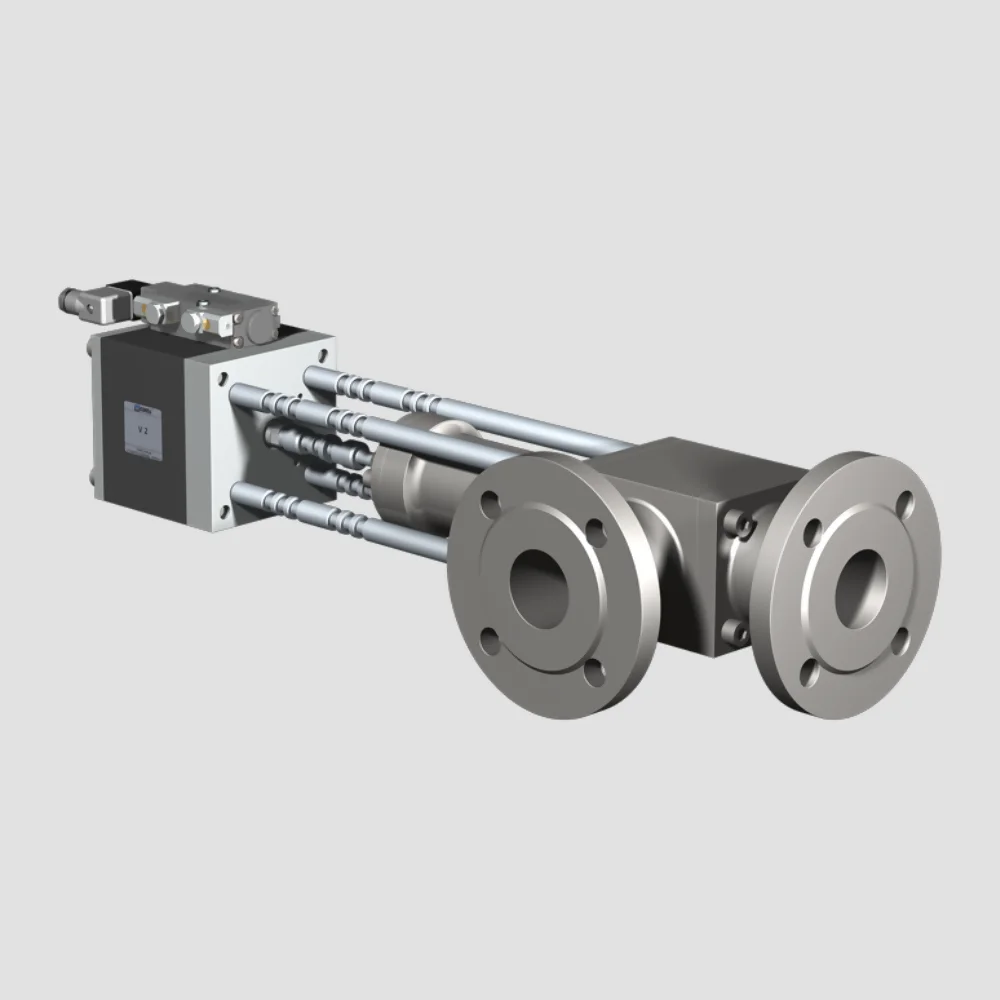

COAX V2 Series Special Valves

The COAX V2 Special Valves are 2/2-way, externally controlled valves with an orifice range of DN15 to DN100 and operate under pressures from PN 0 to 64 bar. These flanged valves feature a spring return mechanism and are constructed from nickel-plated steel or stainless steel, with FPM or graphite seals. Well-suited for gaseous media, they are tailored for challenging applications, such as hot gas filtration and filter cleaning in coal gasification processes within power generation facilities.

Valve Type: 2/2 - Way Valve
Operating Method: Externally Controlled
Valve Design: Externally controlled with spring return
Media: Gaseous
Find Out More

COAX LVP 06 Series Special Valves

The COAX LVP 06 Special Valve is a 2/2-way, externally controlled valve tailored for demanding high-pressure gas and fluid operations within gas filling and petrochemical processes. With a DN6 orifice and threaded ports, it withstands pressures up to 500 bar. This pneumatically actuated valve, built with a brass body and Monel valve seat, operates with a spring return and provides two switching positions. It connects with 3/2 or 5/2 pilot valves, while an inductive limit switch signals its end position.

Valve Type: 2/2 - Way Valve
Operating Method: Externally Controlled
Valve Design: Externally controlled with spring return
Media: Gaseous
Find Out More

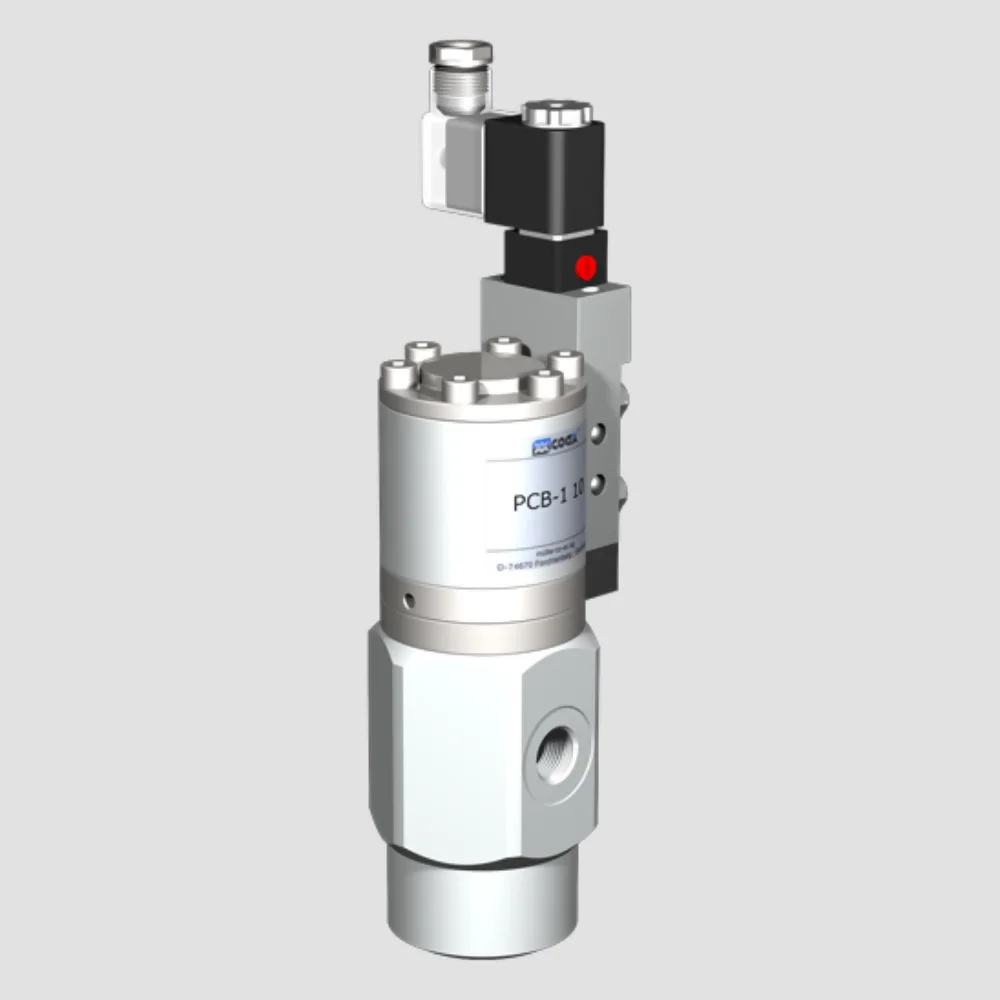

COAX PCB-1 10 Series Special Valves

The COAX PCB-1 10 Special Valve is a 2/2-way, externally controlled valve with a DN10 orifice, designed for managing abrasive, adhesive, and aggressive substances. Ideal for glue application, bonding, and coolant supply up to 25 bar, it features an aluminium or stainless steel body with EPDM, NBR, or FPM seals, making it compatible with gases, liquids, and contaminated media. Its hermetic seal and durable valve seat prevent media hardening upon air contact, while its compact cartridge design enables versatile installation in modules or manifolds.

Valve Type: 2/2 - Way Valve
Operating Method: Externally Controlled
Body Material: Aluminium, Stainless Steel
Media: Gaseous, liquid, highly viscous, gelatinous, contaminated
Find Out More

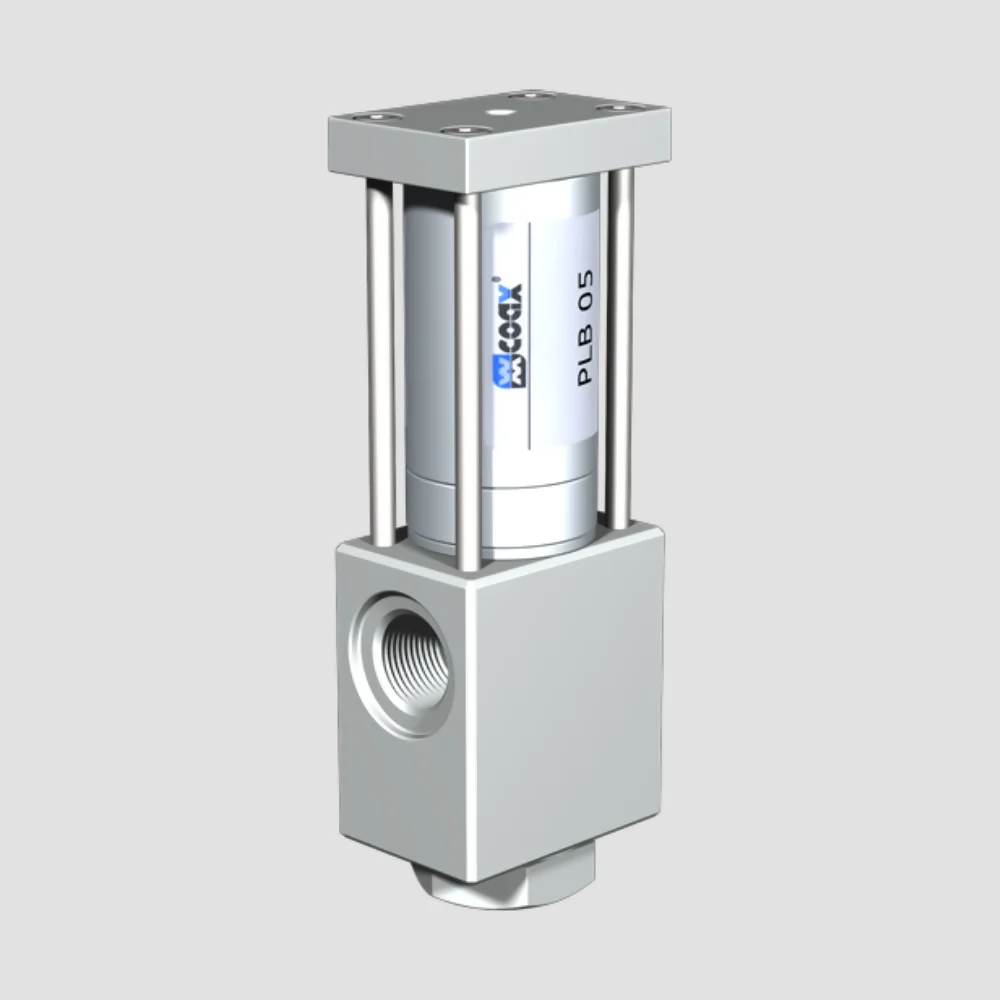

COAX PLB 05 Series Special Valves

The COAX PLB 05 Special Valve is a 2/2-way, externally controlled valve with a DN 5 orifice and pressure range from PN 0 to 25 bar, perfect for precise glue dispensing in bonding and lamination processes. Built with either aluminium or stainless steel bodies and sealed with EPDM, NBR, or FPM, this valve suits viscous liquids, including in glue-laminated timber production. Its hermetically sealed metal bellows and durable valve seat prevent media hardening. The PLB 05 is installable individually or on a manifold for precise glue bead placement.

Valve Type: 2/2 - Way Valve
Operating Method: Externally Controlled
Valve Design: Externally Controlled with Spring Return
Media: Liquid (Viscous)
Find Out More

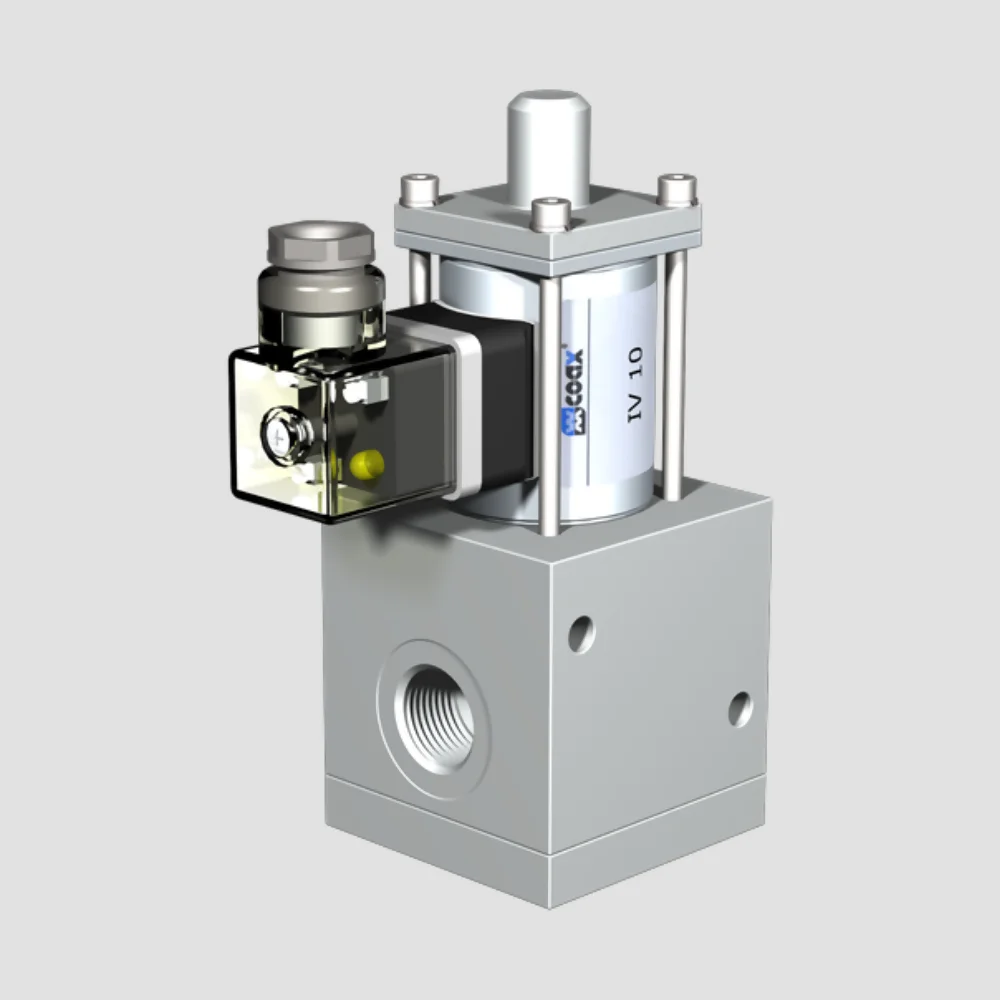

COAX IV 10-3 Series Special Valves

The COAX Type IV 10-3 Special Valves are 3/2-way, direct-acting valves featuring a DN10 orifice, operating effectively from vacuum to 1 bar. These aluminium-bodied valves use a pulse-action design that requires just a brief 24VDC impulse to shift positions, eliminating continuous power demand. Engineered for challenging, dusty settings, they ensure reliable operation in gaseous applications like suction-based lifting equipment, maintaining functionality even during power interruptions.

Valve Type: 3/2 - Way Valve
Operating Method: Direct Actuated
Valve Design: Pulse Acting
Media: Gaseous
Find Out More

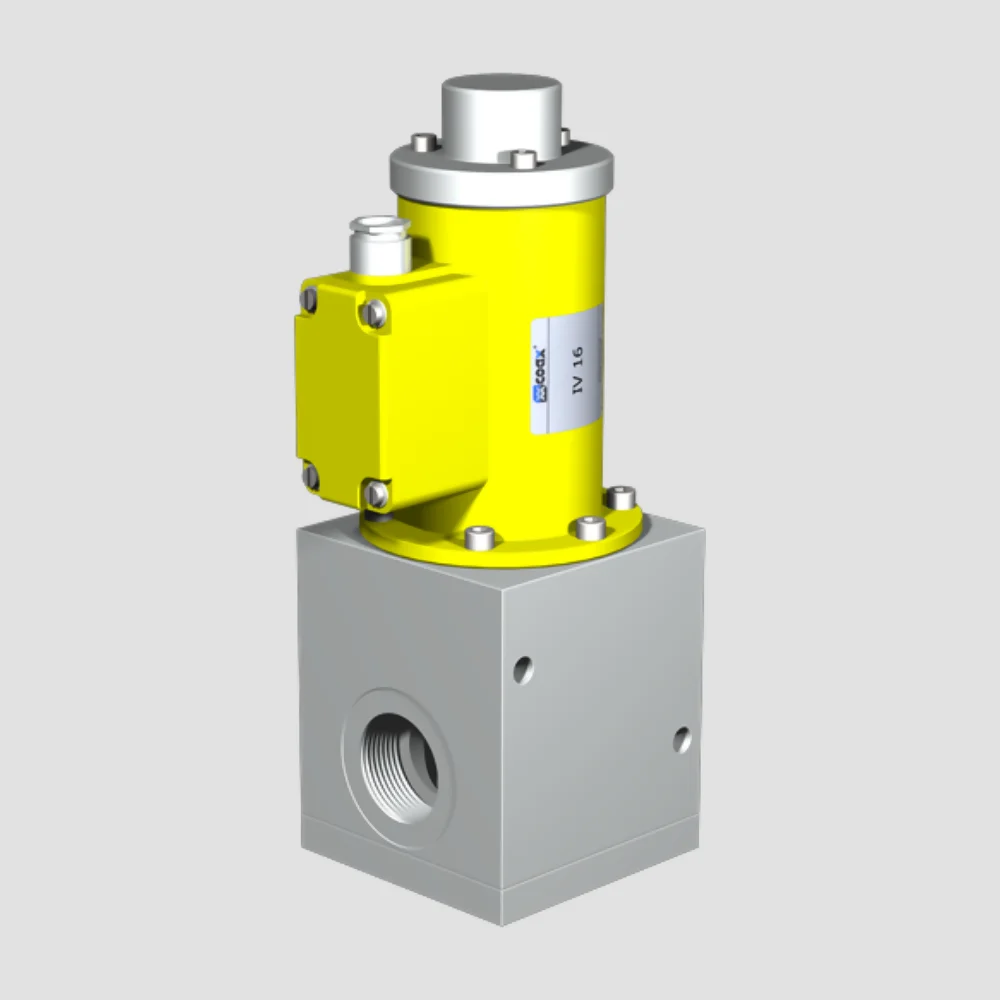

COAX IV 16-3 Series Special Valves

The COAX IV 16-3 Special Valve is a 3/2-way, direct-actuated pulse valve, ideal for vacuum tasks in industries like packaging, glass production, and metalwork in construction and furniture. Its aluminium body, NBR seals, and threaded ports (G 3/4", G 1", G 1 1/2") ensure reliability with a quick 24VDC impulse to secure its position, eliminating the need for constant power. Offered in DN20-32 sizes, the IV 16-3 supports heavy load lifting in dusty environments, providing energy-efficient, long-lasting performance.

Valve Type: 3/2 - Way Valve
Operating Method: Direct Actuated
Valve Design: Pulse Acting
Media: Gaseous
Find Out More

Frequently Asked Questions

Coax Special Valves are specialized valves designed for applications requiring high-performance solutions in challenging environments.

These valves are suitable for industrial processes, including oil, gas, chemical, and food processing industries.

Coax offers a variety of types, including high-pressure and high-temperature valves, cartridge valves, and customized solutions.

Coax Special Valves are engineered for extreme conditions, offering durability, safety, and high operational efficiency.

Yes, several models are specifically designed for high-pressure applications, making them ideal for industrial use.

Coax offers customization to meet specific application requirements, ensuring optimal performance in unique environments.

These valves are made from robust materials like stainless steel, suitable for harsh conditions and long service life.

Many Coax Special Valves come with industry certifications for quality, reliability, and safety compliance.

Regular inspections are recommended, but Coax Special Valves are designed for low maintenance, enhancing operational efficiency.

Yes, they are engineered to reduce energy consumption while providing reliable performance.

Industries such as petrochemical, energy, food, and manufacturing benefit from their high durability and performance.

Coax Special Valves are built to operate efficiently across a wide range of temperatures, making them suitable for both high-temperature and low-temperature applications, depending on the specific model.
