COAX Pressure Control Valves

COAX Pressure Control Valves deliver precise and reliable flow management in demanding applications, ensuring effective pressure regulation for gases and liquids. Engineered for durability, these valves support various pressures and flow rates, making them suitable for industries such as automotive, chemical, and manufacturing. With COAX’s unique coaxial valve technology, these pressure control valves offer fast response times and a compact design, enhancing efficiency and space savings in system integration.

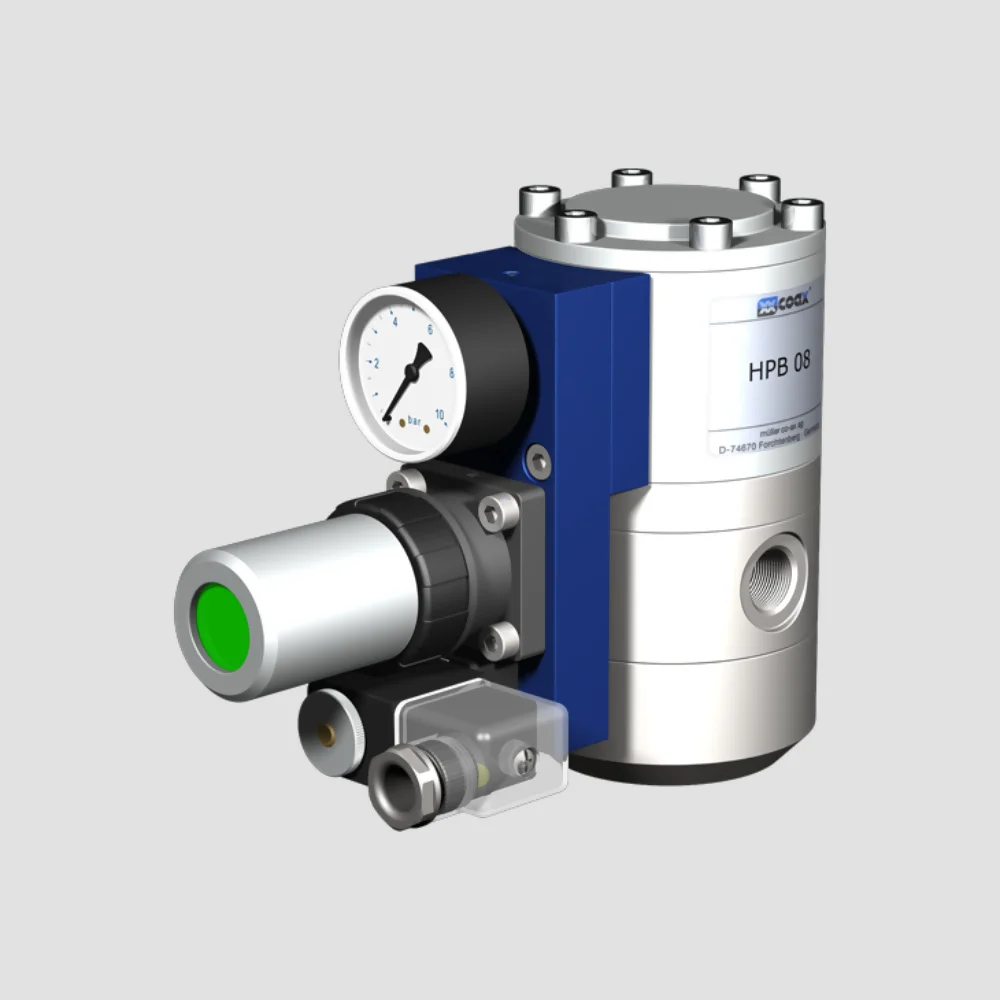

COAX HPB Series Pressure Control Valves

The COAX HPB Pressure Limitation Valves are manually operated, externally controlled valves designed for pressures from PN 0 to 200 bar. Available in orifice sizes DN 8 to DN 65, they feature threaded or flanged ports and are constructed from brass or galvanised steel, with options for NBR, PTFE, FPM, or specialised seals. Ideal for managing liquids, highly viscous substances, or contaminated media, these valves are compatible with DC 24 V and AC 230 V power, with an optional spring return for flexible operation.

Valve Type: Pressure Limitation Valve
Operating Method: Manual Externally Controlled
Valve Design: Externally Controlled, with / without Spring Return
Media: Liquid, Highly Viscous, Contaminated
Find Out More

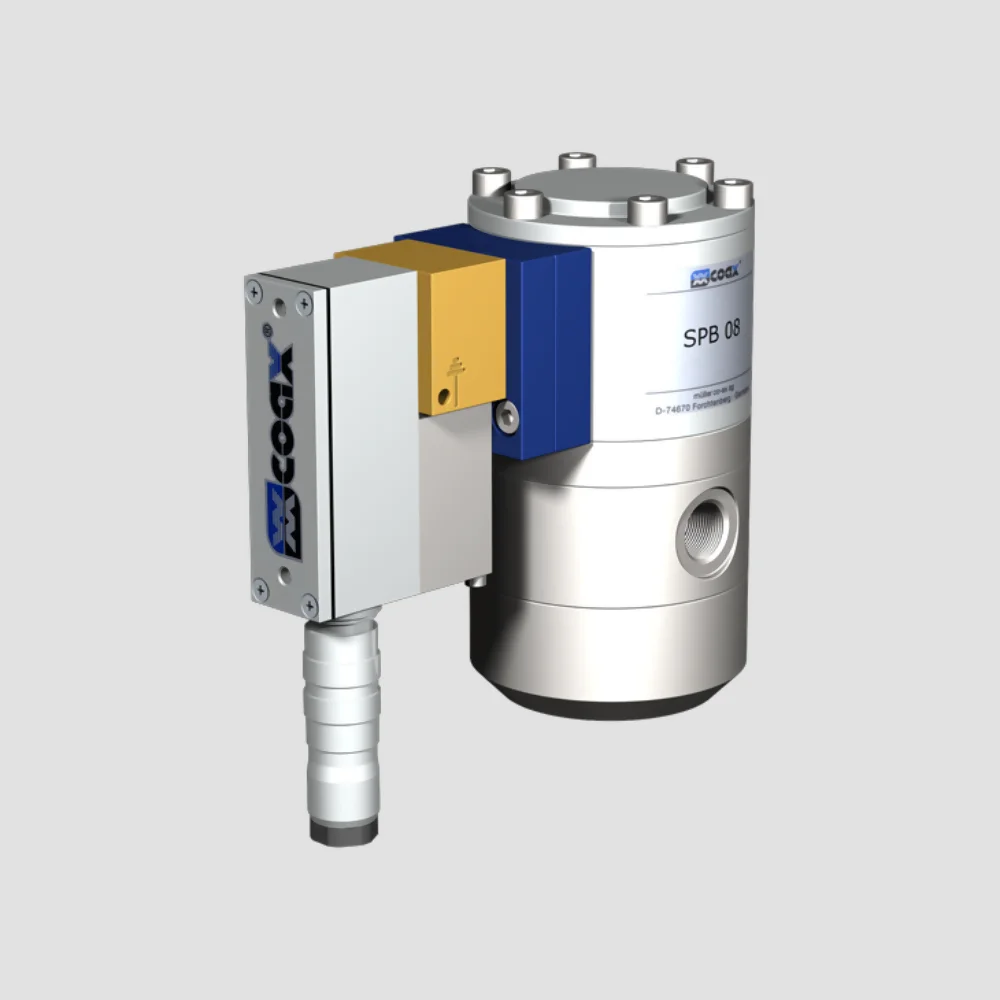

COAX SPB Series Pressure Control Valves

The COAX SPB Pressure Limitation Valve is a proportional, externally controlled valve, suitable for varied applications with orifice options from DN 8 to DN 65 and pressure capacity up to PN 200 bar. Featuring threaded or flanged ports, it is offered in galvanised steel or brass with seal choices in NBR, PTFE, or FPM. This DC 24 V valve can handle liquid, viscous, and contaminated media, and is available with or without spring return, ensuring adaptable and reliable pressure control across diverse settings.

Valve Type: Pressure Limitation Valve
Operating Method: Proportional Externally Controlled
Valve Design: Externally Controlled, with / without Spring Return
Media: Liquid, Highly Viscous, Contaminated
Find Out More

COAX HPI / HPP PC Series Pressure Control Valves

The COAX HPI / HPP PC Pressure Reduction Valves offer precise manual pressure regulation through a threaded port design, ideal for various media types, including gases, liquids, high-viscosity fluids, and contaminated materials. Available in aluminium, brass, or stainless steel, these valves come in orifice sizes from DN 8 to DN 32, handling pressures up to 200 bar. Featuring an external spring return mechanism and NBR, PTFE, FPM, or EPDM seals, they support DC 24 V or AC 230 V inputs, ensuring dependable functionality.

Valve Type: Pressure Reduction Valve
Operating Method: Manual Externally Controlled
Valve Design: Externally Controlled, with Spring Return
Media: Gaseous, Liquid, Highly Viscous, Contaminated
Find Out More

COAX SPI / SPP PC Series Pressure Control Valves

The COAX SPI / SPP PC Control Valves provide external control and precise pressure reduction for a wide range of media, including gases, liquids, high-viscosity, and contaminated substances. They are available in orifice sizes from DN 8 to DN 32, handling pressures from PN 0 to 200 bar, with a threaded port and spring return mechanism. Built from aluminium, brass, or stainless steel, these valves offer multiple sealing options such as NBR, PTFE, FPM, EPDM, and speciality materials, and operate on DC 24 V.

Valve Type: Pressure Reduction Valve
Operating Method: Proportional Externally Controlled
Valve Design: Externally Controlled, with Spring Return
Media: Gaseous, Liquid, Highly Viscous, Contaminated
Find Out More

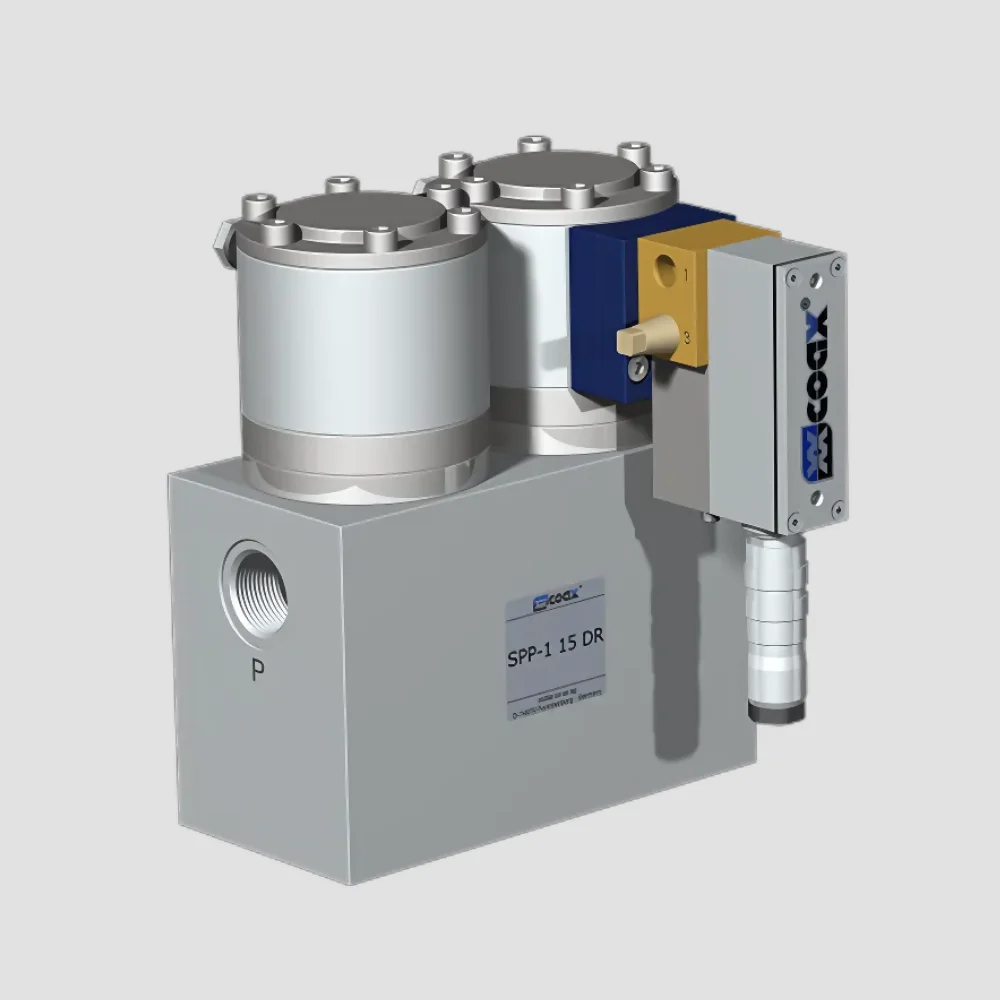

COAX SPP DR Series Pressure Control Valves

The COAX SPP DR 3/2 Way Pressure Control Valve offers adaptable, proportional control for gases and liquids, delivering accurate performance across diverse applications. With an orifice size of DN 15 and a pressure range of 0 to 100 bar, this aluminium valve operates at DC 24 V and incorporates a spring return with switching overlap. Threaded port connections and seal options in EPDM, PU, HNBR, and FPM ensure wide compatibility with various media, making it an ideal choice for demanding operational environments.

Valve Type: 3/2-way Pressure Control Valve
Operating Method: Proportional Externally Controlled
Valve Design: Externally Controlled, with Spring Return, Switching Overlap
Media: Gaseous, Liquid
Find Out More

Frequently Asked Questions

COAX Pressure Control Valves are designed for precise control of pressure in various industrial applications, including automation, process control, and safety.

These valves can manage various media, including gases, liquids, and slurries, making them versatile for multiple industries.

By maintaining accurate pressure control, these valves help reduce energy consumption and minimize equipment wear, leading to improved efficiency.

Industries like oil and gas, chemical processing, water treatment, and power generation commonly use COAX Pressure Control Valves.

Yes, COAX Pressure Control Valves are engineered to manage high-pressure conditions, with certain models optimized for such applications.

Yes, many COAX valves are constructed with materials that withstand corrosive conditions, enhancing durability and reliability.

They provide precise control, which helps prevent pressure spikes that could otherwise lead to equipment failure or accidents.

Yes, COAX offers customization options to meet specific industrial requirements and performance standards.

Their coaxial design offers faster response times, lower energy consumption, and longer operational life.

Regular inspection, cleaning, and timely replacement of wear parts can ensure optimal performance and longevity.

COAX Pressure Control Valves are available in various sizes to suit different piping systems and flow requirements.

Yes, proper installation and alignment are crucial to ensure effective pressure control and avoid operational issues.
