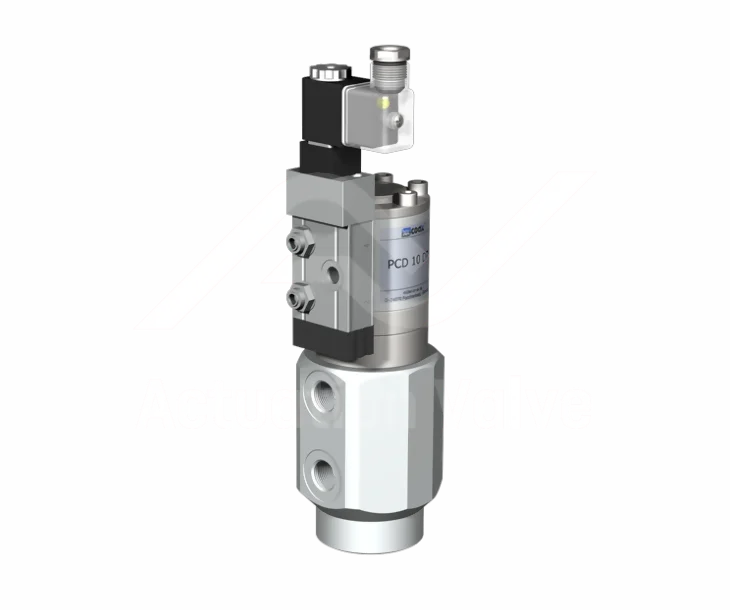

COAX PCD / PCD-H DR High Pressure Lateral Valves

The COAX PCD / PCD-H DR High Pressure Lateral Valves are 3/2-way valves with an externally controlled mechanism, designed for high-pressure applications up to 500 bar. With threaded ports and a pressure-balanced configuration, these valves include a spring return and switching overlap for reliable operation. Available in brass or stainless steel, the valves feature seals in NBR, PTFE, FPM, CR, or EPDM, making them suitable for gaseous and liquid media. They operate on either DC 24 V or AC 230 V, with orifice sizes ranging from DN 10 to DN 15.

Key Features

Key features and benefits of the COAX PCD / PCD-H DR High Pressure Lateral Valves
1

Key Features

These valves are engineered to handle pressures up to 500 bar, making them suitable for demanding applications requiring reliable performance under extreme conditions.
2

Key Features

Constructed with materials such as brass and stainless steel, and equipped with seals made from NBR, PTFE, FPM, CR, or EPDM, these valves are compatible with a wide range of gaseous and liquid media, ensuring adaptability across various industrial processes.
3

Key Features

Designed as 3/2-way valves with an externally controlled mechanism, they feature a pressure-balanced design with spring return and switching overlap. This configuration allows for precise control and reliable operation in complex systems.

Valve Specifications

Valve Type: 3/2-way valve
Operating Method: Externally Controlled
Orifice Size: DN 10 - 15
Pressure Range: PN 0 - 500 bar
Port Type: Threaded
Valve Design: Pressure Balanced, with Spring Return, Switching Overlap
Body Material: Brass, Stainless Steel
Seal Material: NBR, PTFE, FPM, CR, EPDM
Media: Gaseous, Liquid
Nominal Voltage: DC 24 V / AC 230 V

Frequently Asked Questions

These valves are designed for high-pressure systems up to 500 bar, suitable for industries such as gas filling stations, test benches, compressor systems, and hydraulic systems.

They are compatible with both gaseous and liquid media, thanks to their robust construction and versatile sealing materials.

The valve bodies are made from brass or stainless steel, with seals available in NBR, PTFE, FPM, CR, or EPDM, ensuring durability and compatibility with various media.

These valves operate within a pressure range of 0 to 500 bar, accommodating a wide spectrum of high-pressure applications.

The valves come with orifice sizes ranging from DN 10 to DN 15, allowing for selection based on specific flow requirements.

They feature threaded ports, facilitating straightforward integration into existing piping systems.

The COAX PCD / PCD-H DR valves are externally controlled, providing precise operation in complex systems.

These valves have a pressure-balanced design with a spring return mechanism and switching overlap, ensuring reliable performance under high-pressure conditions.

They can operate on either DC 24 V or AC 230 V, offering flexibility to match various power supply configurations.

Yes, the high switching force of the externally controlled valves allows for the use of wiper rings, making them suitable for abrasive media in high-pressure applications.

Yes, the switching times can be set as desired using throttles on the pilot valve, allowing for delays of up to three seconds to prevent hydraulic pressure surges in pipeline systems.
