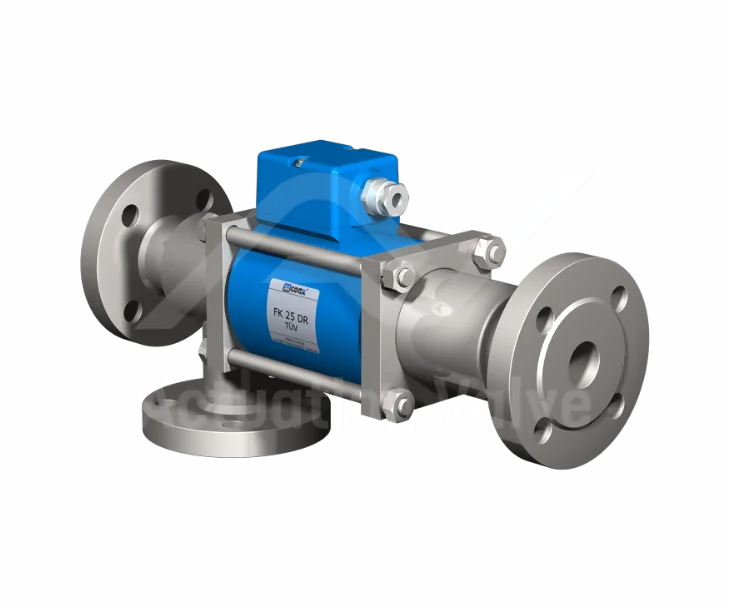

COAX MK / FK DR TÜV Certificated Valves

The COAX MK / FK DR TÜV Certificated Valves are 3/2-way, direct actuated, safety shut-off valves featuring galvanised steel bodies and FPM & PTFE seals, designed for liquid fuel applications. With orifice sizes from DN 15 to 25, they support a pressure range of PN 0 to 40 bar and are available with threaded or flanged ports. These valves operate with a pressure-balanced spring return and switching overlap, ensuring closure within one second during voltage loss, effectively securing fuel flow. Nominal voltage options include DC 24 V and AC 230 V.

Key Features

Key features and benefits of the COAX MK / FK DR TÜV Certificated Valves
1

Key Features

These valves are TÜV-certified safety shut-off devices that close within one second upon voltage loss, effectively halting fuel flow to prevent potential hazards.
2

Key Features

Available with both threaded and flanged ports, these valves provide flexibility for integration into various piping systems, accommodating diverse installation requirements.
3

Key Features

Constructed with galvanised steel bodies and FPM & PTFE seals, these valves are designed to handle liquid fuels under pressures up to 40 bar, ensuring reliable performance in challenging environments.

Valve Specifications

Valve Type: 3/2-way valve
Operating Method: Direct Actuated
Orifice Size: DN 15 - 25
Pressure Range: PN 0 - 40 bar
Port Type: Threaded / Flanged
Valve Design: Pressure Balanced, with Spring Return, Switching Overlap
Body Material: Galvanised Steel
Seal Material: FPM & PTFE
Media: Liquid Fuels
Nominal Voltage: DC 24 V / AC 230 V

Frequently Asked Questions

These valves are 3/2-way, direct actuated, with orifice sizes ranging from DN 15 to 25. They operate within a pressure range of PN 0 to 40 bar and are available with threaded or flanged ports. Constructed from galvanised steel with FPM and PTFE seals, they are designed for liquid fuel applications.

These TÜV-certified safety shut-off valves close within one second upon voltage loss, effectively halting fuel flow to prevent potential hazards.

The valves feature galvanised steel bodies and seals made from FPM and PTFE, ensuring durability and compatibility with liquid fuels.

COAX MK / FK DR TÜV Certificated Valves come with both threaded and flanged port options, providing flexibility for various installation requirements.

They are designed to operate within a pressure range of PN 0 to 40 bar, suitable for various liquid fuel applications.

The valves are available with nominal voltages of DC 24 V and AC 230 V, accommodating different electrical system requirements.

Yes, they are specifically designed for liquid fuel applications, ensuring reliable performance and safety.

They are direct actuated, providing precise control over fluid flow in various systems.

Yes, they feature a pressure-balanced design with a spring return and switching overlap, enhancing operational stability and reliability.

These valves are TÜV-certified, ensuring they meet stringent safety and performance standards for use in critical applications.

Yes, with a pressure range of PN 0 to 40 bar, they are suitable for high-pressure liquid fuel systems.
