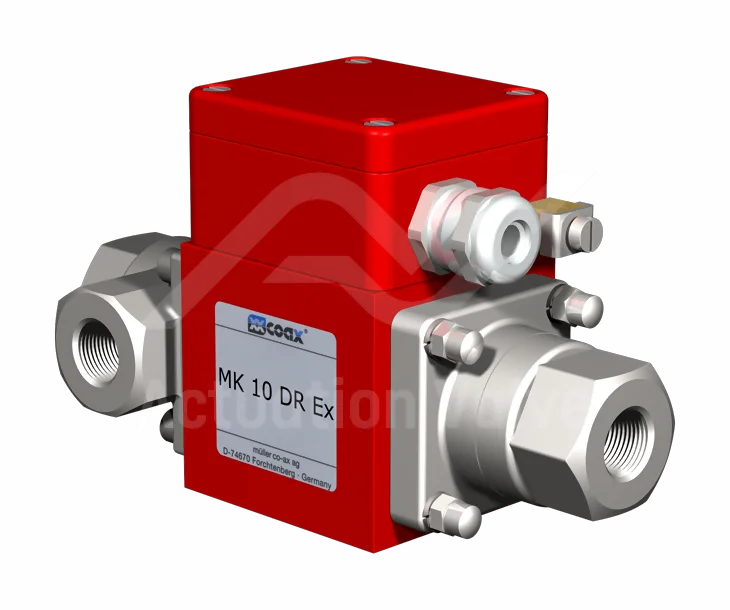

COAX MK / FK DR Ex Certificated Valves

The COAX MK / FK DR Ex Certificated Valves are direct actuated 3/2-way safety shut-off valves designed to handle gaseous, liquid, highly viscous, and contaminated media. Available in DN 10 to 50 sizes, they operate within a 0-40 bar pressure range and come in brass, nickel-plated, galvanised, and stainless steel bodies with seals like NBR, PTFE, FPM, CR, and EPDM. With threaded or flanged ports and a spring-return, pressure-balanced design, they operate on DC 24V or AC 230V, sealing within one second if voltage drops for reliable shut-off.

Key Features

Key features and benefits of the COAX MK / FK DR Ex Certificated Valves
1

Key Features

The COAX MK / FK DR Ex Certificated Valves are engineered with a reliable safety shut-off feature. In the event of a voltage drop, the valve automatically seals within one second, ensuring rapid containment of media flow to prevent unwanted discharge and safeguard surrounding systems.
2

Key Features

Built to handle a diverse range of media, these valves can effectively control gaseous, liquid, highly viscous, and even contaminated materials. This flexibility makes them suitable for various industrial applications, including those with challenging or mixed-media conditions.
3

Key Features

Offered in materials like brass, nickel-plated, galvanised, and stainless steel, the COAX MK / FK DR Ex valves provide a robust design that supports high-pressure environments (up to 40 bar). The selection of seals—including NBR, PTFE, FPM, CR, and EPDM—further enhances their durability and adaptability to specific process requirements.

Valve Specifications

Valve Type: 3/2-way valve
Operating Method: Direct Actuated
Orifice Size: DN 10 - 50
Pressure Range: PN 0 - 40 bar
Port Type: Threaded / Flanged
Valve Design: Pressure Balanced, with Spring Return, Switching Overlap
Body Material: Brass (& Nickel Plated), Galvanised / Nickel Plated / & Stainless Steel
Seal Material: NBR, PTFE, FPM, CR, EPDM, special materials
Media: Gaseous, Liquid, Highly Viscous, Contaminated
Nominal Voltage: DC 24 V / AC 230 V

DN10 to DN25 Documents & Drawings

DN32 to DN50 Documents & Drawings

Frequently Asked Questions

COAX MK / FK DR Ex Certificated Valves are used in industrial applications that require safe and reliable shut-off control for various media, including gases, liquids, highly viscous, and contaminated materials.

These valves operate with direct actuation, ensuring precise and immediate response, which is critical for safety applications in high-demand environments.

COAX MK / FK DR Ex valves can handle pressures ranging from PN 0 to 40 bar, making them suitable for high-pressure applications in industrial systems.

Yes, these valves are designed to handle contaminated media effectively, which makes them ideal for environments where debris or particulate matter may be present in the media.

The valves are available in materials such as brass, nickel-plated brass, galvanised steel, and stainless steel, providing durability and resistance to various media types.

Yes, these valves are equipped with a safety shut-off mechanism that seals the valve closed within one second if there is a drop in voltage, ensuring safe operation.

COAX MK / FK DR Ex valves are available with both threaded and flanged port types, allowing for flexibility in installation and compatibility with different systems.

These valves come in orifice sizes from DN 10 to DN 50, supporting a range of flow requirements in various applications.

These valves are compatible with gaseous, liquid, highly viscous, and contaminated media, providing versatility across different industrial processes.

COAX MK / FK DR Ex valves are available in both DC 24V and AC 230V nominal voltage options, catering to various electrical requirements.

These valves feature a pressure-balanced design with a spring return and switching overlap, allowing for efficient operation in demanding environments.
