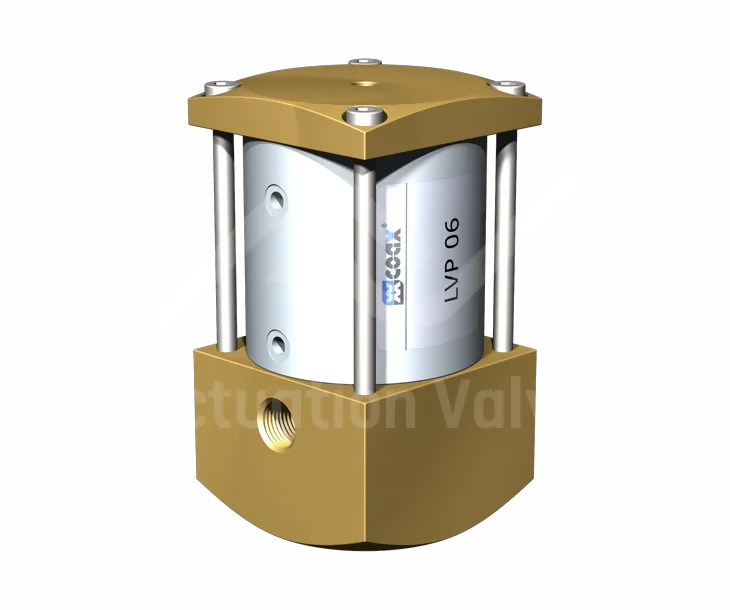

COAX LVP 06 Special Valves

The COAX LVP 06 Special Valve is a 2/2-way, externally controlled valve designed for high-pressure gas and fluid applications in gas filling and petrochemical process technologies. Featuring a DN6 orifice and threaded ports, it supports pressures up to 500 bar. Constructed with a brass body and Monel valve seat, this pneumatically actuated valve operates with spring return and offers two switching positions. Compatible with 3/2 or 5/2 pilot valves, its end position is signalled via an inductive limit switch.
Shop Help Me

Key Features

Key features and benefits of the COAX LVP 06 Special Valves
1

Key Features

Engineered to operate within a pressure range of PN 0 to 500 bar, this valve is suitable for high-pressure applications, particularly in gas filling and petrochemical process technologies.
2

Key Features

The valve accommodates various seal materials, including EPDM, NBR, and FPM, allowing compatibility with different gaseous media and enhancing its adaptability across diverse industrial applications.
3

Key Features

Featuring an externally controlled design with a spring return, the valve ensures reliable operation by automatically returning to its default position when control pressure is removed, thereby enhancing safety and operational efficiency.

Valve Specifications
Valve Type: 2/2 - Way Valve
Operating Method: Externally Controlled
Orifice Size: DN6
Pressure Range: PN 0 - 500 bar
Port Type: Threaded
Valve Design: Externally controlled with spring return
Body Material: Brass
Seal Material: EPDM, NBR, FPM
Media: Gaseous
Special Application: Gas Filling Technology, Petrochemical Process Technology

Documents & Drawings

  • Document
DATASHEET

Type LVP 06

  • Document
MANUAL

Operating Manual

Frequently Asked Questions

The COAX LVP 06 is a 2/2-way, externally controlled valve designed for high-pressure gas and fluid applications, commonly used in gas filling and petrochemical processes.

Key features include a DN6 orifice, threaded ports, pressure handling up to 500 bar, brass body construction, Monel valve seat, and compatibility with 3/2 or 5/2 pilot valves.

It is widely used in gas filling technology and petrochemical process industries due to its high-pressure capabilities and reliable performance.

The valve features a brass body and a Monel valve seat, ensuring durability and compatibility with various media.

The valve can handle pressures up to 500 bar, making it suitable for high-pressure applications.

It is designed for high-pressure gases and clean fluids, offering versatility across different applications.

The valve is pneumatically actuated and can be controlled via a direct-mounted 3/2 or 5/2 pilot valve, or one provided by the user.

The valve utilises seals made from EPDM, NBR, or FPM, depending on the specific application requirements.

Yes, the valve's end position can be indicated using an inductive limit switch, enhancing operational safety and monitoring.

The valve is designed for flow direction from port A to port B, as marked on the valve body.

The valve operates effectively within media temperatures of -20°C to +80°C and ambient temperatures of -20°C to +80°C.
