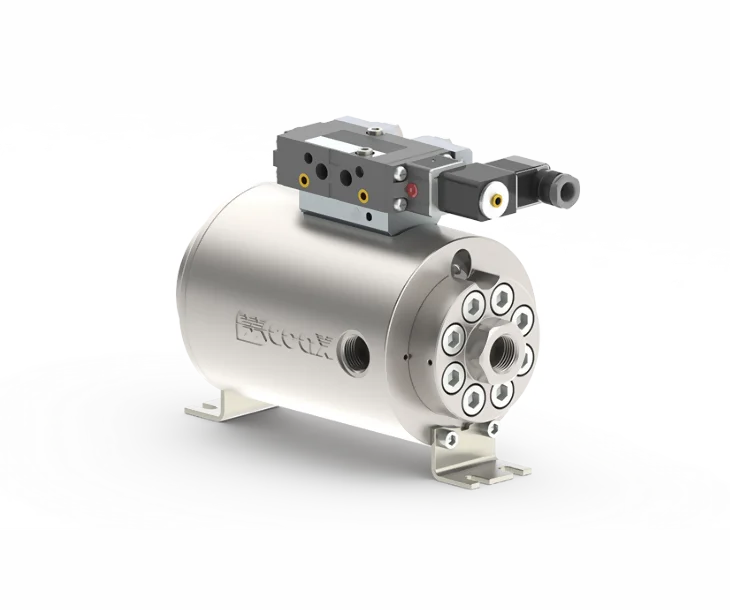

COAX KX 1000 High Pressure Lateral Valves

The COAX KX 1000 High Pressure Lateral Valve is a 2/2-way, externally controlled valve designed for handling gaseous media with an orifice size of DN 8 mm. Its stainless steel, pressure-balanced body can operate within a 0–1000 bar pressure range and features a threaded port with a spring return mechanism. Available in DC 24V and AC 230V, this high-performance valve offers durability with HPU and FKM seals, ensuring reliable operation across demanding applications.

Key Features

Key features and benefits of the COAX KX 1000 High Pressure Lateral Valves
1

Key Features

Engineered to handle pressures up to 1,000 bar, making it ideal for demanding applications such as hydrogen refuelling and storage systems.
2

Key Features

Its pressure-balanced construction allows for a compact form factor, facilitating installation in tight spaces without compromising performance.
3

Key Features

The valve's large nominal diameter enables rapid filling and evacuation processes, enhancing operational efficiency in high-pressure environments.

Valve Specifications

Valve Type: 2/2-way valve
Operating Method: Externally Controlled
Orifice Size: DN 8 mm
Pressure Range: PN 0-1000 bar
Port Type: Threaded
Valve Design: Pressure Balanced, with Spring Return
Body Material: Stainless Steel
Seal Material: HPU, FKM
Media: Gaseous
Nominal Voltage: DC 24V & AC 230V

Frequently Asked Questions

The COAX KX 1000 valve is designed to handle pressures up to 1,000 bar, making it suitable for high-pressure applications such as hydrogen refuelling and storage systems.

The KX 1000 is engineered for gaseous media, including hydrogen, ensuring reliable performance in various gas applications.

The valve body is made of stainless steel, with seals composed of HPU and FKM materials, providing durability and compatibility with high-pressure gaseous media.

The KX 1000 features threaded ports, specifically 13/16"-16 UN (9M) cone/thread connections, facilitating secure and efficient installation.

Yes, the KX 1000 is specifically designed for hydrogen applications, capable of handling pressures up to 1,000 bar, and is suitable for use in ATEX zones 1 and 2.

The valve operates with nominal voltages of DC 24V and AC 230V, accommodating various power supply configurations.

The valve has an orifice size of DN 8 mm, allowing for substantial flow rates suitable for high-pressure applications.

The KX 1000 has a Kv value of 1.9 m³/h, indicating its capacity to handle significant flow rates efficiently.

The valve operates effectively within a media temperature range of -10°C to +60°C and an ambient temperature range of -10°C to +50°C.

The valve weighs approximately 11.8 kg, making it manageable for installation while maintaining robust construction.

The valve has a switching time of 200 to 3,000 milliseconds for both opening and closing, allowing for controlled operation in high-pressure systems.
