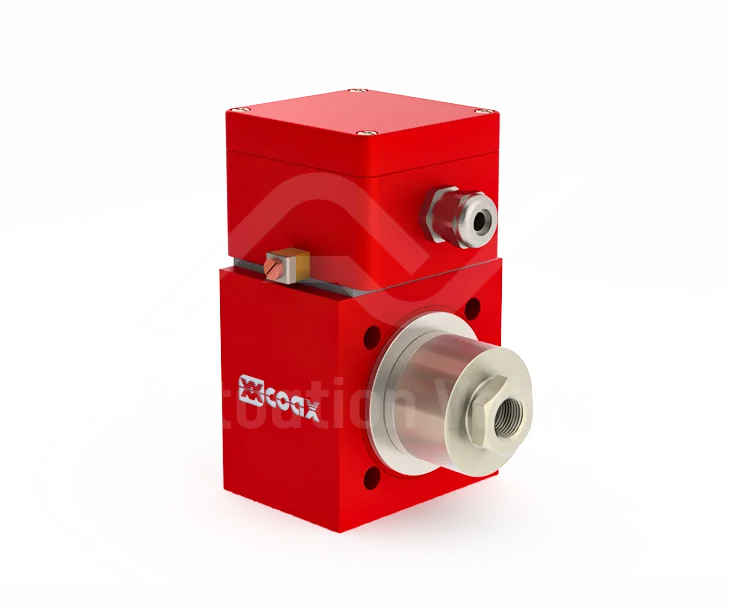

COAX KB / MK / FK Ex Certificated Valves

The COAX KB / MK / FK Ex Certificated Valves are direct-actuated, 2/2-way solenoid valves with a pressure-balanced design and spring return. Available in DN 2 to 50 sizes, they handle pressures from PN 0 to 100 bar and come with threaded or flanged ports. Constructed from brass, nickel-plated, galvanised, and stainless steel, they support gaseous, liquid, and highly viscous media. These safety shut-off valves, certified for rapid closure within one second, ensure reliable sealing upon voltage drop in either DC 24 V or AC 230 V configurations.

Key Features

Key features and benefits of the COAX KB / MK / FK Ex Certificated Valves
1

Key Features

The COAX KB / MK / FK Ex Certificated Valves are designed with a built-in fail-safe feature, ensuring immediate closure within one second of a voltage drop. This makes them ideal for applications where safety shut-off is critical, providing dependable protection in potentially hazardous environments.
2

Key Features

These valves support a wide range of media, including gaseous, liquid, highly viscous, and contaminated substances, due to their robust seal materials (NBR, PTFE, FPM, CR, EPDM, and special materials). This versatility enables use across various industrial applications, regardless of media type.
3

Key Features

Built with materials such as brass, nickel-plated brass, galvanised and stainless steel, these valves offer strong resistance to corrosion and environmental stresses. Available in DN 2 to DN 50 sizes and a pressure range up to 100 bar, they are well-suited for demanding environments requiring longevity and reliability.

Valve Specifications

Valve Type: 2/2-way valve
Operating Method: Direct Actuated
Orifice Size: DN 2 - 50
Pressure Range: PN 0 - 100 bar
Port Type: Threaded / Flanged
Valve Design: Pressure Balanced, with Spring Return
Body Material: Brass (& Nickel Plated), Galvanised / Nickel Plated / & Stainless Steel
Seal Material: NBR, PTFE, FPM, CR, EPDM, special materials
Media: Gaseous, Liquid, Highly Viscous, Contaminated
Nominal Voltage: DC 24 V / AC 230 V

Frequently Asked Questions

These valves are ideal for safety-critical applications, especially in hazardous environments where immediate shut-off in case of power loss is essential.

These valves are direct-actuated, 2/2-way solenoid valves with a spring return mechanism, ensuring a reliable safety shut-off function within one second upon power loss.

The body is available in brass (with nickel plating), galvanised steel, and stainless steel, providing excellent durability and corrosion resistance.

These valves can manage a range of media types, including gaseous, liquid, highly viscous, and even contaminated substances, making them suitable for various industrial processes.

They are designed to operate within a pressure range of PN 0 to 100 bar, catering to both low and high-pressure applications.

The valves use NBR, PTFE, FPM, CR, and EPDM seals, along with specialised materials, to provide reliable sealing across different media and environmental conditions.

Yes, these valves are Ex certified and type-tested for safety-critical operations, ensuring secure shut-off functions in environments requiring explosion protection.

The valves offer both threaded and flanged port types, enabling easy integration with various industrial setups.

These valves are compatible with DC 24 V and AC 230 V, accommodating common industrial voltage standards.

They come in sizes ranging from DN 2 to DN 50, allowing selection based on specific flow requirements.

In the event of a voltage drop, these valves are designed to shut off within one second, ensuring immediate safety and containment.
