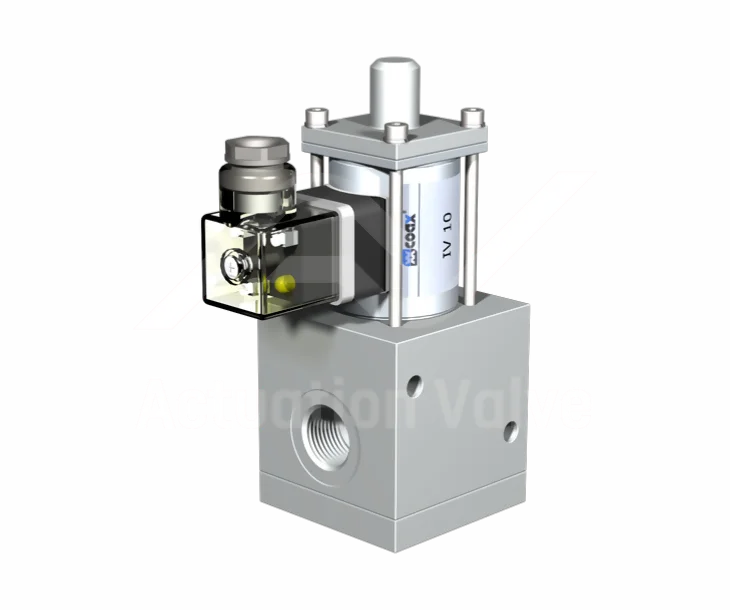

COAX Type IV 10-3 Special Valves

The COAX Type IV 10-3 Special Valves are 3/2-way, direct-actuated valves with a DN10 orifice, operating efficiently under vacuum conditions up to 1 bar. Designed with pulse action and an aluminium body, these valves require only a short 24VDC voltage impulse to switch positions securely, eliminating the need for a continuous power supply. Ideal for dusty, challenging environments, they offer reliable performance in gaseous media applications, such as lifting equipment with suction cups, even during power outages.
Shop Help Me

Key Features

Key features and benefits of COAX Type IV 10-3 Special Valves.
1

Key Features

Utilising an impulse magnet drive, this valve requires only a brief 24VDC voltage pulse to switch positions, maintaining its state without continuous power. This design ensures reliable operation even during power interruptions, enhancing safety in critical applications.
2

Key Features

Engineered for vacuum applications, the valve operates effectively up to a maximum vacuum of 98%. This makes it suitable for industries such as packaging, glass, and metal processing, where vacuum conditions are prevalent.
3

Key Features

Featuring an aluminium body and NBR seals, the valve is designed to withstand harsh, dusty environments. The absence of dynamic seals reduces wear and tear, contributing to a longer service life and dependable performance in demanding conditions.

Valve Specifications
Valve Type: 3/2 - Way Valve
Operating Method: Direct Actuated
Orifice Size: DN10
Pressure Range: Vacuum
Port Type: Threaded
Valve Design: Pulse Acting
Body Material: Aluminium
Seal Material: NBR
Media: Gaseous
Nominal Voltage: 24VDC

Documents & Drawings

  • Document
DATASHEET

Type IV 10-3
  • Document
MANUAL

Operating Manual

Frequently Asked Questions

The COAX Type IV 10-3 is a 3/2-way valve, meaning it has three ports and two positions, allowing it to direct flow between different channels as needed.

Yes, it is specifically designed for vacuum applications and ensures reliable operation with minimal leak rates, making it ideal for maintaining system integrity in vacuum conditions.

The valve is compatible with a range of media, including gaseous substances, which enhances its versatility for different industrial applications.

Yes, this valve features pulse-acting functionality, which means it can open or close quickly in response to electrical pulses, making it efficient for applications that require fast and accurate control.

The valve operates on a 24 V DC nominal voltage, ensuring compatibility with standard direct-current systems and ease of integration into existing setups.

The COAX Type IV 10-3 utilizes a DC direct-current magnet, which enables smooth and reliable actuation for high-performance operations.

The valve is constructed from high-quality materials capable of withstanding harsh operating conditions, including vacuum environments, while ensuring durability and longevity.

Yes, the COAX Type IV 10-3 comes with threaded connections, simplifying installation and ensuring secure, leak-free connections that withstand pressure changes and high usage.

Yes, various options and accessories are available to enhance functionality and compatibility for specific applications, such as additional fittings or adapters to suit custom setups.

Regularly check connections for tightness, inspect for signs of wear or leaks, and ensure that media is compatible with the valve materials to maintain optimal performance. Proper maintenance will extend its service life, especially in vacuum applications.

Yes, the pulse-acting design of the COAX Type IV 10-3 makes it well-suited for high-speed switching applications, enabling rapid and precise flow control. This feature is especially beneficial in systems that require frequent actuation with minimal delay.
The valve’s high-quality body materials provide a level of resistance suitable for many challenging environments; however, it’s important to verify material compatibility with specific corrosive media. For highly corrosive applications, additional coatings or material options may be available as accessories.
