COAX High Pressure Lateral Valves

COAX High Pressure Lateral Valves are engineered for demanding industrial applications, designed to handle high pressures effectively across a wide range of fluids, gases, and steam. These valves feature lateral construction, enhancing flow efficiency and reliability in extreme environments. Ideal for applications requiring durable and precise flow control, COAX high-pressure lateral valves deliver performance suited to industries like oil and gas, chemical processing, and power generation.

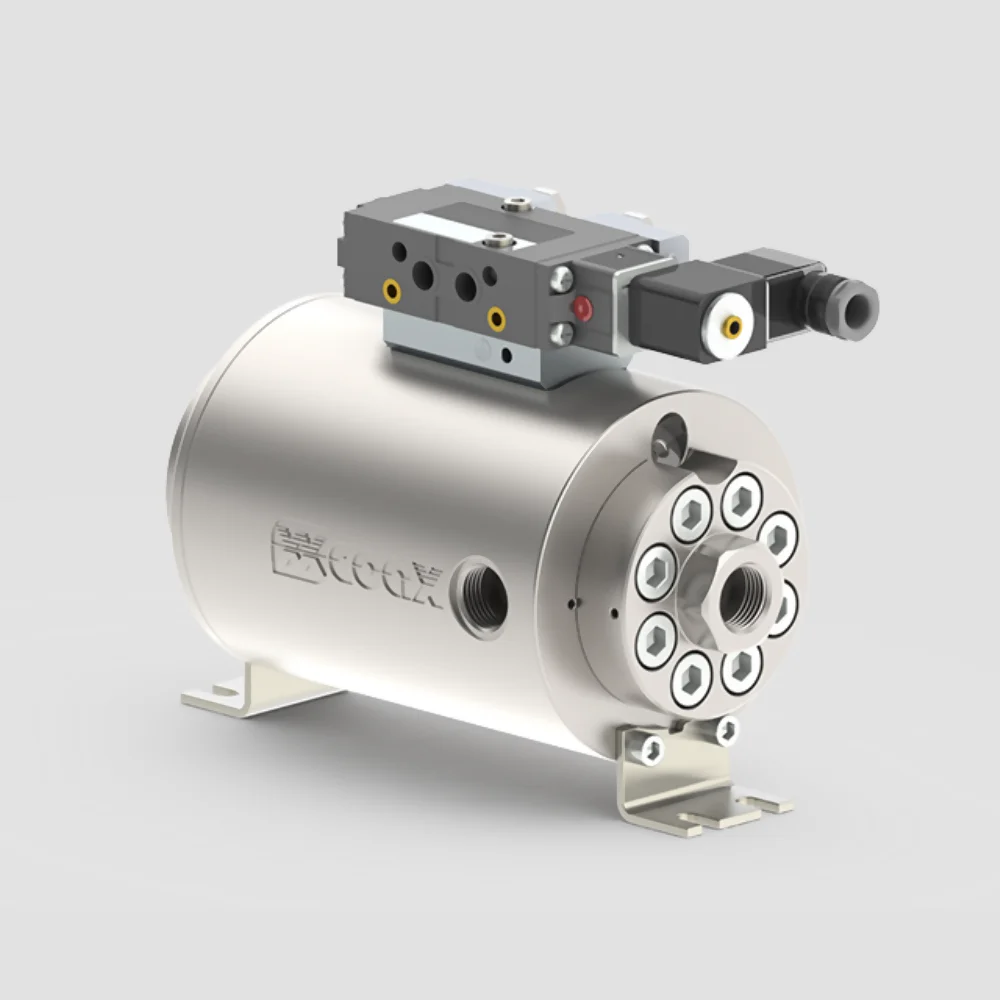

COAX KX 1000 Series High Pressure Lateral Valves

The COAX KX 1000 High Pressure Lateral Valve is a 2/2-way, externally controlled valve suitable for handling gaseous media, featuring an orifice of DN 8 mm. Its stainless steel, pressure-balanced body supports a working range of 0–1000 bar, with a threaded port and spring return. Offered in DC 24V and AC 230V, this high-performance valve incorporates HPU and FKM seals, delivering reliable performance for challenging applications where resilience and consistent operation are essential.

Valve Type: 2/2-way valve
Operating Method: Externally Controlled
Valve Design: Pressure Balanced, with Spring Return
Media: Gaseous
Find Out More

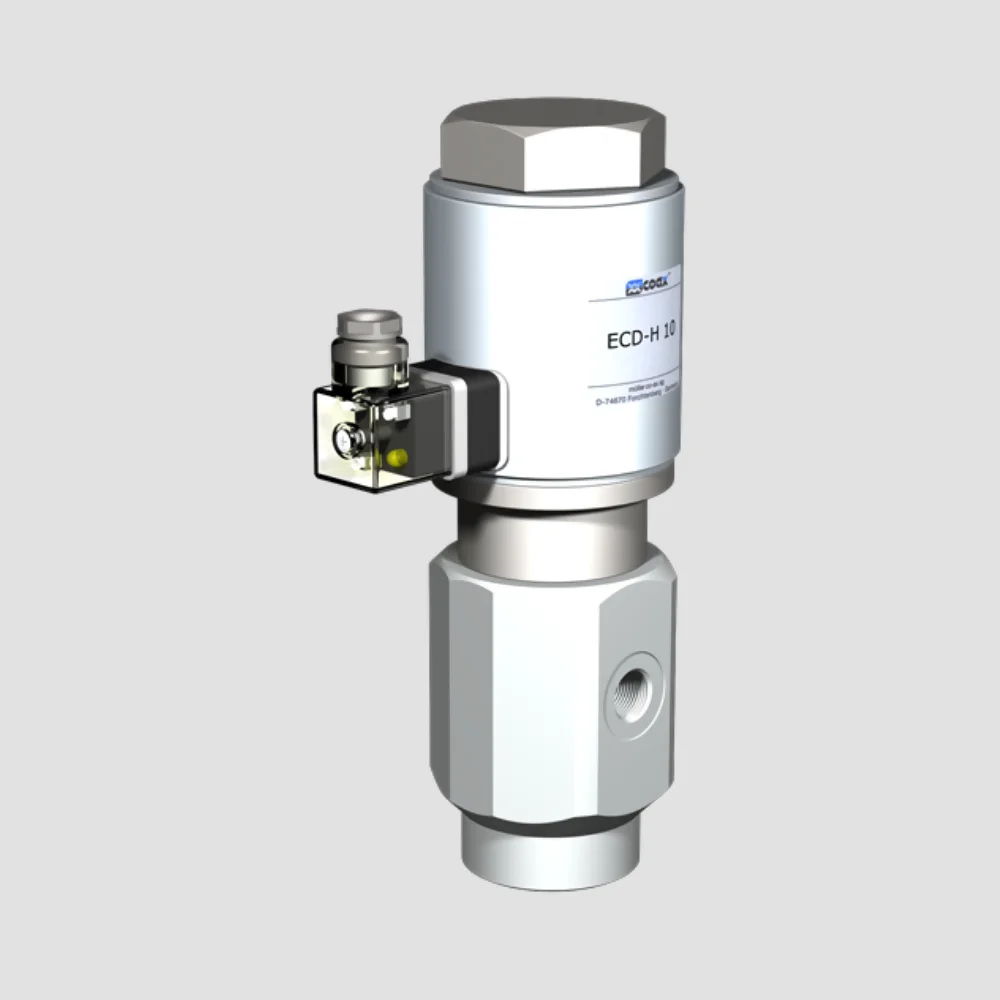

COAX ECD-H Series High Pressure Lateral Valves

The COAX ECD-H High Pressure Lateral Valve is a 2/2-way, direct-actuated valve tailored for high-pressure applications up to 200 bar. Built with a pressure-balanced, spring-return design, it ensures dependable control of both gas and liquid media. Offered in brass and stainless steel body options, with seals available in NBR, PTFE, FPM, CR, and EPDM, this valve adapts to demanding conditions. It features a DN 10 orifice and threaded ports, and operates on DC 24 V or AC 230 V, providing versatile integration options.

Valve Type: 2/2-way valve
Operating Method: Direct Actuated
Valve Design: Pressure Balanced, with Spring Return
Media: Gaseous, Liquid
Find Out More

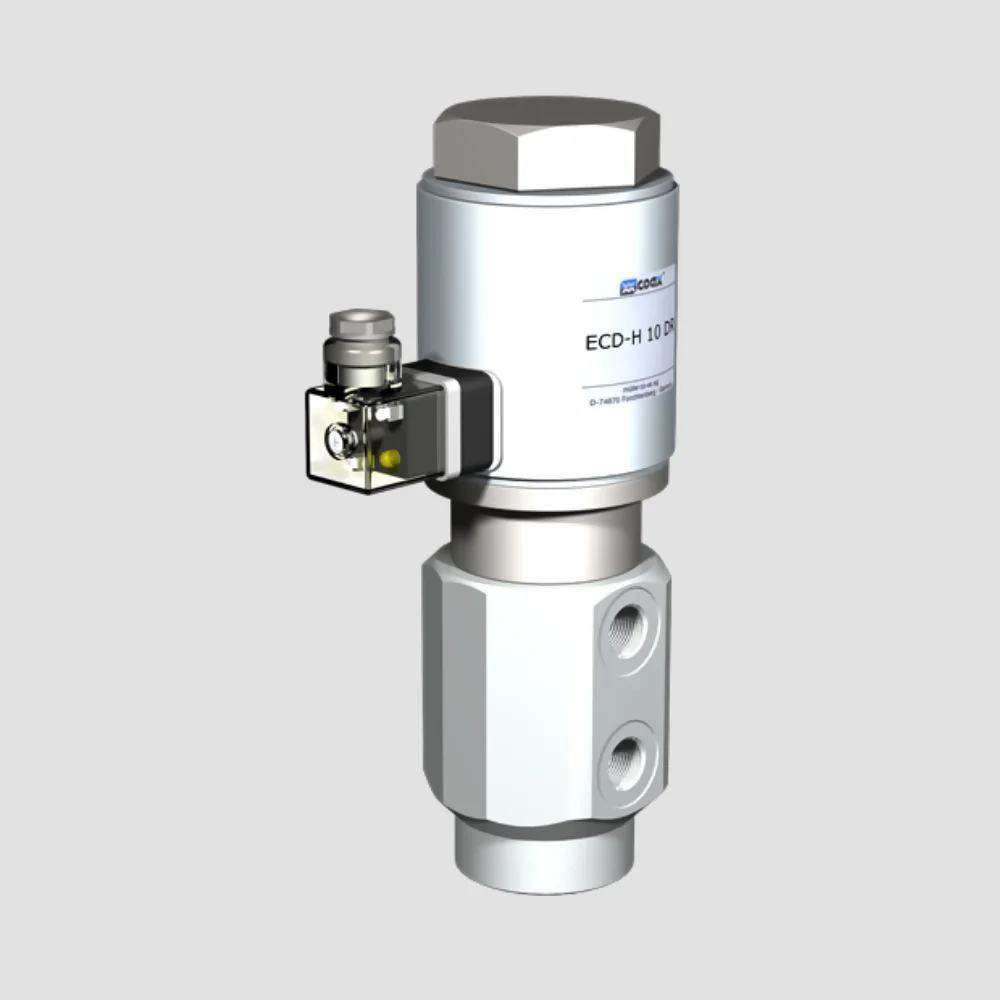

COAX ECD-H DR Series High Pressure Lateral Valves

The COAX ECD-H DR High Pressure Lateral Valve is a 3/2-way, direct-acting valve suited for demanding applications, with a pressure range from PN 0 to 150 bar. Featuring an orifice size of DN 10 and threaded port connections, this spring-return, pressure-balanced valve has a switching overlap. Available with brass or stainless steel body options and seals in NBR, PTFE, FPM, CR, and EPDM, it manages gaseous and liquid media effectively, supporting DC 24 V or AC 230 V operation for versatile industrial use.

Valve Type: 3/2-way valve
Operating Method: Direct Actuated
Valve Design: Pressure Balanced, with Spring Return, Switching Overlap
Media: Gaseous, Liquid
Find Out More

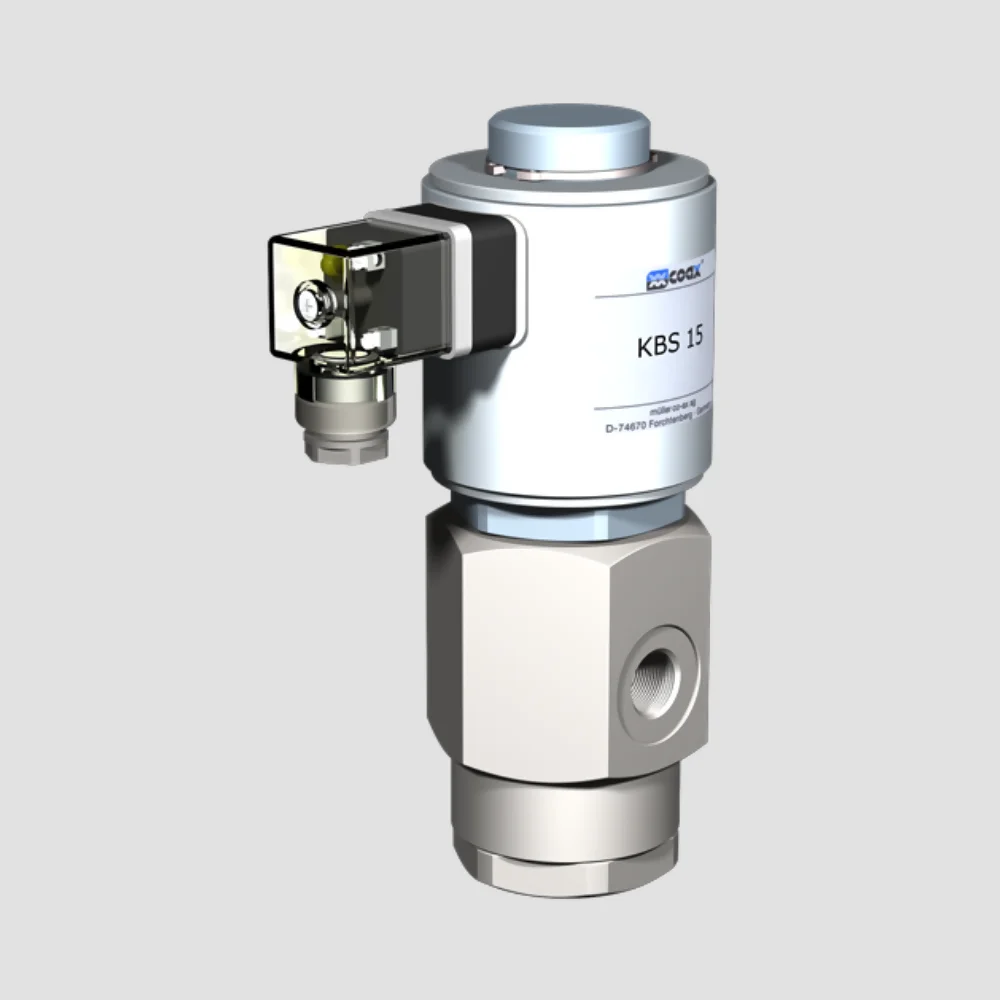

COAX KBS Series High Pressure Lateral Valves

The COAX KBS High Pressure Lateral Valve is a 2/2-way, direct-operated solution tailored for high-pressure tasks, supporting pressures from 0 to 500 bar. Constructed from brass, nickel-plated brass, or stainless steel, it offers orifice sizes between DN 1.5 and 3, with threaded ports and a spring-return function. Designed for both gaseous and liquid media, this valve operates on DC 24V or AC 230V and includes NBR or FPM seals, ensuring reliable performance in varied environments.

Valve Type: 2/2-way valve
Operating Method: Direct Actuated
Valve Design: Direct Acting, with Spring Return
Media: Gaseous, Liquid
Find Out More

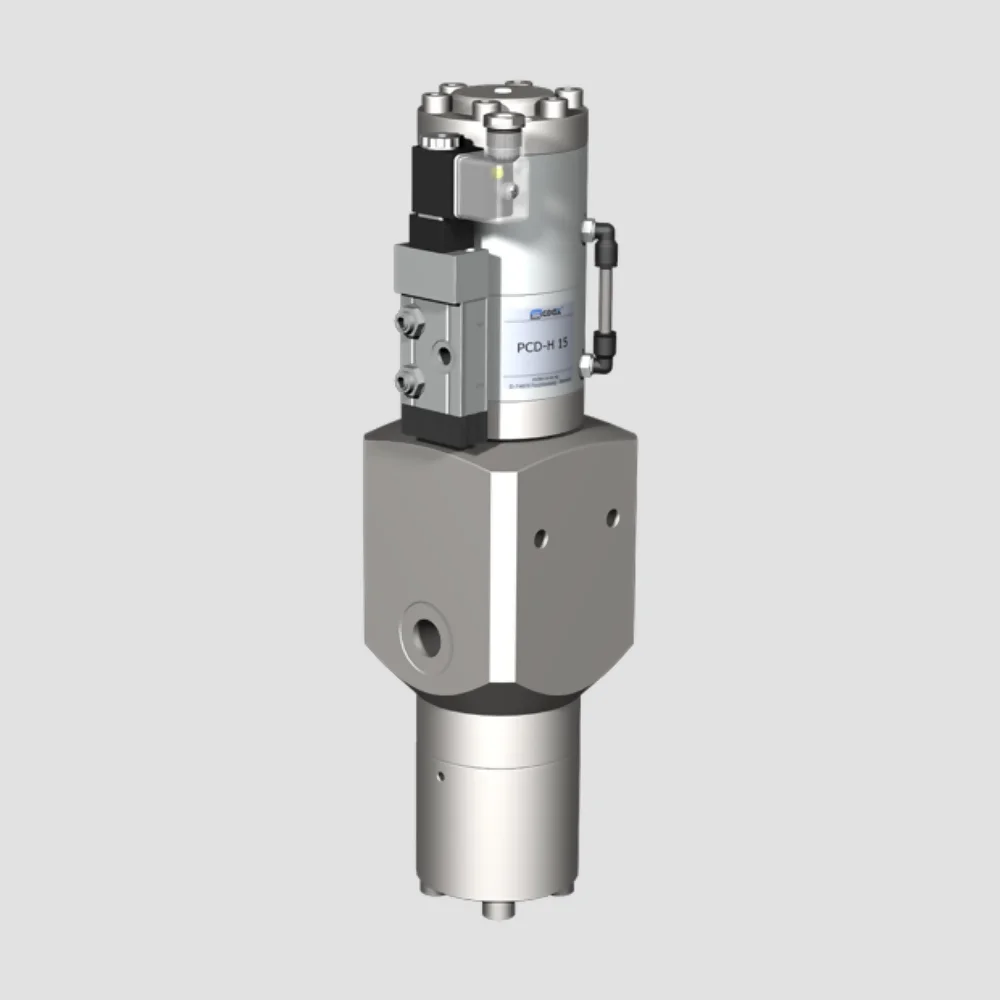

COAX PCD / PCD-H Series High Pressure Lateral Valves

The COAX PCD / PCD-H High Pressure Lateral Valve is a 2/2-way, externally controlled valve designed for high-pressure applications up to 500 bar. With orifice options from DN 10 to DN 15, this pressure-balanced, spring-return valve is offered in brass or stainless steel with a threaded port connection. Suitable for handling gaseous and liquid media, it includes sealing choices such as NBR, PTFE, FPM, CR, and EPDM. Operating at DC 24 V or AC 230 V, the PCD / PCD-H provides reliable performance in challenging conditions.

Valve Type: 2/2-way valve
Operating Method: Externally Controlled
Valve Design: Pressure Balanced, with Spring Return
Media: Gaseous, Liquid
Find Out More

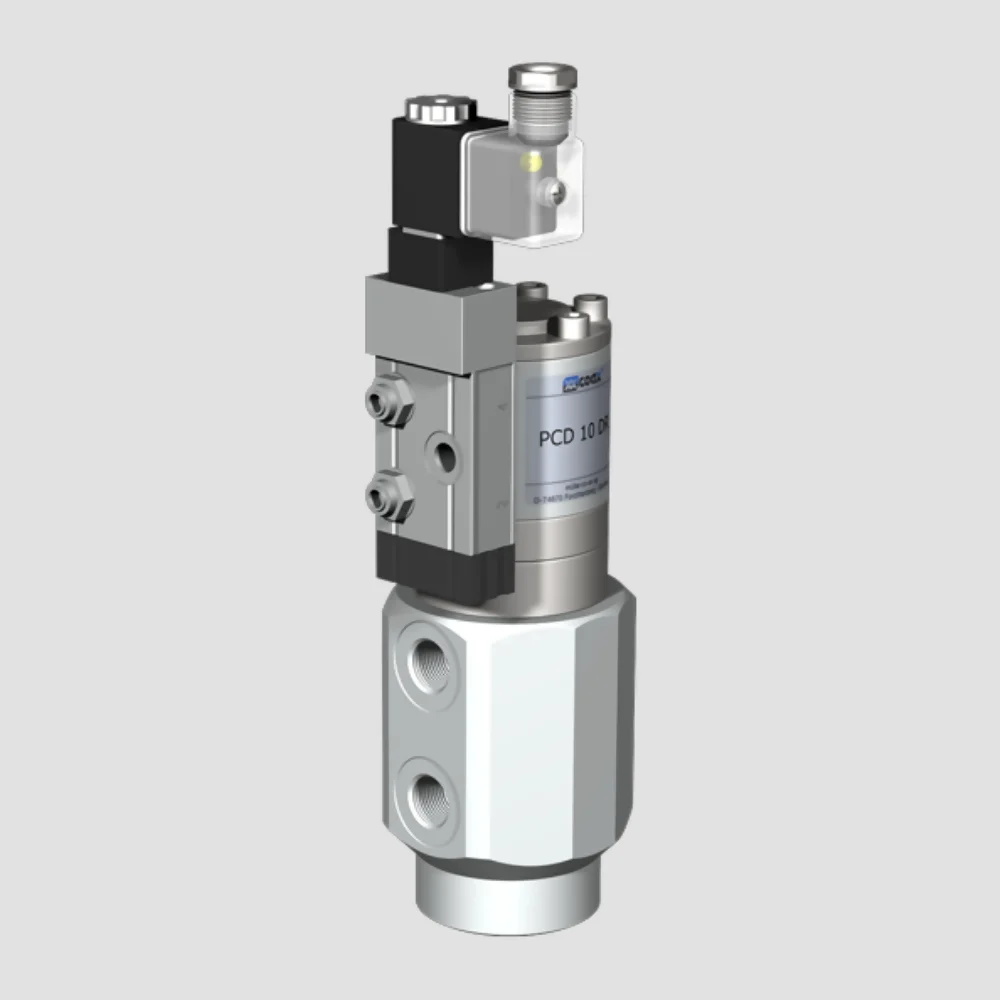

COAX PCD / PCD-H DR Series High Pressure Lateral Valves

The COAX PCD / PCD-H DR High-Pressure Lateral Valves are 3/2-way, externally controlled valves tailored for demanding high-pressure applications up to 500 bar. Featuring threaded ports and a pressure-balanced design, they come with a spring return and switching overlap for dependable performance. Available in brass or stainless steel, the valves offer a choice of NBR, PTFE, FPM, CR, or EPDM seals, making them ideal for gas and liquid media. They support DC 24 V or AC 230 V operation with orifice sizes from DN 10 to DN 15.

Valve Type: 3/2-way valve
Operating Method: Externally Controlled
Valve Design: Pressure Balanced, with Spring Return, Switching Overlap
Media: Gaseous, Liquid
Find Out More

Frequently Asked Questions

COAX high-pressure lateral valves are designed for safe and reliable operation under extreme pressure conditions in various industrial applications.

COAX high-pressure lateral valves can handle pressures up to specific limits based on the valve model, suitable for demanding environments.

These valves are widely used in oil and gas, chemical processing, and heavy manufacturing due to their high pressure tolerance.

COAX high-pressure lateral valves are engineered to prevent leakage and withstand extreme conditions, ensuring operational safety.

They are crafted from durable materials like stainless steel, enhancing longevity and resistance to harsh substances.

Yes, they are designed to resist corrosion, making them ideal for aggressive industrial environments.

These valves come in various sizes to accommodate different industrial piping and flow requirements.

Yes, they are capable of operating in high-temperature conditions, ensuring versatility across applications.

Their robust design minimizes maintenance needs, though regular checks can ensure long-lasting performance.

COAX valves provide exceptional durability, precise flow control, and safety features, distinguishing them from standard high-pressure valves.

These valves support different actuation methods, including manual and automatic, for adaptable control.

COAX incorporates advanced engineering and high-quality materials to ensure these valves maintain reliability under extreme pressures and demanding conditions, making them suitable for critical industrial applications.
