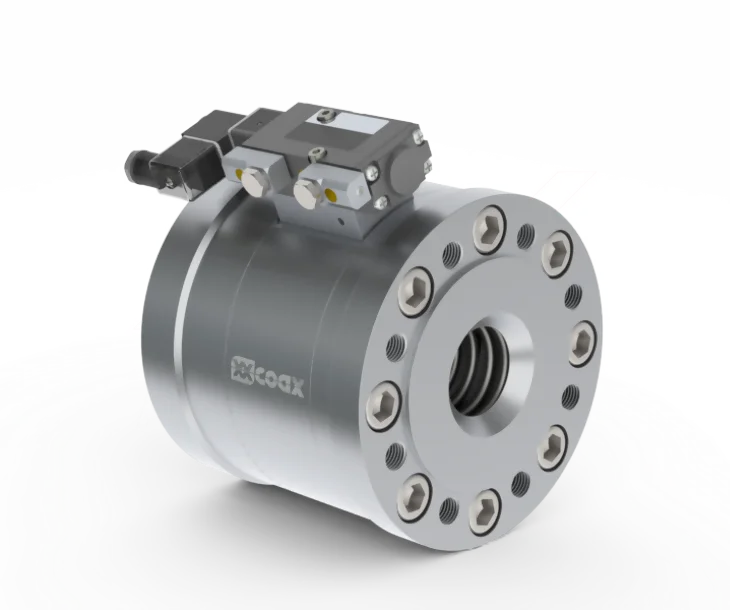

COAX FCK-K 2/2 Way Externally Controlled Coaxial Valves

The COAX FCK-K 2/2-way externally controlled coaxial valve is engineered for reliable flow control across a range of applications. Designed with a flanged port type, this valve supports an orifice size of DN 65 to 125 and handles pressures up to 40 bar. Its pressure-balanced design, featuring a spring return, suits emulsions, oils, and neutral gases. Available with an aluminium or hard-coated aluminium body and NBR, PU, PTFE, FPM, and other specialised seals, it operates at DC 24 V or AC 230 V, providing flexible and effective operation.
Shop Help Me

Key Features

Key features and benefits of the COAX FCK-K 2/2 Way Externally Controlled Coaxial Valves
1

Key Features

The FCK-K valve is suitable for handling a wide range of media, including emulsions, oils, and neutral gases, making it ideal for diverse industrial applications requiring adaptable flow control.
2

Key Features

Constructed with a pressure-balanced design and a reliable spring return, the valve ensures consistent performance under varying pressures, supporting up to 40 bar for robust control in demanding environments.
3

Key Features

Featuring a durable aluminium or hard-coated aluminium body and available with multiple seal materials like NBR, PU, PTFE, and FPM, the valve offers enhanced longevity and adaptability across applications with different sealing needs.

Valve Specifications
Valve Type: 2/2-way valve
Operating Method: Externally Controlled
Orifice Size: DN 65 - 125
Pressure Range: PN 0 - 40 bar
Port Type: Flanged
Valve Design: Pressure Balanced, with Spring Return
Body Material: Aluminium / Aluminium Hardcoated
Seal Material: NBR, PU, PTFE, FPM, PE, Special Materials
Media: Emulsions, Oils, Neutral Gases
Nominal Voltage: DC 24 V / AC 230 V

Documents & Drawings

  • Document
DATASHEET

Type FCF-K 65 - FCF-K 125

  • Document
MANUAL

General Operating Manual for Valves
  • Document
Certificate

Declaration of Conformity Non-Electric Equipment

Frequently Asked Questions

COAX FCK-K 2/2-way valves are ideal for applications involving emulsions, oils, and neutral gases, supporting versatile flow control across various industrial environments.

The COAX FCK-K valves operate within a pressure range of PN 0 to 40 bar, making them suitable for both low and high-pressure systems.

These valves can handle emulsions, oils, and neutral gases, providing flexibility for various fluid and gas applications.

The COAX FCK-K valve range offers orifice sizes from DN 65 to DN 125, allowing selection based on specific flow and application needs.

COAX FCK-K valves feature a body made from aluminium or aluminium hardcoated for added durability and resistance to wear.

COAX FCK-K valves come with seals made from NBR, PU, PTFE, FPM, and specialised materials to ensure compatibility with various media.

Yes, the COAX FCK-K valve range uses a pressure-balanced design with a spring return for stable operation under varying pressure conditions.

COAX FCK-K valves are available in both DC 24 V and AC 230 V options, offering flexibility for different power requirements.

These valves are externally controlled, allowing for precise management in automated systems.

Yes, COAX FCK-K valves feature a flanged port type, ensuring secure and reliable connections in industrial settings.

Depending on the selected seal material, COAX FCK-K valves can handle a range of temperatures, making them adaptable to different operating environments.
