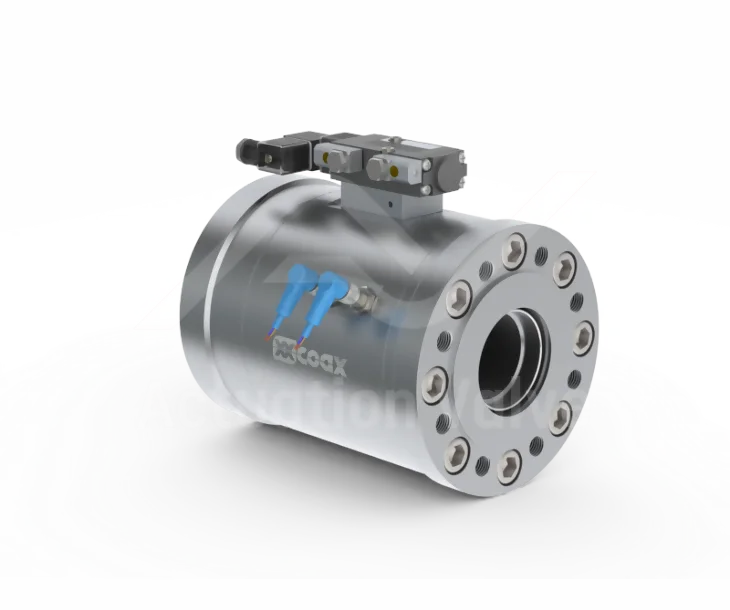

COAX FCF 2/2 Way Externally Controlled Coaxial Valves

The COAX FCF 2/2-way externally controlled coaxial valve offers dependable flow control for emulsions, oils, and neutral gases. Designed with a pressure-balanced structure and a spring return mechanism, it accommodates orifice sizes ranging from DN 65 to DN 125 and operates within a pressure range of PN 0 - 40 bar. This flanged valve is available in aluminium or hardcoated aluminium, with sealing options including NBR, PU, PTFE, FPM, and PE. It supports both DC 24 V and AC 230 V, making it versatile for varied industrial applications.
Shop Help Me

Key Features

Key features and benefits of the COAX FCF 2/2 Way Externally Controlled Coaxial Valves
1

Key Features

The valve’s pressure-balanced design ensures consistent performance across its full operating pressure range, up to 40 bar. This feature is critical for applications requiring stable flow control under varying pressure conditions, making it suitable for both heavy-duty and precision-controlled environments.
2

Key Features

Engineered to handle a range of media including emulsions, oils, and neutral gases, the COAX FCF valve is adaptable to diverse industrial settings. The valve’s high-grade seal materials, such as NBR, PU, PTFE, and FPM, provide flexibility and reliability even with challenging fluids.
3

Key Features

Constructed with either aluminium or hardcoated aluminium for increased resilience, the valve features a spring return mechanism that ensures it reverts to its default position upon pressure loss. This mechanism adds an extra layer of safety, particularly useful in systems requiring automatic closure in emergency situations.

Valve Specifications
Valve Type: 2/2-way valve
Operating Method: Externally Controlled
Orifice Size: DN 65 - 125
Pressure Range: PN 0 - 40 Bar
Port Type: Flanged
Valve Design: Pressure Balanced, with Spring Return
Body Material: Aluminium / Aluminium Hardcoated
Seal Material: NBR, PU, PTFE, FPM, PE, Special Materials
Media: Emulsions, Oils, Neutral Gases
Nominal Voltage: DC 24 V / AC 230 V

Documents & Drawings

  • Document
DATASHEET

Type FCF 25 - FCF 150
  • Document
MANUAL

General Operating Manual for Valves
  • Document
CERTIFICATE

Declaration of Conformity Non-Electric Equipment

Frequently Asked Questions

The COAX FCF 2/2-way externally controlled coaxial valve is ideal for handling emulsions, oils, and neutral gases, commonly used in industrial applications requiring controlled flow management.

This valve is compatible with various media, including emulsions, oils, and neutral gases, thanks to its durable materials and versatile sealing options.

The COAX FCF valve operates effectively within a pressure range of PN 0 - 40 bar, suitable for high-pressure applications.

The COAX FCF range includes orifice sizes from DN 65 to DN 125, allowing for varied flow capacities based on application needs.

The COAX FCF valve operates via an external control mechanism, providing enhanced precision and control over fluid flow.

The valve body is constructed from aluminium or aluminium hardcoated, offering durability and resistance to wear in industrial environments.

Sealing options include NBR, PU, PTFE, FPM, and PE, each chosen for compatibility with specific media and operating conditions.

Yes, the COAX FCF valve is designed with a spring return feature, ensuring automatic closure in case of pressure loss, which enhances safety in system operations.

The COAX FCF valve range uses flanged ports, facilitating secure installation in various industrial piping setups.

The valve supports DC 24 V and AC 230 V, catering to different electrical system requirements across applications.

Yes, the COAX FCF valve is pressure-balanced, allowing it to maintain stable operation across varying pressure levels up to 40 bar.
