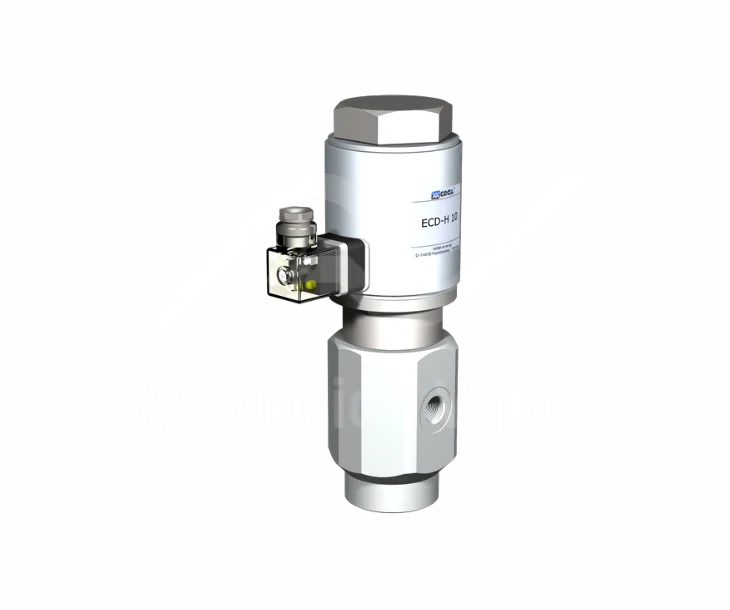

COAX ECD-H High Pressure Lateral Valves

The COAX ECD-H High Pressure Lateral Valve is a 2/2-way, direct actuated valve designed for high-pressure applications up to 200 bar. Featuring a pressure-balanced design with a spring return, it offers reliable control for gaseous and liquid media. Available in brass and stainless steel bodies, with seal options including NBR, PTFE, FPM, CR, and EPDM, this valve is versatile across demanding environments. With orifice size DN 10 and threaded ports, it operates on DC 24 V or AC 230 V for flexible integration.
Shop Help Me

Key Features

Key features and benefits of the COAX ECD-H High Pressure Lateral Valves
1

Key Features

Constructed with brass or stainless steel bodies and available with seals made from NBR, PTFE, FPM, CR, or EPDM, the valve is adaptable to various media and operating conditions.
2

Key Features

Designed to handle pressures up to 200 bar, the valve is suitable for demanding applications requiring reliable performance under high-pressure conditions.
3

Key Features

The valve operates on both DC 24 V and AC 230 V, providing flexibility for integration into different electrical systems.

Valve Specifications
Valve Type: 2/2-way valve
Operating Method: Direct Actuated
Orifice Size: DN 10
Pressure Range: PN 0 - 200 bar
Port Type: Threaded
Valve Design: Pressure Balanced, with Spring Return
Body Material: Brass, Stainless Steel
Seal Material: NBR, PTFE, FPM, CR, EPDM
Media: Gaseous, Liquid
Nominal Voltage: DC 24 V / AC 230 V

Documents & Drawings

  • Document
DATASHEET

Type ECD-H 10
  • Document
MANUAL

General Operating Manual for Valves

Frequently Asked Questions

The valve is designed to handle pressures up to 200 bar.

It is suitable for both gaseous and liquid media.

The valve body is available in brass or stainless steel, with seals made from NBR, PTFE, FPM, CR, or EPDM.

The valve features an orifice size of DN 10.

It operates on DC 24 V or AC 230 V.

It is a 2/2-way valve, meaning it has two ports and two switching positions.

The valve is direct actuated, providing prompt response times.

It features threaded port connections for secure installation.

The valve is pressure balanced and includes a spring return mechanism.

The flow direction is from port A to port B, as marked on the valve.

The valve has a protection rating of IP65, indicating it is dust-tight and protected against water jets.
