COAX ECD-H DR High Pressure Lateral Valves

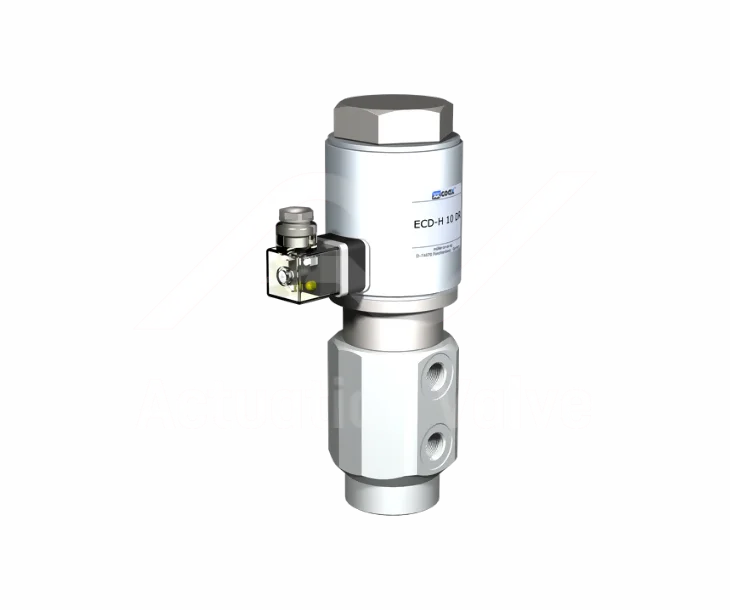

The COAX ECD-H DR High Pressure Lateral Valve is a 3/2-way, direct actuated valve designed for demanding applications, offering reliable performance within a pressure range of PN 0 to 150 bar. With an orifice size of DN 10 and threaded port connections, this pressure-balanced valve features a spring return and switching overlap. Constructed with brass or stainless steel body materials and compatible seal options, including NBR, PTFE, FPM, CR, and EPDM, it efficiently handles gaseous and liquid media, operating on DC 24 V or AC 230 V.
Shop Help Me

Key Features

Key features and benefits of the COAX ECD-H DR High Pressure Lateral Valves
1

Key Features

Engineered to handle both gaseous and liquid media, this valve is suitable for a wide range of industrial applications.
2

Key Features

Available in brass or stainless steel, the valve ensures longevity and reliability under high-pressure conditions.
3

Key Features

With seals made from NBR, PTFE, FPM, CR, and EPDM, the valve provides compatibility with various media types and operating environments.

Valve Specifications
Valve Type: 3/2-way valve
Operating Method: Direct Actuated
Orifice Size: DN 10
Pressure Range: PN 0 - 150 bar
Port Type: Threaded
Valve Design: Pressure Balanced, with Spring Return, Switching Overlap
Body Material: Brass, Stainless Steel
Seal Material: NBR, PTFE, FPM, CR, EPDM
Media: Gaseous, Liquid
Nominal Voltage: DC 24 V / AC 230 V

Documents & Drawings

  • Document
DATASHEET

Type ECD-H 10 DR
  • Document
MANUAL

General Operating Manual for Valves

Frequently Asked Questions

The valve operates within a pressure range of 0 to 150 bar.

It is designed to handle both gaseous and liquid media.

The valve body is made from brass or stainless steel, with seals available in NBR, PTFE, FPM, CR, and EPDM.

The valve features an orifice size of DN 10.

It comes with threaded port connections.

The valve is direct actuated.

It is a pressure-balanced valve with a spring return and switching overlap.

The valve operates on DC 24 V or AC 230 V.

The opening time is approximately 250 ms, and the closing time is around 110 ms.

The valve weighs approximately 6.0 kg.

It has a protection rating of IP65.
