COAX Cartridge Valves

COAX Cartridge Valves offer a high-performance solution for challenging flow applications, featuring a unique cartridge design that enables precise control in confined spaces. Known for their reliable operation, these valves are suited for various media, including gases, liquids, and aggressive substances. Ideal for compact installations, COAX Cartridge Valves enhance operational efficiency in industries like automotive, chemical processing, and industrial automation, supporting applications requiring quick response and longevity.

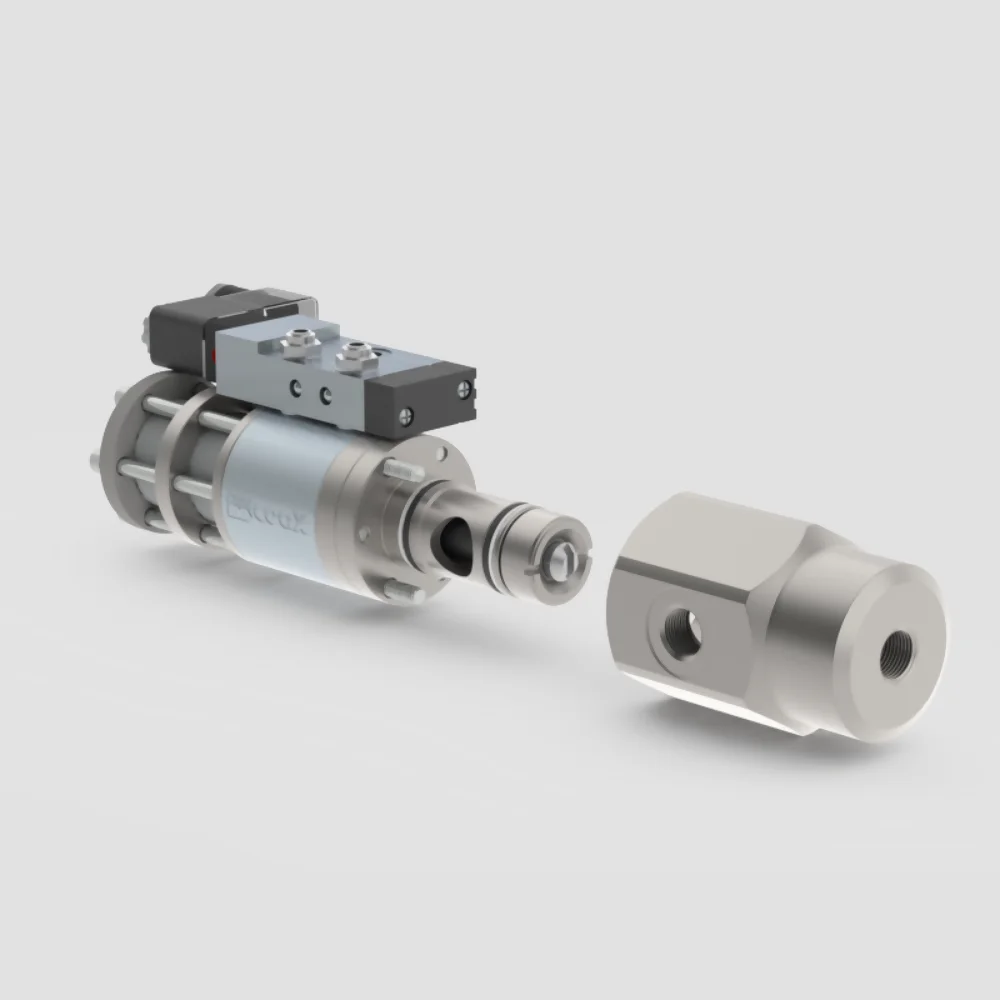

COAX PCD Series Cartridge Valves

The COAX PCD Cartridge Valves are 2/2-way, externally controlled units featuring orifice sizes of DN 10-15 and a pressure range up to PN 100 bar. These valves, equipped with a spring return and threaded ports, are suitable for gaseous, liquid, viscous, and contaminated media. Constructed from aluminium, brass, and stainless steel, with sealing materials like PU, NBR, and PTFE, they provide broad application flexibility. A 24V DC or 230V AC cartridge, secured by three screws, allows easy replacement within pipe systems.

Valve Type: 2/2-way valve
Operating Method: Externally Controlled
Valve Design: Externally Controlled, with Spring Return
Media: Gaseous, Liquid, Highly Viscous, Contaminated
Find Out More

COAX PCS Series Cartridge Valves

The COAX PCS Cartridge Valves are 2/2-way, externally controlled units, highly versatile for handling various media, such as gases, liquids, and thick fluids. With orifice sizes from DN 10 to DN 15 and pressure tolerance up to 150 bar, they are offered in aluminium, brass, and stainless steel, and sealed with HNBR, FPM, EPDM, or special materials. Featuring a spring return design, these valves allow for easy upkeep, as the cartridge is secured by three screws and can be swiftly replaced, ensuring continuous operation.

Valve Type: 2/2-way valve
Operating Method: Externally Controlled
Valve Design: Externally Controlled, with Spring Return
Media: Gaseous, Liquid, Highly Viscous, Contaminated
Find Out More

Frequently Asked Questions

COAX Cartridge Valves are compact, high-performance valves designed for efficient control of fluids and gases in various industrial applications. Their coaxial design allows for rapid switching and minimal pressure loss.

These valves operate by utilizing a coaxial mechanism, where the flow path is aligned with the actuator. This design enables direct and fast operation, making them suitable for high-pressure systems.

Industries such as chemical processing, food and beverage, pharmaceuticals, and automotive manufacturing employ COAX Cartridge Valves for their reliability and efficiency in controlling various media.

Benefits include compact size, rapid response times, high-pressure handling capabilities, and ease of maintenance due to the cartridge design, which allows for quick replacement without removing the entire valve assembly.

Maintenance is straightforward; the cartridge can be replaced by loosening three screws, eliminating the need to dismantle the entire valve body from the pipeline.

They are constructed from materials such as brass, stainless steel, and specialized polymers, chosen based on the application's media and environmental conditions.

Yes, certain models are designed to handle pressures up to 200 bar (2900 psi), making them suitable for high-pressure systems.

Yes, versions with hose seals are available for handling heavily soiled or sticky media, ensuring reliable operation in challenging conditions.

They are available in nominal widths ranging from 10 mm to 15 mm, accommodating various flow requirements.

By using fine throttles on the pilot valve, switching times can be adjusted to delay opening and closing, preventing hydraulic shocks in piping systems.

With proper maintenance, these valves offer a long service life, though the exact lifespan depends on operating conditions and media handled.

Yes, COAX Cartridge Valves are ideal for rapid cycling applications due to their coaxial design, allowing them to switch quickly and maintain performance under frequent use.
