Actuated Lugged Carbon Steel Butterfly Valves

Actuated lugged carbon steel butterfly valves are designed for robust performance and precise flow control in demanding industrial environments. These valves feature a durable carbon steel construction, providing excellent resistance to high pressures and temperatures, making them ideal for various applications. The lugged design allows for secure and leak-free connections, facilitating maintenance and installation without disrupting the entire pipeline system. Equipped with reliable actuators, these valves ensure smooth and consistent automation, enhancing overall system efficiency and control.

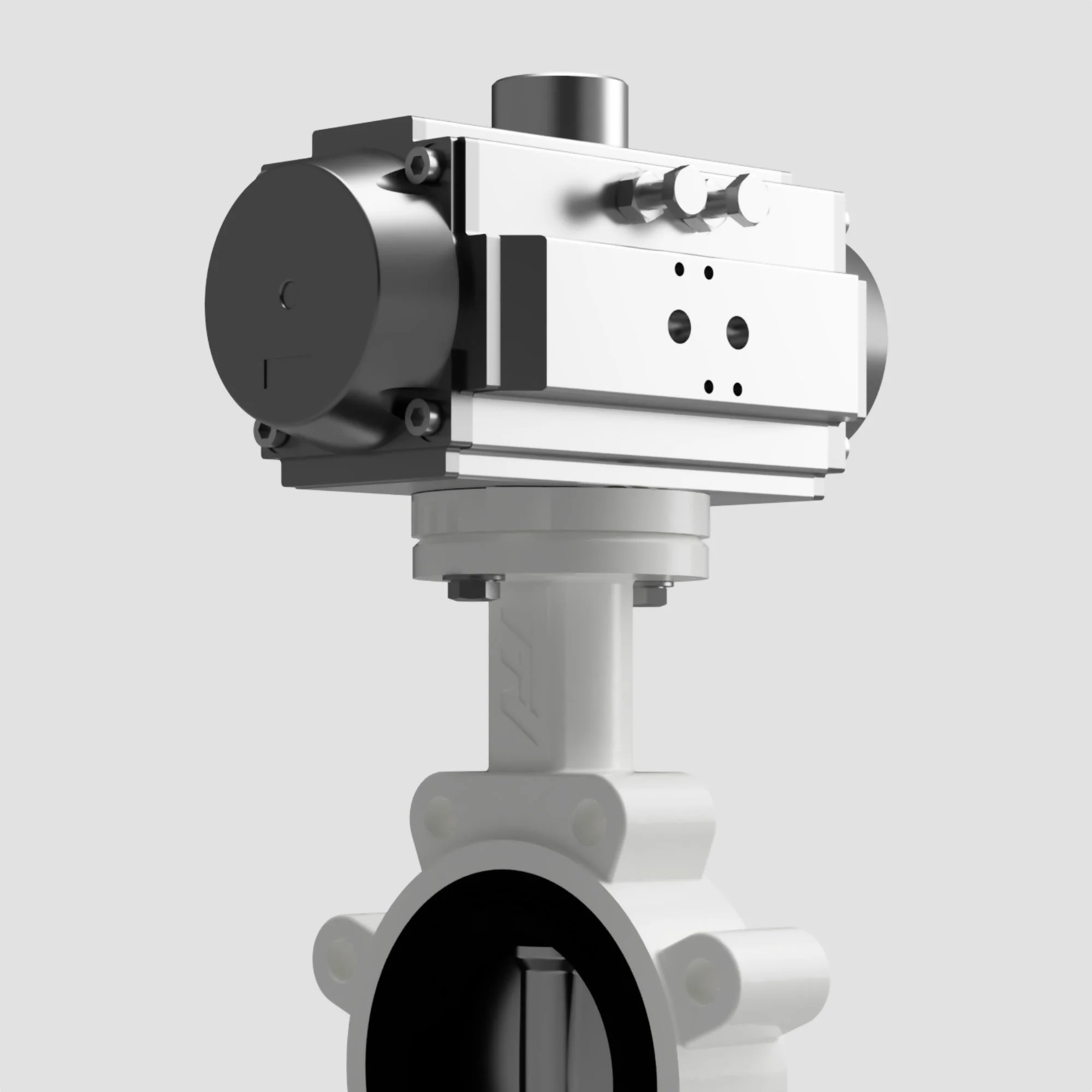

50L3040AC - Lugged Pattern V-Tork Pneumatic Butterfly Valves

Actreg actuated lugged carbon steel butterfly valves are engineered for superior performance and reliability in demanding industrial applications. These valves feature a rugged carbon steel construction and a lugged design, providing secure and leak-free connections that facilitate maintenance and system flexibility. The Actreg actuator ensures precise and efficient automation, enabling consistent and smooth operation to enhance overall system control and efficiency.

Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: Carbon Steel ASTM A216 Grade WCB
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
Find Out More

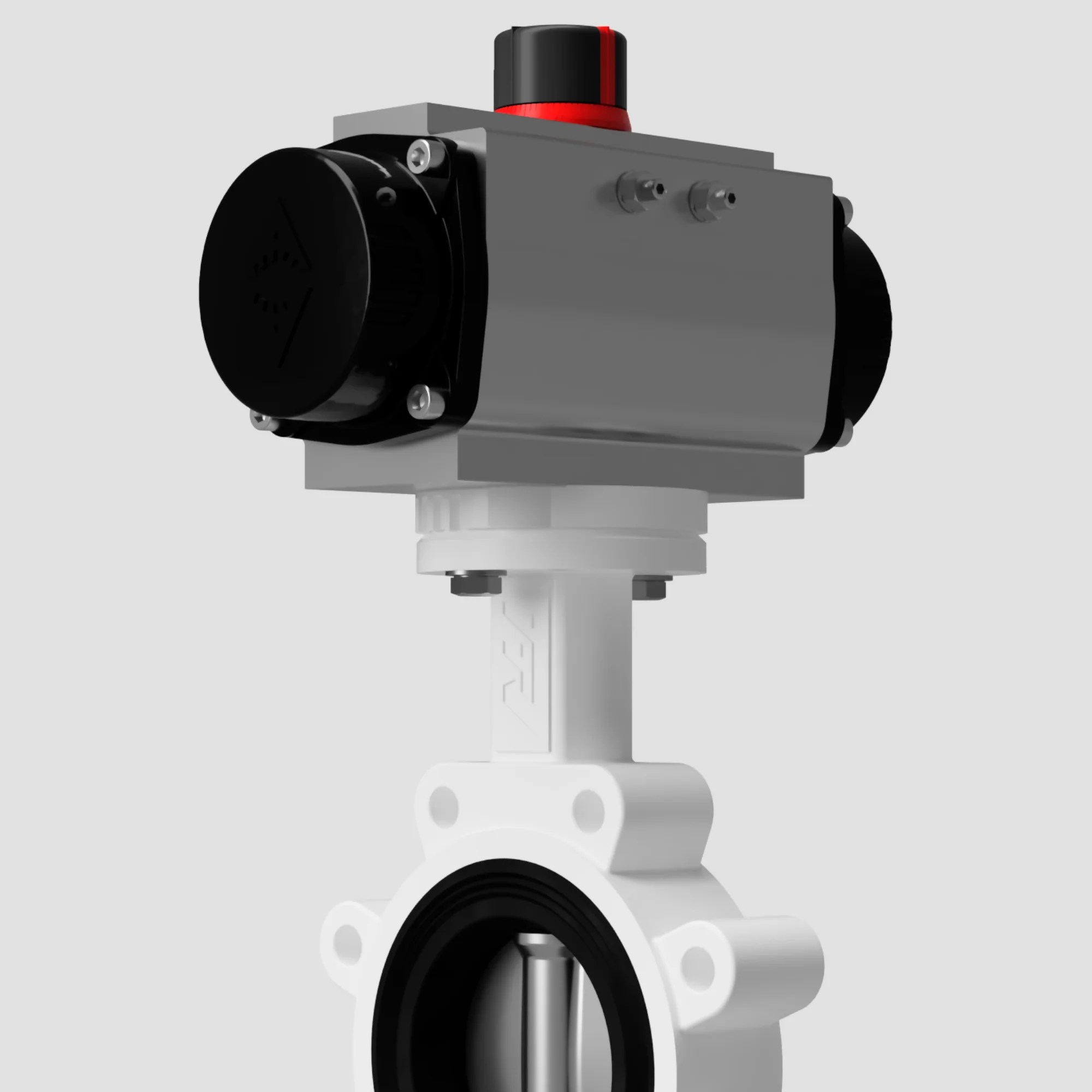

50L3040AC - Lugged Pattern Actreg Pneumatic Butterfly Valves

Actreg actuated lugged carbon steel butterfly valves are engineered for superior performance and reliability in demanding industrial applications. These valves feature a rugged carbon steel construction and a lugged design, providing secure and leak-free connections that facilitate maintenance and system flexibility. The Actreg actuator ensures precise and efficient automation, enabling consistent and smooth operation to enhance overall system control and efficiency.

Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: Carbon Steel ASTM A216 Grade WCB
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
Find Out More

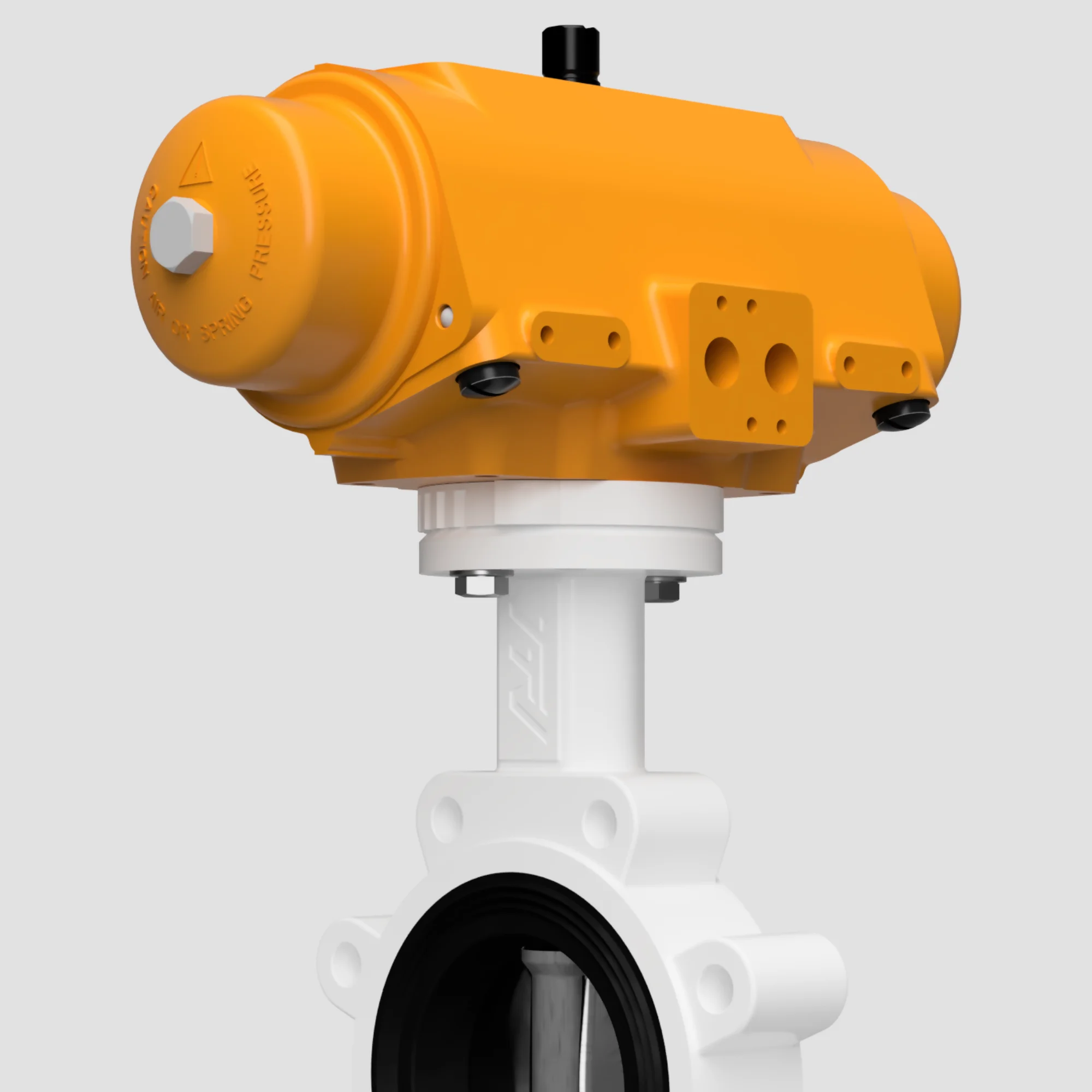

50L3040XL - Lugged Pattern Hytork Pneumatic Butterfly Valves

Hytork actuated lugged carbon steel butterfly valves are engineered for superior performance and reliability in challenging industrial environments. These valves feature a rugged carbon steel construction, ensuring excellent durability and resistance to high pressures and temperatures. The lugged design offers secure and leak-free connections, making these valves ideal for critical applications where maintenance and operational efficiency are paramount.

Size Range: DN32-DN500 (1 1/4"-20")
Body Materials: Carbon Steel ASTM A216 Grade WCB
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
Find Out More

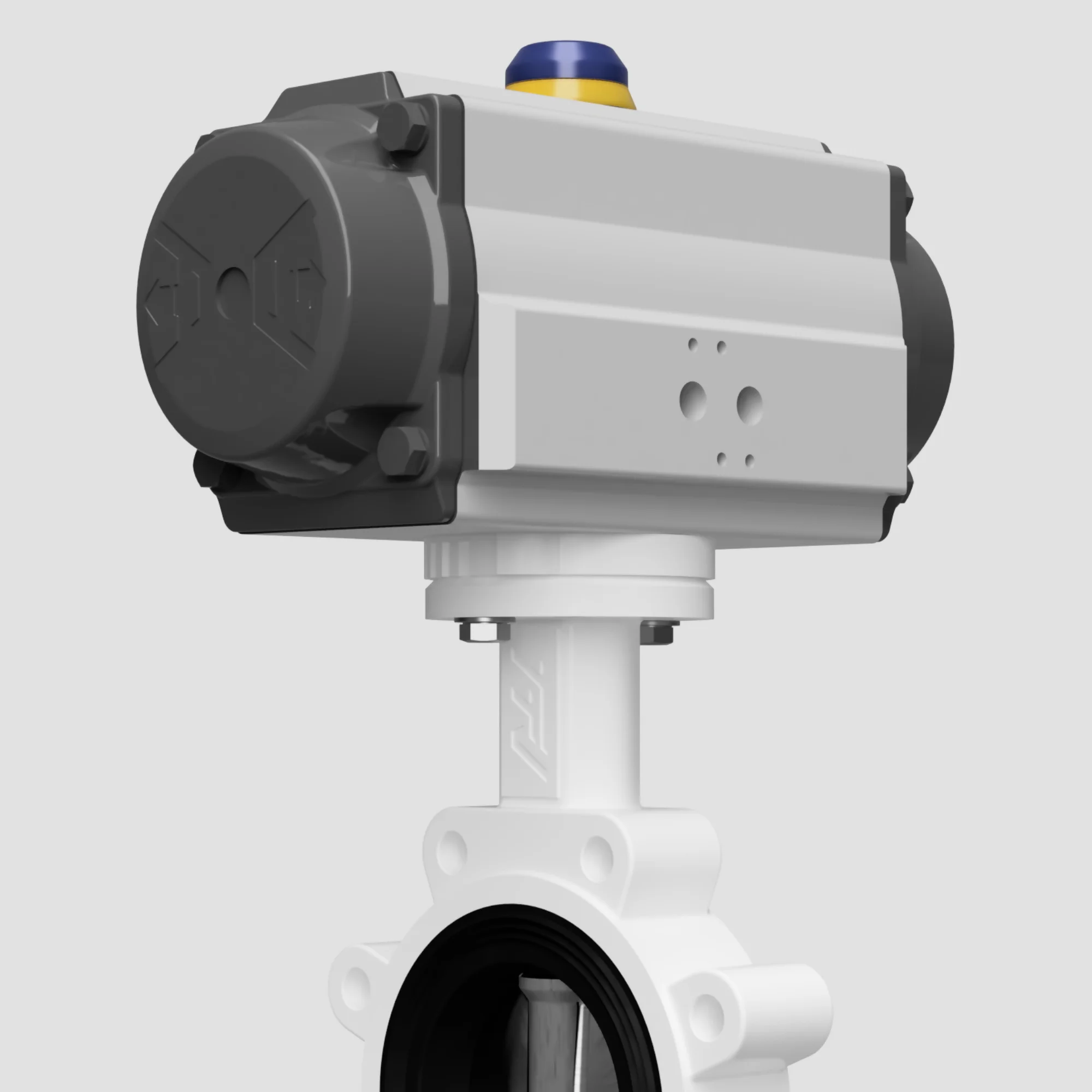

50L3040AT - Lugged Pattern Air Torque Pneumatic Butterfly Valves

Air torque actuated lugged carbon steel butterfly valves are engineered to provide robust and reliable performance in demanding industrial environments. These valves feature a durable carbon steel construction and a lugged design, ensuring secure and leak-free connections. The air torque actuator enhances automation, delivering precise control and efficient operation.

Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: Carbon Steel ASTM A216 Grade WCB
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
Find Out More

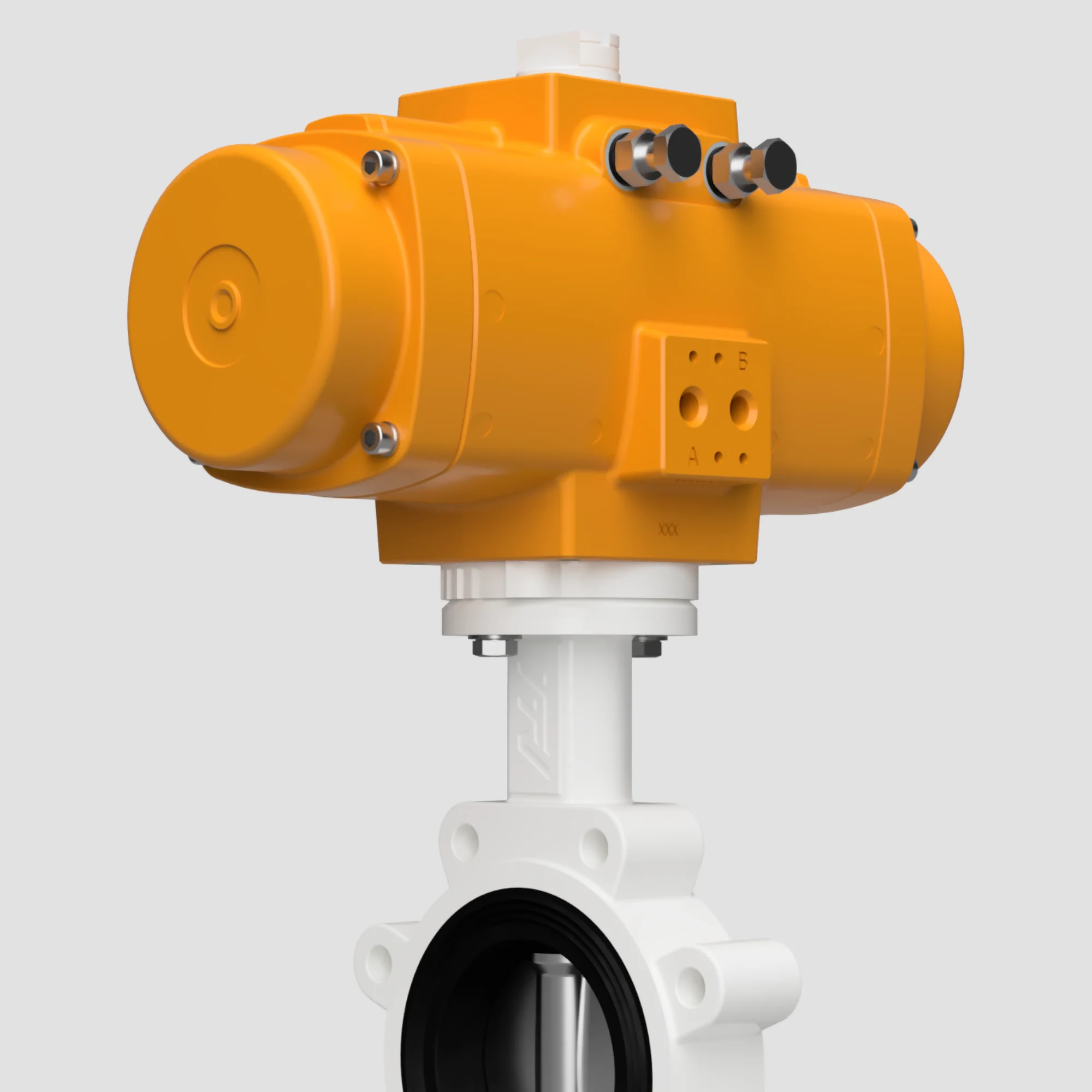

50L3040EL - Lugged Pattern Elomatic Pneumatic Butterfly Valves

Elomatic actuated lugged carbon steel butterfly valves are engineered for superior performance and durability in various industrial applications. These valves feature a robust carbon steel construction with a lugged design, providing secure and reliable connections that facilitate easy installation and maintenance. The integration of the Elomatic actuator ensures precise and efficient automation, enhancing system control and operational efficiency.

Size Range: DN32-DN600 (1 1/4"-24")
Body Materials: Carbon Steel ASTM A216 Grade WCB
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
Find Out More

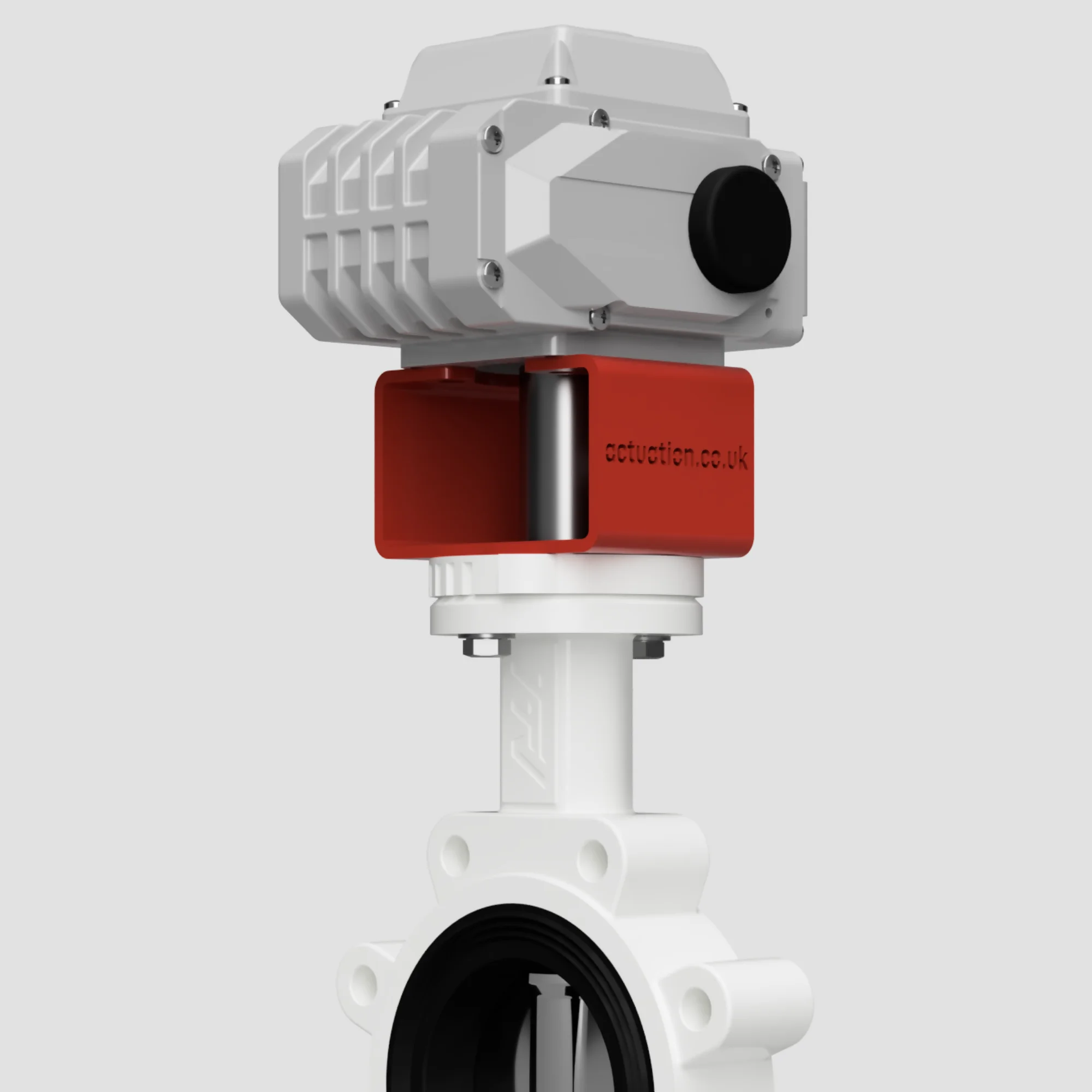

50L3040EK - Lugged Pattern Koei UNIC Pneumatic Butterfly Valves

Electric Koei actuated lugged carbon steel butterfly valves are engineered for superior performance and reliability in industrial applications. These valves feature a robust lugged carbon steel construction, which ensures secure, leak-free connections and durability under high pressure and temperature conditions. The Koei electric actuator provides precise and consistent automation, enhancing overall system control and efficiency.

Size Range: DN32-DN350 (1 1/4"-14")
Body Materials: Carbon Steel ASTM A216 Grade WCB
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste, Cooling Systems, Oil, Gases, Air
Find Out More

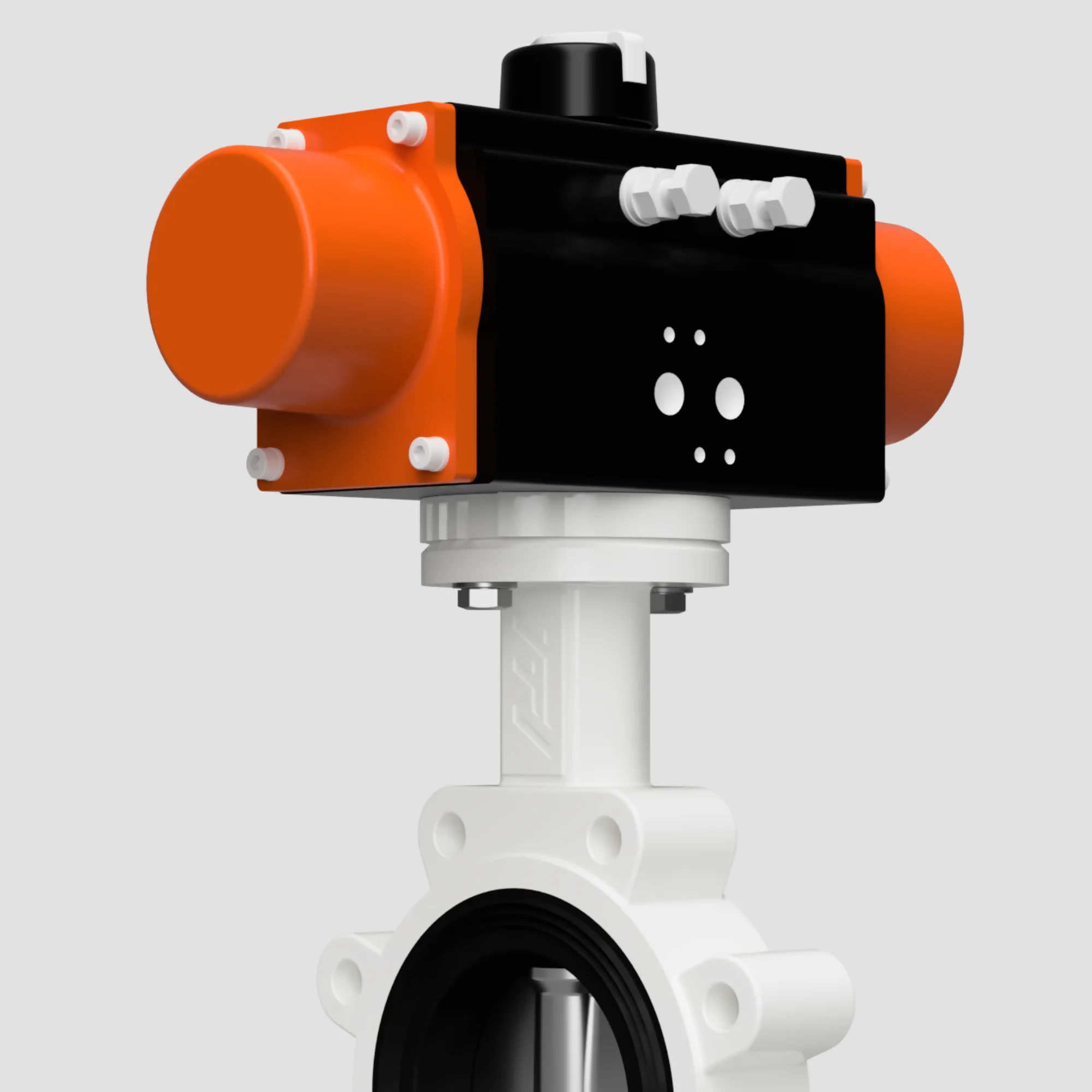

50L3040BE - Lugged Pattern Bettis Actuated Butterfly Valves

Bettis actuated lugged carbon steel butterfly valves are engineered for high performance and reliability across various industrial applications. These valves are constructed from durable carbon steel, offering excellent resistance to high pressures and temperatures, which makes them ideal for demanding operational environments. The Bettis actuator ensures precise and reliable automation, facilitating smooth and consistent valve operation that enhances overall system efficiency and control.

Size Range: DN32-DN500 (1 1/4"-20")
Body Materials: Carbon Steel ASTM A216 Grade WCB
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air
Find Out More

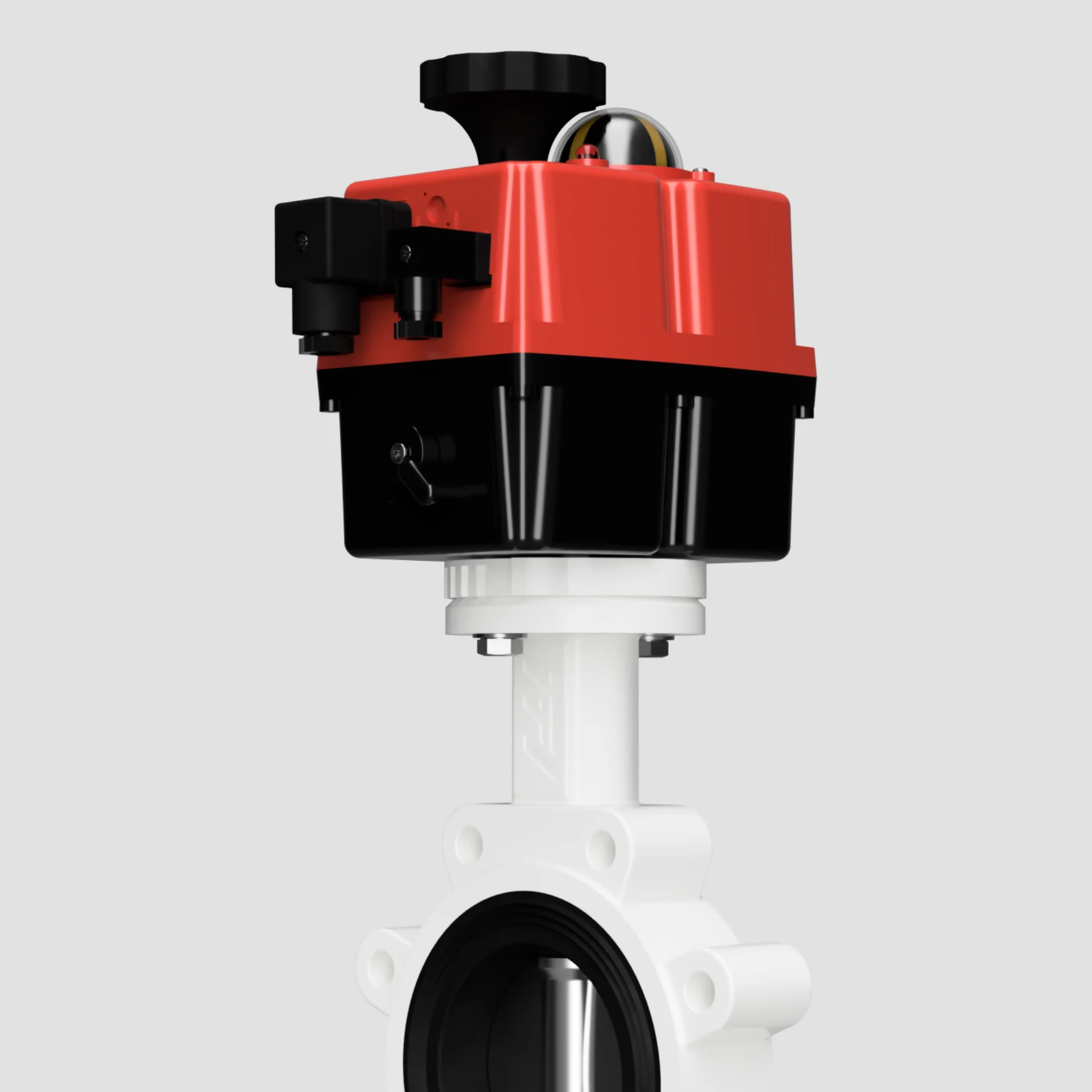

50L3040JJ - Lugged Pattern JJ Electric Butterfly Valves

Electric JJ actuated lugged carbon steel butterfly valves are engineered for robust performance and precise flow control in demanding industrial environments. Featuring a durable carbon steel construction, these valves are designed to withstand high pressures and temperatures, ensuring longevity and reliability. The lugged pattern allows for secure and leak-free installation, making maintenance and pipeline modifications straightforward.

Size Range: DN32-DN450 (1 1/4"-18")
Body Materials: Carbon Steel ASTM A216 Grade WCB
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
Find Out More

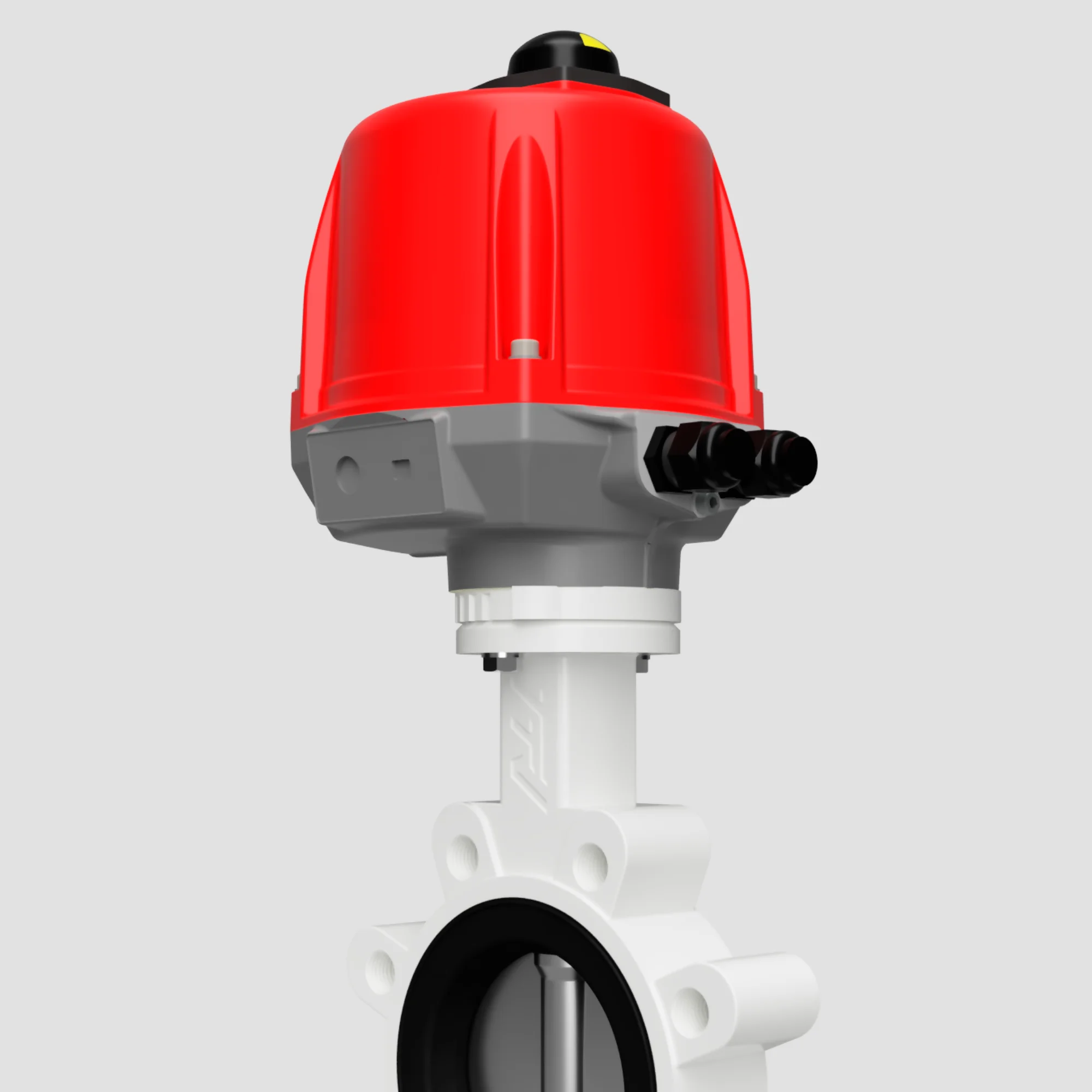

50L3040VA - Lugged Pattern Valpes Electric Butterfly Valves

Valpes actuated lugged carbon steel butterfly valves are engineered to deliver reliable and precise flow control in a variety of industrial applications. These valves are constructed from durable carbon steel, providing excellent resistance to high pressures and temperatures, ensuring longevity and dependable performance. The lugged design allows for secure and easy installation, facilitating pipeline maintenance without the need for complete system shutdown.

Size Range: DN32-DN450 (1 1/4"-18")
Body Materials: Carbon Steel ASTM A216 Grade WCB
Disc Materials: CF8M Stainless Steel
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Potable/Waste Water, Cooling Systems, Oil, Gases, Air
Find Out More

Frequently Asked Questions

An actuated butterfly valve is a type of quarter-turn valve that uses an actuator to control the flow of fluids or gases. The actuator can be electric, pneumatic, or hydraulic and automates the operation of the butterfly valve, providing precise and consistent flow control.

A lugged actuated butterfly valve has threaded inserts (lugs) on both sides, allowing it to be used in systems where downstream piping can be removed without affecting the upstream side. This feature makes maintenance easier and allows for dead-end service.

A wafer-style actuated butterfly valve is designed to fit between two flanges and is held in place by bolts that surround the valve body. This design is compact and lightweight, making it ideal for systems where space is limited.

A double-flanged actuated butterfly valve features flanges on both ends, providing a secure connection to the pipeline. This design is especially beneficial in high-pressure applications or when frequent maintenance requires the valve to be removed easily.

Actuated butterfly valves are commonly used in industries such as water treatment, chemical processing, oil and gas, power generation, food and beverage, and HVAC due to their reliable flow control and automation capabilities.

Butterfly valves can be equipped with electric, pneumatic, or hydraulic actuators. Electric actuators are suitable for precise control, pneumatic actuators are ideal for fast operation, and hydraulic actuators are best for high-torque applications.

Key benefits include automated flow control, compact design, cost-effectiveness, and versatility in handling various fluids. Their low-pressure drop and quarter-turn operation make them ideal for on/off and throttling applications.

To select the right size, consider the flow rate, pressure rating, and pipeline diameter. Ensure the valve's Cv (flow coefficient) aligns with your system's flow requirements, and consult manufacturer guidelines for accurate sizing.

Yes, actuated butterfly valves can handle high temperatures with the appropriate choice of materials. For instance, valves with stainless steel bodies and high-temperature seals (like PTFE or Viton) can withstand temperatures up to 400°C.

Routine maintenance includes regular inspection for wear and tear, checking for leaks, lubricating moving parts, and ensuring the actuator functions properly. Replace worn-out seals and gaskets to maintain optimal performance.

Yes, actuated butterfly valves are suitable for throttling applications due to their ability to control the flow precisely. However, ensure that the valve is designed and rated for throttling to prevent damage to the disc or seat.

Actuated butterfly valves should comply with standards such as API 609, ISO 5752, ASME B16.34, and AWWA C504. Additionally, valves used in food, pharmaceutical, or chemical industries may need to meet FDA or specific industry standards.
