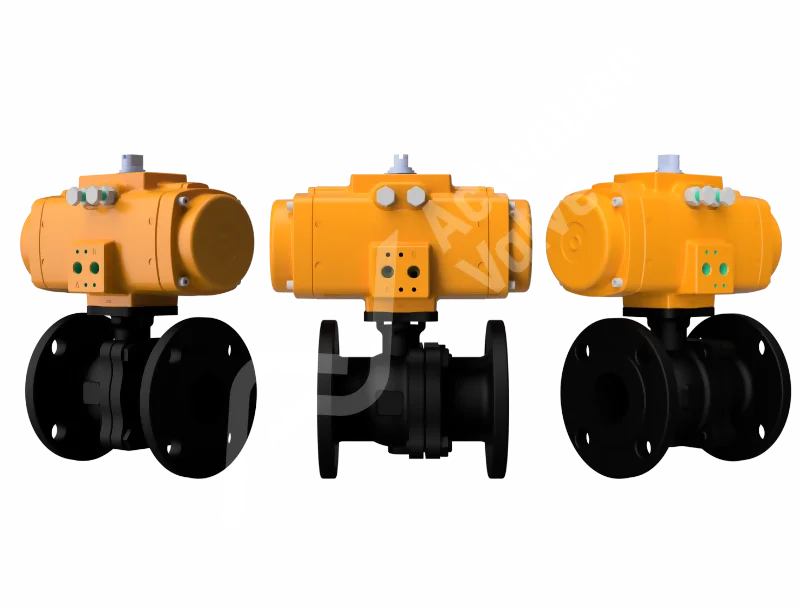

EL-O-Matic Pneumatic Actuators offer robust springs and precision engineering for a dependable fail-safe mechanism essential for secure plant operations. For quality and safety, opt for EL-O-Matic. The AV-L6NC0-EL DIN PN40 ball valves provide high-pressure, full-flow operation with up to a 6-inch bore size. These valves can be fitted between different pipeline flanges and have approvals from DNV, SIL 2, Lloyds Register, and Nace MR-0175. Additional options include a ball with relief holes and a high-temperature spindle extension for insulation and steam actuation. We provide express shipping for in-stock components, ensuring delivery within 24-48 hours.

Shop Help Me

Key features and benefits of the AV-L6NC0-EL Actuated Ball Valves.

Key Features

Compliance to NAMUR interface standard allows the actuator to be packaged with a wide range of accessories. This makes it easy to integrate the El-O-Matic Pneumatic Actuator into existing systems where there are already components available for attachment on site.

Key Features

The AV-L6NC0EL DIN PN40 actuated ball valves provide a high pressure full flow operation with a bore of up to 6 inches.

Key Features

EL-O-Matic Pneumatically actuated valves are used in many different industries like the chemical, oil and gas, pharmaceuticals, water treatment and more. They provide quick response time to open or close the flow of media (gases/fluids) through them.

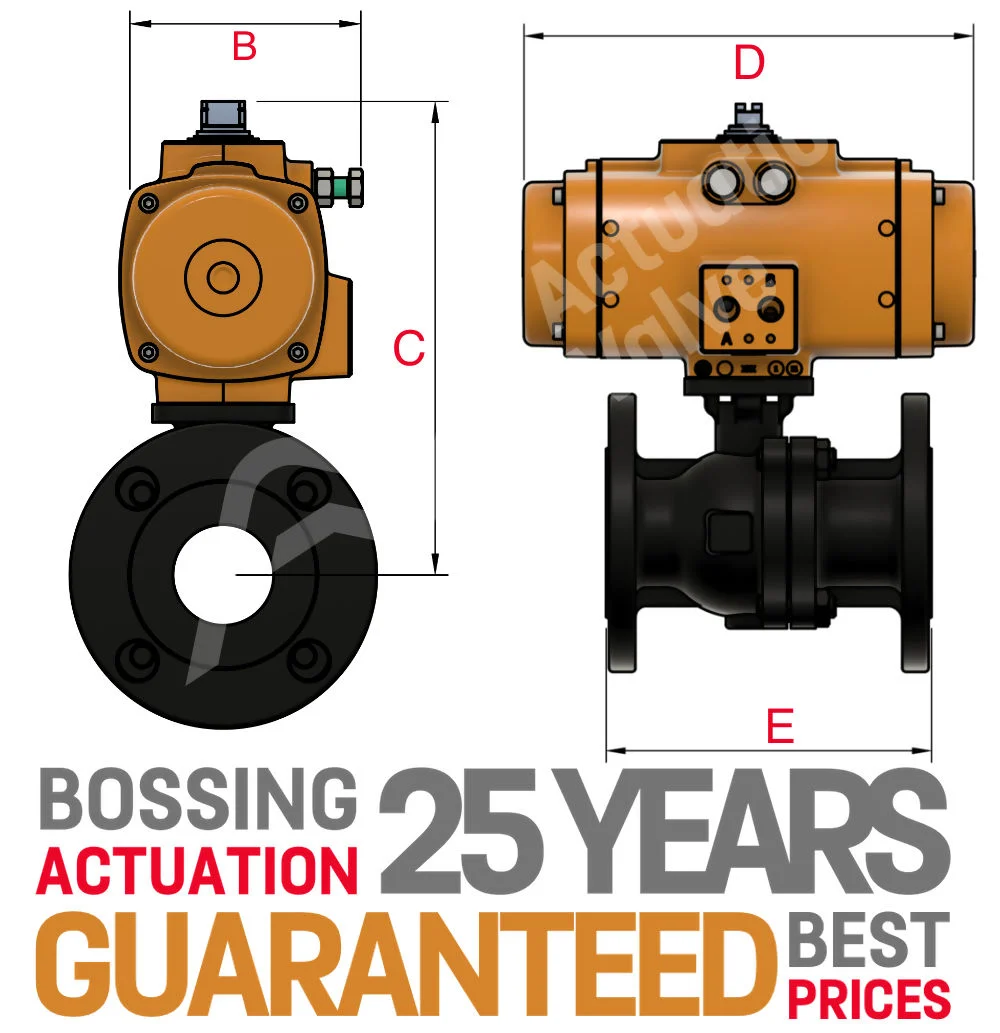

	B	C	D	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA
1/4"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3/8"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
1/2"	72.00	120.00	137.00	72.00	120.00	137.00	59.00
3/4"	72.00	126.00	137.00	72.00	126.00	137.00	69.00
1"	72.00	130.00	137.00	72.00	130.00	137.00	83.00
1 1/4"	93.00	168.50	203.50	72.00	135.50	137.00	94.00
1 1/2"	93.00	180.00	203.50	84.50	163.00	153.50	102.00
2"	106.00	200.50	153.50	84.50	170.50	153.50	124.00
2 1/2"	TBA	TBA	TBA	TBA	TBA	TBA	TBA
3"	TBA	TBA	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

ZIP
Size 0100

DRAWINGS & SCHEMATICS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Body Seal
Stem Packing Material:	Grafoil
Design Standard:	EN 12516-1
Wall Thickness:	EN 12516-1
Inspection & Testing:	EN 12266-1
Face 2 Face:	DIN 3202 F-4 (1/2" - 4") DIN 3202 F-5 (5" - 6")

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.

No.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

Brochures

CERTIFICATES & APPROVALS

Elomatic Actuator Videos

Elomatic Overview

DRAWINGS & SCHEMATICS

TopWorx Valve Limit Switch Box available for this product. Enable remote Valve monitoring of your High Performance Butterfly Valves with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Pneumatic Actuator prior to shipping.

Please feel free to request information and advice using the form below or call us on 0151 547 1221
