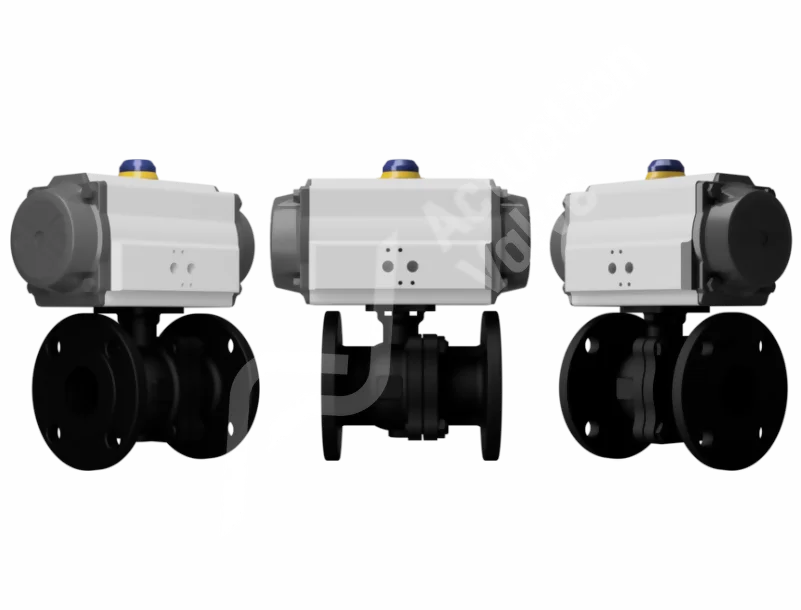

Air Torque Actuated Carbon Steel PN40 Ball Valves

The AV-L6NC0-AT DIN PN40 actuated ball valves provide a high pressure full flow operation with a bore of up to 6 inches. The actuated ball valves connections offer installation between two alternate flanges within a pipeline. Valve approvals include DNV, SIL 2, Lloyds Register & NACE MR-0175. Additional ball valve options include an upstream and cavity relief hold drilled into the ball and high temperature spindle extension for insulation and steam actuation. Express shipping for delivery within 24-48 hours for stock components.
Shop Help Me

Key Features

Key features and benefits of the AV-L6NC0-AT Actuated Ball Valves.
1

Key Features

Top visual indicator forms part of a patented design from the Italian manufacturer which allows the user to easily position the top cap at various angles. Avoiding the un-necessary requirements of having to disassemble and reassemble the actuated valve unit should the setup need changing.
2

Key Features

By switching from conventional ball valves to our low torque AV-L6NC0 Ball Valve, you'll save money on installation costs and maintenance while improving overall reliability. Our product is designed with the end-user in mind and we understand what works best for industrial automation.
3

Key Features

The Air Torque Actuator is a new generation of pneumatic actuators that can be used in the most demanding environments, while meeting the highest performance standards. It’s perfect for applications requiring high reliability and long life at low cost.

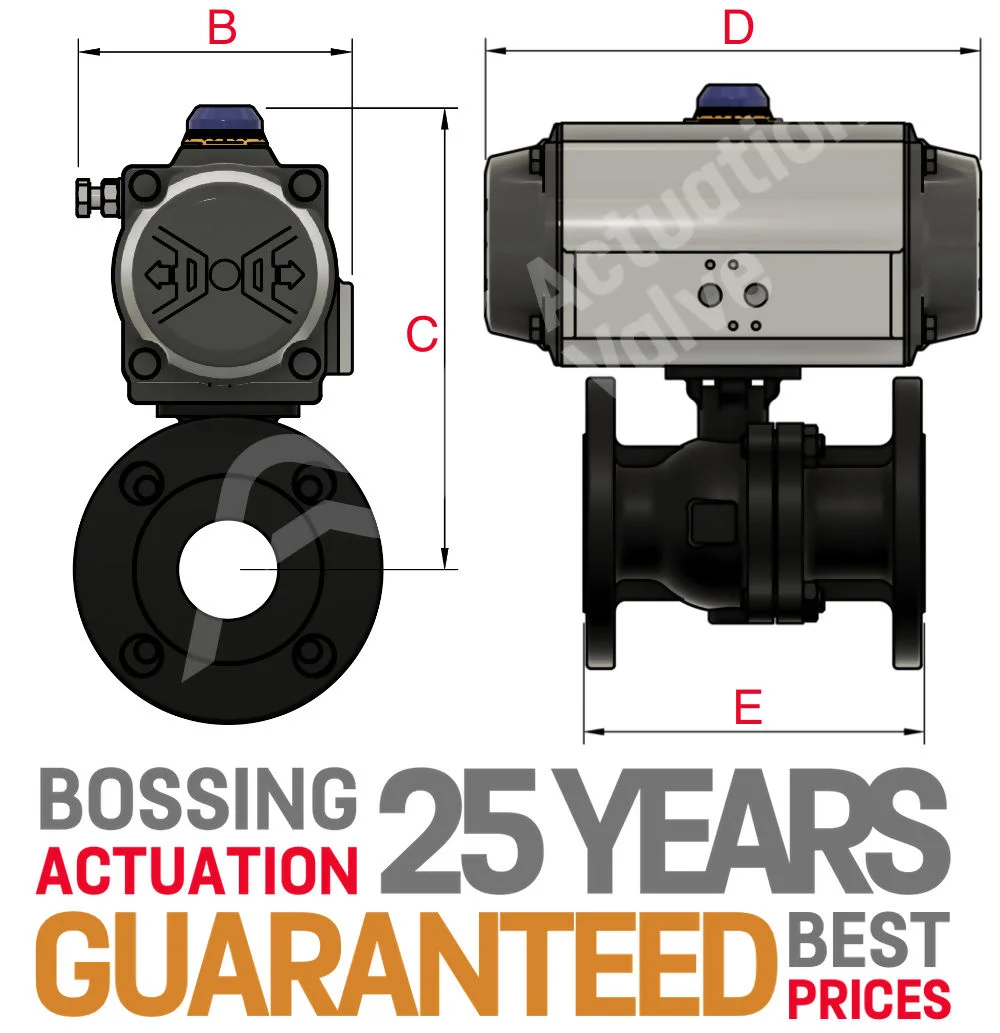

AV-L6NC0-AT Ball Valve Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 72.00 120.00 137.00 72.00 120.00 137.00 59.00
3/4" 72.00 126.00 137.00 72.00 126.00 137.00 69.00
1" 72.00 130.00 137.00 72.00 130.00 137.00 83.00
1 1/4" 93.00 168.50 203.50 72.00 135.50 137.00 94.00
1 1/2" 93.00 180.00 203.50 84.50 163.00 153.50 102.00
2" 106.00 200.50 153.50 84.50 170.50 153.50 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

AV-L6NC0-AT Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Why Air Torque

We have stock!

We understand the importance of minimising downtime and ensuring seamless operations. That's why we maintain a comprehensive stock of Air Torque actuators, ready for immediate dispatch.

Superior Durability and Reliability

Air Torque actuators are built to last, featuring a robust anodised aluminium housing that offers excellent resistance to corrosion and wear.

3D Step Files Available

These detailed 3D models facilitate seamless integration into your design and engineering processes. By providing precise geometrical representations, these files allow for accurate planning and simulation within CAD software.

Expert Customer Support

When you choose Air Torque actuators from Actuation Valve, you gain access to our exceptional customer support team. Our experts are dedicated to providing comprehensive assistance, from selecting the right product to troubleshooting and maintenance guidance.

SMALL Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

AT101
  • PDF
DRAWINGS & SCHEMATICS

AT201
  • PDF
DRAWINGS & SCHEMATICS

AT251
  • PDF
DRAWINGS & SCHEMATICS

AT301
  • PDF
DRAWINGS & SCHEMATICS

AT351
  • PDF
DRAWINGS & SCHEMATICS

AT401

BLX Datasheets

  • PDF
BLX Brochure

V100
  • PDF
Wiring Diagram

V100
  • PDF
BLX Brochure

V200
  • PDF
Wiring Diagram

V200

Big Actuator Data

  • Document
Drawings & Schematics

AT451
  • Document
Drawings & Schematics

AT501
  • Document
DRAWINGS & SCHEMATICS

AT551
  • Document
DRAWINGS & SCHEMATICS

AT601
  • Document
DRAWINGS & SCHEMATICS

AT651
  • Document
drawings & schematics

AT701

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff
Body Material: ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Body Seal
Stem Packing Material: Grafoil
Design Standard: EN 12516-1
Wall Thickness: EN 12516-1
Inspection & Testing: EN 12266-1
Face 2 Face: DIN 3202 F-4 (1/2" - 4") DIN 3202 F-5 (5" - 6")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
