Rotork Actuated PN16 Carbon Steel Electric Ball Valves

The AV-L6KC0-ROM PN16 flanged actuation valves offer a fundamental solution for quarter-turn actuation, designed for low to medium pressure applications with DIN flanged connections (up to 16 bar). They feature WRAS-approved TFM 1600 PTFE seats for secure operation, and our FDA-approved materials ensure safe product handling without compromising quality or performance when used correctly. The ROM electric actuator by Rotork is expertly designed for reliability and top-notch performance in any application. It consistently operates at peak efficiency for numerous years, guaranteeing dependable performance precisely when your equipment requires it most. An actuator you can trust during critical moments.

Key Features

Key features and benefits of the AV-L6KC0-ROM Actuated Ball Valves.
1

Key Features

The Rotork ROM Electric Actuator is an electric actuator that provides a reliable solution for a wide range of applications and environments. It's designed with proven reliability in mind so you can be confident in its performance when things matter most.
2

Key Features

We assemble and test all of our products in-house so we can control everything and make sure you get a high quality product that will last. All of our products come with a two page test report detailing every aspect of operation including opening/closing times and pressure ratings.
3

Key Features

The Rotork ROM electric actuator features a dust proof and IP68 rated housing and to submersion tested to 10M for 48 hours. The Company's engineering design ensures that the Rotork ROM unit performs well under all conditions including shock, vibration and temperature ranges.

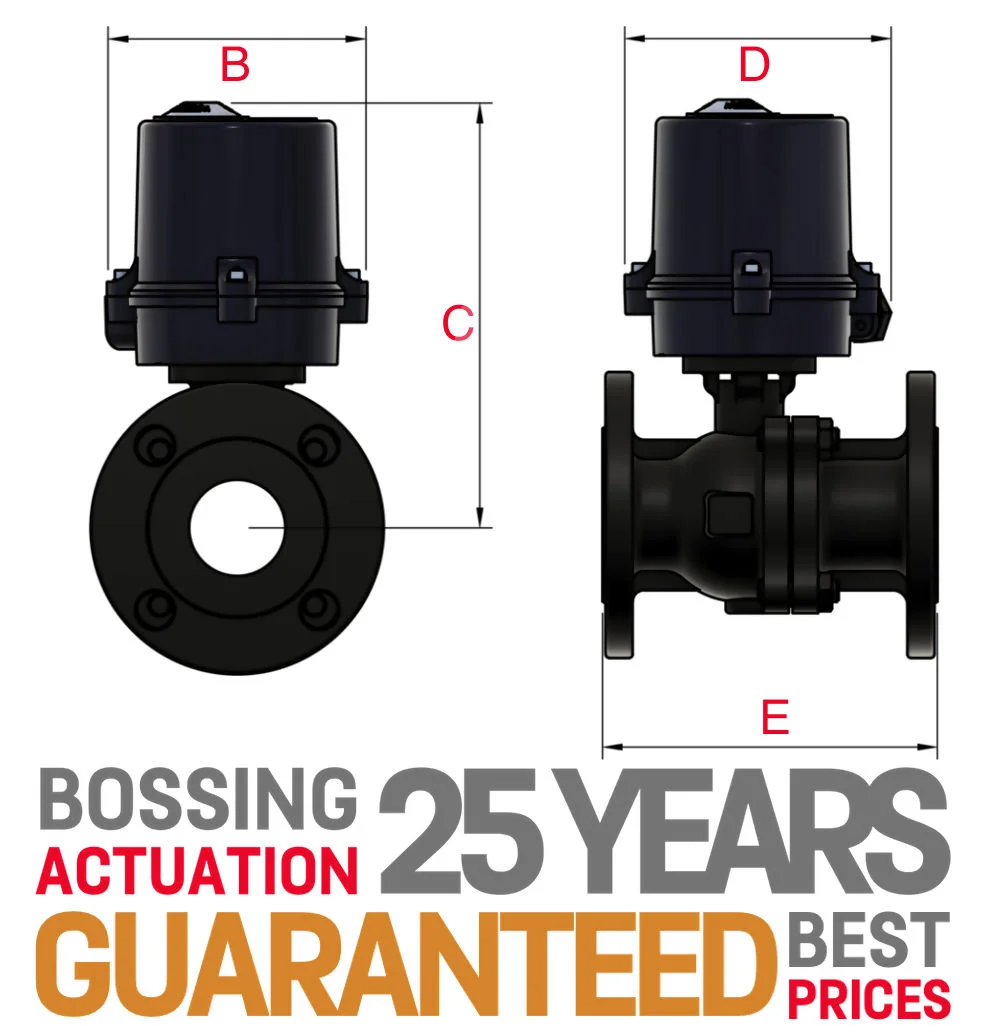

AV-L6KC0-ROM Ball Valve Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 72.00 120.00 137.00 72.00 120.00 137.00 59.00
3/4" 72.00 126.00 137.00 72.00 126.00 137.00 69.00
1" 72.00 130.00 137.00 72.00 130.00 137.00 83.00
1 1/4" 93.00 168.50 203.50 72.00 135.50 137.00 94.00
1 1/2" 93.00 180.00 203.50 84.50 163.00 153.50 102.00
2" 106.00 200.50 153.50 84.50 170.50 153.50 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

AV-L6KC0-ROM Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff

Body Material: ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Body Seal
Stem Packing Material: Grafoil
Design Standard: EN 12516-1
Wall Thickness: EN 12516-1
Inspection & Testing: EN 12266-1
Face 2 Face: DIN 3202 F-4 (1/2" - 4") DIN 3202 F-5 (5" - 6")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
