Rotork Actuated ANSI150 Carbon Steel Electric Ball Valves

The AV-L61C0-ROM 2 piece full bore actuated ball valves are available in sizes ranging from 1/2" to 6" for next day delivery. This flanged body offers installation between two pipeline flanges and end of line service with reliable shut off performance. The AV-L61-C actuated ball valve offers TFM 1600 ball seats that are a WRAS & FDA certified material. The ISO 5211 Direct Mounting Pad allows actuation of the valve without the use of a mounting bracket so all assembly and testing procedures can be processed immediately after your order has been placed. Rotork invest heavily in research and development. Their commitment to innovation has resulted in a wide range of solutions across multiple industries including oil & gas, mining, power generation, water treatment and waste management.
Shop Help Me

Key Features

Key features and benefits of the AV-L61C0-ROM Actuated Ball Valves.
1

Key Features

Rotork ROM Electric Actuators are used to control valves, switches and other devices in a wide variety of industrial applications. The electric actuator provides reliable operation for critical applications that require reliability in the harshest conditions.
2

Key Features

Our range of carbon steel ball valves have been designed to meet your needs applications with pressure requirements up to 40 bar where long life expectancy is important. We also offer our ball valves in numerous sizes so you can be sure we’ll have what you need.
3

Key Features

This electric actuator offers long-term reliability thanks to its proven design and construction, making it perfect for critical environments like high temperature or hazardous locations where failure could lead to costly downtime.

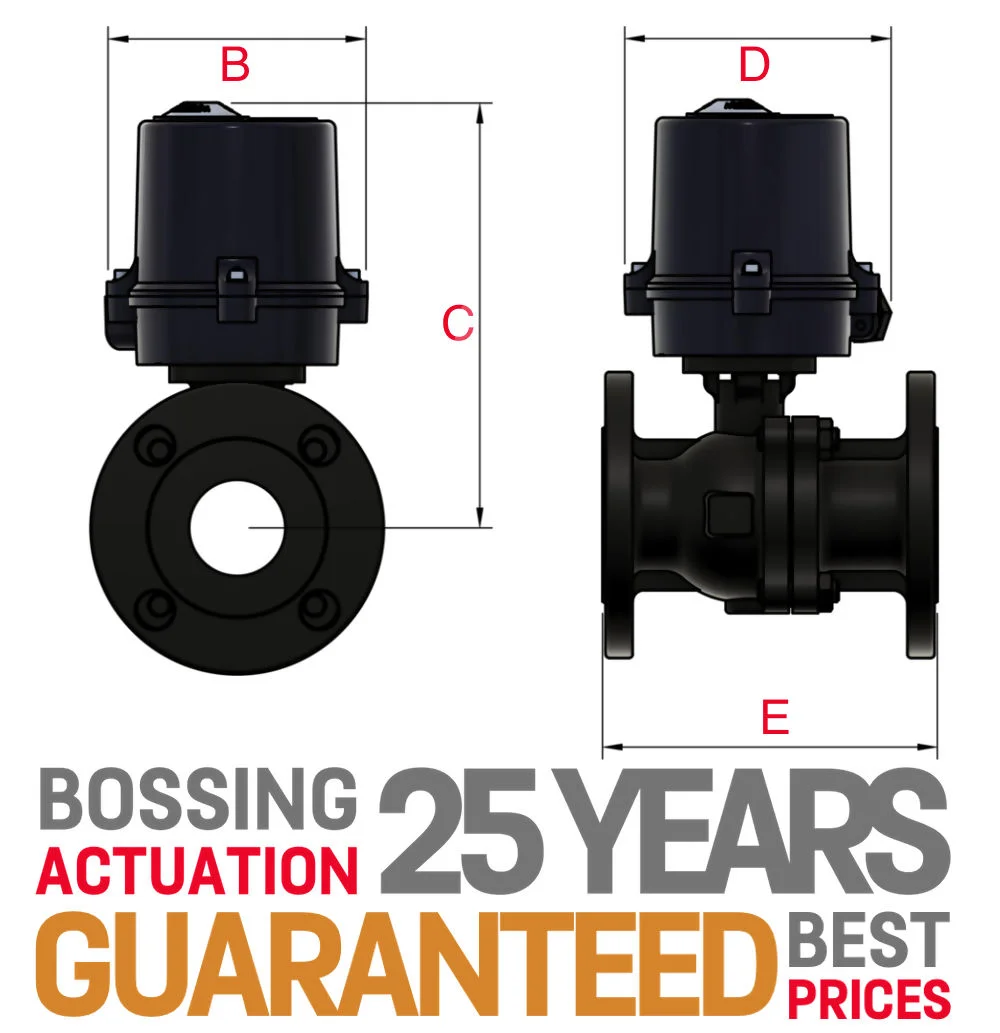

AV-L61C0-ROM Ball Valve Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 72.00 120.00 137.00 72.00 120.00 137.00 59.00
3/4" 72.00 126.00 137.00 72.00 126.00 137.00 69.00
1" 72.00 130.00 137.00 72.00 130.00 137.00 83.00
1 1/4" 93.00 168.50 203.50 72.00 135.50 137.00 94.00
1 1/2" 93.00 180.00 203.50 84.50 163.00 153.50 102.00
2" 106.00 200.50 153.50 84.50 170.50 153.50 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

AV-L61C0-ROM Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

ROM-1
  • PDF
DRAWINGS & SCHEMATICS

ROM-A
  • PDF
DRAWINGS & SCHEMATICS

ROM-2
  • PDF
DRAWINGS & SCHEMATICS

ROM-3

BIG Actuator Data.

  • PDF
DRAWINGS & SCHEMATICS

ROM-4
  • PDF
DRAWINGS & SCHEMATICS

ROM-5
  • PDF
DRAWINGS & SCHEMATICS

ROM-6
  • PDF
DRAWINGS & SCHEMATICS

ROM-7

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff
Body Material: ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Actuator Stuff

  • PDF
BROCHURES

ROM & ROMpak
  • PDF
OPERATIONS

Installation Manual
  • PDF
CERTIFICATES & APPROVALS

Bureau Veritas
  • PDF
CERTIFICATES & APPROVALS

CSA Certificate Of Compliance
  • PDF
CERTIFICATES & APPROVALS

EU Declaration Of Conformity
