Carbon Steel ANSI 150 Air Torque Actuator Valves

The AV-L61C0-AT line of Carbon Steel ball valves is designed with you in mind. They're easy to install and incredibly durable so you get the most out of your product without worrying about repairs. For safety or security reasons the Air Torque actuator can be provided as locked in a permanent position through the manufacturers Lock-Out Capability. This has proven popular for many actuated valve applications and utilises a bespoke design to prevent unwanted operation.
Shop Help Me

Key Features

Key features and benefits of the AV-L61C0-AT Actuated Ball Valves.
1

Key Features

Our range of Carbon Steel ball valves have been designed to meet your needs applications. We also offer our ball valves in numerous sizes so you can be sure we’ll have what you need.
2

Key Features

Certificate of conformities can be supplied by Air Torque along with your actuator or actuated valve package and each individual actuator is factory tested and inspected prior to packing and despatch to us in the UK form their Italian factory.
3

Key Features

All Air Torque Pneumatic Actuators are continuously tested to 4 Million cycles, ensuring a trouble-free experience and fit and forget solution that comes with Manufacturers warranty as standard for correctly specified applications.

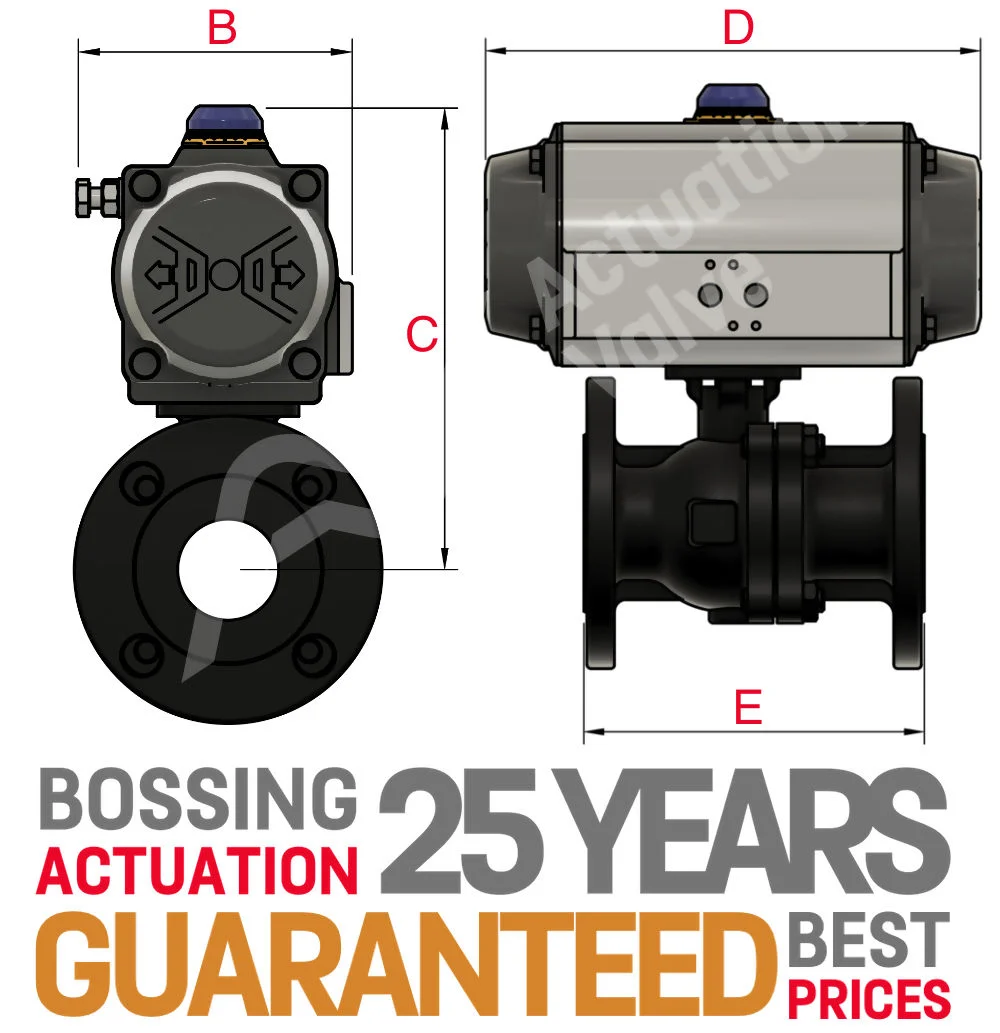

AV-L61C0-AT Ball Valve Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 72.00 120.00 137.00 72.00 120.00 137.00 59.00
3/4" 72.00 126.00 137.00 72.00 126.00 137.00 69.00
1" 72.00 130.00 137.00 72.00 130.00 137.00 83.00
1 1/4" 93.00 168.50 203.50 72.00 135.50 137.00 94.00
1 1/2" 93.00 180.00 203.50 84.50 163.00 153.50 102.00
2" 106.00 200.50 153.50 84.50 170.50 153.50 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

AV-L61C0-AT Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Why Air Torque

We have stock!

We understand the importance of minimising downtime and ensuring seamless operations. That's why we maintain a comprehensive stock of Air Torque actuators, ready for immediate dispatch.

Superior Durability and Reliability

Air Torque actuators are built to last, featuring a robust anodised aluminium housing that offers excellent resistance to corrosion and wear.

3D Step Files Available

These detailed 3D models facilitate seamless integration into your design and engineering processes. By providing precise geometrical representations, these files allow for accurate planning and simulation within CAD software.

Expert Customer Support

When you choose Air Torque actuators from Actuation Valve, you gain access to our exceptional customer support team. Our experts are dedicated to providing comprehensive assistance, from selecting the right product to troubleshooting and maintenance guidance.

SMALL Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

AT101
  • PDF
DRAWINGS & SCHEMATICS

AT201
  • PDF
DRAWINGS & SCHEMATICS

AT251
  • PDF
DRAWINGS & SCHEMATICS

AT301
  • PDF
DRAWINGS & SCHEMATICS

AT351
  • PDF
DRAWINGS & SCHEMATICS

AT401

Valve Standards & Stuff
Body Material: ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
