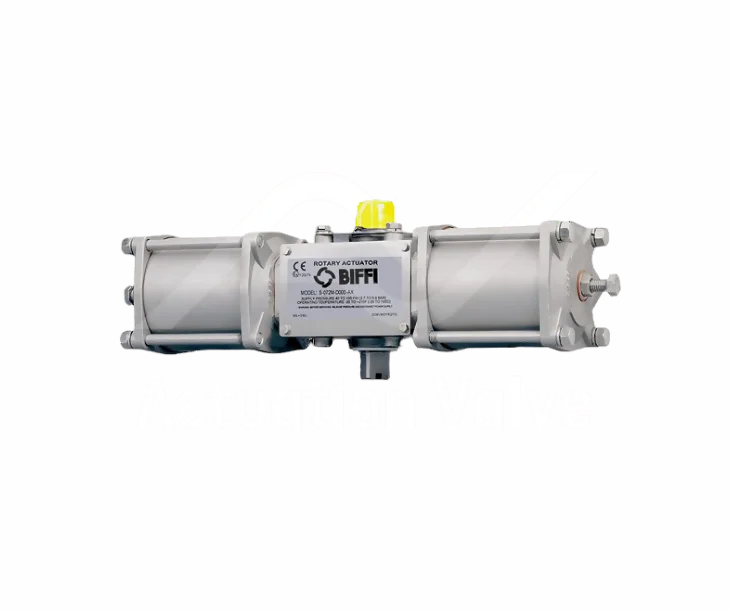

Biffi Morin S Low Pressure Actuators

The Biffi Morin S Low Pressure Actuators operate with a supply pressure of 3 to 11 bar and are compatible with air or gas. Offering output torques up to 158,200 Nm, they function in temperatures ranging from -29°C to 99°C, with optional ranges from -54°C to 149°C. The actuators feature a 90-degree angular rotation and adhere to ISO 5211 mounting patterns. With SIL3 certification and IP66 or IP68 protection, their stainless steel construction ensures resistance to corrosion, efficient torque transmission, and minimal maintenance.
Shop Help Me

Key Features

Key features and benefits of Biffi Morin S Low Pressure Actuators
1

Key Features

The actuators are constructed from stainless steel, offering enhanced resistance to corrosion both inside and out. This makes them highly durable in challenging environments, ensuring long-term reliability.
2

Key Features

The Scotch yoke mechanism, designed with precision bearings, removes any potential for dead band within the yoke system. This results in optimal torque delivery at the critical start and end points of each stroke.
3

Key Features

Featuring a high-strength 17-4 PH stainless steel output shaft, the actuators efficiently transmit torque, ensuring an extended service life and dependable performance across various applications.

Actuator Specifications
Supply Pressure: 3 to 11 bar
Supply Medium: Air or any gas compatible with materials of construction
Output Torques: Up to 158,200 Nm
Temperature Standard Range: -29°C to 99°C
Temperature Optional Range: -54°C to 149°C
Angular Rotation: 90 degrees (adjustable between 82 and 98 degrees)
Mounting Pattern: ISO 5211
Protection: IP66; IP68 (optional)
Certification: SIL3 rated
Applications: Chemical process, food and beverage, off-shore marine, pharmaceutical, power, & more.

Actuator Resources

  • Document
DATASHEET

Biffi Morin S Series Actuators
  • Document
DATASHEET

Biffi Morin S Specification Sheet
  • Document
MANUAL

Biffi Morin S Installation & Maintenance Instructions

Frequently Asked Questions

Biffi manufactures electric, pneumatic, hydraulic, and electro-hydraulic actuators for various industrial applications.

Biffi provides solutions for the oil & gas, power, water & wastewater, and industrial processing sectors.

Electric actuators automate valves, offering precise control for quarter-turn or multi-turn valve operations in industrial settings.

Biffi's low-pressure actuators are pneumatic solutions designed for rack-and-pinion, scotch yoke, and linear valve automation.

Biffi's high-pressure actuators provide robust control for small to large valves under very high-pressure conditions.

Electric actuators use electrical power, while pneumatic actuators rely on compressed air for valve automation.

Biffi actuators are designed for heavy-duty industrial use, featuring robust materials and advanced technology for longevity and reliability.

Yes, Biffi offers tailored solutions to meet the unique requirements of different industrial processes.

Electro-hydraulic actuators combine electric control with hydraulic power for reliable valve automation, even in power loss scenarios.

Biffi's compact actuators are designed for space-constrained environments, providing efficient quarter-turn valve control.

Biffi offers advanced control systems for monitoring and diagnostics of individual actuators and centralized control of multiple devices.

Biffi actuators meet international certifications such as ATEX, IECEx, and SIL, ensuring compliance with industry standards for safety, performance, and reliability in hazardous and critical environments.
