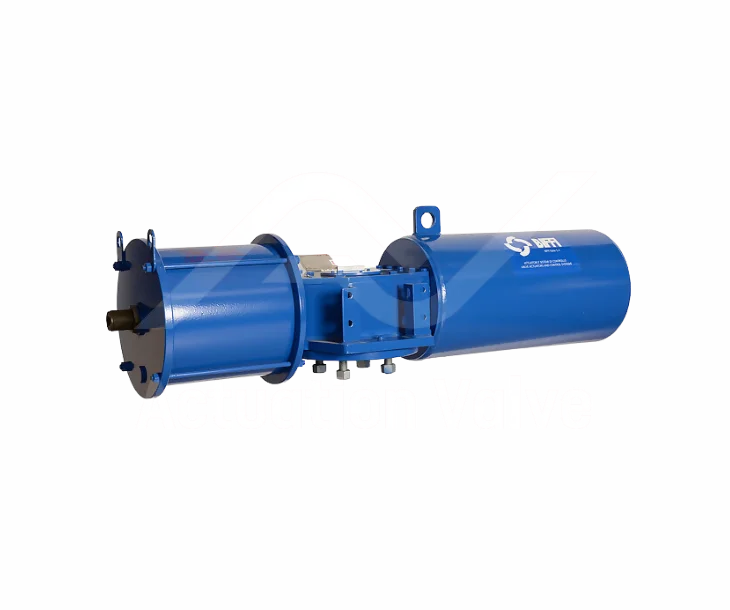

Biffi ALGA/ALGAS/ALGAS-QA Low Pressure Actuators

The Biffi ALGA, ALGAS, and ALGAS-QA low pressure actuators are designed for demanding industrial applications, offering output torques of up to 1,000,000 Nm for ALGA and 335,000 Nm for ALGAS/ALGAS-QA. Operable with air, nitrogen, or sweet gas, they function in ambient temperatures from -20 to 100°C (extended range: -60 to 135°C). With SIL 3 certification, ATEX II 2GD classification, and compliance with IP66, IP67M, NEMA 4, 4X, and 6 standards, they support quarter-turn ball, butterfly, and plug valves.
Shop Help Me

Key Features

Key features and benefits of Biffi ALGA/ALGAS/ALGAS-QA Low Pressure Actuators
1

Key Features

The actuator's housing is entirely enclosed and designed to be weatherproof, made from carbon steel. This construction ensures the unit is protected from environmental conditions while offering maximum strength and durability.
2

Key Features

The actuator is equipped with a guide bar that provides resistance against transverse loads. This feature is essential for maintaining stability and ensures the piston rod is properly supported during operation.
3

Key Features

The piston rod is manufactured from hard chromium-plated alloy steel. This material not only offers excellent corrosion protection but also reduces friction, contributing to a more efficient and longer-lasting performance.

Actuator Specifications
Design Pressure: Up to 12 barg
Supply Medium: Air, Nitrogen, or Sweet Gas
Output Torque: ALGA (Up to 1,000,000 Nm), ALGAS/ALGAS-QA (Up to 335,000 Nm)
Ambient Temperature: -20 to 100 °C (standard), & -60 to 135 °C (extended)
Safety Integrity Level (SIL): SIL 3
Area Classification: (ATEX) II 2GD
Enclosure Standards: IP66, IP66M, IP67M (IEC 60529); NEMA 4, 4X, 6 (ANSI/NEMA 250)
Pressure Equipment Directive: 2014/68/EU
Machinery Directive: 2006/42/EC
Actuation: Quarter-Turn Ball, Butterfly, Plug, Damper Style Valves

Technical Data Sheets

  • Document
DATASHEET

ALGA-ALGAS Pneumatic Actuator
  • Document
BROCHURE

ALGA/ALGA/ALGAS-QA Pneumatic Actuators (Scotch Yoke Design)
  • Document
MANUAL

ALGA Installation, Operation, & Maintenance

  • Document
MANUAL

ALGAS Installation, Operation, & Maintenance

  • Document
MANUAL

ALGAS-QA Installation, Operation, & Maintenance

  • Document
CERTIFICATE

Manufacturer's Declaration SIL (ALGA)

Frequently Asked Questions

Biffi manufactures electric, pneumatic, hydraulic, and electro-hydraulic actuators for various industrial applications.

Biffi provides solutions for the oil & gas, power, water & wastewater, and industrial processing sectors.

Electric actuators automate valves, offering precise control for quarter-turn or multi-turn valve operations in industrial settings.

Biffi's low-pressure actuators are pneumatic solutions designed for rack-and-pinion, scotch yoke, and linear valve automation.

Biffi's high-pressure actuators provide robust control for small to large valves under very high-pressure conditions.

Electric actuators use electrical power, while pneumatic actuators rely on compressed air for valve automation.

Biffi actuators are designed for heavy-duty industrial use, featuring robust materials and advanced technology for longevity and reliability.

Yes, Biffi offers tailored solutions to meet the unique requirements of different industrial processes.

Electro-hydraulic actuators combine electric control with hydraulic power for reliable valve automation, even in power loss scenarios.

Biffi's compact actuators are designed for space-constrained environments, providing efficient quarter-turn valve control.

Biffi offers advanced control systems for monitoring and diagnostics of individual actuators and centralized control of multiple devices.

Biffi actuators meet international certifications such as ATEX, IECEx, and SIL, ensuring compliance with industry standards for safety, performance, and reliability in hazardous and critical environments.

FAQ
