Bettis Hydraulic Valve Actuators, renowned for their reliability and efficiency, serve as a pivotal component in controlling the flow of fluids in industrial settings. These actuators are designed for precision in modulating valve positions, ensuring optimal performance in oil, gas, and water industries. Their advanced technology and durable construction make them ideal for challenging environments, significantly enhancing operational safety and productivity. Choose from an extensive range of series including: the EHO Series, PressureGuard Series, GS Series, GH Series, GVO Series, & G Series.

Key features and benefits of Bettis Hydraulic Valve Actuators

Key Features

Precision Control: Bettis Hydraulic Valve Actuators offer exceptional accuracy in valve positioning, enabling precise control of fluid flow. This feature is crucial for applications requiring meticulous flow regulation to maintain system efficiency and safety.

Key Features

: These actuators are engineered to withstand the rigors of harsh industrial environments, including extreme temperatures, pressures, and corrosive substances. Their robust construction ensures long-term reliability and performance, reducing maintenance needs and downtime.

Key Features

Designed to be compatible with a wide range of valve types and sizes, Bettis Hydraulic Valve Actuators are highly versatile. This adaptability makes them suitable for various applications across the oil, gas, and water industries, facilitating seamless integration into existing systems.

Bettis Range

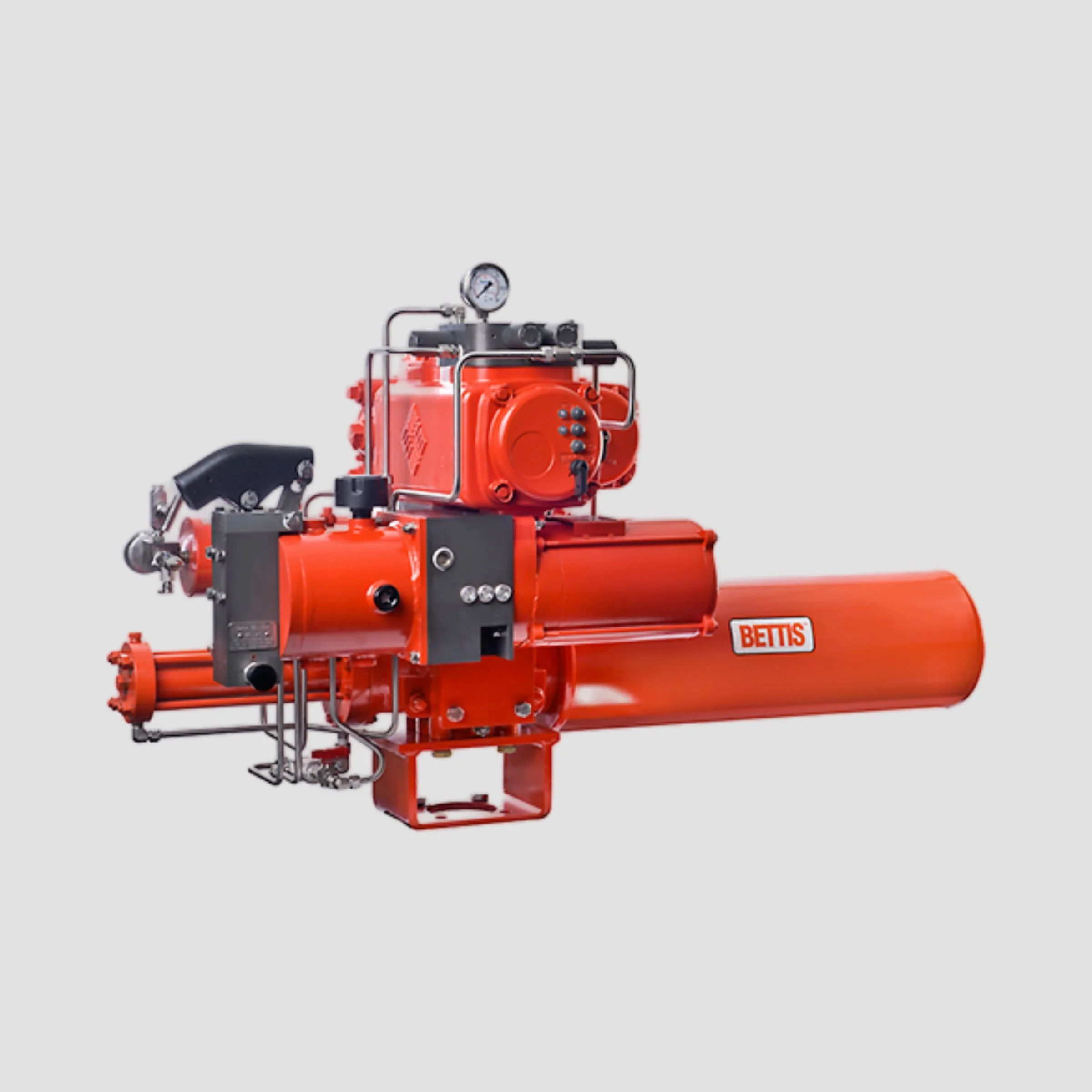

The Bettis Standard Electro-Hydraulic Operator (EHO) is an integrated actuator designed for quarter-turn valves, ideal for Emergency Shut Down (ESD) applications. It combines a spring-return mechanism, hydraulic power unit, and electronic controls to offer a fail-safe, simple solution for halting process flow during emergencies, ensuring safety and environmental protection. Suitable for harsh conditions, it features over fifteen alerts, supports HART and FOUNDATION Fieldbus protocols, and offers IP68 and IP67M protection.

Product Type:	Electro-Hydraulic Actuator
Actuation:	Quarter-turn
Certifications:	FM, ATEX, IECEx, PESO, CCOE, CSA, SIL 2
Control Type:	On/off, ESD
Valve Type:	Ball, Butterfly, Plug, Triple Offset
Operating Temperature:	Standard -29°C to +60°C. Optional temperature -40°C to +60°C.
Torque/Thrust:	1,264 to 707,696 in-lbs
Operating Pressure:	3,000 psi (207 Bar)

Find Out More

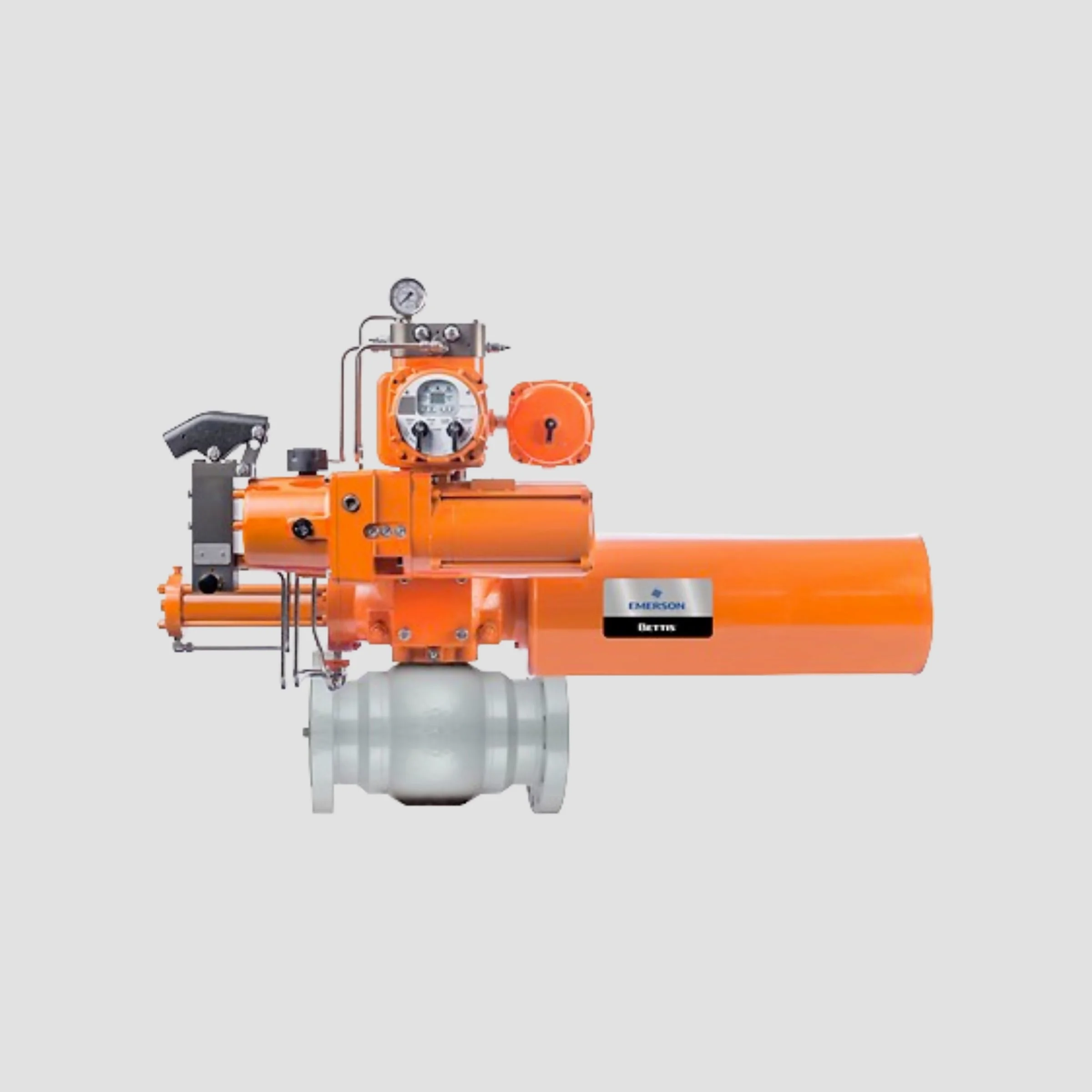

The Bettis Smart Electro-Hydraulic Operator (EHO) is a self-contained actuator for quarter-turn valves, ideal for Emergency Shut Down (ESD) with fail-safe, spring-return functionality. It features advanced diagnostics, over 15 alerts for system abnormalities, and compatibility with DCMlink for remote oversight. Designed for emergency shutdown to protect personnel and the environment, it operates reliably in adverse conditions and supports HART, FOUNDATION Fieldbus, and IP68 protection for controls, ensuring safety and efficiency.

Product Type:	Electro-Hydraulic Actuator
Actuation:	Spring-return
Certifications:	FM, ATEX, IECEx, PESO, CCOE, CSA, SIL 3
Control Type:	On/off, ESD
Valve Type:	Ball, Butterfly, Plug, Triple Offset
Operating Temperature:	Standard -29°C to +60°C. Optional temperature -40°C to +60°C.
Torque/Thrust:	1,264 to 707,696 in-lbs
Operating Pressure:	up to 3,000 psi

Find Out More

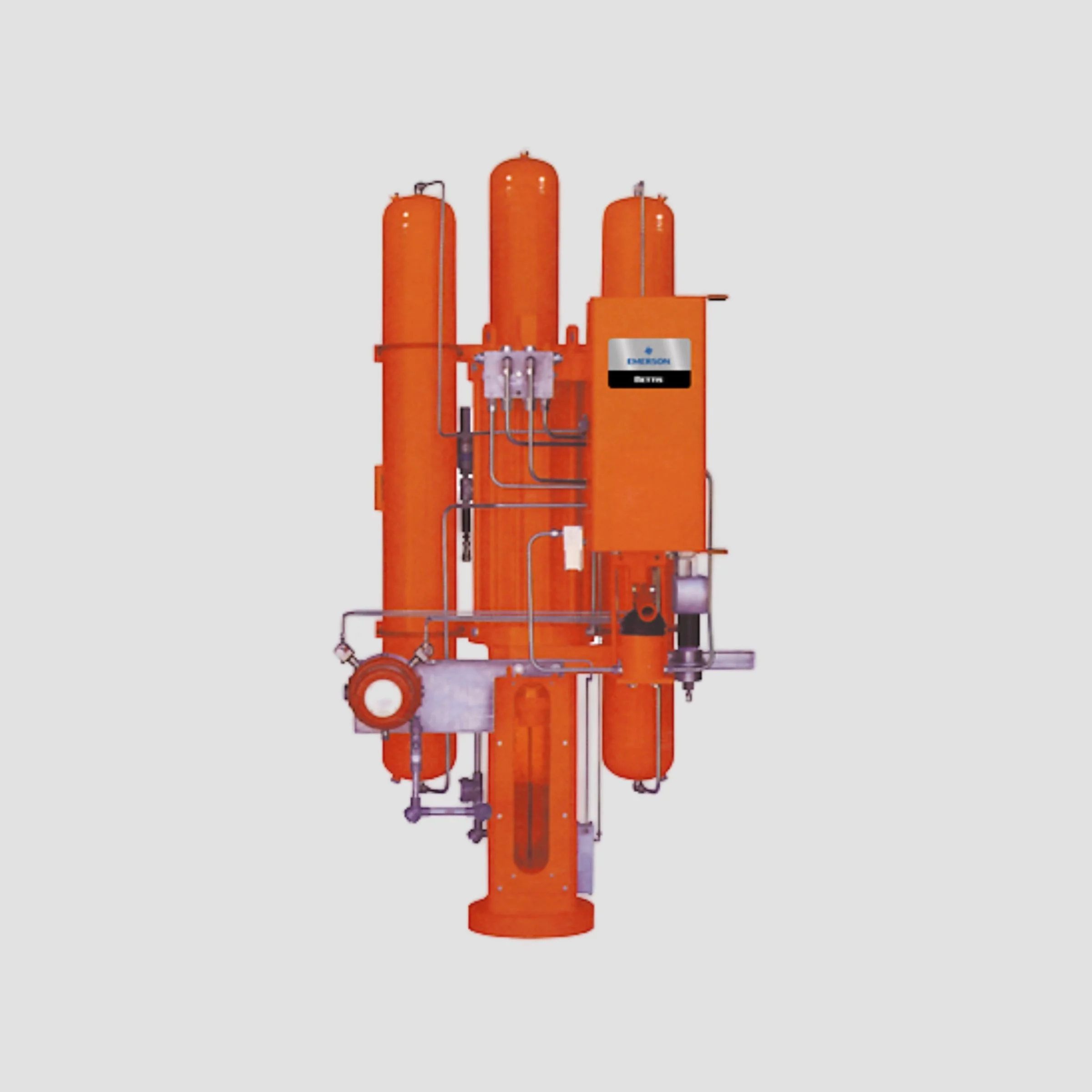

The Bettis PressureGuard Hydraulic Emergency Shutdown (ESD) System offers dependable valve closure for production wellheads, operating with or without an external power source. This self-contained system ensures secure operations, even in scenarios where power reliability is questionable. Compatible with SCADA systems, it can be adapted for both quarter-turn and linear valves. Its modular construction simplifies maintenance, enhancing adaptability and reliability in safeguarding production processes.

Product Type:	Accessories
Actuation:	Hydraulic
Certifications:	Directive 2011/65/EU
Control Type:	On/off
Valve Type:	Ball, Butterfly, Plug, Triple Offset

Find Out More

The Bettis GS-Series Scotch Yoke Hydraulic Valve Actuator excels in offshore applications like splash zones and risers, with options for diver or ROV interventions. It features over fifteen alerts for system anomalies, a five-year warranty, and a patented Tension-lok for safe spring handling. Compliant with PED 97/23/EC and IP66/IP67M, it ensures optimal protection against water and corrosion. Its modular design offers easy maintenance, various configurations, SIL suitability, and a complete VOS for ultimate valve control.

Product Type:	Hydraulic Actuator
Actuation:	Double-acting
Certifications:	Enclosure Sealed
Control Type:	On/Off, ESD
Valve Type:	Ball, butterfly, and plug valves, louvers and dampers, and other quarter-turn mechanisms
Operating Temperature:	Standard -40°C to + 66°C
Torque/Thrust:	Double-acting models: 1420 to 678,000 Nm (12,581 - 6,000,000 in-lbs)
Operating Pressure:	Up to 40-220 psig (3-14 bar)

Find Out More

The Bettis Gas Hydraulic Linear Valve Operator, ideal for high-pressure gas transmission pipelines in remote areas without pneumatic or hydraulic lines, ensures precise control under extreme weather. It features zero leak pistons, seals tailored for each application, and a range of control options including remote operation. Offering a material and workmanship warranty of five years, it efficiently transforms linear to rotary motion with torques up to 6,000,000 lbs-in. Available in lightweight aluminium, with ductile iron or steel options.

Product Type:	Gas Hydraulic Actuator
Actuation:	Linear
Certifications:	ATEX
Control Type:	On/off, ESD
Valve Type:	Pair with rotary (quarter-turn) and linear valves
Operating Temperature:	Standard -45°C to + 66°C (-50°F to 150°F)
Torque/Thrust:	2,891,200 Nm (650,000 in-lbs)
Operating Pressure:	Standard 1,440 psig (100 Bar)

Find Out More

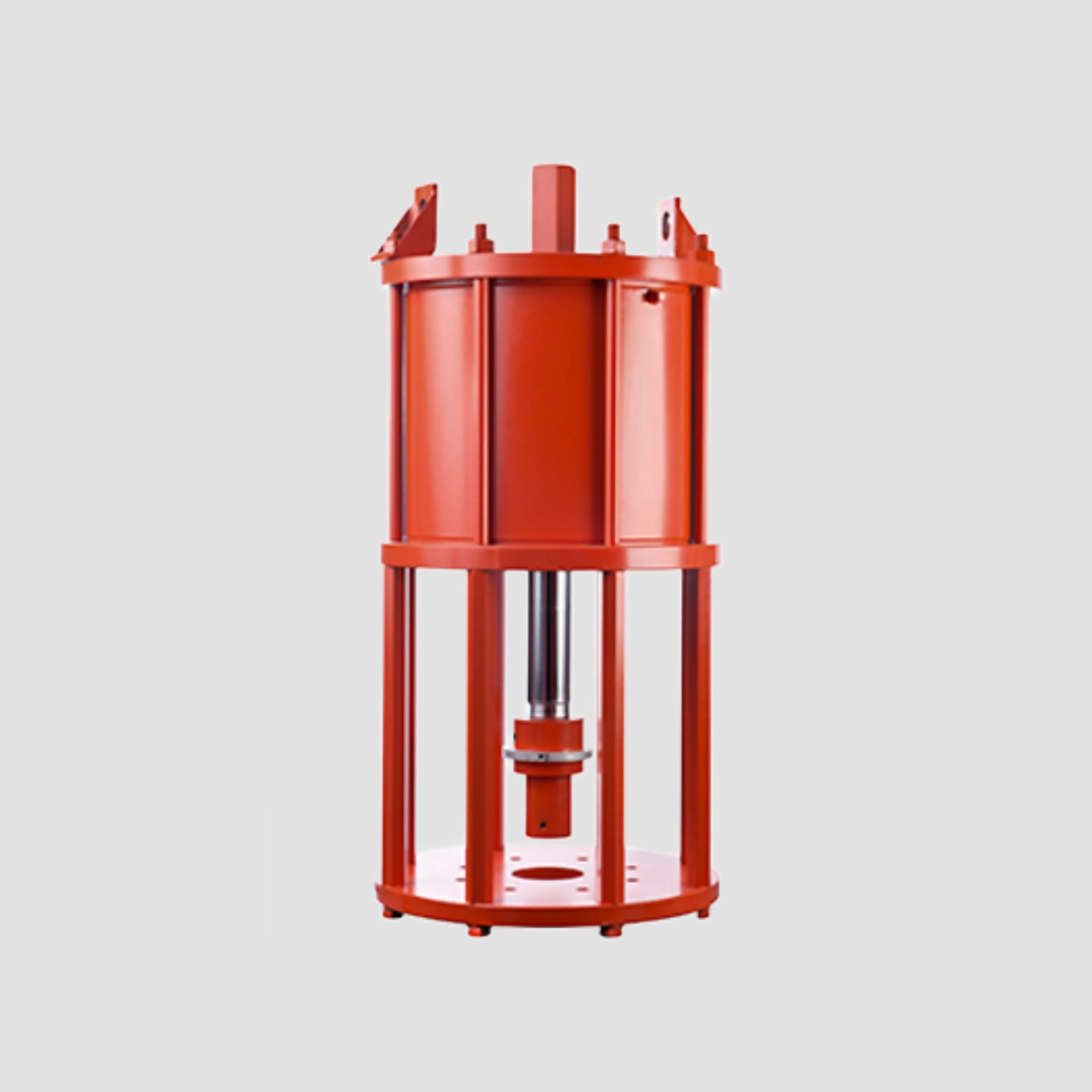

The Bettis GVO-Series Hydraulic Linear Valve Actuator excels in automating rising stem valves for safety shutdown and control tasks. Suitable for various valves like slab, wedge, and globe, it features extended stroke, external tie bars for safe energy release, and multiple options for enhanced operation, including limit switches and manual overrides. Available in models like GVO HP-DA, HP-SR, and HP-FS, with cylinder sizes ranging from 4” to 24” and MAWP up to 3,000 psi, it ensures precise valve control and protection.

Product Type:	Hydraulic Actuator
Actuation:	Linear, Double-acting
Certifications:	SIL 3 suitable, ATEX. PED 97/23/EC - Pressure Equipment Directive, IP66/IP67M
Control Type:	On/off, ESD
Valve Type:	Slab, wedge, knife, expanding gate, globe, rising stem ball valves, and dampers
Operating Temperature:	Standard -23 °C to +74 °C (-10 °F to +165 °). Consult factory for low-high temperatures.

Find Out More

The Bettis G-Series hydraulic valve actuator, ideal for ball, butterfly, and plug valves, thrives in SIL-required, hostile environments. Its modular build enhances efficiency, minimises wear, and prolongs lifespan. Features include Tension-Lok™ for secure spring handling, PED 97/23/EC compliance, IP66 and IP67M ratings for exceptional protection against water ingress and corrosion, and versatile configurations for easy maintenance and lower stock costs. Also supports interchangeable modules for swift fail-safe mode changes.

Product Type:	Hydraulic Actuator
Actuation:	Fail-Safe, Quarter-turn, Spring-Return, Double-Acting
Certifications:	ATEX, PED, (CE), SIL capable,TRCU/EAC/GOST, ABS
Control Type:	On/off
Valve Type:	Ball, Butterfly, Plug, Triple Offset Valves, Other Quarter-Turn Devices
Operating Temperature:	Standard range: -20°F to +200°F (-29°C to +93°C). Optional range: to -40°F (-40°C) or to +350°F (+177°C)
Torque/Thrust:	Spring-return models in excess of 3,000,000 lbs-in (339,000 Nm), Double-acting 12,581 - 6,000,000 lbs-in (1420 - 678,000 Nm)
Operating Pressure:	Up to 5,000 psig (345 bar)

Find Out More

The Bettis range is designed to handle pneumatic media for optimal performance.

Pneumatic actuators in the Bettis range typically operate within a supply pressure range suitable for pneumatic actuation.

The Bettis range offers fail-safe, quarter-turn, spring-return, and double-acting actuation options to suit various application requirements.

The Bettis range is certified with ATEX and PED certifications, ensuring compliance with European safety standards.

Bettis actuators support on/off control for efficient and straightforward operation.

Bettis actuators are compatible with various valve types, including ball valves, butterfly valves, plug valves, triple offset valves, and other quarter-turn devices.

The standard operating temperature range for Bettis actuators is from -20°F to +200°F (-29°C to +93°C), with optional ranges available to -40°F (-40°C) or up to +350°F (+177°C).

Bettis actuators boast a torque/thrust capacity of up to 1,200,000 lbf-in (135,000 Nm), ensuring robust performance across a range of applications.

The standard operating pressure for Bettis actuators is either 60 or 80 psig (4 or 5.5 Bar), providing optimal performance within specified parameters.

Yes, Bettis actuators offer optional temperature ranges to accommodate extreme temperature environments, ensuring reliable operation in diverse conditions.

Yes, Bettis actuators offer fail-safe actuation options, providing added reliability and safety for critical applications.

Yes, Bettis actuators are designed for straightforward integration with various valve types and control systems, facilitating seamless automation of industrial processes
