Actuation Valve

Belimo's rotary actuators with connecting terminals come in CM, LM, NM, SM, and GM ranges, catering to various damper sizes from 0.4m² to 8m² and offering nominal torques from 2Nm to 40Nm. All models operate within 24V to 230V and feature swift running times for 90° motor rotation. The CM series excels for small applications, while the GM range handles larger demands, ensuring optimal functionality and efficiency in controlling air flow in HVAC systems.

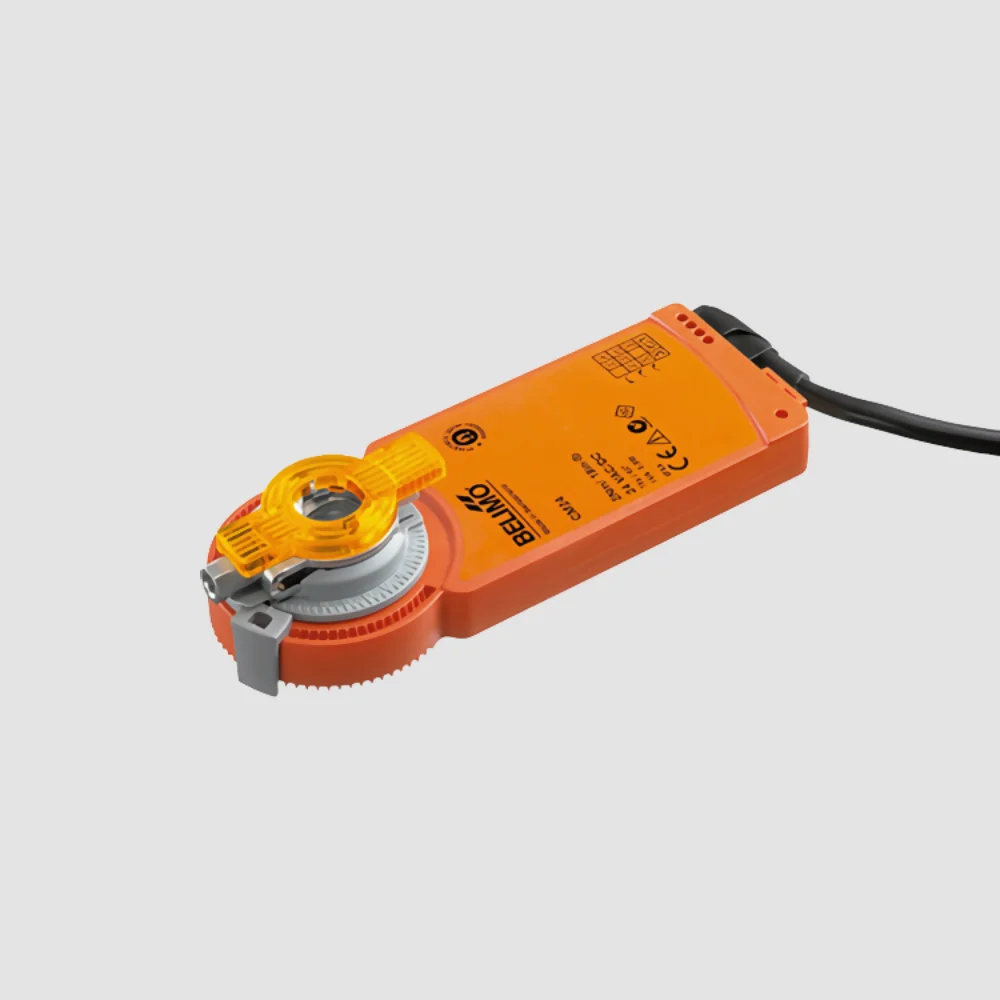

Belimo's CM Actuator Range, featuring models CM24-T-L, CM24-T-R, CM24-SR-T-L, and CM24-SR-T-R, offers precise control for dampers up to 0.4m² with a nominal torque of 2Nm. Designed for 24V systems, these actuators ensure reliable operation with a 75s running time for 90° rotation. Ideal for diverse applications, the CM series enhances system efficiency and performance.

Actuator Types:	CM24-T-L, CM24-T-R, CM24-SR-T-L, & CM24-SR-T-R
Nominal Voltages:	24V
Running Time Motor 90°:	75s
Maximum Damper Size:	0.4m²
Nominal Torque:	2Nm

Shop Now

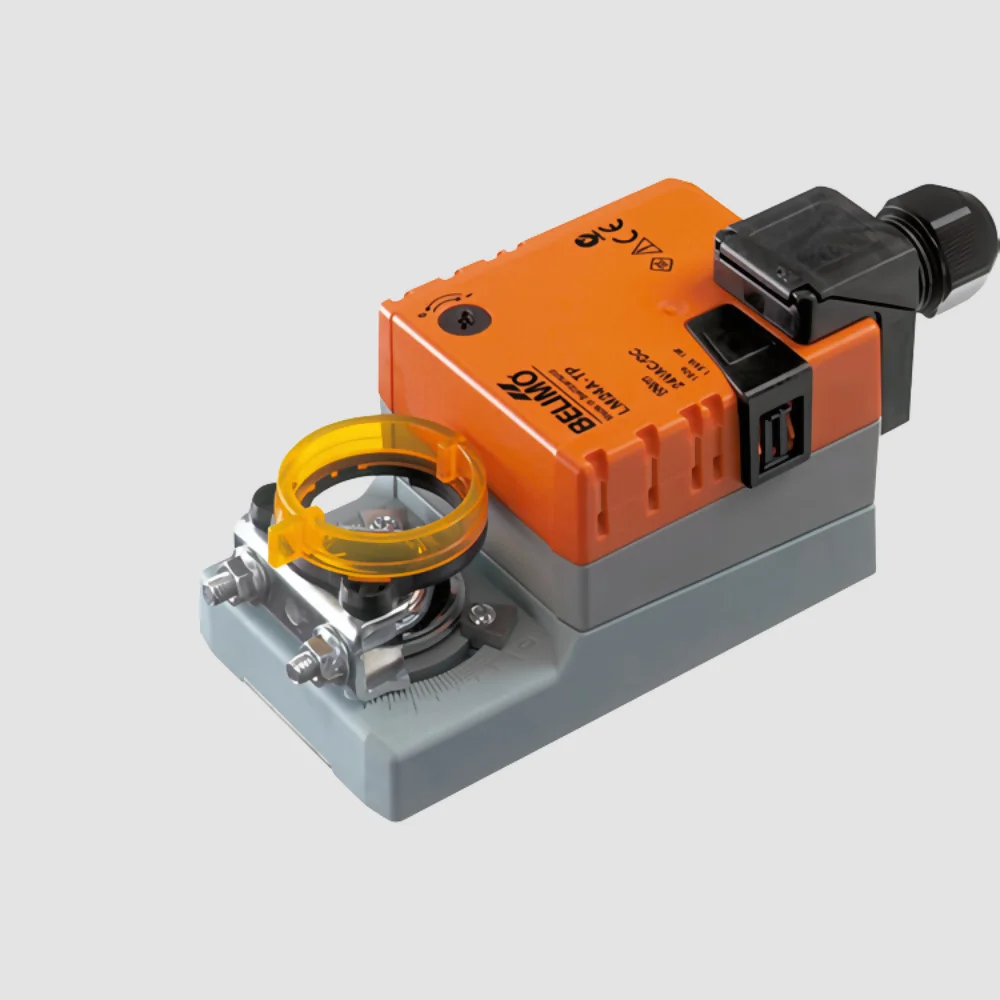

The Belimo LM Actuator Range, featuring models LM24A-TP, LM24A-S-TP, LM230A-TP, LM230A-S-TP, LM24A-SR-TP, and LM230ASR-TP, offers a versatile solution for damper control. With nominal voltages ranging from 24V to 230V and a running time motor of 90° taking 150 seconds, these actuators can handle dampers up to 1m² with a nominal torque of 5Nm, catering efficiently to various HVAC requirements.

Actuator Types:	LM24A-TP, LM24A-S-TP, LM230A-TP, LM230A-S-TP, LM24A-SR-TP, & LM230ASR-TP
Nominal Voltages:	24V to 230V
Running Time Motor 90°:	150s
Maximum Damper Size:	1m²
Nominal Torque:	5Nm

Shop Now

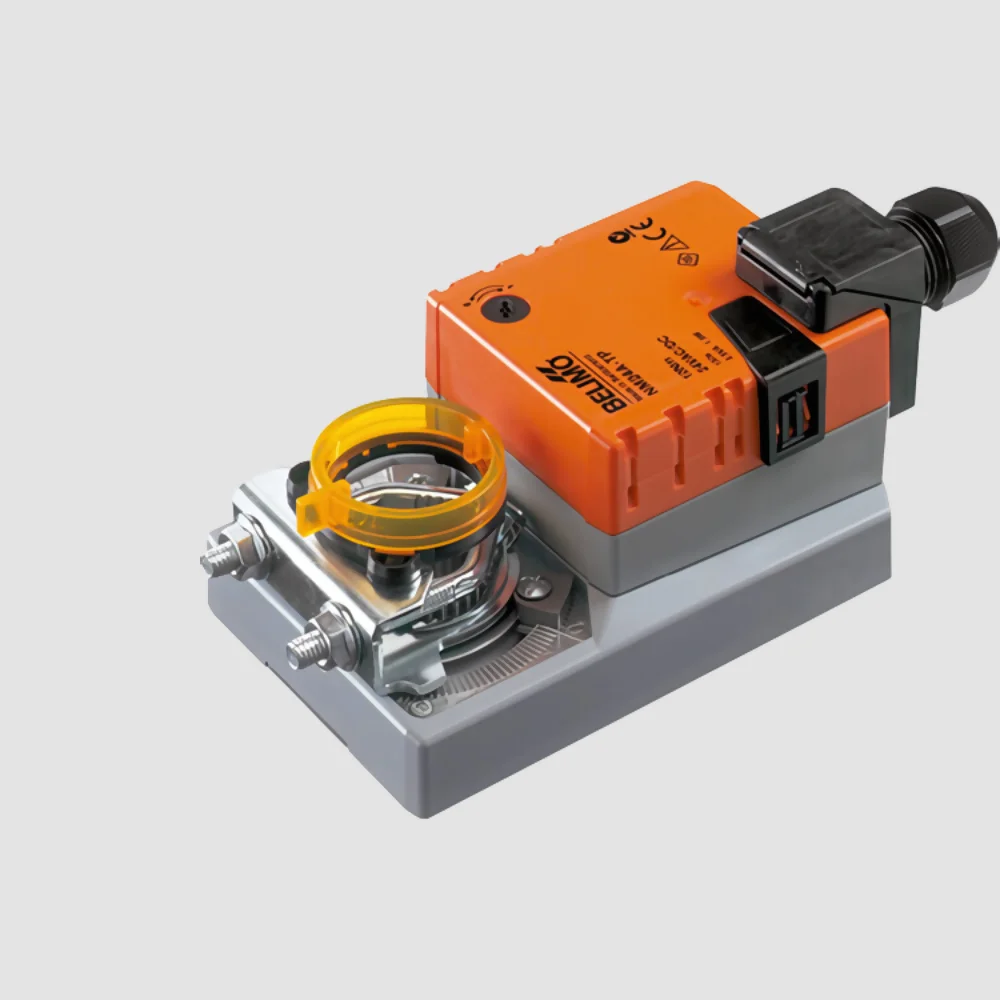

The Belimo NM Actuator Range, featuring models NM24A-TP, NM24A-S-TP, NM230A-TP, NM230A-S-TP, NM24A-SR-TP, and NM230ASR-TP, is designed for versatility, supporting nominal voltages from 24V to 230V. With a nominal torque of 10Nm and a running time motor of 150 seconds for a 90° operation, these actuators are suitable for dampers up to 2m² in size, offering reliable performance for a variety of applications.

Actuator Types:	NM24A-TP, NM24A-S-TP, NM230A-TP, NM230A-S-TP, NM24A-SR-TP, & NM230ASR-TP
Nominal Voltages:	24V to 230V
Running Time Motor 90°:	150s
Maximum Damper Size:	2m²
Nominal Torque:	10Nm

Shop Now

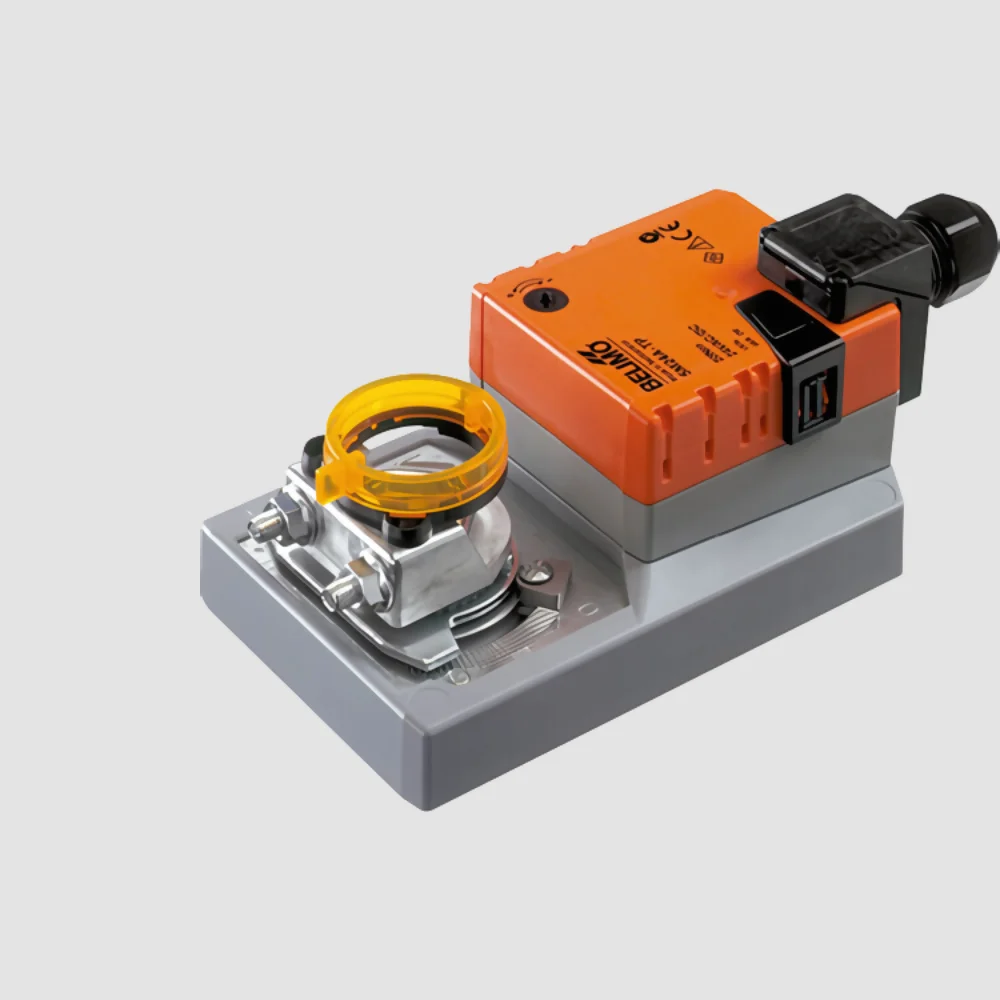

The Belimo SM Actuator Range, including models SM24A-TP, SM24A-S-TP, SM230A-TP, SM230A-S-TP, SM24A-SR-TP, and SM230ASR-TP, is designed for efficient operation with nominal voltages ranging from 24V to 230V. These actuators offer a consistent running time of 150 seconds for 90° rotation, are suitable for dampers up to 4m², and provide a nominal torque of 20Nm, ensuring optimal performance in controlling air flow in ventilation systems.

Actuator Types:	SM24A-TP, SM24A-S-TP, SM230A-TP, SM230A-S-TP, SM24A-SR-TP, & SM230ASR-TP
Nominal Voltages:	24V to 23V
Running Time Motor 90°:	150s
Maximum Damper Size:	4m²
Nominal Torque:	20Nm

Shop Now

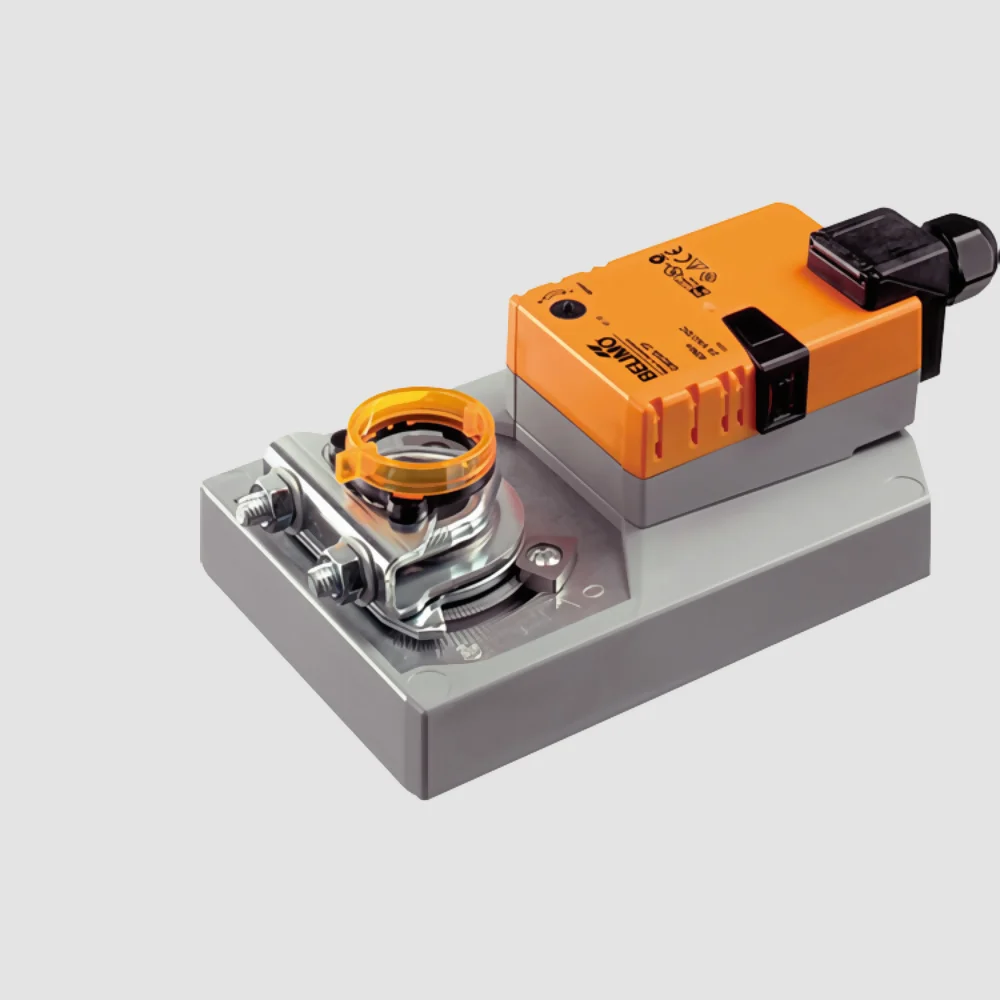

The Belimo GM Actuator Range, encompassing models GM24A-TP, GM230A-TP, and GM24A-SR-TP, offers exceptional flexibility with nominal voltages from 24V to 230V. Designed for optimum performance, these actuators ensure precise control with a 150-second running time for a 90° motor rotation and can handle maximum damper sizes up to 8m². With a nominal torque of 40Nm, they are ideal for a wide variety of applications, ensuring efficient operation and reliability in controlling air flow.

Actuator Types:	GM24A-TP, GM230A-TP, & GM24A-SR-TP
Nominal Voltages:	24V to 230V
Running Time Motor 90°:	150s
Maximum Damper Size:	8m²
Nominal Torque:	40Nm

Shop Now

Browse a vast catalogue of damper actuators, sensors/meters, & control valves by Belimo, designed for HVAC applications, ensuring high quality performance, reliability and low power consumption.

Belimo Non Fail-Safe Rotary Actuators offer a nominal torque range of 2 to 40 Nm, accommodating a wide variety of damper sizes for precise airflow control in HVAC systems.

Yes, Belimo Actuators are designed to handle damper sizes ranging from 0.4m² to 8m², ensuring versatile application across different sizes for optimal ventilation management.

Belimo Actuators are engineered with IP54/66 and IP54/20 protection degrees, offering robust defense against dust and water ingress in challenging environments.

The Belimo Non Fail-Safe Actuators come in various product ranges including CM, LM, SM, CM-T, NMA-TP, GMA-TP for Rotary Actuators and CH, LH, SH for Linear Actuators, catering to diverse installation needs.

Belimo Actuators feature both connecting cables and terminals, providing flexible and convenient installation options to suit different system requirements.

Belimo Linear Actuators deliver actuating forces ranging from 125N to 450N, enabling precise control over damper operations for efficient airflow management.

With high IP ratings, Belimo Actuators are suitable for various settings, including outdoor applications, where protection against environmental elements is crucial.

Selecting the right Belimo Actuator involves considering damper size, required torque or force, degree of protection needed, and connection preference, ensuring compatibility with your HVAC system.

Belimo Actuators are renowned for their precision, durability, and versatility, making them highly reliable for controlling air flow in HVAC systems across a range of applications.

Absolutely, Belimo Non Fail-Safe Actuators are perfectly suited for commercial buildings, providing efficient and precise airflow control in HVAC systems to maintain optimal indoor air quality and comfort.

Belimo Linear Actuators are capable of controlling dampers up to 3m² in size, offering a range of actuating forces from 125N to 450N, making them ideal for a variety of linear movement applications within HVAC systems.

By providing precise control over damper positions with their wide torque and force range, Belimo Actuators help in optimizing airflow and reducing energy consumption, thus contributing significantly to the overall energy efficiency of HVAC systems.
