Linear Actuators with Connecting Cable

Belimo's Linear Actuators with Connecting Cable offer diverse options for precise control in HVAC systems. The CH range includes models CH24-L60.2 to CH230-L100.2, with strokes from 60mm to 100mm, and a 125N force, suitable for dampers up to 0.8m². The LH series, from LH24A60 to LH230ASR200, expands capabilities with strokes up to 300mm and a 150N force, catering to 1m² dampers. The SH lineup, including SH24A100 to SH230ASR200, pushes further with up to 300mm stroke, 450N force, and compatibility with 3m² dampers. All ranges support 24V to 230V, ensuring adaptability.

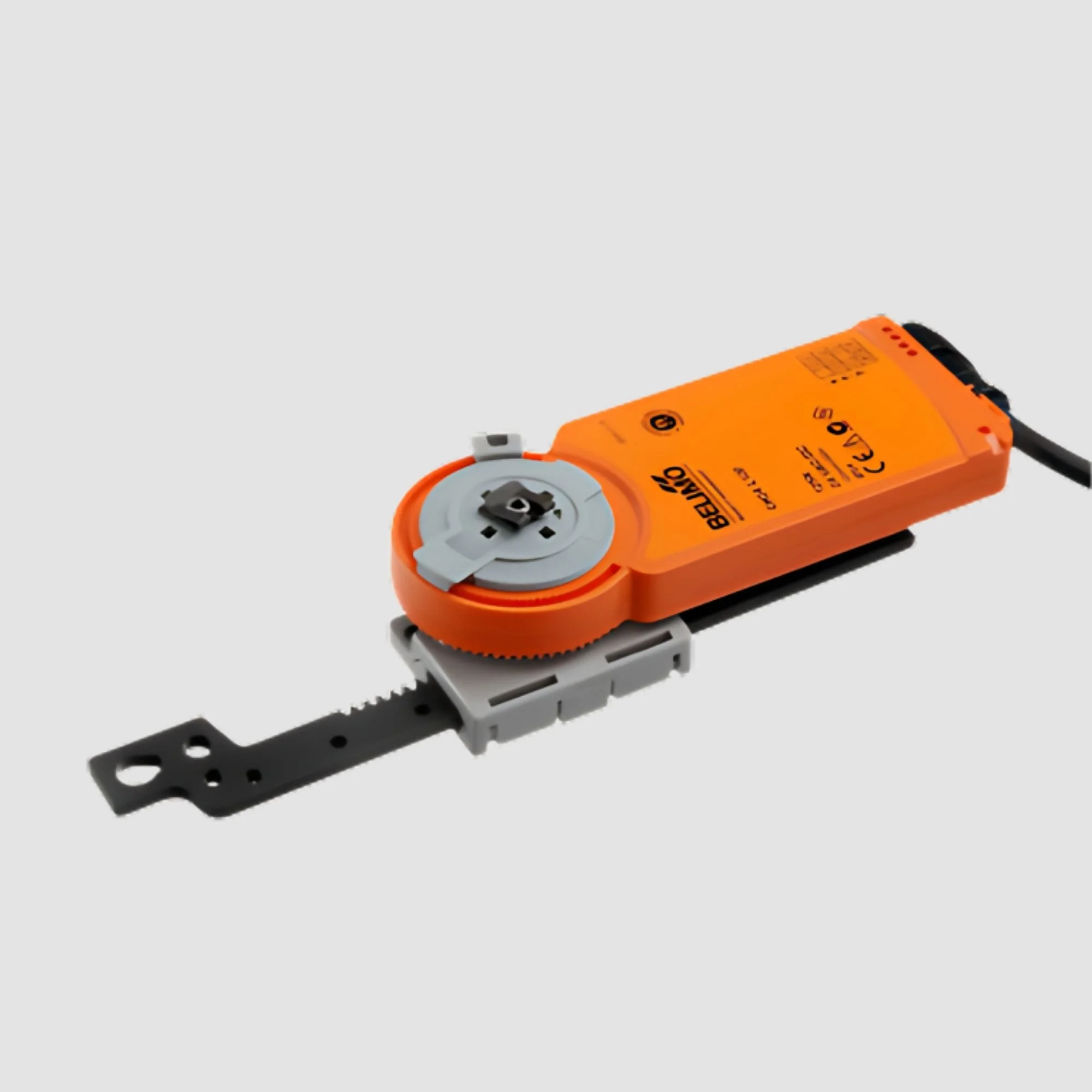

CH Actuator Range

The Belimo CH Actuator Range, featuring models CH24-L60.2, CH24-L100.2, and CH230-L100.2, caters to diverse needs with nominal voltages from 24V to 230V and a running time of 380s. Offering a stroke range of 60mm to 100mm and an actuating force of 125N, these actuators are ideal for damper sizes up to 0.8m², ensuring precise and efficient control in various applications.

Actuator Types: CH24-L60.2, CH24-L100.2, & CH230-L100.2
Nominal Voltages: 24V to 230V
Running Time: 380s
Stroke Range: 60mm to 100mm
Maximum Damper Size: 0.8m²
Actuating Force: 125N
Shop Now

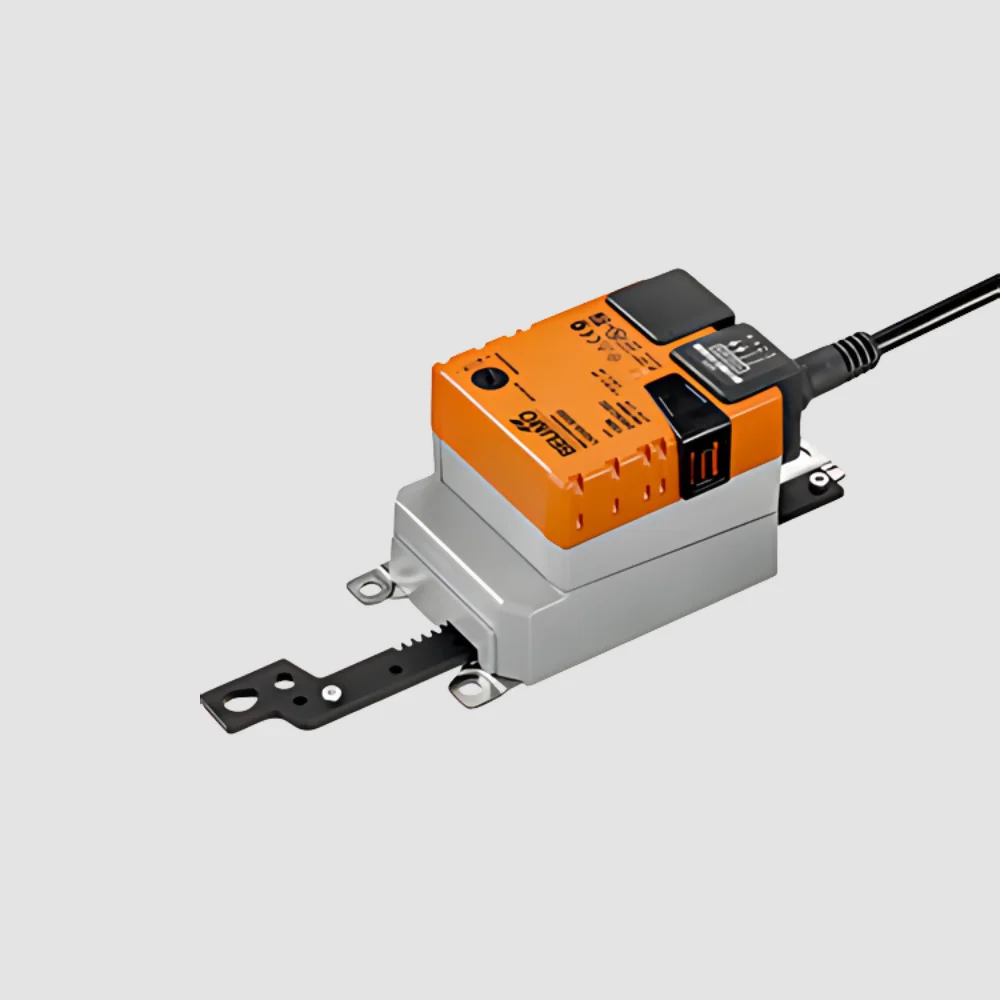

LH Actuator Range

Belimo's LH actuator series, including models LH24A60/100/200/300, LH230A60/100/200/300, LH24A-SR100/200, LH24A-MP300, and LH230ASR100/200, offer precise control with nominal voltages ranging from 24V to 230V. Designed for a swift running time of 150 seconds and a stroke range of 60mm to 300mm, these actuators can manage damper sizes up to 1m² with an actuating force of 150N, ensuring efficient operation across a variety of applications.

Actuator Types: LH24A60/100/200/300, LH230A60/100/200/300, LH24A-SR100/200, LH24A-MP300, & LH230ASR100/200
Nominal Voltages: 24V to 230V
Running Time: 150s
Stroke Range: 60mm to 300mm
Maximum Damper Size: 1m²
Actuating Force: 150N
Shop Now

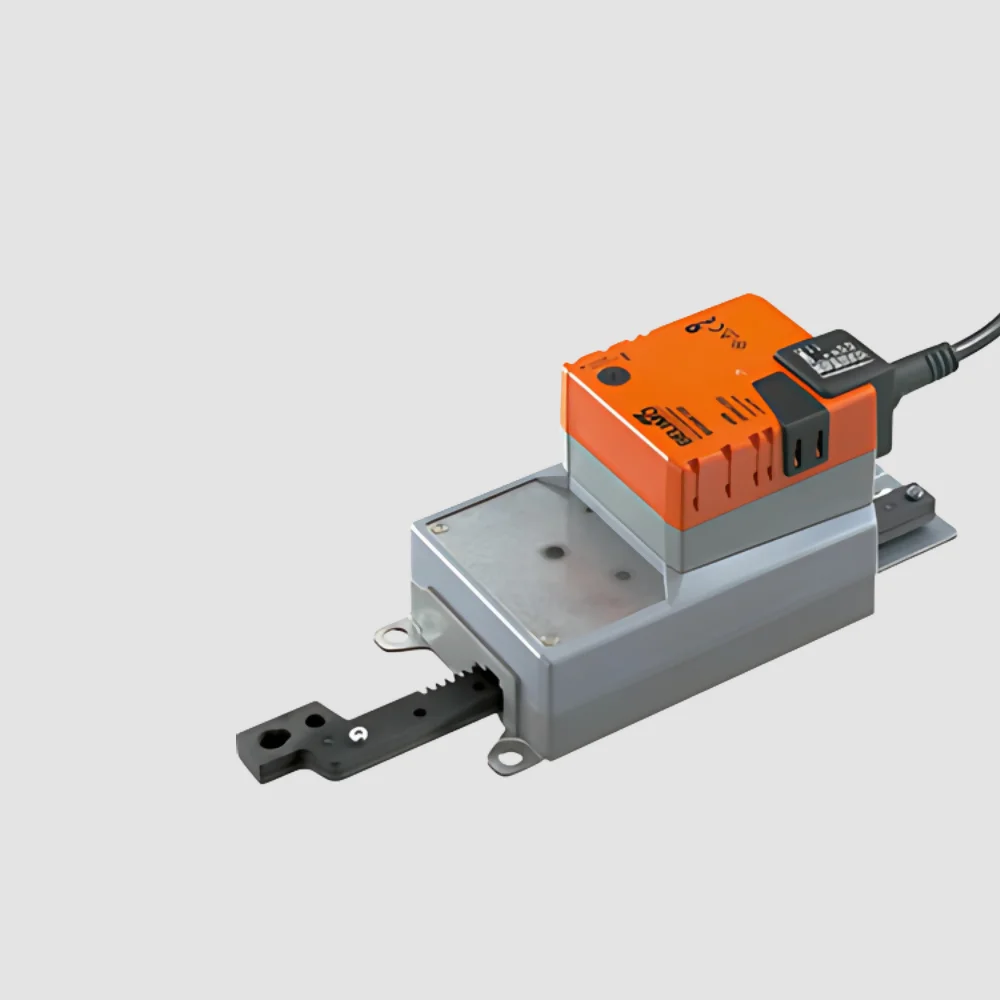

SH Actuator Range

The Belimo SH Actuator Range, encompassing models SH24A100/200/300, SH230A100/200/300, SH24A-SR100/200, SH24A-MP300, and SH230ASR100/200, offers precision in controlling damper movements. Designed for nominal voltages from 24V to 230V, these actuators ensure consistent performance with a running time of 150s. They accommodate a stroke range of 100mm to 300mm, suitable for maximum damper sizes up to 3m², and deliver an actuating force of 450N, ensuring efficient operation across various applications.

Actuator Types: SH24A100/200/300, SH230A100/200/300, SH24A-SR100/200, SH24A-MP300, & SH230ASR100/200
Nominal Voltages: 24V to 230V
Running Time: 150s
Stroke Range: 100mm to 300mm
Maximum Damper Size: 3m²
Actuating Force: 450N
Shop Now

Comprehensive Selection of Cutting-Edge HVAC Field Devices

Browse a vast catalogue of damper actuators, sensors/meters, & control valves by Belimo, designed for HVAC applications, ensuring high quality performance, reliability and low power consumption.

Frequently Asked Questions

Belimo Non Fail-Safe Rotary Actuators offer a nominal torque range of 2 to 40 Nm, accommodating a wide variety of damper sizes for precise airflow control in HVAC systems.

Yes, Belimo Actuators are designed to handle damper sizes ranging from 0.4m² to 8m², ensuring versatile application across different sizes for optimal ventilation management.

Belimo Actuators are engineered with IP54/66 and IP54/20 protection degrees, offering robust defense against dust and water ingress in challenging environments.

The Belimo Non Fail-Safe Actuators come in various product ranges including CM, LM, SM, CM-T, NMA-TP, GMA-TP for Rotary Actuators and CH, LH, SH for Linear Actuators, catering to diverse installation needs.

Belimo Actuators feature both connecting cables and terminals, providing flexible and convenient installation options to suit different system requirements.

Belimo Linear Actuators deliver actuating forces ranging from 125N to 450N, enabling precise control over damper operations for efficient airflow management.

With high IP ratings, Belimo Actuators are suitable for various settings, including outdoor applications, where protection against environmental elements is crucial.

Selecting the right Belimo Actuator involves considering damper size, required torque or force, degree of protection needed, and connection preference, ensuring compatibility with your HVAC system.

Belimo Actuators are renowned for their precision, durability, and versatility, making them highly reliable for controlling air flow in HVAC systems across a range of applications.

Absolutely, Belimo Non Fail-Safe Actuators are perfectly suited for commercial buildings, providing efficient and precise airflow control in HVAC systems to maintain optimal indoor air quality and comfort.

Belimo Linear Actuators are capable of controlling dampers up to 3m² in size, offering a range of actuating forces from 125N to 450N, making them ideal for a variety of linear movement applications within HVAC systems.

By providing precise control over damper positions with their wide torque and force range, Belimo Actuators help in optimizing airflow and reducing energy consumption, thus contributing significantly to the overall energy efficiency of HVAC systems.
