Belimo Air Duct Sensors

Belimo offers a variety of sensors, including Duct, Immersion, and Cable Temperature Sensors, designed for precise temperature monitoring across various applications. Their products, ranging from -50°C to 250°C, ensure reliable performance with IP65/NEMA 4X protection. These sensors are ideal for enhancing HVAC system efficiency and accuracy in diverse environments, providing essential data for optimal operational management.

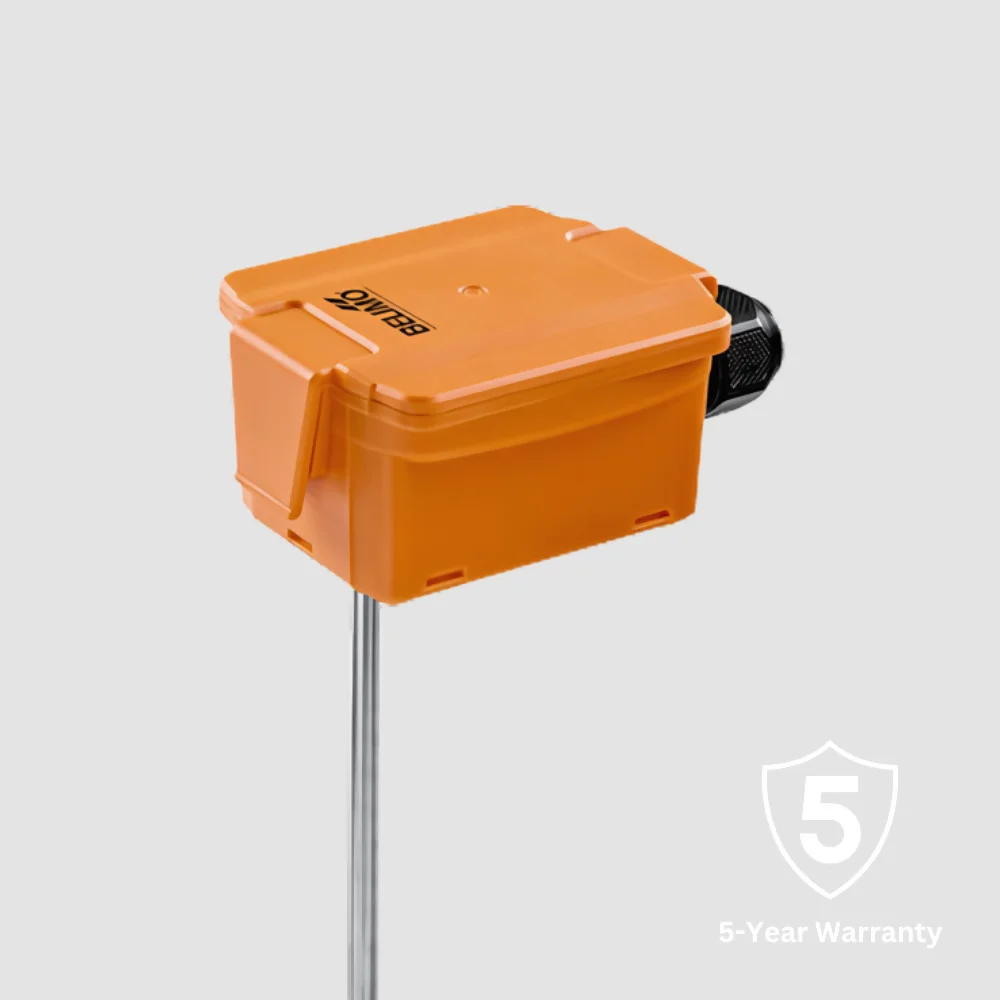

Belimo Duct & Immersion Sensors for Temperature (Passive)

Belimo Duct & Immersion Temperature Sensors are designed with precision for accurate temperature monitoring in ducts and immersion applications within pipes. These adaptable sensors encompass a temperature range from -50°C to 160°C, with probe lengths varying between 200mm and 450mm. Constructed with durable plastic and equipped with a snap-on cover, they ensure IP65/NEMA 4X protection, guaranteeing reliable performance in diverse environmental conditions with passive output signals.

Sensor Types: 01DT... etc, 01PT... etc, & 01DT... etc
Temperature Range: -50°C to 160°C
Degree of Protection: IP65 / NEMA 4X
Applications: Immersion sensor for pipe installations & pipe installations with short response time
Find Out More

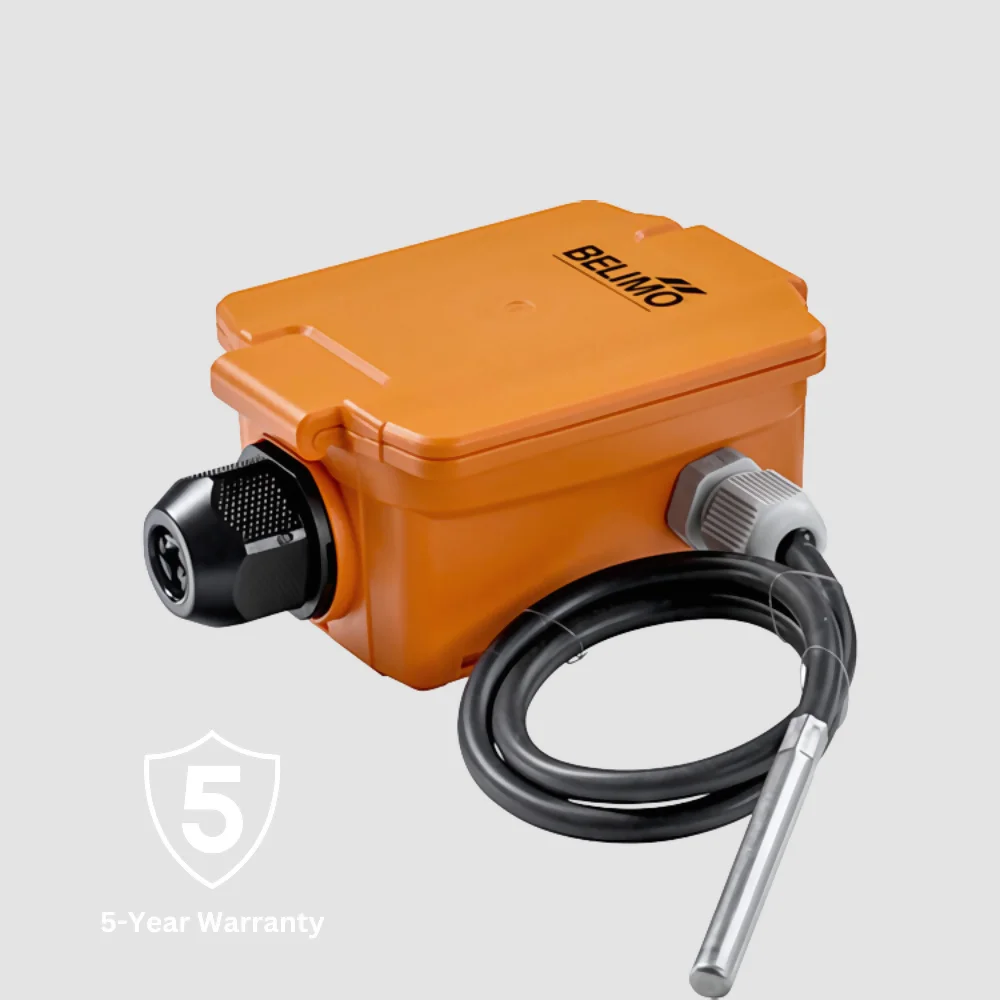

Belimo Cable Sensors for Temperature

Belimo cable sensors for temperature, available in both passive and active models, deliver accurate measurements in temperatures ranging from -50°C to 250°C. These sensors come in probe lengths from 50mm to 200mm and are equipped with IP65/NEMA 4X protection, featuring a practical plastic housing with a snap-on cover. Ideal for a wide range of applications, they operate on a 24V AC/DC power supply and provide precision in various environments.

Sensor Types: 01CT... etc & 22CT... etc
Temperature Range: -50°C to 250°C
Degree of Protection: IP65 / NEMA 4X
Power Supply: AC/DC 24V
Find Out More

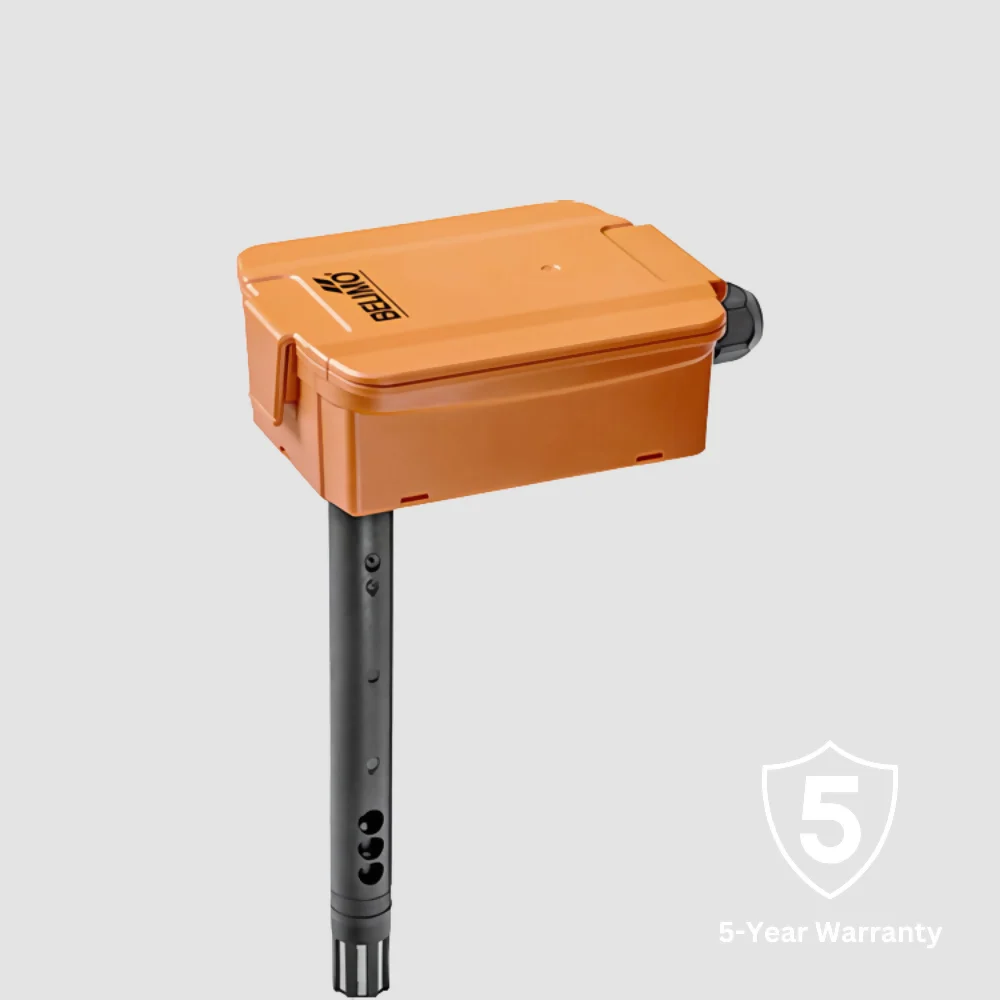

Belimo Temperature Average & Humidity Sensors

Belimo provides sophisticated temperature and humidity sensors tailored for precise climate management in HVAC systems. The 01MT and 22MT models span a broad temperature range of -50°C to 250°C, and come with IP65/NEMA 4X rated enclosures to withstand severe conditions. The 22DTH and 01DH-10N models focus on humidity and moderate temperatures, offering precise environmental tracking through their compact design and dependable output signals. Perfectly suited for ducts and air handling units, these sensors from Belimo enhance performance and efficiency.

Sensor Types: 01MT... etc, 22MT... etc, 22DTH... etc, & 01DH-10N
Temperature Range: -50°C to 250°C
Degree of Protection: IP65 / NEMA 4X & IP55
Applications: Measuring Humidity and Temperature Averages in Ducts and Air Handling Units
Find Out More

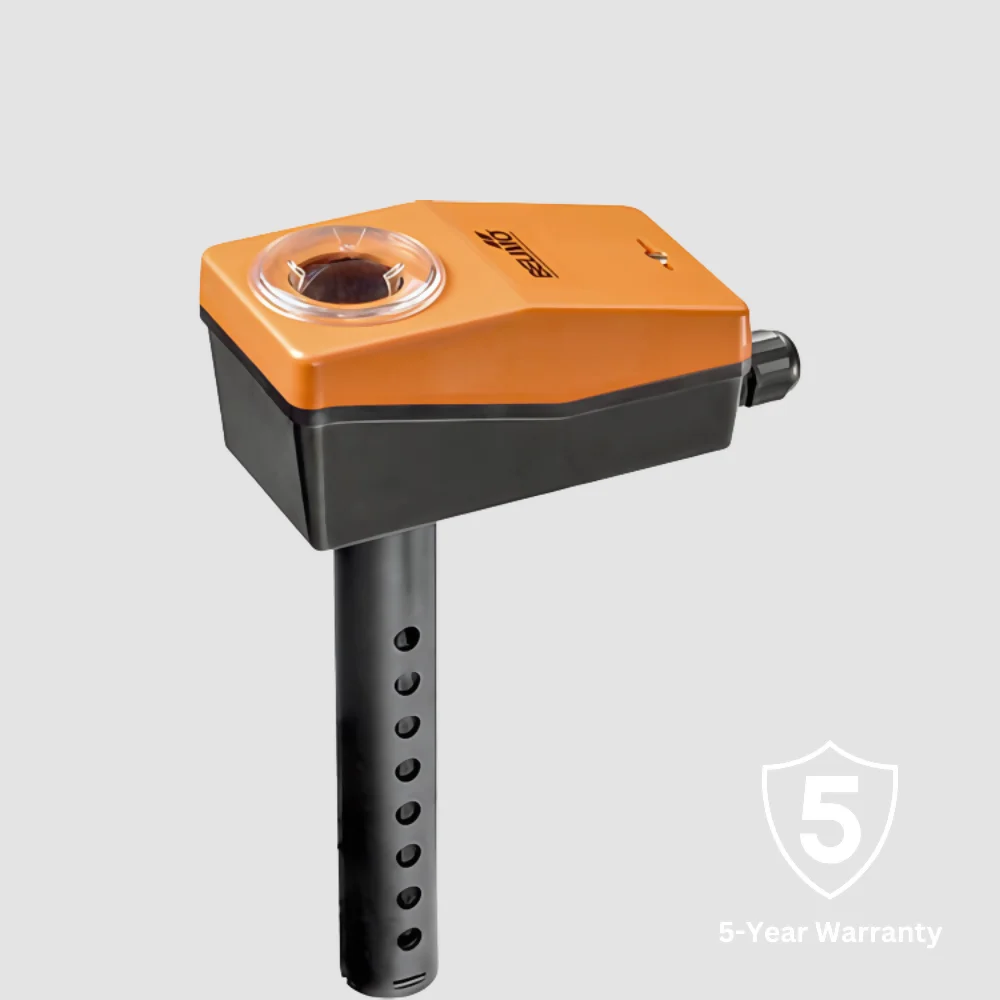

Belimo Air Quality, Humidity, & Temperature Sensors

Belimo offers a comprehensive selection of Air Quality, Humidity, and Temperature Sensors, essential for precise CO2 monitoring and indoor air quality assessment. Designed for ducts and air handling units, these sensors range from basic CO2 measurement models to advanced versions that evaluate VOCs and humidity. Each model is equipped with a durable plastic enclosure featuring a snap-on cover, rated IP65/NEMA 4X, and powered by 24V AC/DC, ensuring dependable performance and straightforward integration into existing setups.

Sensor Types: 22DC... etc, 22DTC... etc, 22DTM... etc, 22DCV-11, 22DCM-11, & 22DCK-11
Temperature Range: 0°C to 50°C
Degree of Protection: IP65 / NEMA 4X
Application: Measuring Air Quality in ducts & AHU's
Find Out More

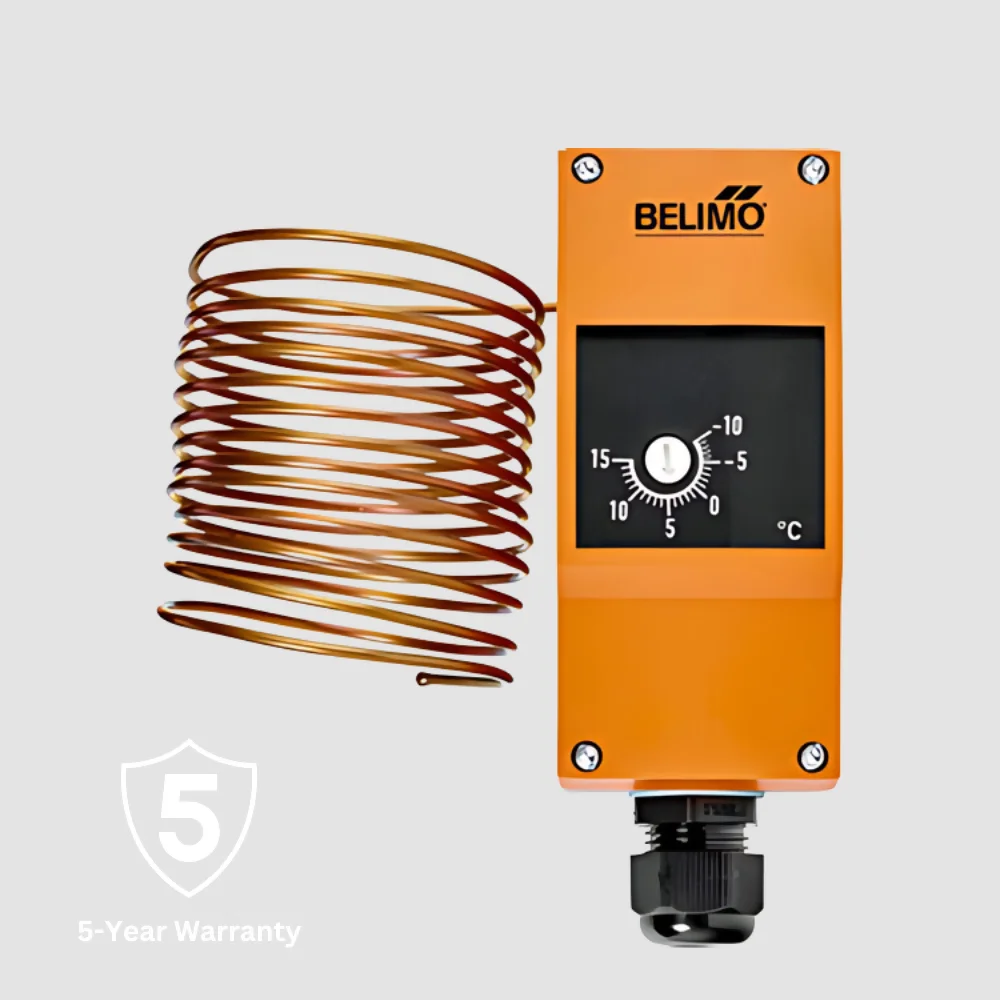

Belimo Frost Monitors

Belimo frost monitors provide advanced cold-weather protection for heating systems. These precision-engineered devices detect frost risks early, helping to prevent expensive damage and downtime. Suitable for both commercial and residential applications, Belimo frost monitors are straightforward to install and manage, offering a dependable way to maintain ideal temperatures and ensure system safety. Their cutting-edge technology makes them indispensable for energy management in sensitive environments.

Sensor Types: 01ATS... etc & 20DTS... etc
Capillary Tube Length: 3m, 2m, & 6m
Output Signal: Changeover Switch SPDT (01ATS... etc) & Active (20DTS... etc)
Applications: Monitoring temperatures and preventing frost damage
Find Out More

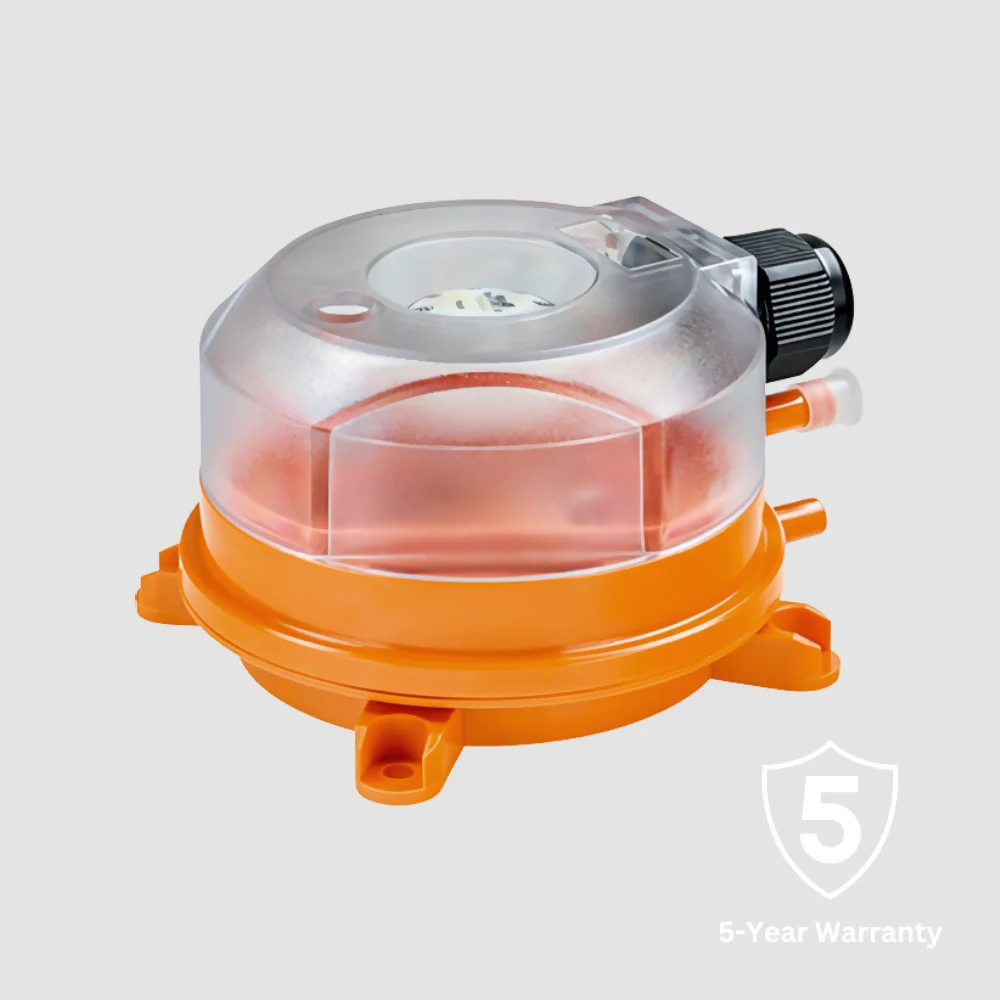

Belimo Differential Pressure Switches

Belimo differential pressure switches are engineered for effective monitoring and control of air and water pressure systems. Known for their accuracy, these switches deliver peak performance in HVAC settings. They are straightforward to install and work seamlessly with various control systems, improving both system dependability and energy efficiency. Belimo's dedication to innovation shines through in the functionality and reliability of their differential pressure switches, making them a top choice for industry professionals.

Sensor Types: 01APS... etc
Output Signal: Changeover Switch SPDT
Degree of Protection: IP54
Application: For monitoring over-, under or the differential pressure of air and other non-flammable gases
Find Out More

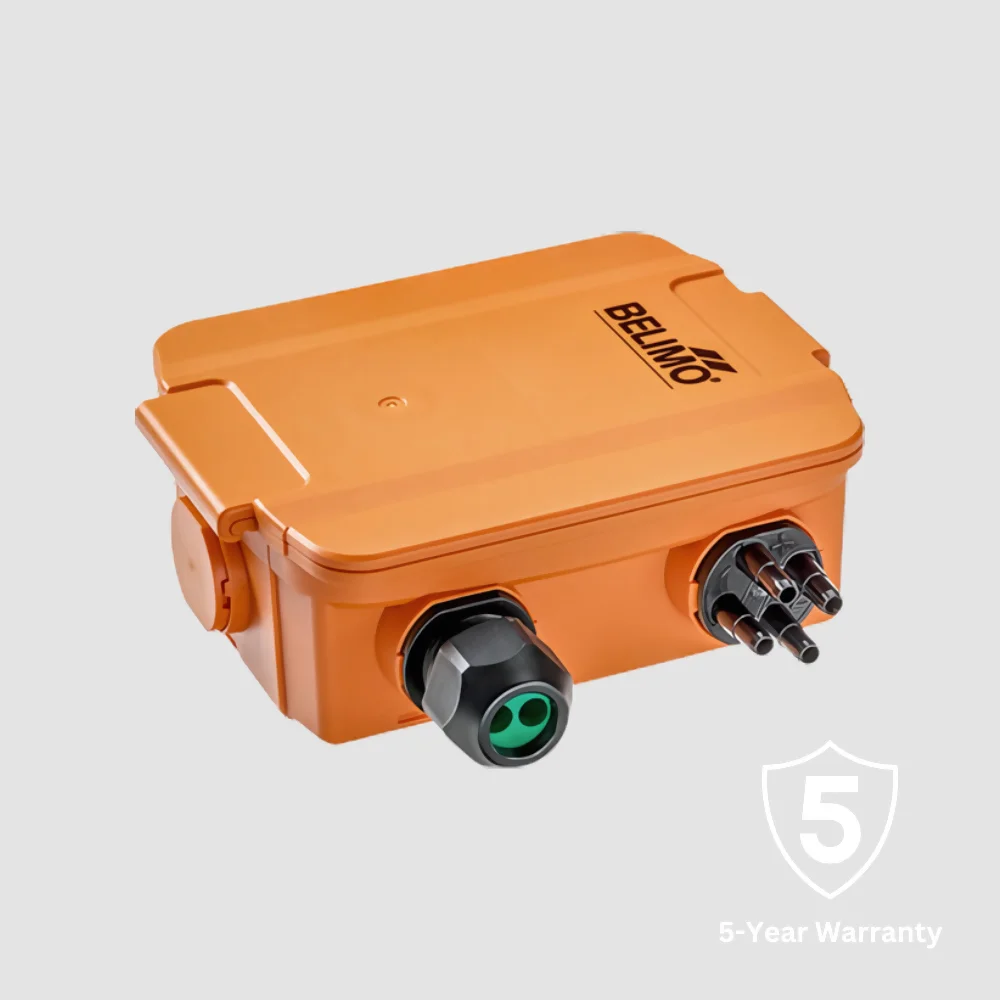

Belimo Differential Pressure Sensors

Belimo differential pressure sensors are engineered for precision and dependability, boosting HVAC system efficiency. These sensors deliver accurate readings to maintain perfect airflow and pressure equilibrium, greatly enhancing energy conservation. Suitable for both commercial and domestic environments, Belimo's sensors blend smoothly with current systems, providing instant data to support maintenance and operational choices. Their compact design and simple installation make them a preferred option for industry experts.

Sensor Types: 22ADP... etc
Output Signals: 0...5 V / 0...10 V, 4...20 mA, Modbus RTU, & BACnet MS/TP
Degree of Protection: IP65 / NEMA 4X
Power Supply: AC/DC 24 V
Find Out More

Comprehensive Selection of Cutting-Edge HVAC Field Devices

Browse a vast catalogue of damper actuators, sensors/meters, & control valves by Belimo, designed for HVAC applications, ensuring high quality performance, reliability and low power consumption.

Frequently Asked Questions

Belimo is a global market leader in the development, production, and marketing of actuator solutions for controlling heating, ventilation, and air conditioning (HVAC) systems in buildings.

Belimo manufactures a wide range of valves including globe valves, butterfly valves, ball valves, and pressure independent control valves (PICVs) for HVAC systems.

Belimo actuators are devices used to control the opening and closing of valves. They are motor-driven devices that receive signals from a building automation system (BAS) or a controller to regulate the flow of fluids in HVAC systems.

Belimo actuators offer high precision, reliability, and energy efficiency. They are designed for easy installation and integration with various building automation systems, providing precise control over HVAC components.

Belimo sensors are devices used to measure various environmental parameters such as temperature, humidity, and air quality. These sensors provide feedback to building automation systems, enabling better control and optimisation of HVAC systems.

Belimo valves, particularly pressure independent control valves (PICVs), help optimise energy usage by maintaining constant flow rates regardless of pressure fluctuations in the system. This ensures efficient operation of HVAC systems and minimises energy waste.

Belimo actuators are known for their durability and long lifespan. With proper maintenance and usage, they can last for many years, providing reliable operation in HVAC systems.

Yes, Belimo actuators are designed to be compatible with a wide range of valves, including those from other manufacturers. They can often be retrofitted onto existing valves, providing an easy and cost-effective way to upgrade HVAC systems.

Yes, Belimo products support various communication protocols such as BACnet, Modbus, and LonWorks, allowing seamless integration with different building automation systems and protocols.

Belimo maintains rigorous quality control standards throughout the manufacturing process. Additionally, all products undergo extensive testing to ensure they meet performance specifications and reliability standards.

Belimo offers comprehensive warranty coverage for its products, typically ranging from two to five years depending on the product and region. This warranty provides customers with peace of mind and assurance of product quality.

Yes, Belimo offers a wide range of valves and actuators suitable for various HVAC applications, including air handling units, fan coil units, chilled beams, radiators, and underfloor heating systems. Whether it's for heating, cooling, or ventilation, Belimo products are designed to meet the diverse needs of different HVAC systems.

FAQ

Warranty Included

Discover unmatched reliability with Belimo's actuator range, backed by an extensive 5-year warranty. Designed for precision and durability, each actuator promises long-lasting performance and reasurrance in your automation and control systems.
