AVENTICS™ Short Stroke Cylinders

The AVENTICS™ SSI Series short stroke cylinders, meeting ISO 15524, are up to 30% lighter than similar models due to weight-efficient profiles. They feature elastic cushioning, adaptable sensor mounting, and offer bore sizes from 12 to 100 mm with stroke lengths of 5 to 25 mm. The KHZ Series, with diameters from 8 to 100 mm, operates as single-acting cylinders, retracting without pressure, and is designed for temperatures from -25°C to 80°C, using compressed air with minimal particle content.

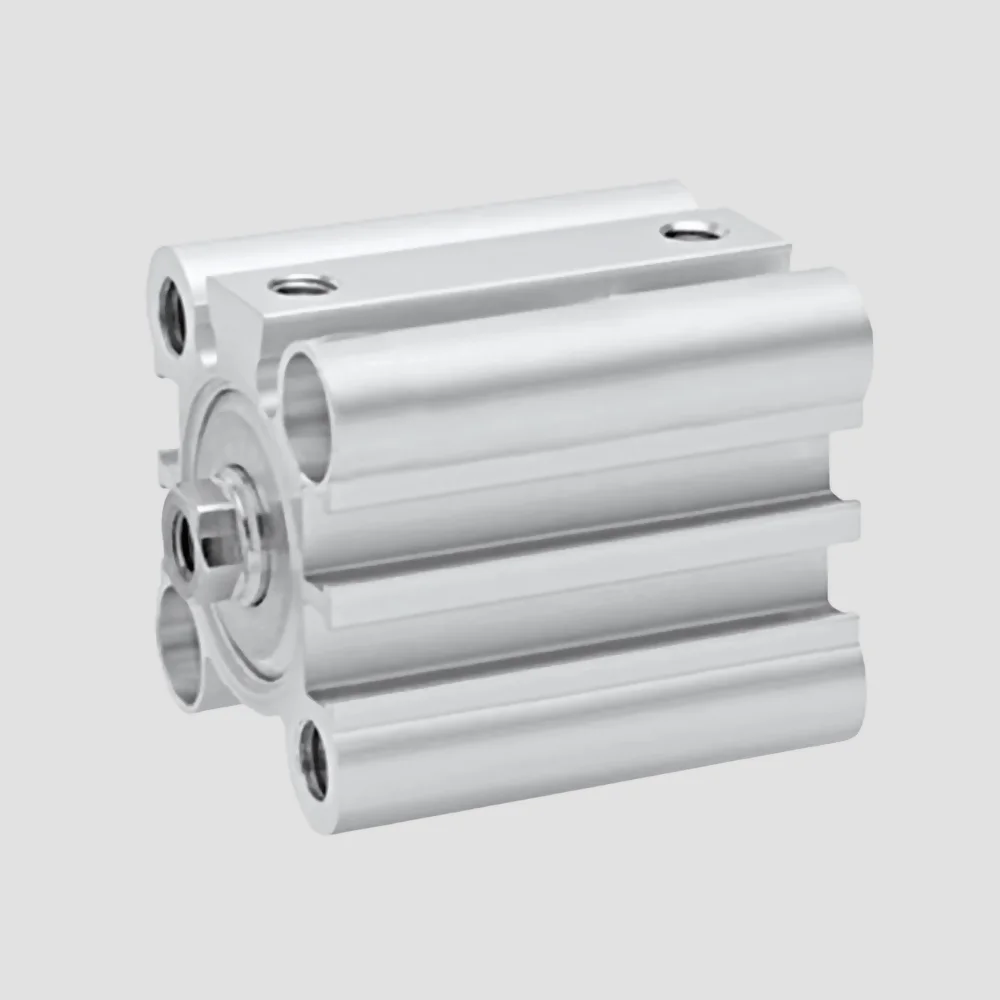

AVENTICS™ SSI Series Short Stroke Cylinders

The AVENTICS™ Series SSI short stroke cylinders, adhering to ISO 15524, are up to 30% lighter than comparable models due to weight-efficient profiles. Designed for versatility, they feature adaptable sensor mounting and effective elastic cushioning. With bore sizes from 12 to 100 mm, piston rod diameters from 12 to 63 mm, and stroke lengths of 5 to 25 mm, these cylinders operate using compressed air and are available in single-acting (spring return) and double-acting configurations.

Function: Single Acting, Retracted without Pressure, & Double Acting
Stroke Range: 5 ... 25 mm
Standards: ISO 15524
Medium: Compressed Air
Bore Range: Ø 12 - 100 mm
Find Out More

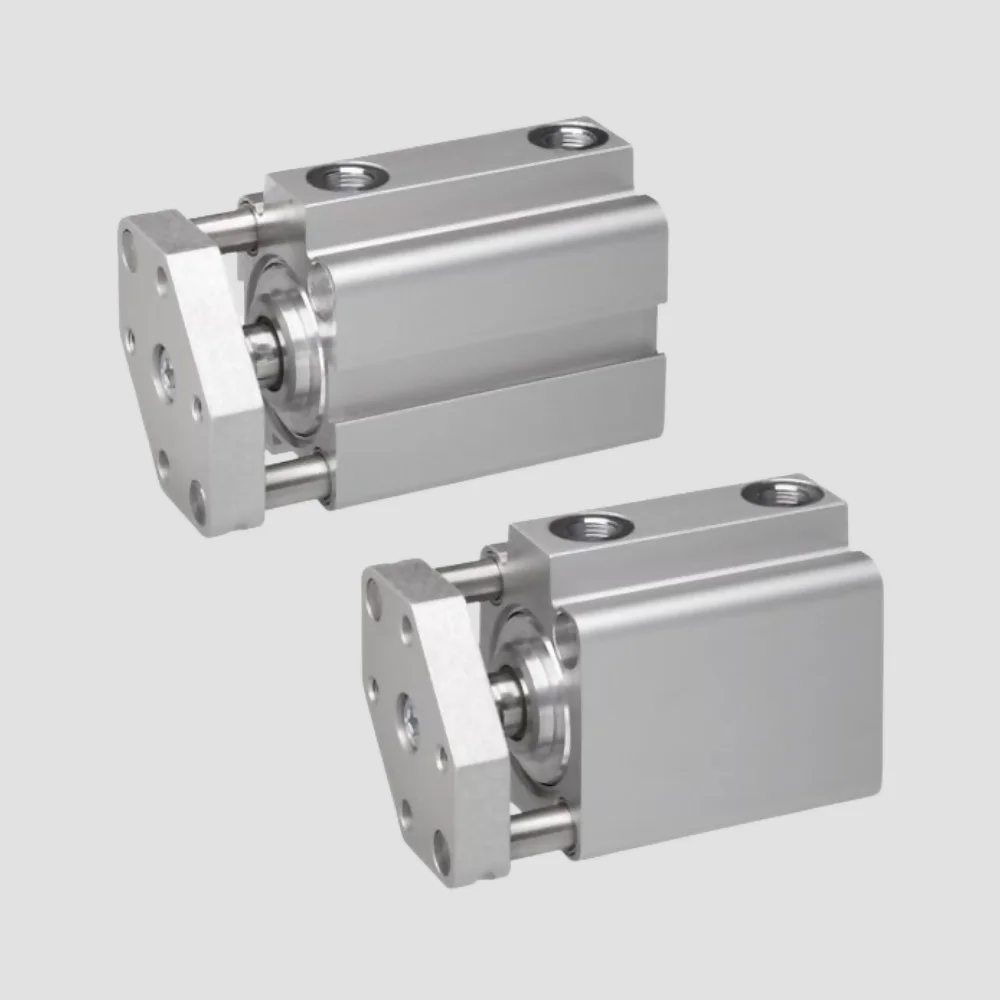

AVENTICS™ KHZ Series Short Stroke Cylinders

The AVENTICS™ KHZ Series Short Stroke Cylinders, with diameters ranging from 8 to 100 mm and port sizes of M5, G 1/8, and G 1/4, are single-acting cylinders that retract without pressure. They feature elastic cushioning and an internal thread on the piston rod and compressed air connection. Designed for ambient and medium temperatures between -25°C and 80°C, they operate with compressed air containing particles up to 50 µm and an oil content of 0 to 5 mg/m³, with piston forces determined at 6.3 bar.

Function: Single Acting, Retracted without Pressure
Bore Sizes: Ø 8-100 mm
Ports: M5 G 1/8 G 1/4
Ambient Temperature Range: -25 ... 80 °C
Medium: Compressed Air
Find Out More

Frequently Asked Questions

The AVENTICS™ SSI Series short stroke cylinders are up to 30% lighter than comparable models due to weight-efficient profiles. They offer adaptable sensor mounting, effective elastic cushioning, and comply with ISO 15524 standards.

The SSI Series offers bore sizes ranging from 12 to 100 mm and stroke lengths from 5 to 25 mm, accommodating various application requirements.

The SSI Series cylinders are available in single-acting (spring return) and double-acting configurations, providing flexibility for different operational needs.

The AVENTICS™ KHZ Series short stroke cylinders feature diameters from 8 to 100 mm, elastic cushioning, and an internal thread on the piston rod and compressed air connection. They are designed for ambient and medium temperatures between -25°C and 80°C.

The KHZ Series cylinders come with port sizes of M5, G 1/8, and G 1/4, allowing for compatibility with various pneumatic systems.

Both SSI and KHZ Series cylinders operate using compressed air, ensuring efficient performance in pneumatic applications.

Yes, the SSI Series cylinders comply with ISO 15524 standards, ensuring quality and compatibility in various industrial applications.

The KHZ Series cylinders are designed to operate in ambient and medium temperatures between -25°C and 80°C, suitable for diverse environmental conditions.

The KHZ Series cylinders can operate with compressed air containing particles up to 50 µm, ensuring reliable performance.

The KHZ Series cylinders can handle compressed air with an oil content ranging from 0 to 5 mg/m³, maintaining optimal functionality.

The SSI Series cylinders offer piston rod diameters ranging from 12 to 63 mm, catering to various force requirements.

Both SSI and KHZ Series cylinders feature effective elastic cushioning, providing smooth operation and reducing impact forces.
