Round Pneumatic Cylinders, cylindrical units essential in industry, transform compressed air into mechanical movement. Utilised in diverse sectors, they enable linear or rotary actions in machines. Their straightforward design is key for automation and manufacturing, ensuring dependable functionality and efficient performance.

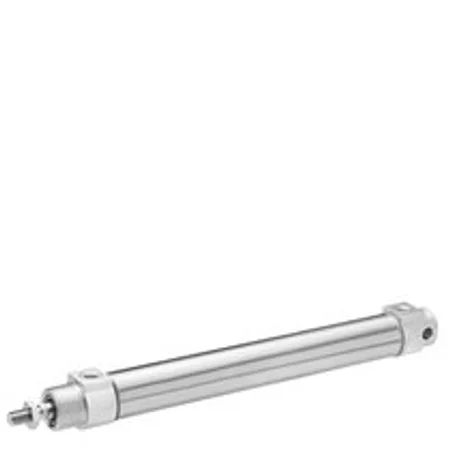

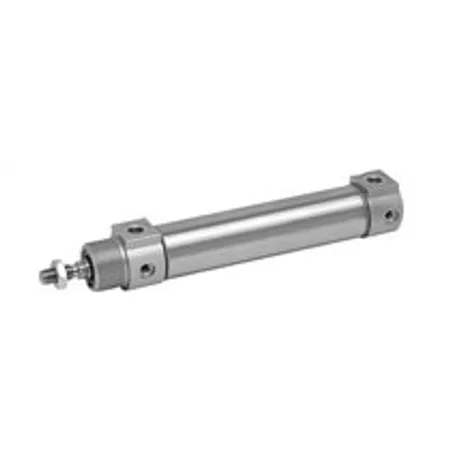

The RPC Series Round Pneumatic Cylinders excel in various industrial settings, known for their efficient, reliable function. Their compact, sturdy build ensures precise control and easy integration into numerous automation systems. Suitable for light to heavy tasks, these cylinders offer smooth operation with low maintenance needs. Their versatility and unwavering quality make them a preferred option for experts in need of superior pneumatic solutions.

Version:	Mini Type
Working Pressure Range:	1 - 10 Bar
Temperature Range:	-20°C to 80°C
Maximum Particle Size:	50 µm
Piston Force Pressure:	6.3 Bar
Materials:	Stainless Steel, Aluminium (Anodised), Polyurethane, & Steel (Galvanised)

Find Out More

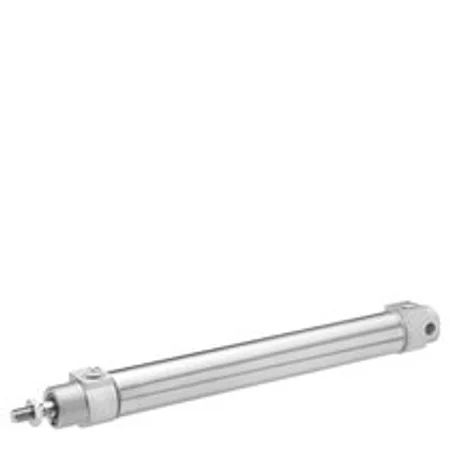

The AVENTICS™ Series CSL-RD Stainless Steel Round Cylinders showcase a sleek, efficient design, featuring scrapers without undercuts to prevent dirt accumulation and eliminate dead zones, enhancing cleanliness and functionality. These cylinders comply with food safety regulations, resist numerous chemicals, and are available in sizes from 16 mm to 63 mm, suiting varied industrial requirements. Options include single piston rod, flexible, pre-set or manually adjustable cushioning, and magnetic detection. ATEX-certified models are also offered for use in explosive settings.

Version:	ISO Model
Working Pressure Range:	1 - 10 Bar
Temperature Range:	-20°C to 80°C
Maximum Particle Size:	50 µm
Piston Force Pressure:	6.3 bar
Materials:	Stainless Steel (Electropolished), Aluminium, Nitrile Butadiene Rubber, TPU, & Plastic

Find Out More

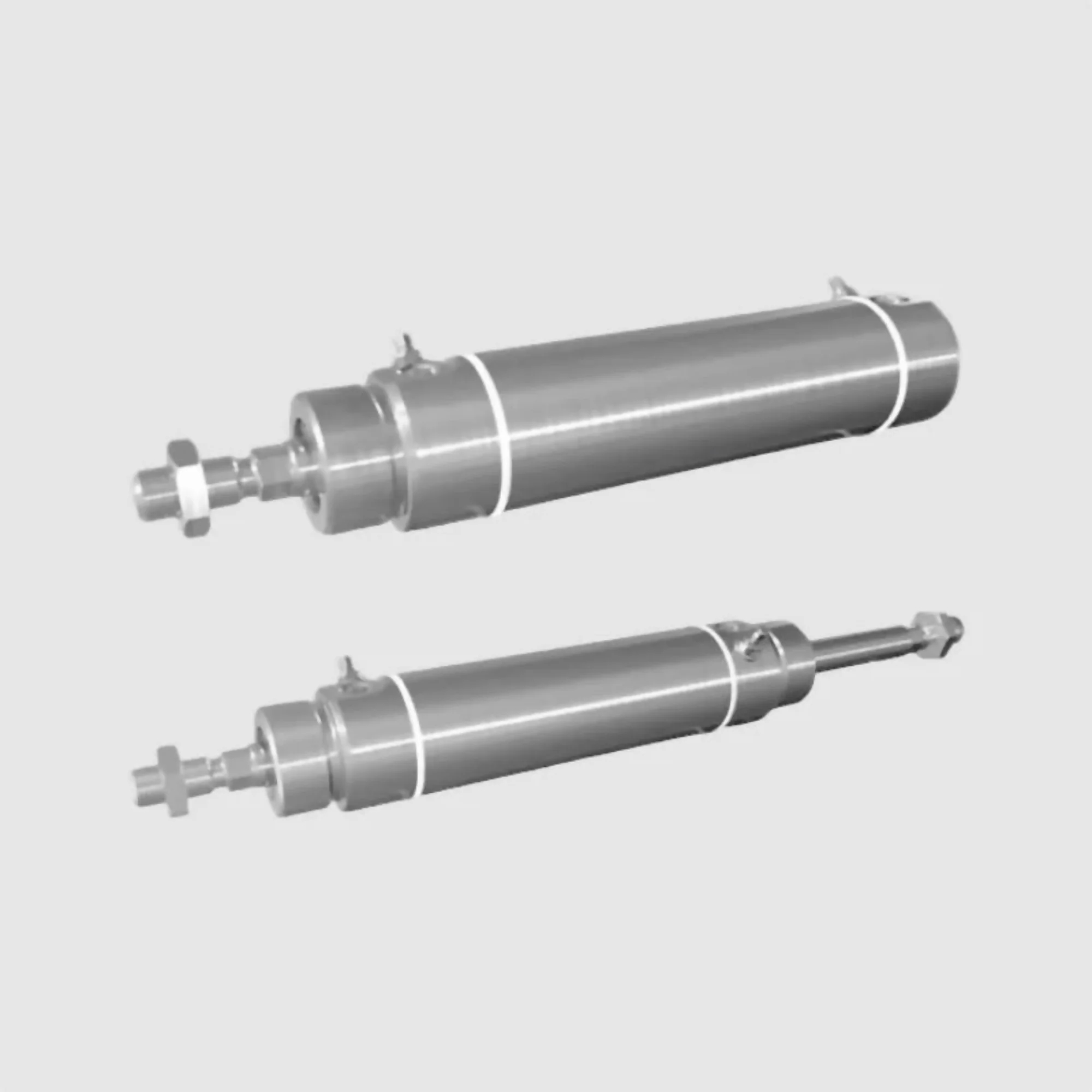

The AVENTICS™ Series ICS-D2 Stainless Steel Round Cylinders, available in diameters from 32 mm to 100 mm and up to 2500 mm stroke, feature a sleek design ideal for wash-down applications and food processing. Their diverse size range and durable stainless steel build make them a dependable option for numerous industrial requirements.

Standards:	ISO 6431
Working Pressure Range:	1 - 10 Bar
Temperature Range:	-25°C to 70°C
Maximum Particle Size:	50 µm
Piston Force Pressure:	6.3 Bar
Materials:	Stainless Steel, Acrylonitrile Butadiene Rubber, & Polyethylene

Find Out More

Our skilled team offers detailed technical drawing services for pneumatic cylinders. Inform us of your specifications and requirements, and we'll produce what's needed.

What is the difference between double-acting and single-acting air cylinders?

Yes, Actuation Valve offers actuated butterfly valves suitable for marine applications, featuring materials like B148 C9500 Aluminium Bronze and EPDM seats suitable for seawater, cooling systems, desalination, and other marine environments. The 80WM580 & 80LM580 in particular are the most common.

Can pneumatic cylinders stop mid-stroke?

What does stroke mean for pneumatic cylinders?

Yes, Actuation Valve can provide various certifications, including witness testing, 3.1 certification, and standard pressure tests. Additional certifications can be arranged upon request.

How strong is a pneumatic cylinder?

Yes, Actuation Valve offers sustainable spares and replacement parts for ongoing maintenance schedules.

What is the difference between a pneumatic cylinder and a hydraulic cylinder?

Depending on the valve, actuator and process type pressure ratings range from PN10, PN16, PN40., ANSI 150 and ANSI 300.

What is a pneumatic cylinder?

A pneumatic cylinder is a mechanical device that uses compressed air to produce a force in a reciprocating linear motion.

How do pneumatic cylinders work?

They convert the energy of compressed air into mechanical force by moving a piston within a cylinder barrel.

What are the types of pneumatic cylinders?

The main types include single-acting (one-direction force) and double-acting (force in both extend and retract directions).

Can pneumatic cylinders be customised for specific applications?

Yes, they can be customised in terms of size, stroke length, and special features to suit specific requirements.
