AVENTICS™ RCM Series Rotary Compact Modules

The AVENTICS™ RCM Series Rotary Compact Modules are designed for standardised rotary and swivel movements, offering maximum rotation angles of 90° and 180°. With bore sizes ranging from 6 to 25 mm, these double-piston rack modules operate efficiently at pressures between 2 and 8 bar and within ambient temperatures of 5 to 60?°C. Constructed from anodised aluminium and utilising compressed air, they can be directly mounted on mini slides and are compatible with mechanical grippers.
Shop Help Me

Key Features

Key features and benefits of the AVENTICS™ RCM Series Rotary Compact Modules
1

Key Features

The AVENTICS™ RCM Series Rotary Compact Modules feature a double-piston rack design, delivering high torque output within a compact form factor. This configuration ensures efficient power transmission, making the modules suitable for applications requiring precise rotary and swivel movements.
2

Key Features

Constructed from anodised aluminium, the modules offer enhanced durability and resistance to corrosion. This robust construction ensures reliable performance in various industrial environments, maintaining functionality over extended periods.
3

Key Features

Designed for versatility, the modules can be directly mounted on mini slides and are compatible with mechanical grippers. This adaptability simplifies integration into existing systems, facilitating efficient automation processes across diverse applications.

Device Function

The RCM Rotary Compact Module operates using two double-acting pistons. These pistons transfer force synchronously to the ball-bearing pinion through rack elements. Customers can select from two configurations for the end position system, which allows for angle adjustments: one featuring an elastic end cushioning element, and another equipped with a hydraulic end cushioning element. Optional enhancements include versions with built-in air ducts and an integrated intermediate position.

Maintanance

To maintain the RCM Rotary Compact Module effectively, regularly inspect it for wear and tear, especially on moving parts like pistons and pinions, and ensure all components are securely fastened. Adequate lubrication is crucial to prevent friction and wear, using the manufacturer-recommended lubricant. Keep the module clean from dust, debris, and other contaminants. For systems with hydraulic elements, regularly check for fluid leaks to detect potential seal failures.

Cylinder Standards
Max Angle Rotation: 90° & 180°
Bore Size Range: Ø 6-25 mm
Function: Double Piston with Rack
Standards: N/A
Maximum Pressure: 2 ... 8 bar
Ambient Temperature Range: 5 ... 60 °C
Medium: Compressed Air
Body Material: Anodised Aluminium

FAQs

The AVENTICS™ RCM Series offers rotation angles of 90° and 180°, accommodating various application requirements.

These modules support bore sizes ranging from 6 mm to 25 mm, providing flexibility for different system specifications.

The double-piston rack design ensures high torque output within a compact form factor, enabling efficient power transmission for precise rotary and swivel movements.

The AVENTICS™ RCM Series operates efficiently within a pressure range of 2 to 8 bar, suitable for various pneumatic applications.

They are designed to function effectively in ambient temperatures ranging from 5?°C to 60?°C, ensuring reliable performance in diverse environments.

The modules utilise compressed air as the operating medium, facilitating smooth and controlled rotary movements.

Constructed from anodised aluminium, these modules offer enhanced durability and resistance to corrosion.

Yes, the AVENTICS™ RCM Series is designed for direct installation on mini slides, simplifying integration into existing systems.

Yes, they are compatible with mechanical grippers, enhancing their versatility in automation applications.

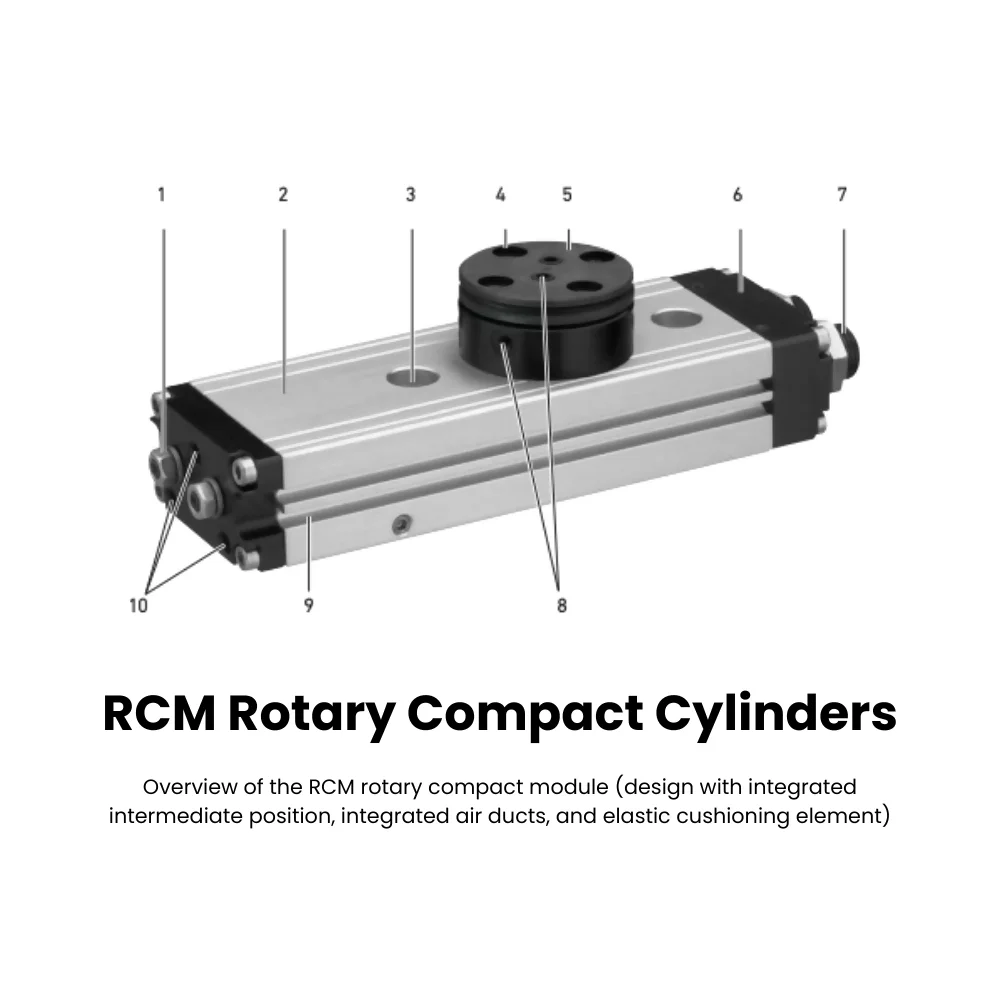

1: Intermediate position system (IP)
2: Base
3: Threaded/through holes with countersinking
4: Threaded holes with countersinking to fasten useful loads
5: Rotary flange
6: End cover
7: End position system (with angle adjustment and cushioning)
8: Air ducts (AP)
9: Sensor grooves
10: Compressed air connections

Documents & Drawings

  • Document
BROCHURE

Pneumatic Cylinder Overview | AVENTICS
  • Document
CATALOGUE

Series RCM | AVENTICS
  • Document
MANUAL

Instruction Manual: Rotary Compact Module RCM | AVENTICS
