Pneumatic Mini Cylinders

Mini cylinders, both hydraulic and pneumatic, are highly efficient, compact devices widely used across various industries for precision tasks and compact power transmission. Their small stature and adaptability are crucial in automation, automotive, and manufacturing, facilitating precise motion control and boosting operational efficacy. Essential in numerous machines, they offer dependable performance and flexibility in tight spaces, aiding in the smooth running of operations in different sectors.

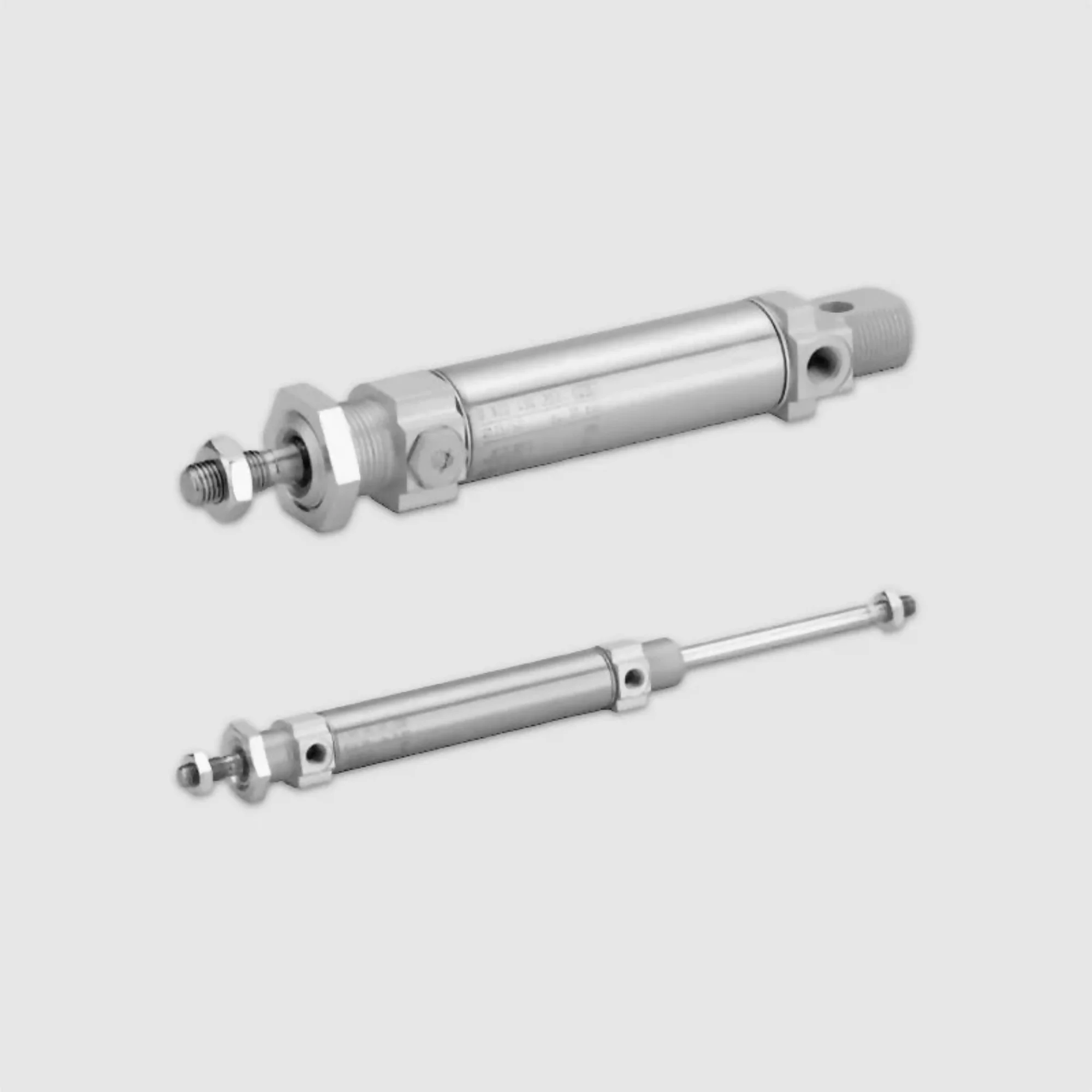

AVENTICS™ MNI Series

The AVENTICS™ Series MNI Mini cylinders offer a strong and compact build, maximising space efficiency across various uses. Known for outstanding durability, they guarantee extended operational life. With piston diameters from 10 mm to 25 mm, they cater to diverse needs. Options include single or through piston rods, adjustable or elastic cushioning, with or without magnetic detection, and non-rotating rods. ATEX compliance ensures safety in explosive areas. Opt for these cylinders for dependable, versatile, and lasting performance.

Standards: ISO 6432
Working Pressure Range: 2 - 10 Bar
Temperature Range: -25°C to 80°C
Maximum Particle Size: 50 µm
Piston Force Pressure: 6.3 Bar
Materials: Stainless Steel, Brass (Aluminium), Aluminium (Anodised), Steel (Galvanised), & Polyurethane
Find Out More

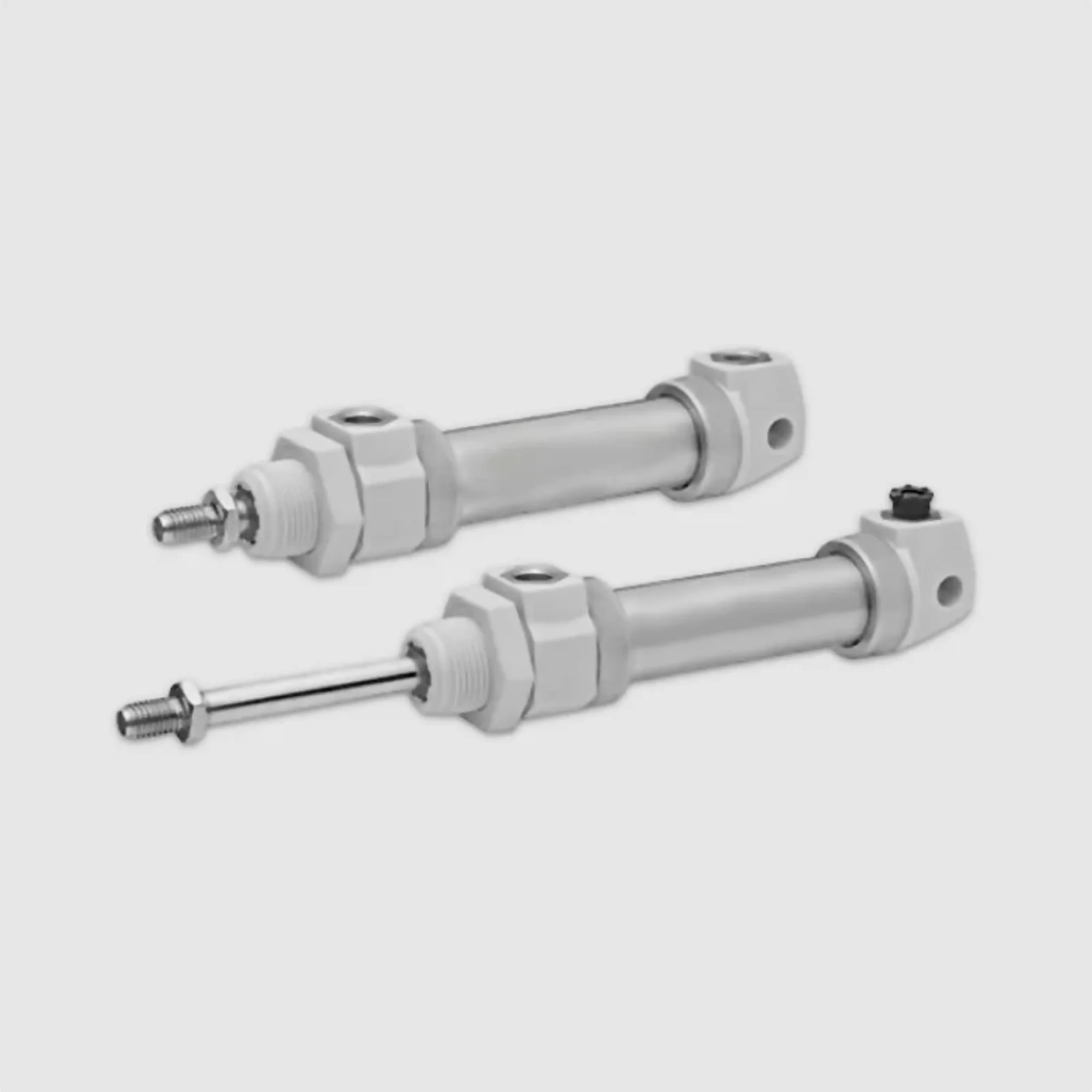

AVENTICS™ ICM Series

The AVENTICS™ Series ICM Mini cylinders, available in diameters from 8 to 32 mm and with strokes up to 400 mm, are highly resistant to corrosion, making them perfect for challenging conditions, including those in the food processing industry. Their strong build and precise engineering deliver consistent performance across diverse industrial applications. Opt for AVENTICS™ Series ICM Mini cylinders for reliable and long-lasting solutions in your operations.

Medium: Compressed Air
Working Pressure Range: 3 - 10 Bar
Temperature Range: -25°C to 70°C
Maximum Particle Size: 50 µm
Piston Force Pressure: 6.3 Bar
Materials: Stainless Steel, Polyoxymethylene, Acrylonitrile Butadiene Rubber, & Polyamide
Find Out More

Looking for Extra Dimensions?

Our skilled team offers detailed technical drawing services for pneumatic cylinders. Inform us of your specifications and requirements, and we'll produce what's needed.
Contact Us

Manuals, Datasheets and Certificates

Frequently Asked Questions

What is the difference between double-acting and single-acting air cylinders?
Yes, Actuation Valve offers actuated butterfly valves suitable for marine applications, featuring materials like B148 C9500 Aluminium Bronze and EPDM seats suitable for seawater, cooling systems, desalination, and other marine environments. The 80WM580 & 80LM580 in particular are the most common.
Can pneumatic cylinders stop mid-stroke?
What does stroke mean for pneumatic cylinders?
Yes, Actuation Valve can provide various certifications, including witness testing, 3.1 certification, and standard pressure tests. Additional certifications can be arranged upon request.
How strong is a pneumatic cylinder?
Yes, Actuation Valve offers sustainable spares and replacement parts for ongoing maintenance schedules.
What is the difference between a pneumatic cylinder and a hydraulic cylinder?
Depending on the valve, actuator and process type pressure ratings range from PN10, PN16, PN40., ANSI 150 and ANSI 300.
What is a pneumatic cylinder?
A pneumatic cylinder is a mechanical device that uses compressed air to produce a force in a reciprocating linear motion.
How do pneumatic cylinders work?
They convert the energy of compressed air into mechanical force by moving a piston within a cylinder barrel.
What are the types of pneumatic cylinders?
The main types include single-acting (one-direction force) and double-acting (force in both extend and retract directions).
Can pneumatic cylinders be customised for specific applications?
Yes, they can be customised in terms of size, stroke length, and special features to suit specific requirements.
What are the advantages of using pneumatic cylinders?
They offer simplicity, high speed, durability, and ease of installation for various automation tasks.
Are pneumatic cylinders suitable for harsh environments?
Many are designed with materials and seals that can withstand harsh conditions, including dust, moisture, and high temperatures.
How do I select the right pneumatic cylinder for my application?
Consider the force required, stroke length, speed of operation, and the environment in which it will be used.
