AVENTICS™ Guided Cylinders

AVENTICS™ Guided Cylinders are precision-engineered pneumatic actuators designed for applications requiring accurate linear motion and high load capacity. Featuring integrated guide rods, they ensure stability and prevent rotation during operation. Available in various sizes and configurations, these cylinders are suitable for diverse industrial environments, offering reliable performance and enhanced durability.

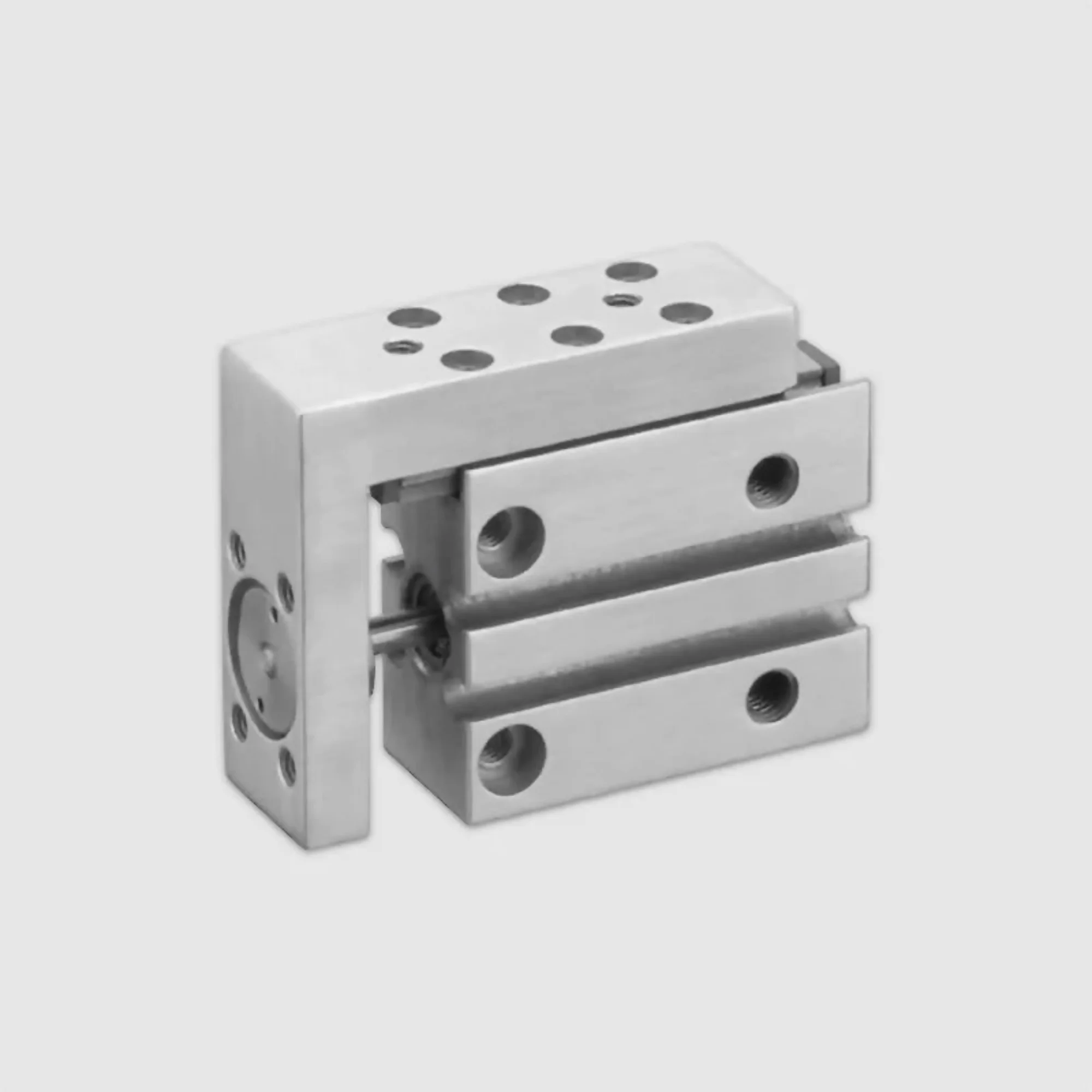

AVENTICS™ MSN Series

The AVENTICS™ Series MSN Guide cylinders feature a slim, compact design, perfect for space-constrained applications. They ensure precise load handling for accurate, efficient operation. Offering a range of mounting solutions, these cylinders adapt to numerous configurations, meeting your unique requirements. With their sleek design, accuracy, and versatility, the AVENTICS™ Series MSN Guide cylinders are an excellent selection for industrial purposes.

Medium: Compressed Air
Working Pressure Range: 1 - 10 Bar
Temperature Range: 0°C to 60°C
Maximum Particle Size: 5 µm
Piston Force Pressure: 6.3 Bar
Materials: Aluminium (Anodised), Stainless Steel, Polyurethane, & Hardened Steel
Find Out More

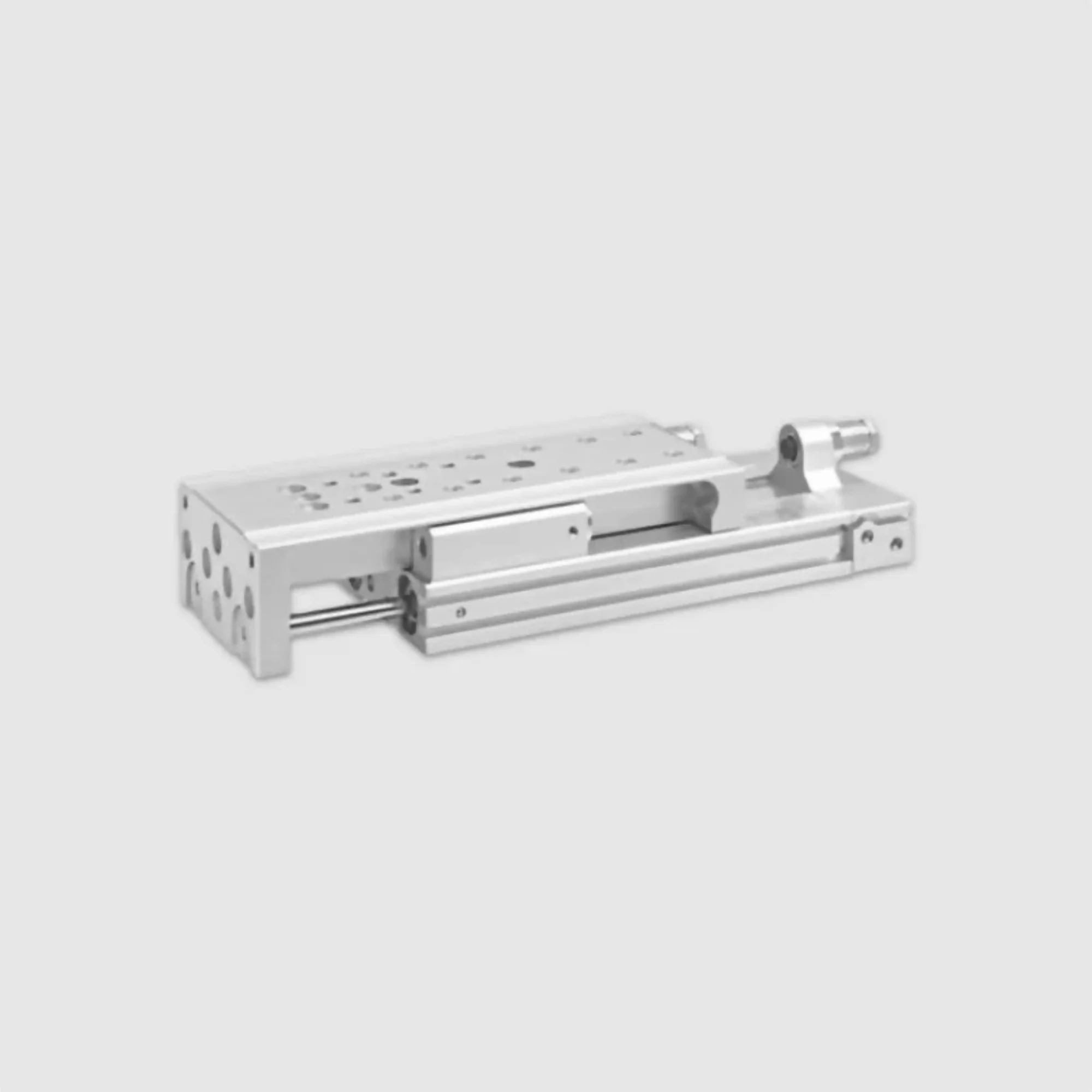

AVENTICS™ MSC Series

The AVENTICS™ MSC Guide cylinders provide unparalleled torque and capacity for absorbing loads, guaranteeing optimal stability across applications. Their sleek construction ensures adaptability in multiple sectors. With the Easy-2-Combine Interface, integration is streamlined, boosting effectiveness. Opt for AVENTICS™ MSC Guide cylinders for dependable functionality and straightforward system incorporation.

Medium: Compressed Air
Cushioning: Elastic
Temperature Range: 0°C to 60°C
Maximum Particle Size: 5 µm
Piston Force Pressure: 6.3 Bar
Materials: Aluminium (Anodised), Stainless Steel, Polyurethane, & Hardened Steel
Find Out More

AVENTICS™ GPC Series

The AVENTICS™ Series GPC Guide cylinders present an economical option for diverse applications. Equipped with two guide rods, they offer superior side load capabilities and precision, ensuring steady performance. Featuring anti-twist protection, these cylinders guarantee enhanced operational safety. The GPC-E and GPC-ST models provide adjustable stroke lengths for tailored needs. Their streamlined design fits well in tight spaces, and with the Easy-2-Combine system, integration is effortless. Opt for AVENTICS™ Series GPC for reliable and flexible industrial solutions.

Medium: Compressed Air
Working Pressure Range: 2 - 8 Bar
Temperature Range: -10°C to 70°C
Maximum Particle Size: 50 µm
Piston Force Pressure: 6.3 Bar
Materials: Aluminium (Anodised), Polyurethane, Steel (Galvanised), Stainless Steel, & Sintered Bronze
Find Out More

Frequently Asked Questions

What is the difference between double-acting and single-acting air cylinders?
Yes, Actuation Valve offers actuated butterfly valves suitable for marine applications, featuring materials like B148 C9500 Aluminium Bronze and EPDM seats suitable for seawater, cooling systems, desalination, and other marine environments. The 80WM580 & 80LM580 in particular are the most common.
Can pneumatic cylinders stop mid-stroke?
What does stroke mean for pneumatic cylinders?
Yes, Actuation Valve can provide various certifications, including witness testing, 3.1 certification, and standard pressure tests. Additional certifications can be arranged upon request.
How strong is a pneumatic cylinder?
Yes, Actuation Valve offers sustainable spares and replacement parts for ongoing maintenance schedules.
What is the difference between a pneumatic cylinder and a hydraulic cylinder?
Depending on the valve, actuator and process type pressure ratings range from PN10, PN16, PN40., ANSI 150 and ANSI 300.
What is a pneumatic cylinder?
A pneumatic cylinder is a mechanical device that uses compressed air to produce a force in a reciprocating linear motion.
How do pneumatic cylinders work?
They convert the energy of compressed air into mechanical force by moving a piston within a cylinder barrel.
What are the types of pneumatic cylinders?
The main types include single-acting (one-direction force) and double-acting (force in both extend and retract directions).
Can pneumatic cylinders be customised for specific applications?
Yes, they can be customised in terms of size, stroke length, and special features to suit specific requirements.
What are the advantages of using pneumatic cylinders?
They offer simplicity, high speed, durability, and ease of installation for various automation tasks.
Are pneumatic cylinders suitable for harsh environments?
Many are designed with materials and seals that can withstand harsh conditions, including dust, moisture, and high temperatures.
How do I select the right pneumatic cylinder for my application?
Consider the force required, stroke length, speed of operation, and the environment in which it will be used.
