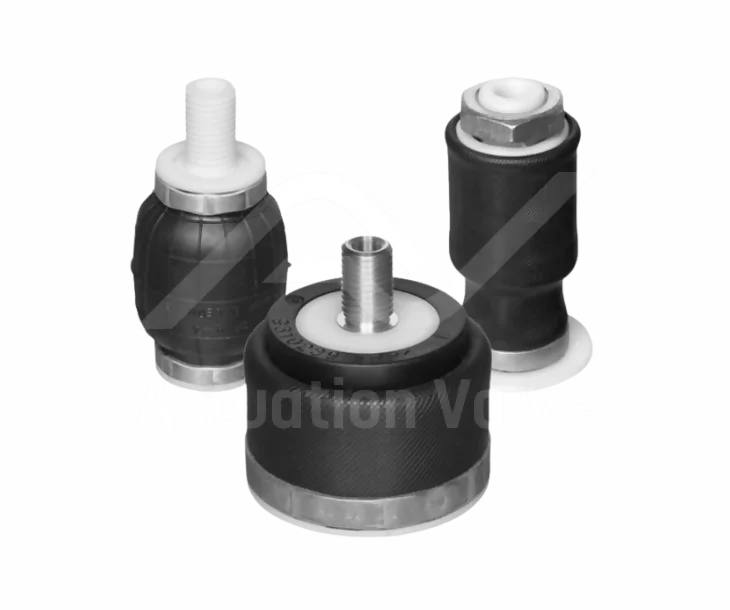

AVENTICS™ BRB Series Bellow Actuators

The AVENTICS™ BRB Series Bellow Actuators are lightweight, single-acting cylinders designed for cost-effective performance with lower loads. Featuring a stroke range of 1.3-100 mm and operating pressure up to 8 bar, they deliver consistent force output across the stroke. Made with chloroprene rubber bellows and plastic connectors, these actuators operate efficiently with compressed air in temperatures from -30°C to 90°C, offering a practical solution for varied applications.
Shop Help Me

Key Features

Key features and benefits of the AVENTICS™ BRB Series Bellow Actuators
1

Key Features

The AVENTICS™ BRB Series Bellow Actuators are engineered with a lightweight construction, ranging from just 0.07 kg to 1 kg. The bellows, made from chloroprene rubber, offer excellent resistance to wear and environmental factors, ensuring reliable performance in demanding conditions without adding unnecessary weight.
2

Key Features

These actuators provide a versatile stroke range of 1.3-100 mm and maintain a virtually constant force output throughout. With an operating pressure range of 0 to 8 bar and a temperature tolerance from -30°C to 90°C, they are suitable for a variety of applications, even in extreme environments.
3

Key Features

Designed as a cost-efficient solution for lower load requirements, the BRB Series utilises hose rolling lobe technology with plastic connecting parts. This design ensures high efficiency and reduced maintenance needs, making it an economical choice without compromising functionality or reliability.

Cylinder Standards
Weight Range: 0.07 KG to 1 KG
Stroke Range: 1.3-100 mm
Function: Single Acting, Retracted without Pressure
Standards: N/A
Maximum Pressure: 0 ... 8 bar
Ambient Temperature Range: -30 ... 90°C
Medium: Compressed Air
Body Material: Chloroprene Rubber

FAQs

The AVENTICS™ BRB Series Bellow Actuators weigh between 0.07 kg and 1 kg, ideal for low-load applications.

These actuators provide a stroke range from 1.3 mm to 100 mm, suitable for various tasks.

The AVENTICS™ BRB Series operates up to 8 bar for reliable compressed air use.

Yes, these actuators are single-acting and retract without pressure.

They feature chloroprene rubber bellows and plastic connectors for durability.

These actuators operate in temperatures from -30°C to 90°C, handling extreme conditions.

The actuators use compressed air for efficient and reliable performance.

No, they are optimised for low-load requirements but maintain consistent force.

Yes, their durable materials and wide temperature range make them suitable for harsh conditions.

Documents & Drawings

  • Document
Brochure

Pneumatic Cylinder Overview | AVENTICS
  • Document
CATALOGUE

Series BRB | AVENTICS
  • Document
MANUAL

Operating Instructions: Bellows Actuator, BCC / BCP / BCR / BRB | AVENTICS
