ASCO™ Steam Valves

The ASCO™ Steam Valves, including the Series 220 and Series 222, deliver superior performance in hot water and steam applications. The Series 220 valves offer up to 60% more flow compared to similar products, featuring a floating PTFE diaphragm for longevity and a threaded bonnet for easy maintenance. Meanwhile, the Series 222 valves, ideal for high-temperature environments, use a Y-body floating piston or diaphragm for reliable operation across various industrial applications.

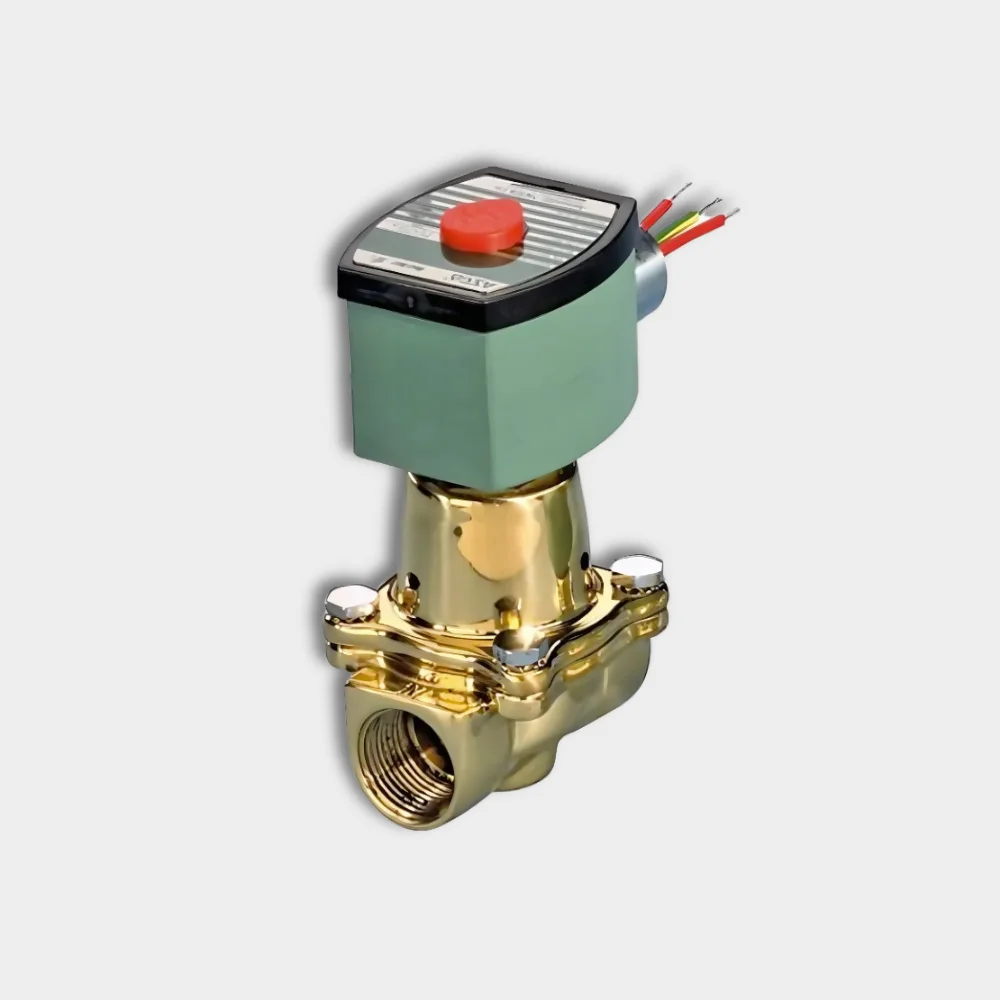

ASCO™ Series 220 Steam and Hot Water Solenoid Valves

The ASCO™ Series 220 steam and hot water valves offer up to 60% more flow than comparable products, enabling a 3/4-inch valve to deliver the same flow as many 1-inch alternatives. Featuring a floating PTFE diaphragm, these valves ensure dependable sealing and a lifespan up to four times longer than others. The threaded bonnet design allows for easy removal, simplifying inspections and maintenance, which helps to minimise downtime and lower service costs.

Media: Hot Water, Steam
Pipe / Port Size: 1/2 "; 3/8 "; 3/4 "; 1 "; 1 1/4 "; 1 1/2 "; 2 "; 2 1/2 "
Flow: From 2.0 Cv to 6.0 Cv, From 6.0 Cv to 14.0 Cv, Over 14.0 Cv
Function: 2 way - 2/2 Normally Closed, 2 way - 2/2 Normally Open
Find Out More

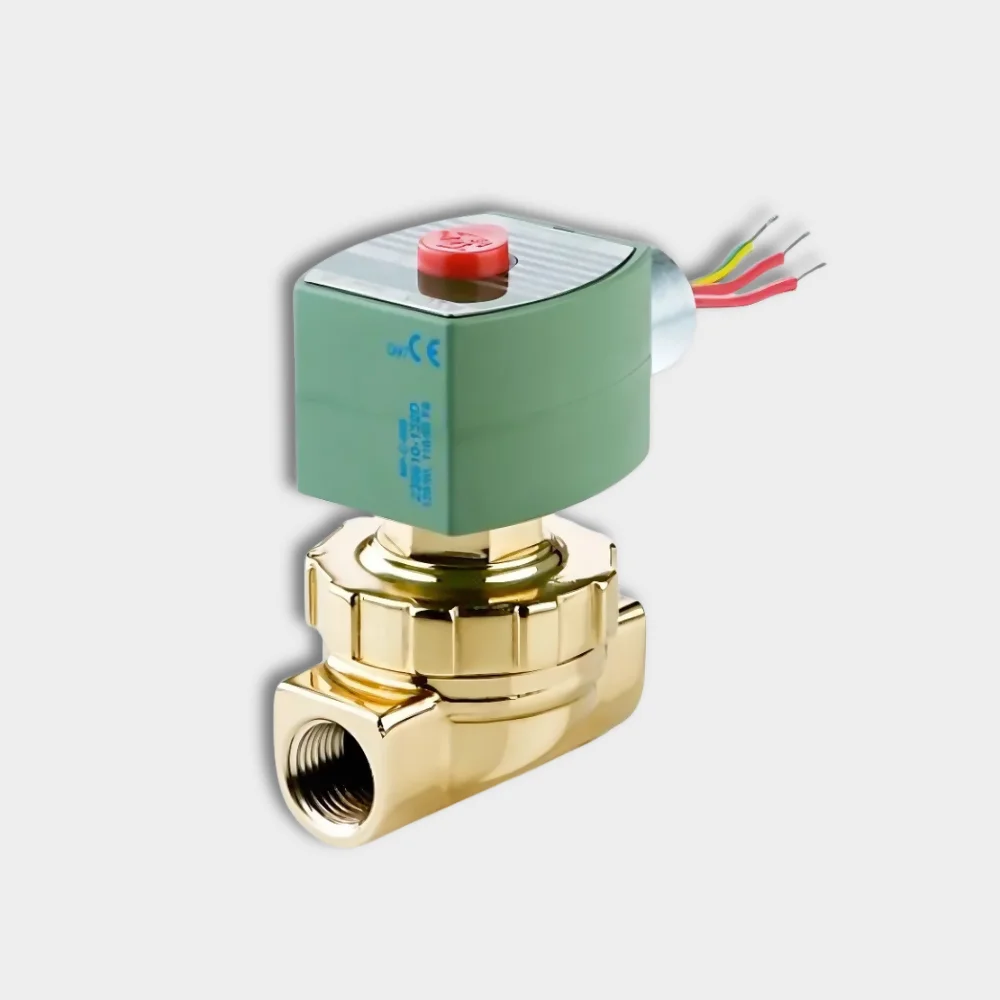

ASCO™ Series 222 Steam Valves

The ASCO™ Series 222 solenoid valves are designed for high-temperature environments often found in commercial laundry, kitchen equipment, moulding, steam atomisation sterilizers, and autoclaves. These pilot-operated valves utilise a Y-body floating piston or diaphragm configuration, which enhances durability and delivers dependable performance. Suited for demanding industrial settings, they provide consistent operation and a long service life, making them an excellent choice for a range of applications.

Media: Hot Water; Steam
Pipe / Port Size: 1/4 "; 1/2 "; 3/8 "; 3/4 "; 1 "
Flow: From 1.0 Cv to 2.0 Cv; From 2.0 Cv to 6.0 Cv; From 6.0 Cv to 14.0 Cv
Function: 2 way - 2/2 Normally Closed
Find Out More

Frequently Asked Questions

A solenoid valve is an electromechanically operated valve that controls the flow of liquids or gases. It operates by using an electric coil (solenoid) to control the valve’s opening or closing when activated.

Solenoid valves come in various types, including direct-acting, pilot-operated, and normally open or normally closed configurations, each designed for specific applications and fluid control needs.

Solenoid valves are widely used in industries such as water treatment, automotive, oil and gas, HVAC, and industrial automation for controlling fluid and gas flow in systems.

Choosing the right solenoid valve depends on factors such as the fluid type, pressure, temperature, voltage, and the valve’s material compatibility with the application’s requirements.

Solenoid valves offer precise control, fast response times, reliability, and can be easily integrated into automated systems, making them ideal for a wide range of applications.

Solenoid valves should be regularly inspected for wear and tear, with maintenance schedules varying depending on the application, operating environment, and frequency of use.

Common causes of solenoid valve failure include coil burnout, dirt or debris in the valve, excessive pressure or temperature, and improper installation or operation.

Yes, solenoid valves are designed to handle a variety of fluids, including both liquids and gases, as long as the valve is specified for the particular medium in question.

A normally open solenoid valve allows fluid to flow in its resting state and closes when energized, while a normally closed valve blocks fluid flow when de-energized and opens when powered.

Solenoid valves are available in various voltage options, including AC (alternating current) and DC (direct current), with common voltages being 12V, 24V, 110V, and 230V.

Yes, certain solenoid valves are designed for use in hazardous environments. These valves are often explosion-proof or comply with specific safety standards to ensure safe operation.

Direct-acting solenoid valves operate without external pressure assistance, making them suitable for low-flow applications. Pilot-operated valves require a minimum pressure differential to open, making them more effective for higher flow rates and pressures.
