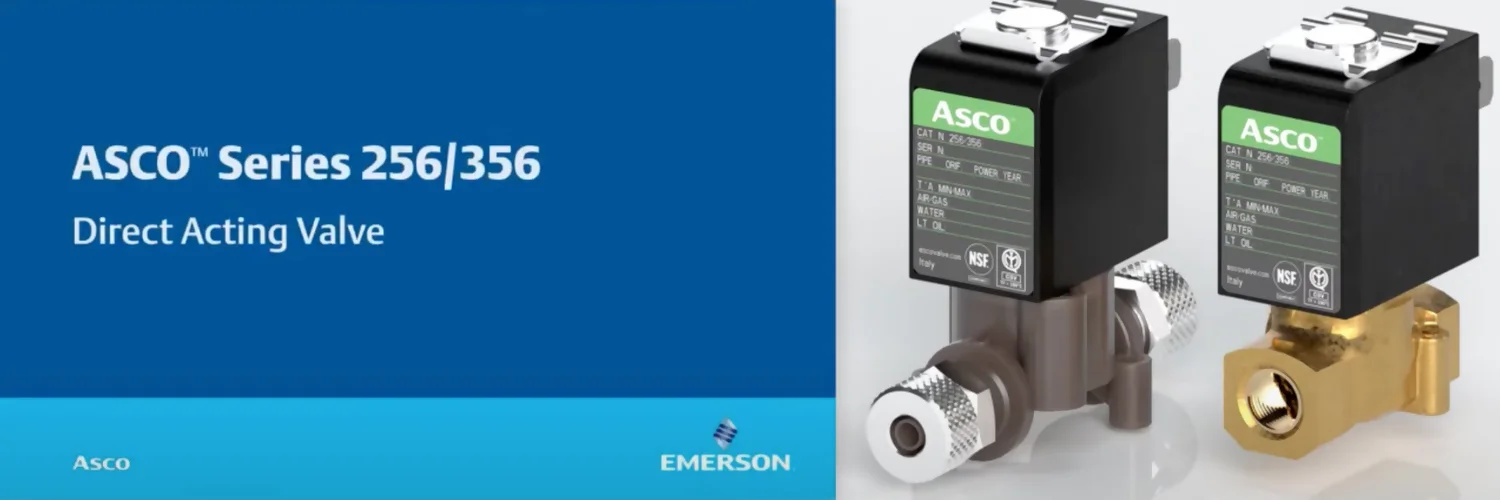

The ASCO Series 356 solenoid valves offer a lightweight and compact solution for controlling single-acting actuators, as well as managing filling or draining cycles. Available in either brass or stainless steel, these valves are designed to accommodate a variety of elastomers and feature tight shutoff poppets, making them ideal for special service applications. This versatile range ensures reliable performance tailored to specific industrial needs.

Key features and benefits of ASCO™ Series 356 Solenoid Valves

Key Features

The ASCO™ Series 356 valves are designed to deliver reliable performance over an extended period. Their compact structure, optimised for efficiency, ensures consistent operation, reducing the need for frequent maintenance or replacements. This durability is ideal for applications where long-term reliability is a key requirement.

Key Features

These valves come equipped with a standard manual operator, simplifying the installation process. The manual operator provides the ability to control and adjust the valve during setup, ensuring smooth and straightforward installation with minimal effort required.

Key Features

The flexibility of the ASCO™ Series 356 valves allows them to be mounted in any position, making them highly adaptable to various system configurations. This feature enables easier integration into existing setups or new installations, without the need for specific orientation considerations.


Valve Actuation:	Solenoid - Direct Acting
Body Material:	Brass, Stainless Steel
Media:	Air, Inert Gas, Oxygen, Water, Light Oil, Steam, Hot Water
Pipe / Port Size:	1/8 "; 1/4 "; Pad-Mount
Port Type:	G ISO228/1-G BSPP, NPTF, G-Thread, Pad-Mount
Function:	3 way - 3/2 Normally Closed, 3 way - 3/2 Normally Open, 3 way - 3/2 Universal
Flow:	From 0.05 - 0.4 Kv (0.06 - 0.46 Cv)
Voltage:	100 to 240 AC/DC Voltage Ranging, 12 DC, 24 DC, 48 DC \| 50, 50/60, 60
Maximum Operating Pressure:	10.3-34.5 Bar, 150-500 PSIG

Document

BROCHURE

Document

CERTIFICATE

Document

CERTIFICATE

Document

DATASHEET

Document

MANUAL

Document

CATALOGUES

Document

CATALOGUES

Document

CATALOGUES

Document

CATALOGUES

Document

CATALOGUES

Document

CATALOGUES

The ASCO Series 356 solenoid valves are ideal for controlling single-acting actuators and managing filling or draining cycles in various industrial applications.

The ASCO Series 356 solenoid valves are available in brass and stainless steel, providing options to meet different media and environmental conditions.

The ASCO Series 356 solenoid valves support a variety of elastomers, ensuring flexibility and compatibility with different service requirements.

The ASCO Series 356 valves are capable of handling air, inert gas, oxygen, water, light oil, steam, and hot water.

These solenoid valves can operate at a maximum pressure of 10.3-34.5 bar (150-500 PSIG), making them suitable for high-pressure applications.

The ASCO Series 356 solenoid valves come in 1/8" and 1/4" pipe/port sizes, as well as pad-mount configurations.

The flow rates for the ASCO Series 356 solenoid valves range from 0.05 to 0.4 Kv (0.06 to 0.46 Cv), allowing precise flow control.

The ASCO Series 356 solenoid valves support a wide range of voltage options, including 100 to 240 AC/DC, 12 DC, 24 DC, and 48 DC, with frequencies of 50, 50/60, and 60 Hz.

Yes, the ASCO Series 356 solenoid valves feature tight shutoff poppets, ensuring no leakage during operation, which is essential for special service applications.

These solenoid valves are available with G ISO228/1-G BSPP, NPTF, G-thread, and pad-mount port options, offering versatility in installation.

The ASCO Series 356 solenoid valves come in 3/2 normally closed, 3/2 normally open, and 3/2 universal configurations for a variety of control functions.

Please feel free to request information and advice using the form below or call us on 0151 547 1221

ASCO™ Series 356 Solenoid Valves
