ASCO Numatic Cylinders

The ASCO Numatics pneumatic cylinders, including the 435, 438, 441, 449, 450, and 453 series, are engineered for precision in industrial settings. These cylinders, suitable for air or inert gas, operate within a temperature range of -20°C to +70°C and conform to various ISO standards. They feature options for single or double acting mechanisms and are equipped with magnetic position detectors for enhanced control and reliability across diverse applications.

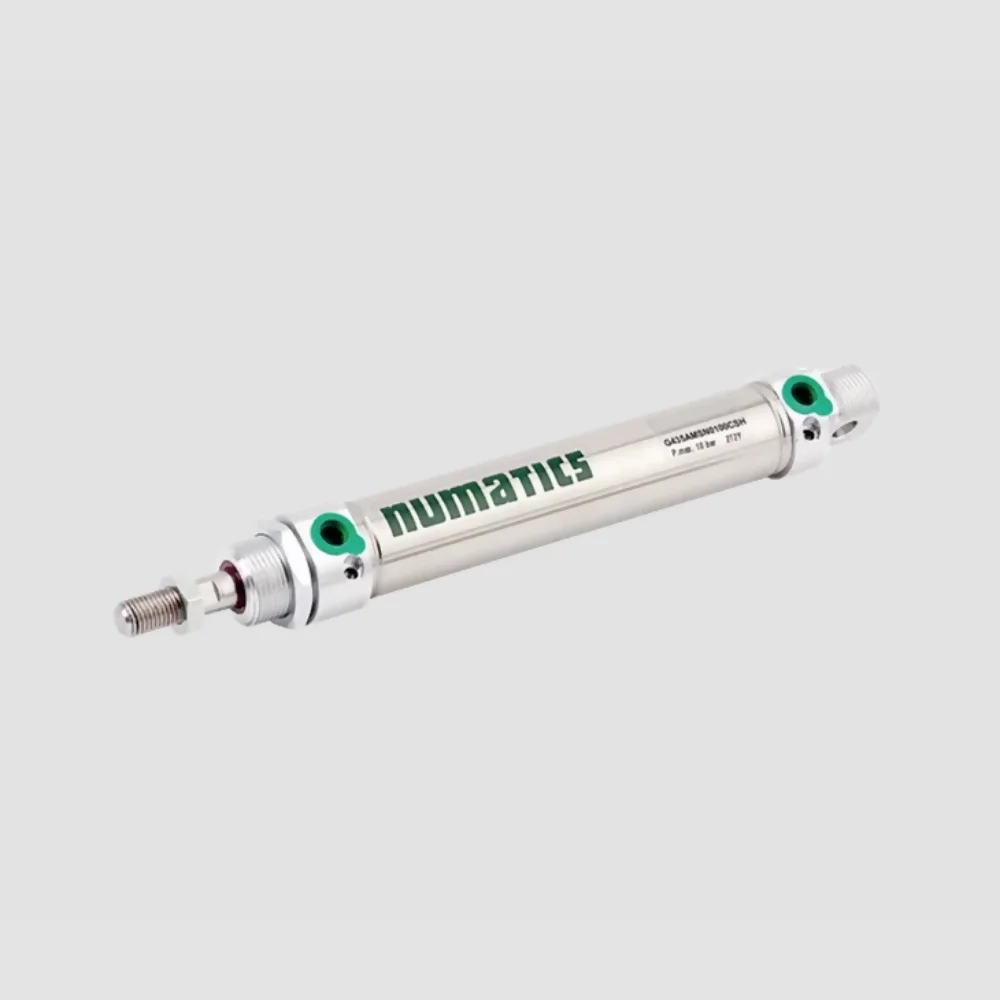

ASCO Numatics 435 Series Pneumatic Cylinders

ASCO Numatics 435 Series Pneumatic Cylinders are designed to operate with air or inert gas, which can be filtered, lubricated, or non-lubricated. These versatile cylinders offer options for single or double-acting mechanisms and are compliant with ISO 6432 standards. Ideal for a broad temperature range from -20°C to +70°C, they also accommodate a maximum speed rate of 2 m/s and are equipped for magnetic position detectors, ensuring reliable and precise control in various industrial applications.

Detection: Equipped for magnetic position detectors
Fluid: Air or inert gas, filtered, lubricated or not
Ambient Temperature: -20°C to +70°C
Max Speed Rate: 2 m/s
Standards: ISO 6432
Options: Single / Double Acting
Find Out More

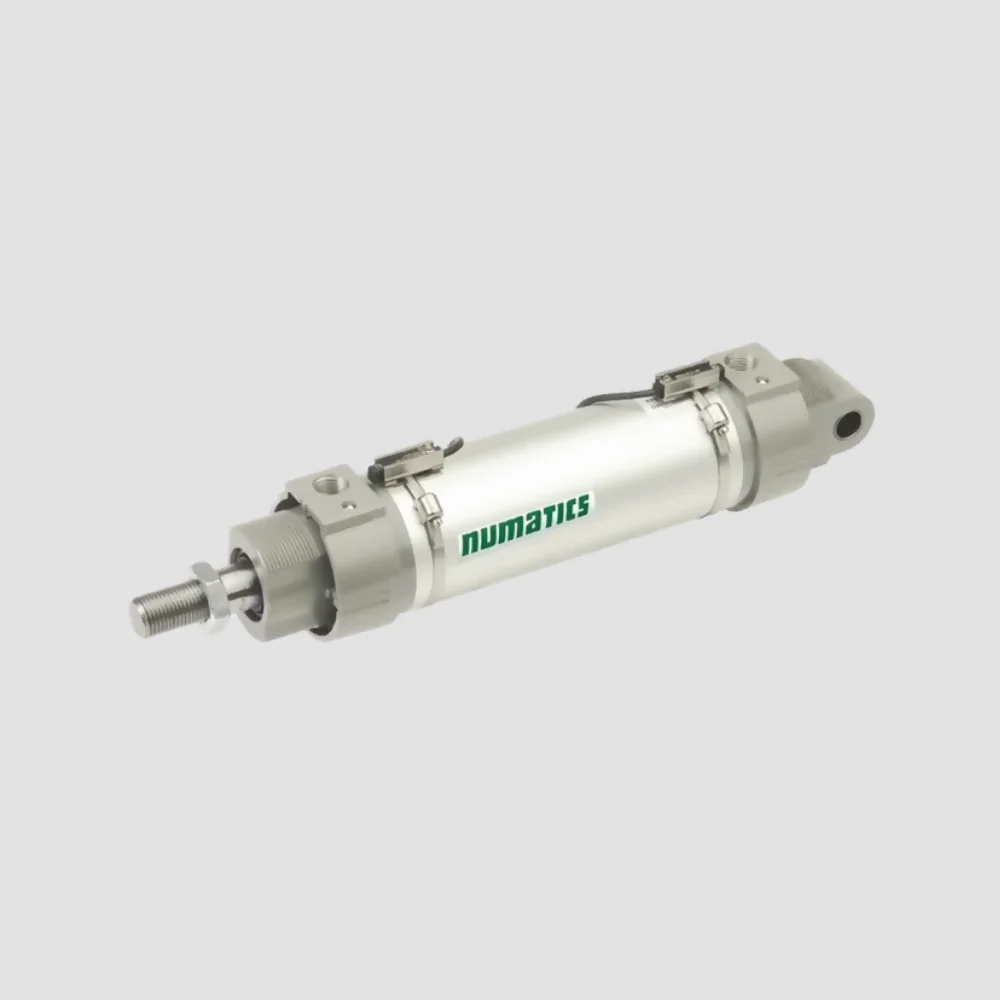

ASCO Numatics 438 Series Pneumatic Cylinders

The Asco Numatics 438 Series Pneumatic Cylinders are designed for versatility and reliability, supporting both air and inert gases. These cylinders can operate in temperatures ranging from -20°C to +70°C and have a maximum speed rate of 2 m/s. Adhering to ISO 6431 standards, they come with options for single or double acting and are compatible with magnetic position detectors. Ideal for diverse industrial applications, these cylinders ensure consistent performance, whether lubricated or not.

Detection: Equipped for magnetic position detectors
Fluid: Air or inert gas, filtered, lubricated or not
Ambient Temperature: -20°C to +70°C
Max Speed Rate: 2 m/s (for higher and lower speed rate, see LFS option)
Standards: ISO 6431
Options: Single / Double Acting
Find Out More

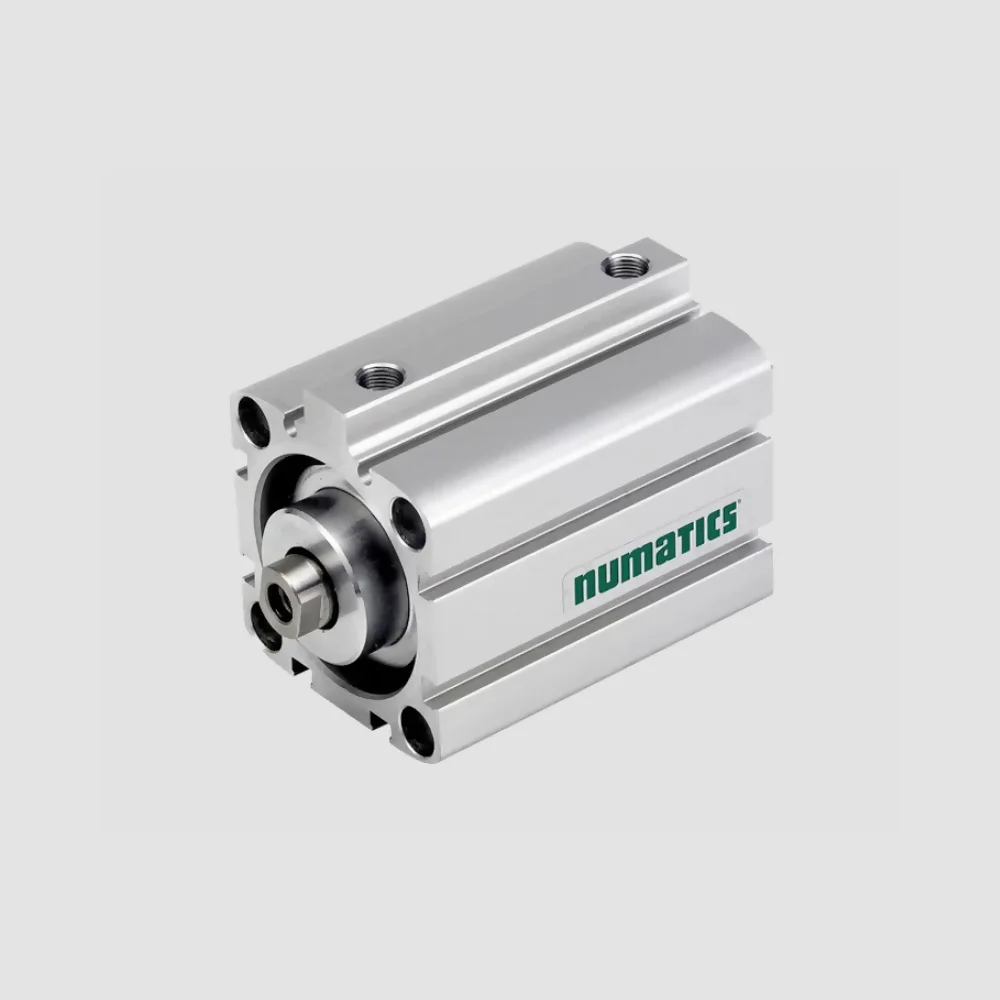

ASCO Numatics 441 Short Stroke Compact Cylinders

ASCO Numatics 441 ISO Short Stroke Compact Cylinders are designed for versatility, supporting magnetic position detectors for enhanced monitoring. Suitable for air or neutral gas, these cylinders operate efficiently whether the fluid is lubricated or not. They can withstand ambient temperatures ranging from -20°C to +70°C and have a maximum operating pressure of 10 bar. Available in bore diameters from 8 to 100 mm, they offer options like single or double rods and an anti-rotation device, ensuring adaptability for various industrial applications.

Detection: Equipped for magnetic position detectors
Fluid: Air or neutral gas, filtered, lubricated or not
Ambient Temperature: -20°C to +70°C
Operating Pressure: 10 bar max.
Bore Diameter: Ø 8 to 100 mm
Options: Single / Double Rod, & Anti-rotation Device
Find Out More

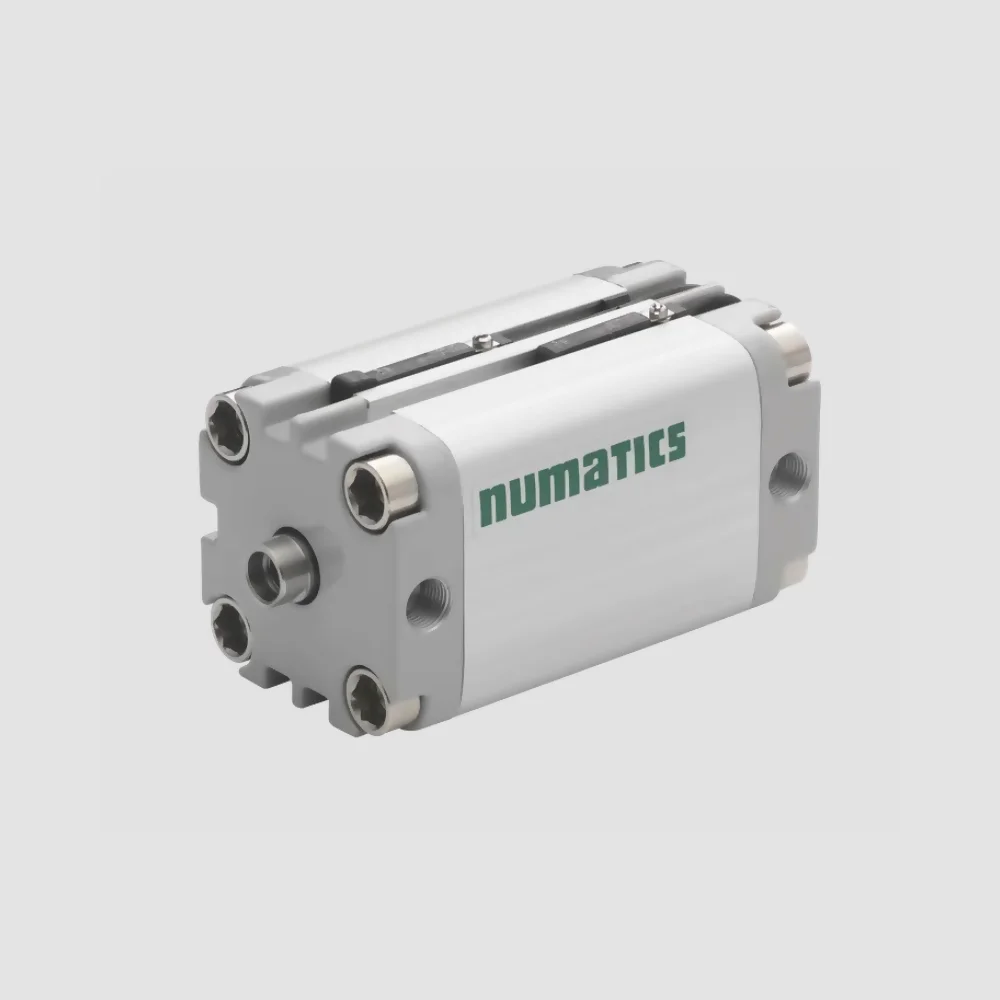

ASCO Numatics 449 Series Compact ISO Cylinders

The ASCO Numatics 449 Series Compact ISO Cylinders are designed for versatility, supporting magnetic position detectors and suitable for air or inert gas, whether filtered or not. These cylinders operate efficiently within a wide ambient temperature range of -20°C to +70°C and adhere to ISO 21287 standards. With a maximum speed rate of 0.5 m/s, they are available in both single and double acting configurations, providing reliable performance for various industrial applications.

Detection: Equipped for magnetic position detectors
Fluid: Air or inert gas, filtered, lubricated or not
Ambient Temperature: -20°C to +70°C
Max Speed Rate: 0,5 m/s
Standards: ISO 21287
Options: Single / Double Acting
Find Out More

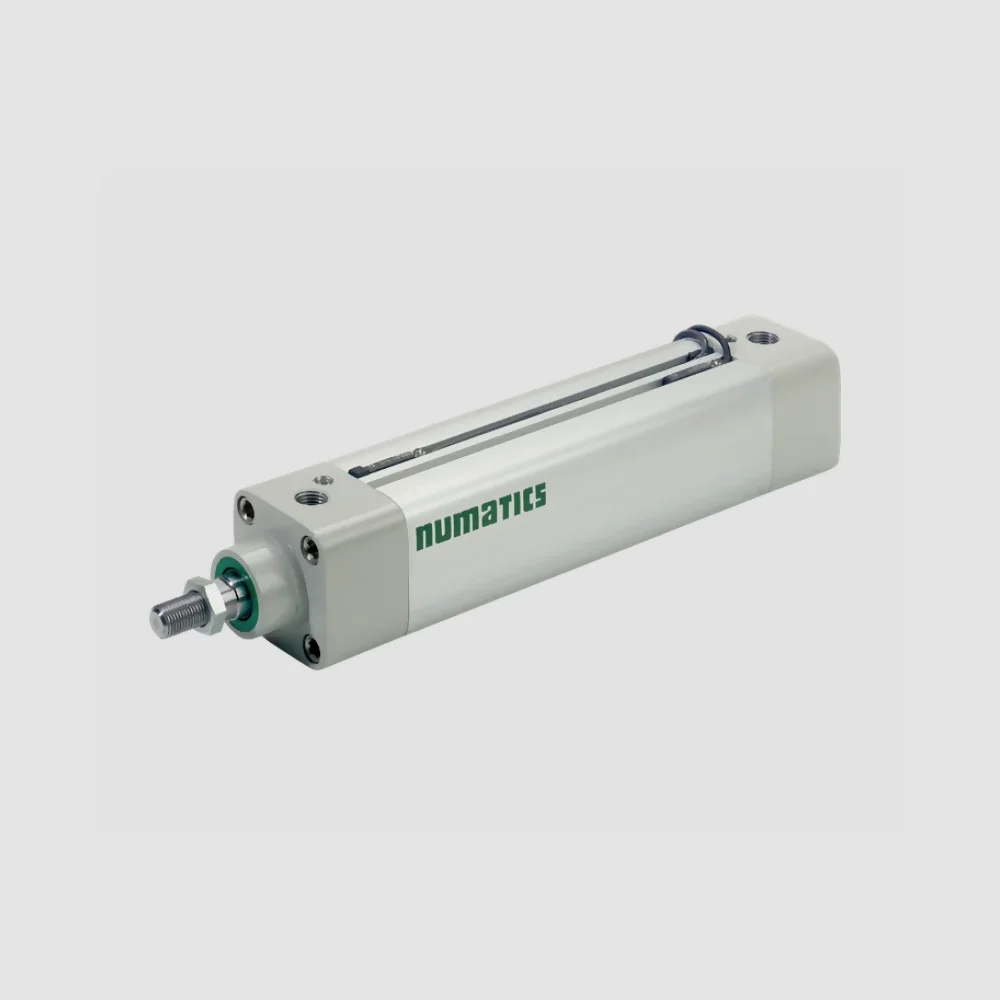

ASCO Numatics 450 ISO Standard Cylinders

The ASCO Numatics 450 ISO Standard Cylinders, designed to accommodate magnetic position detectors, are versatile for use with air or inert gas, whether filtered or lubricated. Suitable for ambient temperatures ranging from -20°C to +70°C and compliant with ISO 15552 standards, these cylinders offer a maximum speed rate of 2 m/s. Available as double acting, they are ideal for diverse industrial applications.

Detection: Equipped for magnetic position detectors
Fluid: Air or inert gas, filtered, lubricated or not
Ambient Temperature: -20°C to +70°C
Max Speed Rate: 2 m/s
Standards: ISO 15552
Options: Double Acting
Find Out More

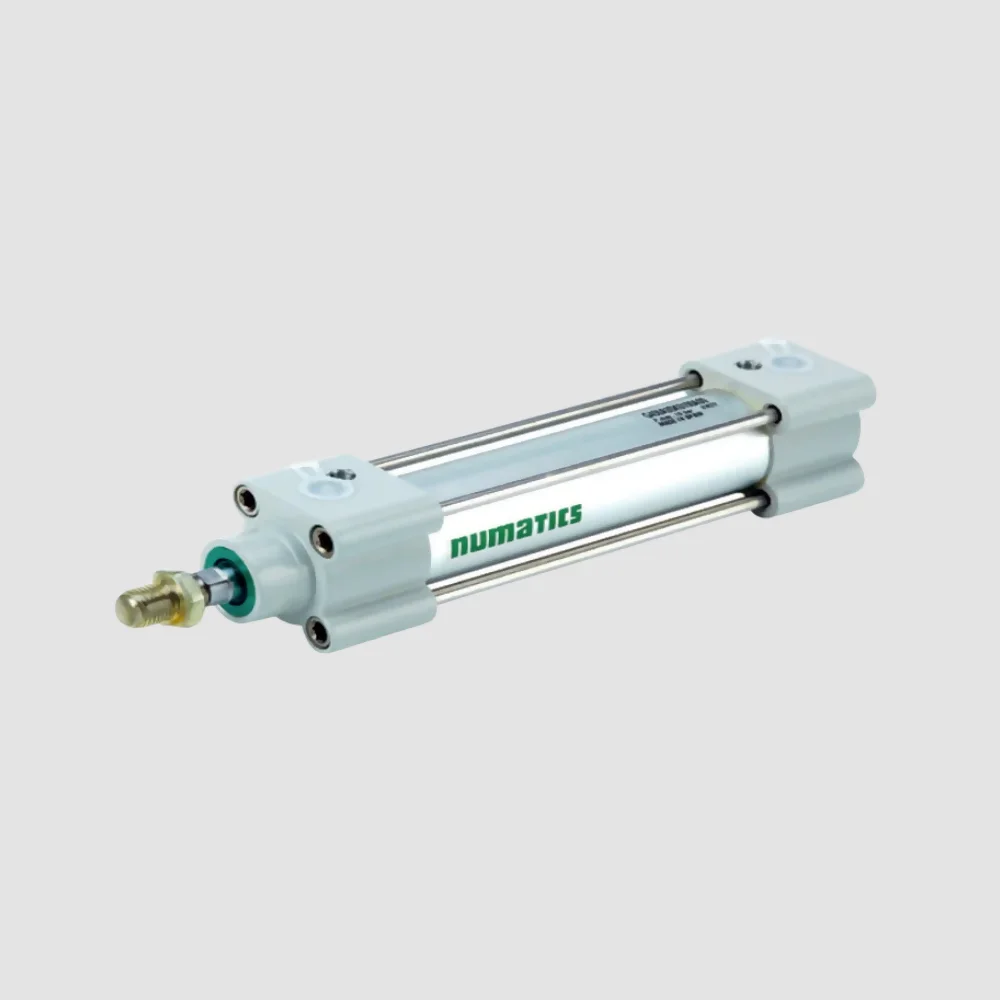

ASCO Numatics 453 ISO Standard Cylinders

Asco Numatics 453 ISO Standard Cylinders are designed for versatility, compatible with air or inert gas and function in temperatures ranging from -20°C to +70°C. These cylinders adhere to ISO 15552 standards and can achieve a maximum speed rate of 2 m/s. They are fitted for magnetic position detectors and offer options like double acting with pneumatic cushioning, suitable for various industrial applications.

Detection: Equipped for magnetic position detectors
Fluid: Air or inert gas, filtered, lubricated or not
Ambient Temperature: -20°C to +70°C
Max Speed Rate: 2 m/s
Standards: ISO 15552
Options: Double Acting with Pneumatic Cushioning
Find Out More

Frequently Asked Questions

What is the difference between double-acting and single-acting air cylinders?
Yes, Actuation Valve offers actuated butterfly valves suitable for marine applications, featuring materials like B148 C9500 Aluminium Bronze and EPDM seats suitable for seawater, cooling systems, desalination, and other marine environments. The 80WM580 & 80LM580 in particular are the most common.
Can pneumatic cylinders stop mid-stroke?
What does stroke mean for pneumatic cylinders?
Yes, Actuation Valve can provide various certifications, including witness testing, 3.1 certification, and standard pressure tests. Additional certifications can be arranged upon request.
How strong is a pneumatic cylinder?
Yes, Actuation Valve offers sustainable spares and replacement parts for ongoing maintenance schedules.
What is the difference between a pneumatic cylinder and a hydraulic cylinder?
Depending on the valve, actuator and process type pressure ratings range from PN10, PN16, PN40., ANSI 150 and ANSI 300.
What is a pneumatic cylinder?
A pneumatic cylinder is a mechanical device that uses compressed air to produce a force in a reciprocating linear motion.
How do pneumatic cylinders work?
They convert the energy of compressed air into mechanical force by moving a piston within a cylinder barrel.
What are the types of pneumatic cylinders?
The main types include single-acting (one-direction force) and double-acting (force in both extend and retract directions).
Can pneumatic cylinders be customised for specific applications?
Yes, they can be customised in terms of size, stroke length, and special features to suit specific requirements.
What are the advantages of using pneumatic cylinders?
They offer simplicity, high speed, durability, and ease of installation for various automation tasks.
Are pneumatic cylinders suitable for harsh environments?
Many are designed with materials and seals that can withstand harsh conditions, including dust, moisture, and high temperatures.
How do I select the right pneumatic cylinder for my application?
Consider the force required, stroke length, speed of operation, and the environment in which it will be used.

FAQ

Looking for Extra Dimensions?

Our skilled team offers detailed technical drawing services for pneumatic cylinders. Inform us of your specifications and requirements, and we'll produce what's needed.
Contact Us

Types of Pneumatic Cylinder

Pneumatic cylinders vary in terms of their size and appearance, but there are three main types available on the market.

Single acting cylinder. This type uses the pressure from compressed air to create a force in one direction – usually outwards, and a spring to return the force to the home direction. The cylinder usually has an extension to compromise for the space that the spring requires.

Double acting cylinder. A double acting cylinder uses the force of air to move in two different strokes – extend and retract. This type of cylinder has two ports to let air in – one for instroke and one for outstroke.

Rodless band cylinder. A rodless band cylinder offers a high level of load control as it has no piston rod. It uses a magnet or mechanical coupling to transmit force to the rest of the cylinder. The cylinder has two flexible metal bands – one is used to stop air escaping, whilst the other is designed to protect the slot and the inner band.

Design of Pneumatic Cylinders

Depending on what the pneumatic cylinder is required for, there are various designs available. Materials used for these cylinders vary between aluminium, steel, nickel plated brass and stainless steel. The type of material selected depends on the temperature, humidity and level of loads that the cylinder is required for.

Tie rod cylinder. This is the most common type and it is usually deemed to be the safest.

Flanged-type cylinder. Fixed flanges are fitted to the cylinder – this is more common in hydraulic cylinders rather than pneumatic cylinders.

Threaded end cylinder. The ends of this type of cylinder are screwed onto the body.

Asco Numatics pneumatic cylinders are available for sizes ranging from 20MM to 200MM, however custom options are available on request.

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
