ASCO™ 2 & 3-Way Solenoid Valves

The ASCO™ 2 & 3-Way Solenoid Valves, including the Series 210, 262, 263, 320, and 327, offer versatile solutions for a range of media such as air, water, aggressive liquids, and cryogenic fluids. These valves, available in various sizes and flow rates, support industrial applications like pumps, car wash systems, and diagnostic equipment. Designed for reliable performance, they ensure effective flow control with options for normally open, normally closed, and universal configurations.

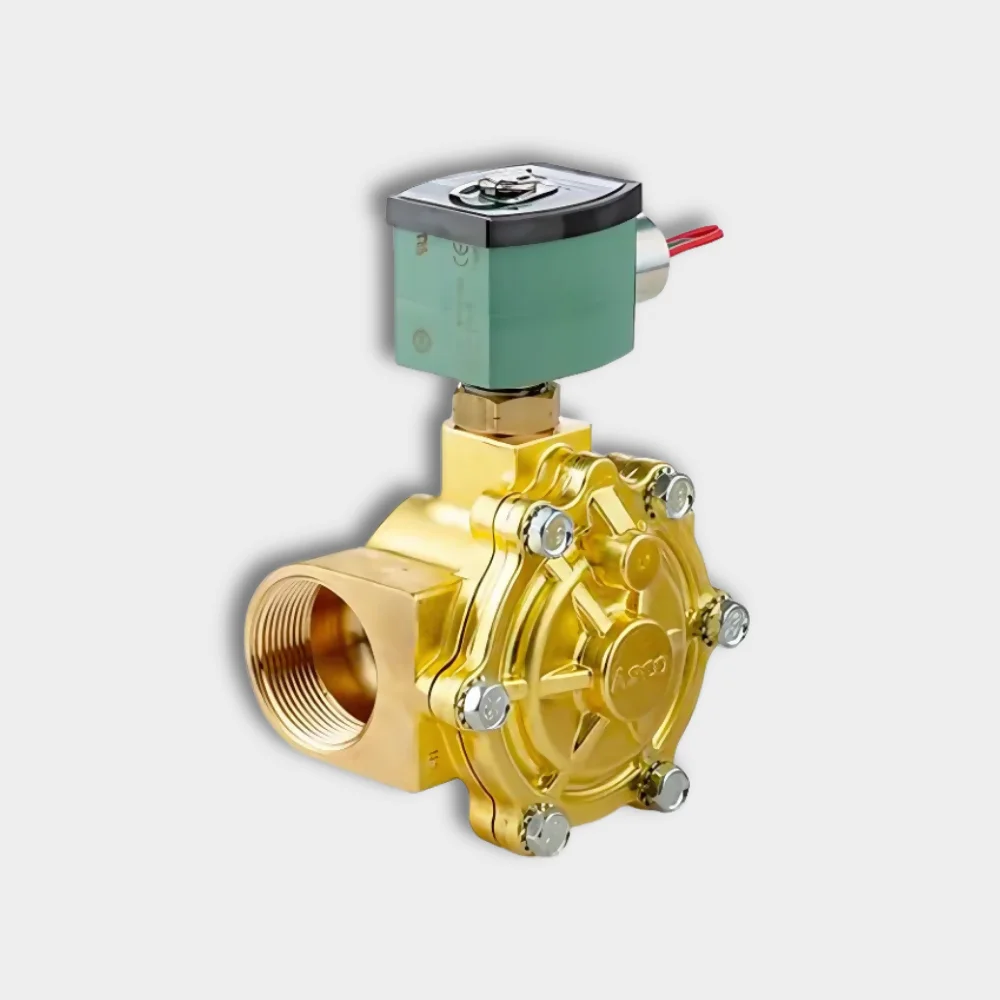

ASCO™ Series 210 2-Way Solenoid Valves

The ASCO™ Series 210 offers an economical range of high-flow solenoid valves designed for handling liquids, corrosive materials, air, and inert gases. These adaptable 2-way valves are available in various pressure ratings, sizes, and long-lasting materials to support extended use with minimal internal leakage. Ideal for a range of industrial uses, they are dependable in applications such as car wash systems, air compressors, pumps, laundry equipment, and industrial water control systems.

Media: Aggressive Liquids/Gases, Air, Inert Gas, Ammonia, Cryogenic, & More
Pipe / Port Size: 1/2 "; 3/8 "; 3/4 "; 1 "; 1 1/4 "; 1 1/2 "; 2 "; 2 1/2 "
Flow: From 1.3 to 39 Kv , 1.5 to 45 Cv
Function: 2 way - 2/2 Normally Closed, 2 way - 2/2 Normally Open
Find Out More

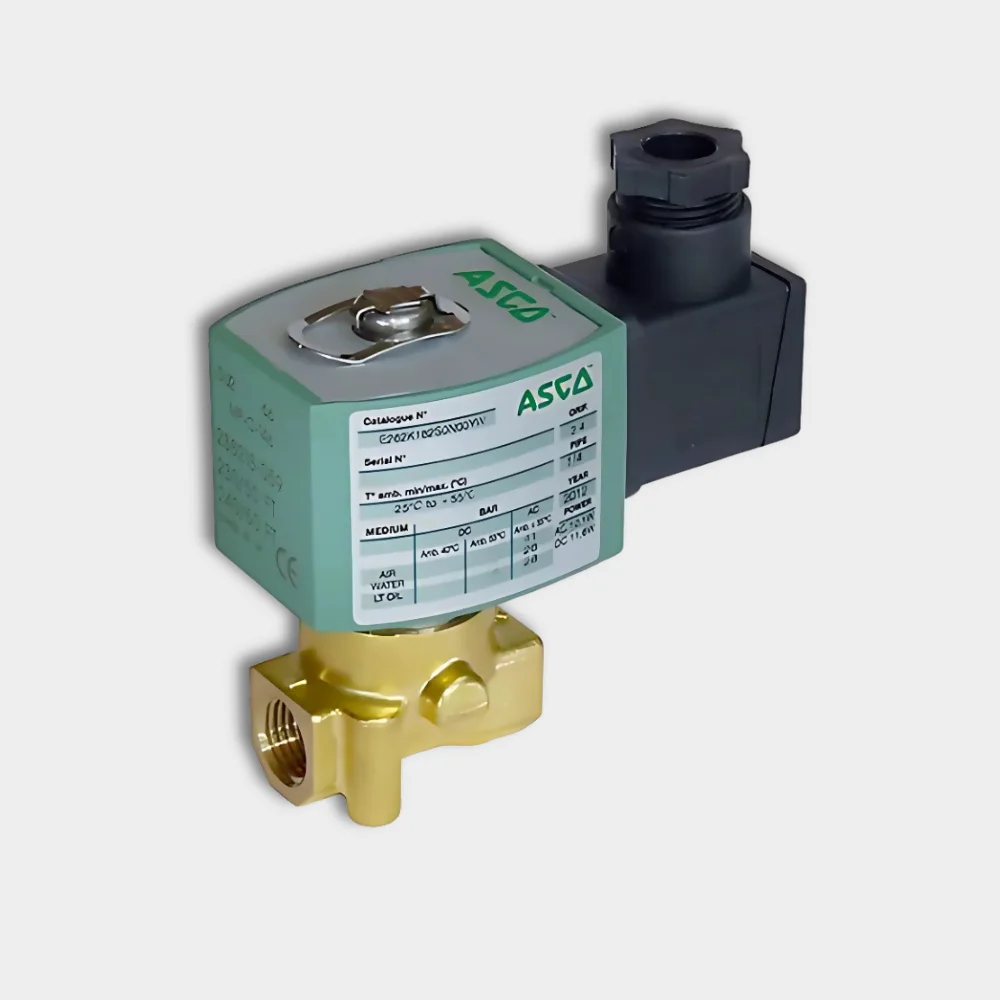

ASCO™ Series 262 & 263 2-Way High-Flow Solenoid Valves

The ASCO™ Series 262 & 263, also known as 8262 & 8263, offers a versatile selection of 2-way solenoid valves for general and specialised services. Available in brass or stainless steel, these reliable valves handle a wide range of media, including air, water, steam, light oil, fuel gas, and cryogenic fluids. Suited for commercial and industrial settings, they are used in applications such as car wash systems, dishwashers, boilers, pumps, compressors, and food processing equipment.

Media: Aggressive Liquids/Gases; Air, Inert Gas; Ammonia; Cryogenic, & More
Pipe / Port Size: 1/8; 1/4; 3/8
Flow: From 0.5 Cv to 1.0 Cv; From 0.1 Cv to 0.5 Cv; From .05-.1 Cv
Function: 2 way - 2/2 Normally Closed; 2 way - 2/2 Normally Open
Find Out More

ASCO™ Series 320 3-Way Solenoid Valves

The ASCO™ Series 320 general service solenoid valves provide flexible solutions for numerous applications. Available in multiple configurations, including voltage-ranging, harsh-environment, direct-mount, dribble-control, and extended-life options, these direct-acting valves are suited for use in analytical and diagnostic equipment, dust collection systems, life sciences, press rooms, and metal stamping operations. Their reliability ensures effective performance across various sectors.

Media: Air, Inert Gas, Light Oil, Water
Pipe / Port Size: 1/8 "; 1/4 "
Flow: From .04 to .2 Kv, From .2 to .43 Kv
Function: 3 way - 3/2 Normally Closed, 3 way - 3/2 Normally Open, 3 way - 3/2 Universal
Find Out More

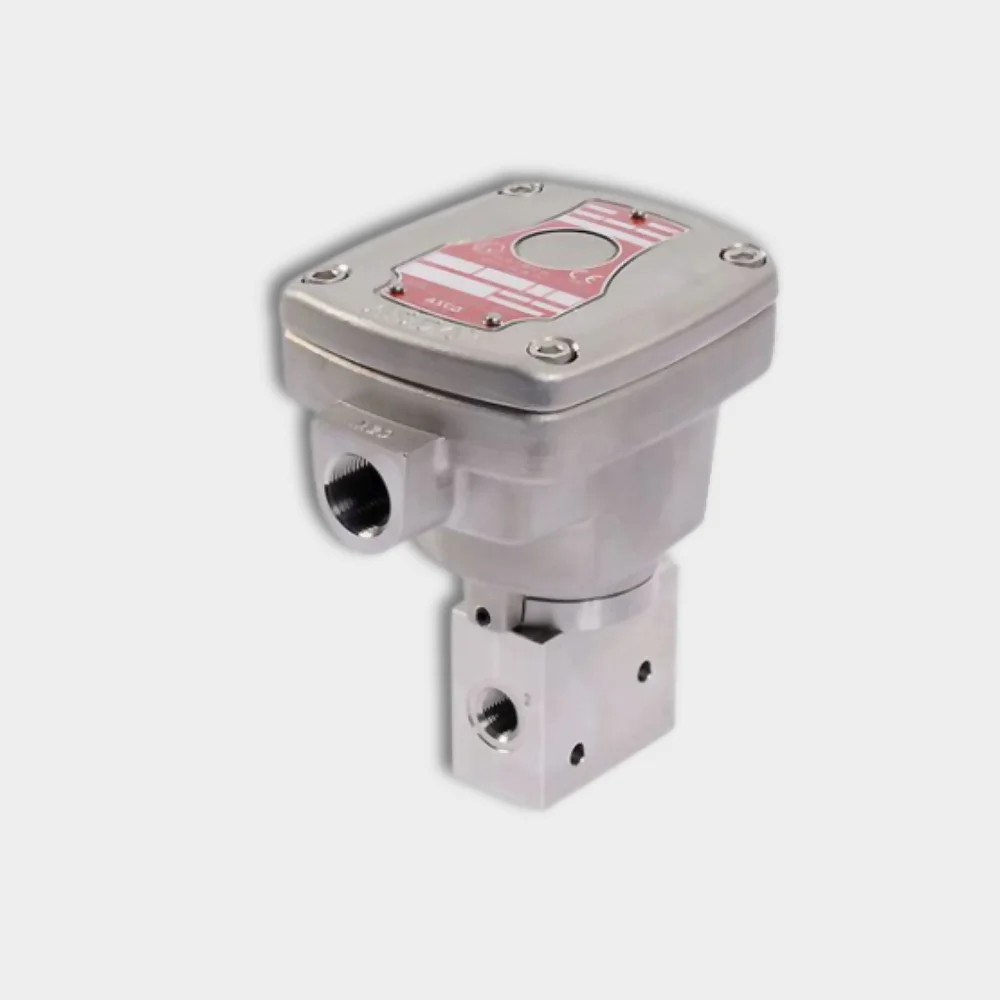

ASCO™ Series 327 3/2-Way Solenoid Valves

The ASCO™ Series 327 offers high-flow piloting valves that function without the need for minimum pressure. Designed with balanced poppet construction, these valves ensure optimal flow with low power consumption, making them ideal for power plants, refineries, and chemical processing sectors. The inclusion of PTFE rider rings and graphite-filled seals minimises friction and prevents sticking, extending the valve’s operational life and enhancing reliability in challenging conditions.

Media: Air, Inert Gas, Light Oil, Water
Pipe / Port Size: 1/4"
Flow: From 0.1 Cv to 0.5 Cv, From 0.5 Cv to 1.0 Cv, From .2 to .43 Kv, From .43 to .86 Kv
Function: 3 way - 3/2 Universal
Find Out More

Frequently Asked Questions

A solenoid valve is an electromechanically operated valve that controls the flow of liquids or gases. It operates by using an electric coil (solenoid) to control the valve’s opening or closing when activated.

Solenoid valves come in various types, including direct-acting, pilot-operated, and normally open or normally closed configurations, each designed for specific applications and fluid control needs.

Solenoid valves are widely used in industries such as water treatment, automotive, oil and gas, HVAC, and industrial automation for controlling fluid and gas flow in systems.

Choosing the right solenoid valve depends on factors such as the fluid type, pressure, temperature, voltage, and the valve’s material compatibility with the application’s requirements.

Solenoid valves offer precise control, fast response times, reliability, and can be easily integrated into automated systems, making them ideal for a wide range of applications.

Solenoid valves should be regularly inspected for wear and tear, with maintenance schedules varying depending on the application, operating environment, and frequency of use.

Common causes of solenoid valve failure include coil burnout, dirt or debris in the valve, excessive pressure or temperature, and improper installation or operation.

Yes, solenoid valves are designed to handle a variety of fluids, including both liquids and gases, as long as the valve is specified for the particular medium in question.

A normally open solenoid valve allows fluid to flow in its resting state and closes when energized, while a normally closed valve blocks fluid flow when de-energized and opens when powered.

Solenoid valves are available in various voltage options, including AC (alternating current) and DC (direct current), with common voltages being 12V, 24V, 110V, and 230V.

Yes, certain solenoid valves are designed for use in hazardous environments. These valves are often explosion-proof or comply with specific safety standards to ensure safe operation.

Direct-acting solenoid valves operate without external pressure assistance, making them suitable for low-flow applications. Pilot-operated valves require a minimum pressure differential to open, making them more effective for higher flow rates and pressures.
