Ari Armaturen Steam Trap Valves

The ARI-CONA series of Steam Trap Valves, with sizes from DN15 to DN100 and pressures up to PN630, are versatile in connection types like Butt Weld, Flanged, and Screwed Socket, catering to a wide range of applications. These valves, weighing between 1.3 to 128 kg and with face-to-face dimensions from 12 to 689 mm, are designed for effective condensate discharge in steam and condensate systems, ensuring optimal performance and efficiency in various settings.

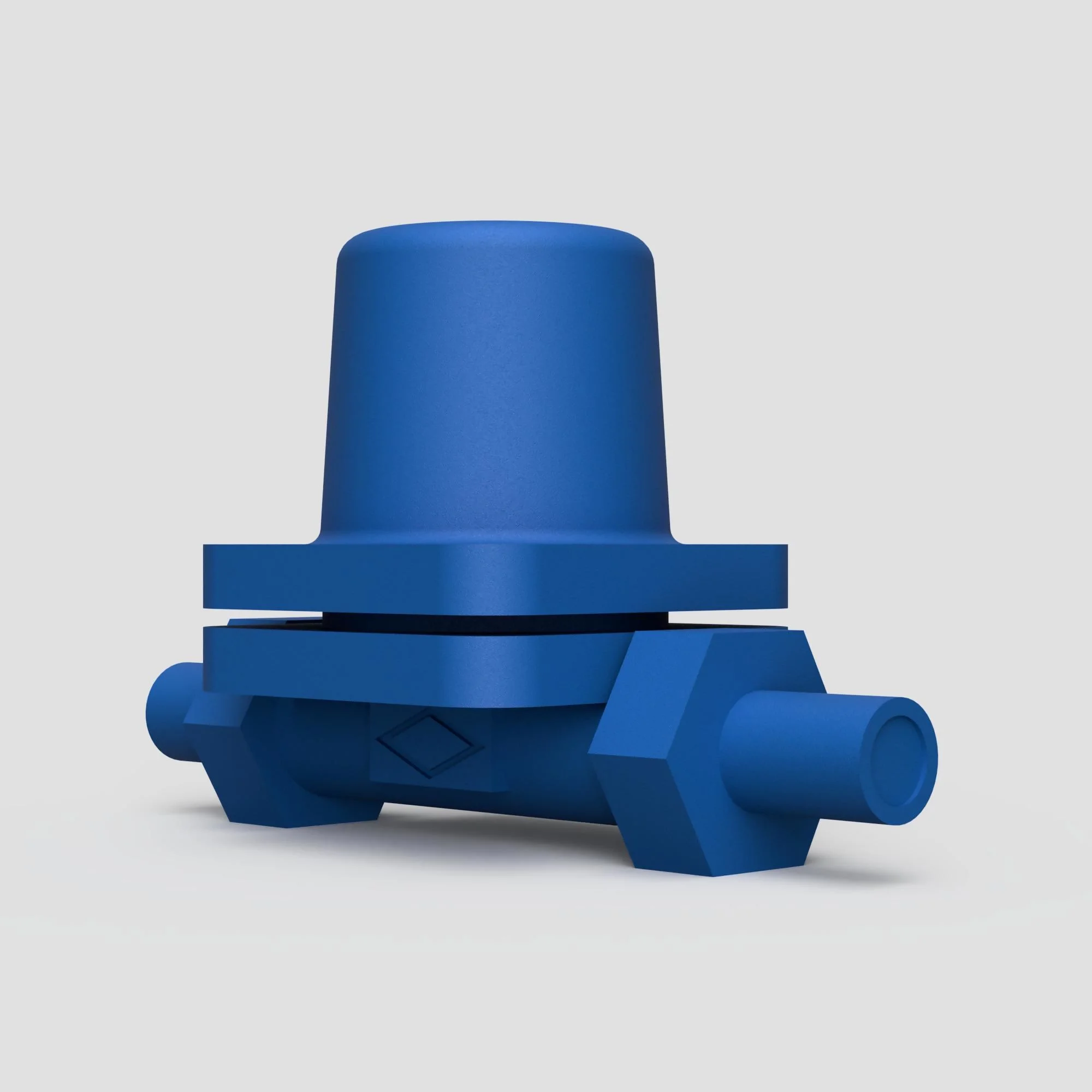

ARI-CONA B Steam Trap Valve

The ARI-CONA B Steam Trap Valve, spanning sizes DN15 to DN50 and pressures PN16 to PN630, offers versatile end connections including Butt Weld End, Flanged, Screwed Socket, and Union, catering to diverse system requirements. Weighing between 1.6 and 3.7 kg with dimensions from 95 to 250 mm face to face, it's designed for efficient condensate discharge sub-cooled between 10 and 30 K, handling both steam and condensate mediums with precision.

Size Range: DN15 to DN50
Pressure Range: PN16 to PN630
End Connection: Butt Weld End, Flanged, Screwed Socket, & Union
Weight Range (kg): 1.6 to 3.7
Face to Face (mm): 95 to 250
Applications: For the discharge of Condensate Sub-Cooled Between 10 and 30 K
Medium: Steam & Condensate
Shop Now

ARI-CONA M Steam Trap Valve

The ARI-CONA M Steam Trap Valve, suitable for DN15 to DN25 sizes and PN16 to PN40 pressure ranges, offers a versatile end connection selection including Wafer Type Flange and more. Weighing between 2.1 to 4.5 kg with a 160 to 190 mm face-to-face dimension, it excels in discharging condensate sub-cooled up to 40 K, serving both steam and condensate mediums efficiently.

Size Range: DN15 to DN25
Pressure Range: PN16 to PN40
End Connection: Wafer Type Flange, Socket End, Screwed Socket, Flanged, & Butt Weld End
Weight Range (kg): 2.1 to 4.5
Face to Face (mm): 160 to 190
Applications: For the Discharge of Condensate Sub-Cooled up to 40 K
Medium: Steam & Condensate
Shop Now

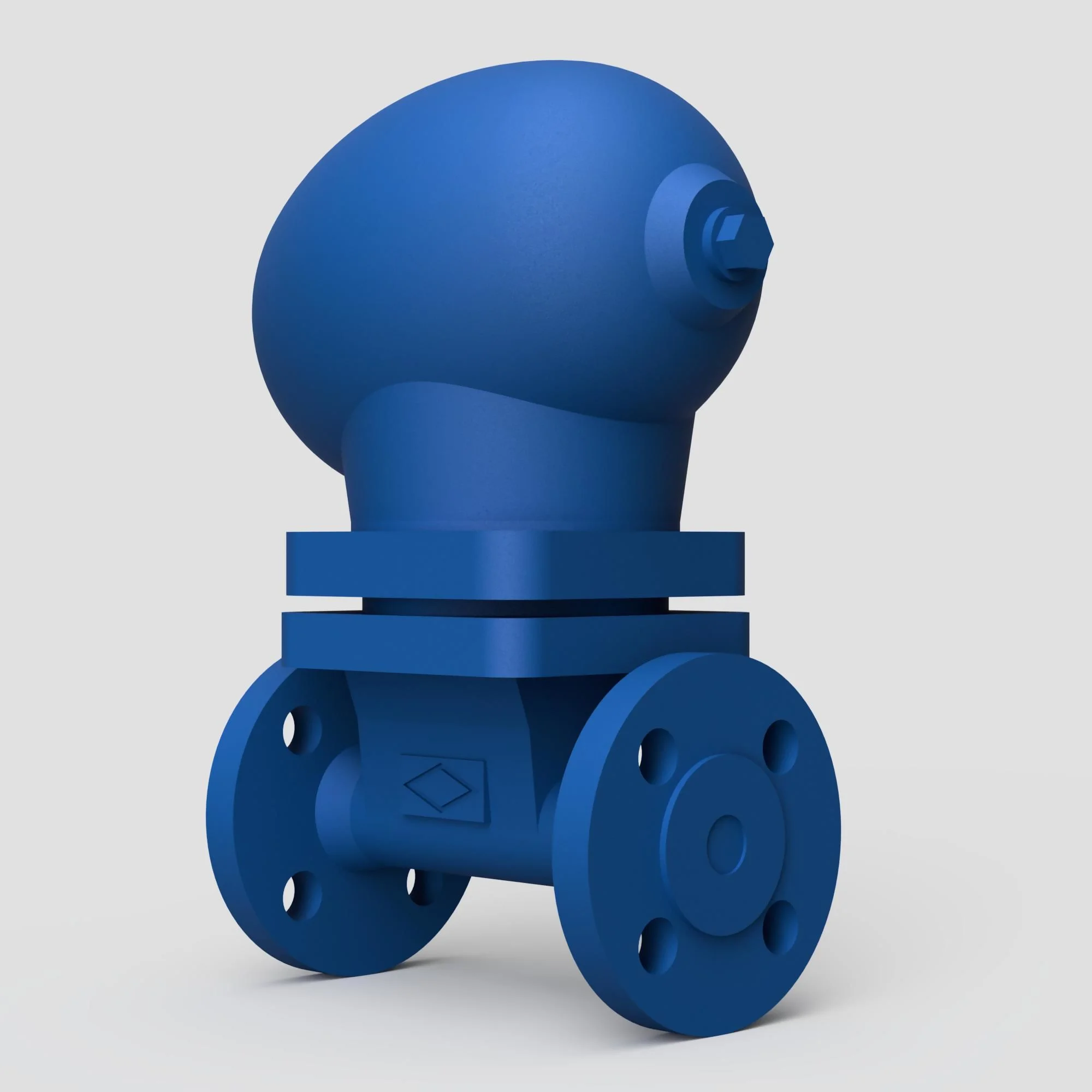

ARI-CONA SC Steam Trap Valves

The ARI-CONA SC Steam Trap Valves, available in sizes DN15 to DN50 and pressures from PN16 to PN40, offer versatile end connections including flanged, screwed socket, socket end, and butt weld end. With weights ranging from 4.7 to 7.1 kg and a face to face dimension of 95 to 200 (250) mm, these valves are ideal for the efficient discharge of condensate at boiling temperature, catering to steam, condensate, and gases with liquid components applications.

Size Range: DN15 to DN50
Pressure Range: PN16 to PN40
End Connection: Flanged, Screwed Socket, Socket End, & Butt Weld End
Weight Range (kg): 4.7 to 7.1
Face to Face (mm): 95 to 200 (250)
Applications: For Discharge of Condensate at Boiling Temperature
Medium: Steam, Condensate, & Gases with Liquid Components
Shop Now

ARI-CONA SC-Plus Steam Trap Valve

The ARI-CONA SC-Plus Steam Trap Valve, suitable for sizes DN25 (1"), operates across a pressure range of PN16 to PN40, featuring both flanged and screwed sockets for versatile connections. Weighing between 9.3 to 11.8 kg with a face-to-face dimension of 160 mm, this valve is ideal for the efficient discharge of condensate at boiling temperature, handling steam, condensate, and gases with liquid components, ensuring optimal performance in various applications.

Size Range: DN25 (1")
Pressure Range: PN16 to PN40
End Connection: Flanged & Screwed Sockets
Weight Range (kg): 9.3 to 11.8
Face to Face (mm): 160
Applications: For Discharge of Condensate at Boiling Temperature
Medium: Steam, Condensate, & Gases with Liquid Components
Shop Now

ARI-CONA S Stream Trap Valve

The ARI-CONA S Stream Trap Valve, ranging in size from DN15 to DN100 and supporting pressures from PN16 to PN40, is designed for efficient discharge of condensate at boiling temperatures. It features diverse end connections including flanged, screwed sockets, socket weld, and butt weld ends. Weighing between 7.1 to 36.5 kg with a face-to-face length of 150 to 350 mm, it's ideal for handling steam, condensate, and gases with liquid components across various applications.

Size Range: DN15 to DN100
Pressure Range: PN16 to PN40
End Connection: Flanged, Screwed Sockets, Socket Weld ends, & Butt Weld Ends
Weight Range (kg): 7.1 to 36.5
Face to Face (mm): 150 to 350
Applications: For Discharge of Condensate at Boiling Temperature
Medium: Steam, Condensate, & Gases with Liquid Components
Shop Now

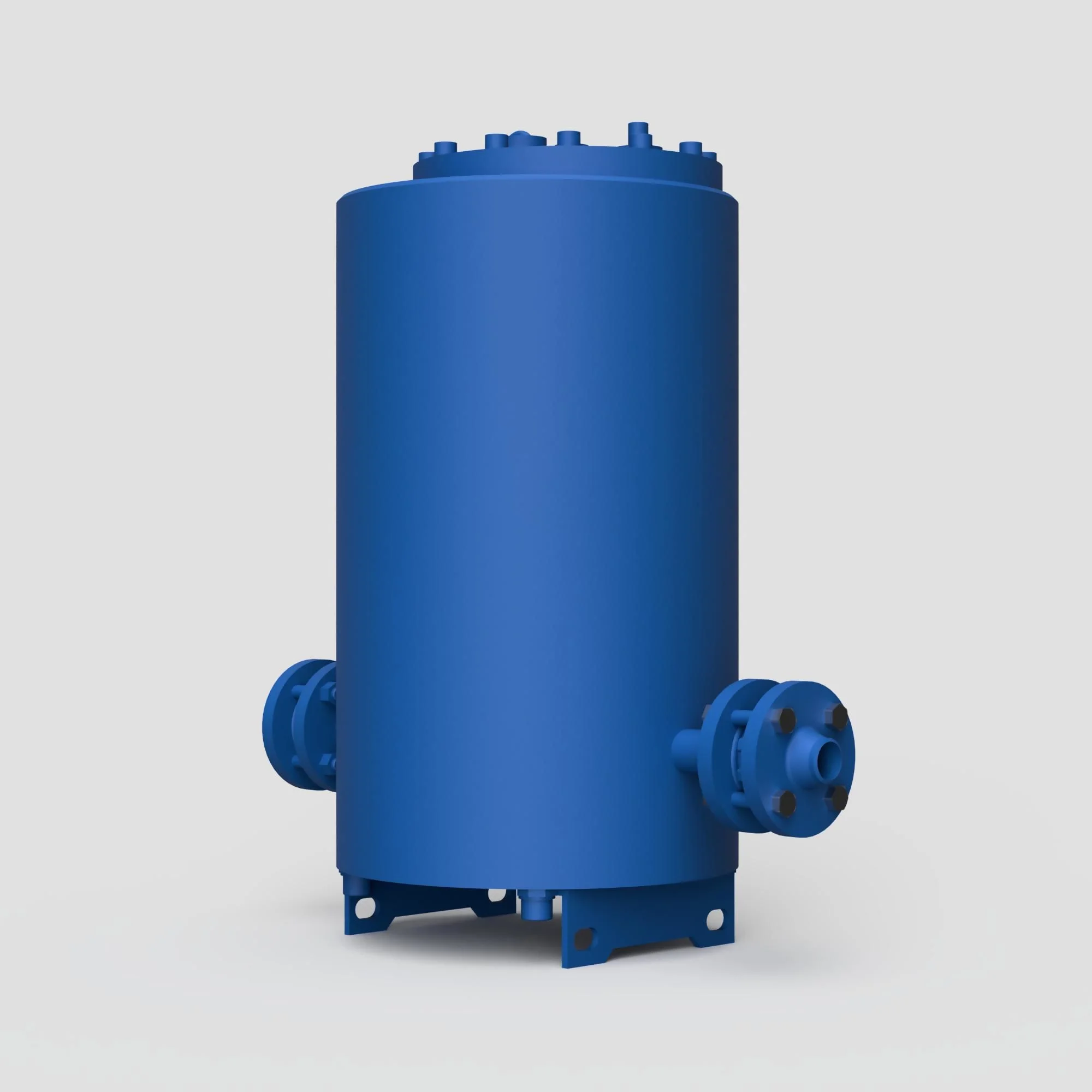

ARI-CONLIFT Steam Trap Valve

The ARI-CONLIFT Steam Trap Valve, suitable for discharging condensate with minimal sub-cooling, comes in sizes DN25 to DN80 and withstands pressures up to PN16. This versatile valve features flanged, motive medium, and air vent connections, weights between 89 to 128 kg, and offers a broad face to face range of 12 to 689 mm. Designed for steam and condensate mediums, it's ideal for efficient condensate removal in various applications.

Size Range: DN25 to DN80
Pressure Range: PN16
End Connection: Flanged, Motive Medium, & Air Vent
Weight Range (kg): 89 to 128
Face to Face (mm): 12 to 689
Applications: For Discharge of Condensate with Limited Sub-Cooling
Medium: Steam & Condensate
Shop Now

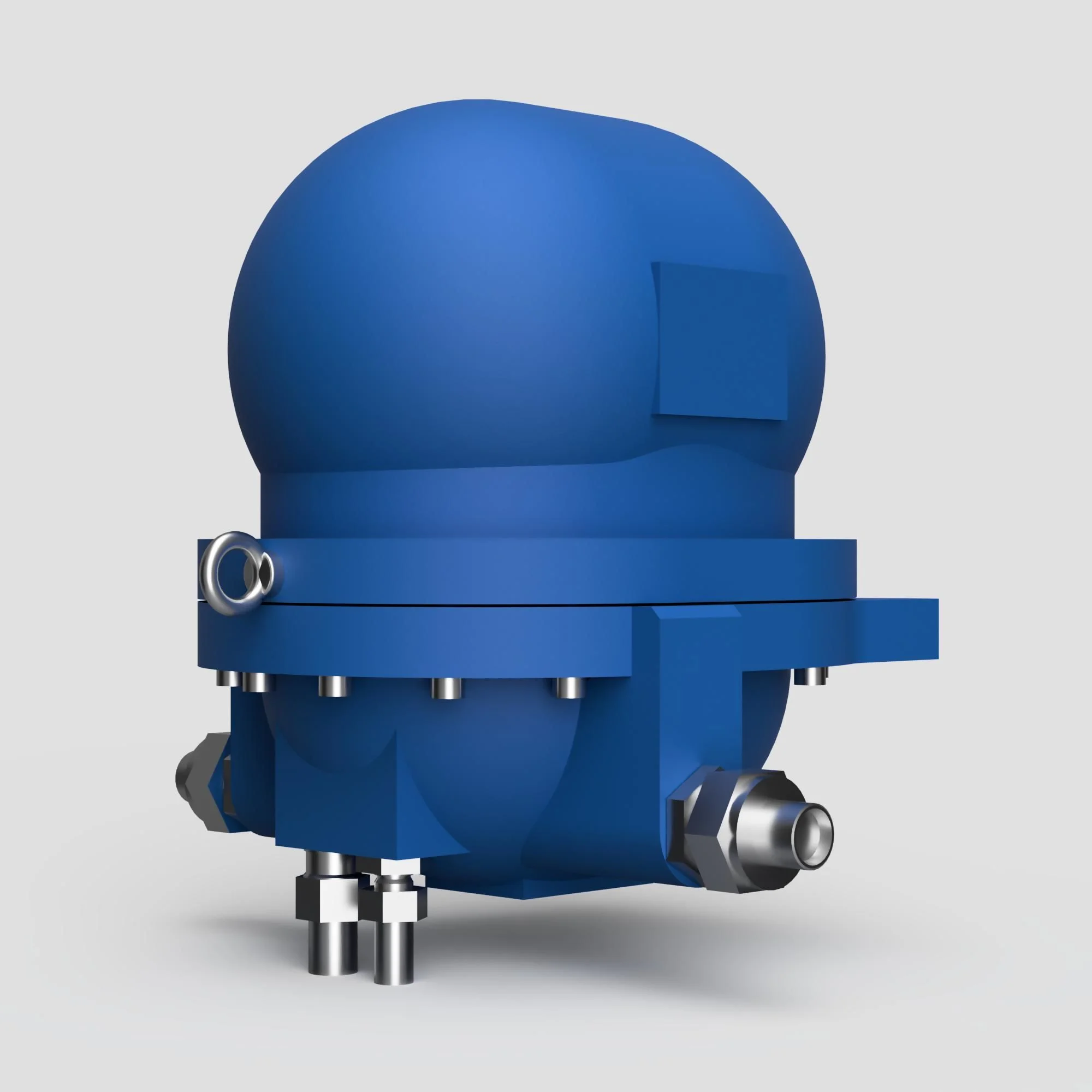

ARI-CONA P Steam Trap Valve

The ARI-CONA P Steam Trap Valve, available in sizes DN25 to DN50 and designed to handle pressures up to PN16, offers versatile end connections including screwed sockets and optional loose flange or union with butt weld ends. Weighing between 72.4 and 80.3 kg, it's made from EN-JS1049 material, making it ideal for ventilation valves in pipelines and for condensing vapour or liquid systems. This valve efficiently manages steam and condensate mediums, ensuring optimal performance.

Size Range: DN25 to DN50
Pressure Range: PN16
End Connection: Screwed Sockets, Loose flange (Optional), & Union with Butt Weld Ends (Optional)
Weight Range (kg): 72.4 to 80.3
Material: EN-JS1049
Applications: Ventilation Valve for Pipelines, & Condensing Vapour (steam) or Liquid Systems
Medium: Steam & Condensate
Shop Now

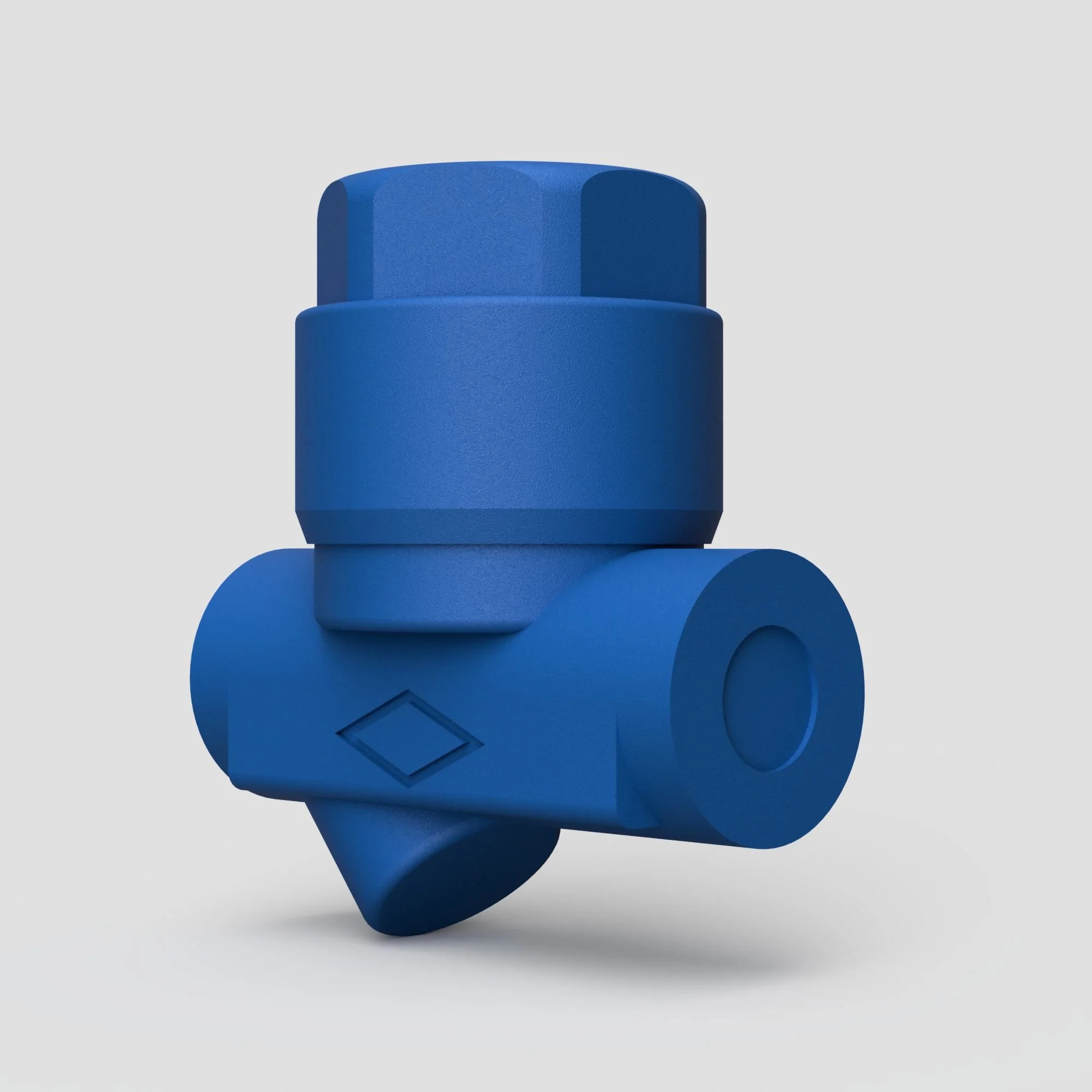

ARI-CONA TD Steam Trap Valve

The ARI-CONA TD Steam Trap Valve, available in sizes DN15 to DN25 and designed for the efficient discharge of condensate with limited sub-cooling, is ideal for systems operating at a pressure range up to PN40. Offering a variety of end connections including flanged, screwed sockets, socket weld ends, and butt weld ends, it caters to a broad range of installations. Weighing between 1.3 and 3.7 kg and with face-to-face dimensions spanning 95 to 250 mm, it is a versatile solution for managing steam and condensate in diverse applications.

Size Range: DN15 to DN25
Pressure Range: PN40
End Connection: Flanged, Screwed Sockets, Socket Weld Ends, & Butt Weld Ends
Weight Range (kg): 1.3 to 3.7
Face to Face (mm): 95 to 250
Applications: For Discharge of Condensate with Limited Sub-Cooling
Medium: Steam & Condensate
Shop Now

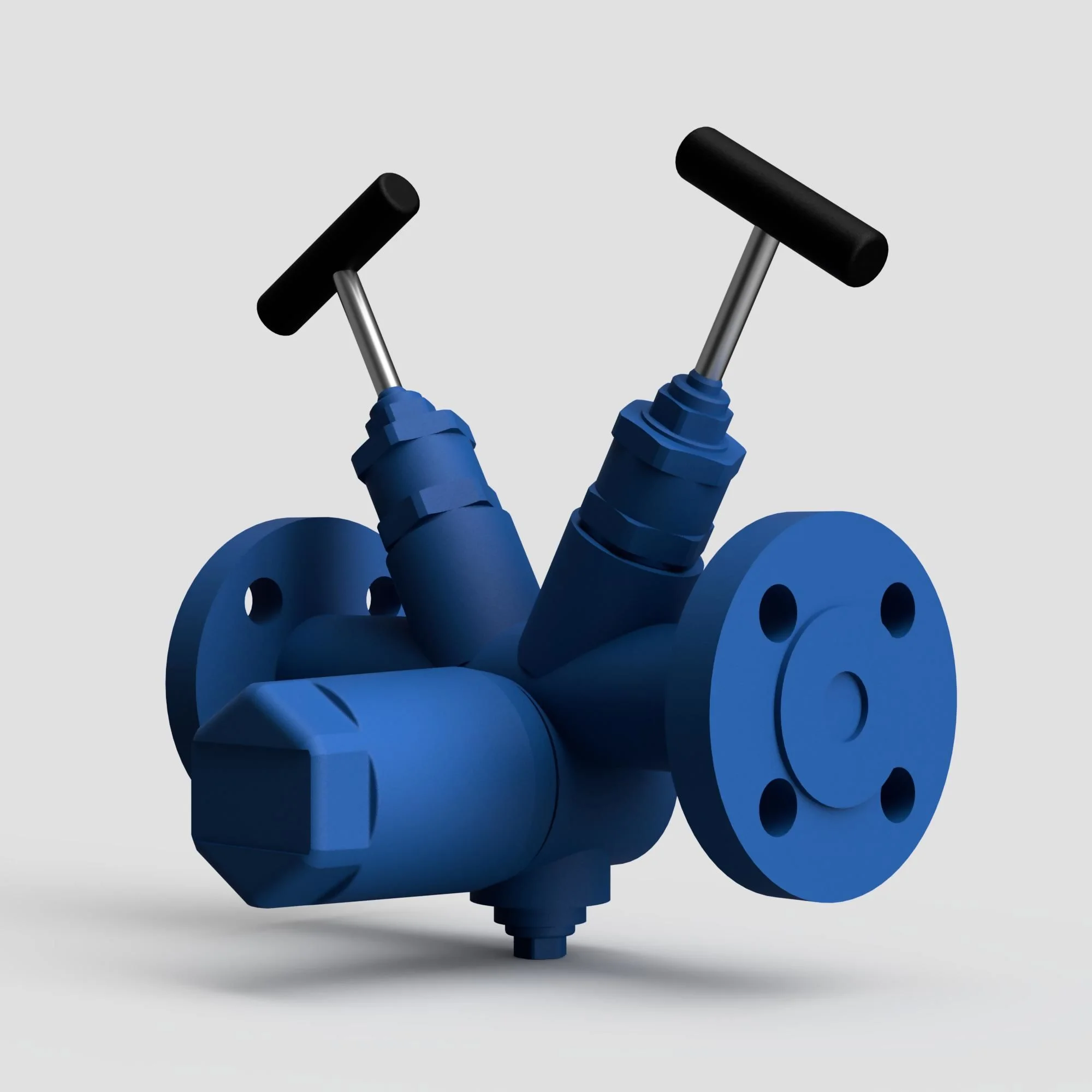

ARI-CONA All-in-one Steam Trap Valve

The ARI-CONA all-in-one steam trap valve, available in sizes DN15 to DN25 and pressure up to PN40, is designed for efficient condensate discharge with limited sub-cooling. With diverse end connections including flanged, screwed sockets, socket weld, and butt weld ends, and a weight range of 3.9 to 6.6 kg, it's ideal for steam and condensate applications. Its dimensions, with a face-to-face length of 150 to 230 mm, ensure versatile integration into various systems.

Size Range: DN15 to DN25
Pressure Range: PN40
End Connection: Flanged, Screwed Sockets, Socket Weld Ends, & Butt Weld Ends
Weight Range (kg): 3.9 to 6.6
Face to Face (mm): 150 to 230
Applications: For Discharge of Condensate with Limited Sub-Cooling
Medium: Steam & Condensate
Shop Now

Valve Datasheets

  • Document
DATASHEET

ARI-CONA
  • Document
DATASHEET

ARI-CONA SC / SC PLUS
  • Document
DATASHEET

ARI-CONLIFT
  • Document
DATASHEET

ARI-CONA P
  • Document
DATASHEET

CONA All-in-one

Frequently Asked Questions

A steam trap valve is a device used to discharge condensate and non-condensate gases while retaining steam, ensuring efficiency and energy conservation in systems where steam is used for heating or processes.

Common types include float and thermostatic, inverted bucket, and thermodynamic steam traps, each designed for specific applications and operating conditions to optimize performance.

Selecting the right steam trap involves considering factors like operating pressure, temperature, condensate load, and the specific requirements of your system, such as response time and resistance to wear.

Regular maintenance prevents leaks, ensures efficient operation, and prolongs the lifespan of the valve by detecting and addressing issues like blockages and wear.

Yes, steam traps can fail due to wear, blockage, or damage. Signs of failure include visible leaks, abnormal noises, and reduced efficiency in the heating or process system.

Inspection frequency depends on the application and operating conditions, but annual checks are recommended for most systems, with critical applications requiring more frequent inspections.

Properly functioning steam trap valves reduce energy consumption by minimizing steam loss, improving system efficiency, and reducing the need for additional fuel to generate steam.

Some steam trap issues can be repaired, especially if detected early. However, extensive damage or wear often necessitates replacement to ensure system efficiency and safety.

Steam trap valves are typically made from materials like stainless steel, cast iron, and bronze, chosen for their durability and resistance to high temperatures and pressures.

Altitude can impact the operation of steam trap valves by affecting pressure and temperature conditions, which may require adjustments in valve selection and sizing for optimal performance.

While steam trap valves are versatile, the specific type and model must be carefully chosen based on the system's requirements, including pressure, temperature, and condensate load, to ensure compatibility and efficiency.

Proper installation considers factors like orientation, location relative to other components, and ensuring there are no obstructions to flow, following manufacturer guidelines for optimal operation and longevity.
