Actuation Valve

The ARI-Armaturen Electric Actuators provide reliable and flexible options for various needs. With different models offering force ranges from 0.85 kN to 25 kN, these actuators are suitable for a wide range of tasks. They are designed to work in challenging environments, protecting against dust and water, and can operate in temperatures from -20°C to 70°C. Whether for industrial use or heating and cooling systems, these actuators deliver dependable and efficient performance.

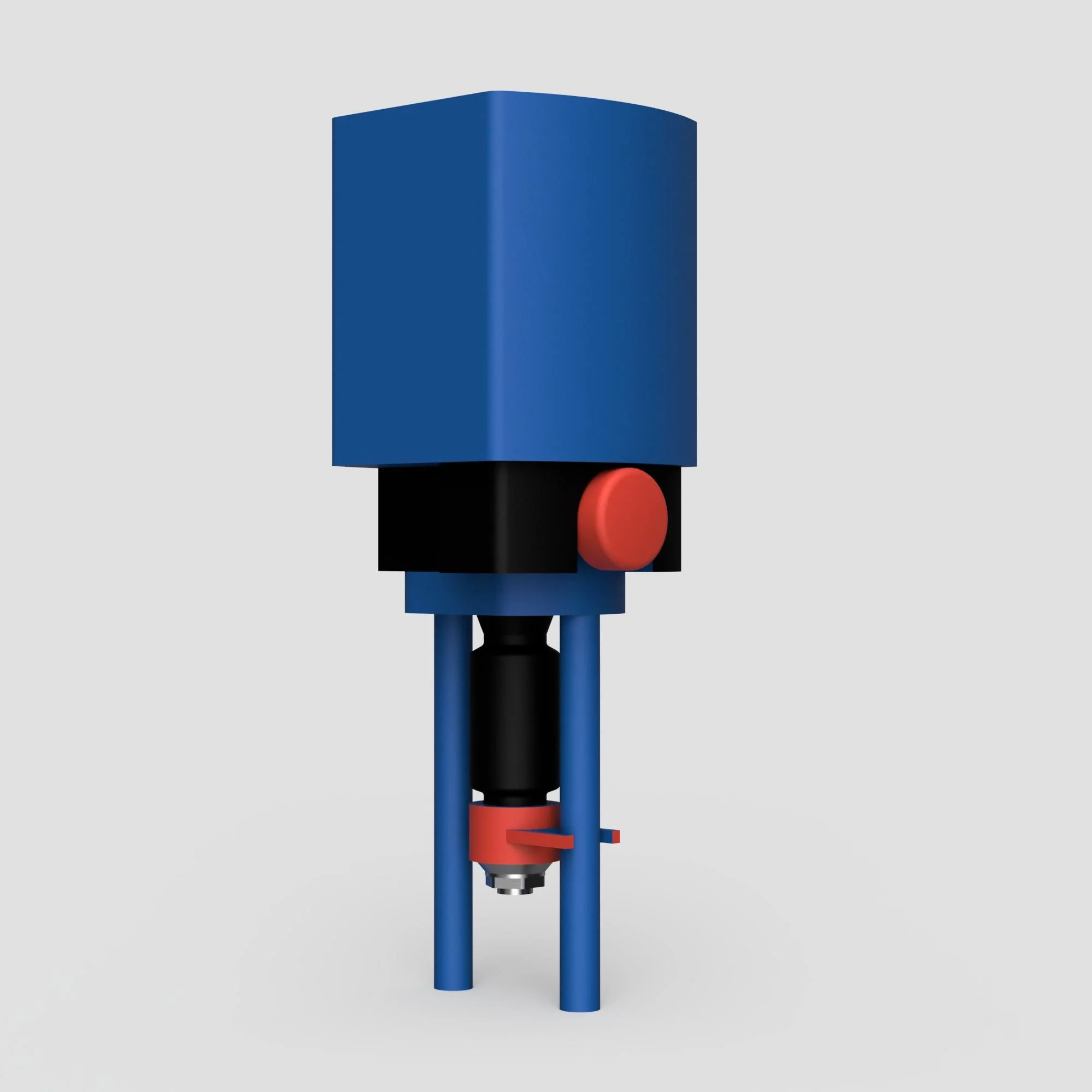

The ARI-PREMIO Electric Thrust Actuator provides dependable performance with force options ranging from 2.2 kN to 25 kN. It features adjustable speeds and can accommodate travel distances up to 80 mm. Available in 230 V or 24 V power options, the actuator is designed for challenging environments with an IP65 rating, offering protection against dust and water. Operating between -20°C and 70°C, it weighs between 5.8 kg and 11 kg, depending on the model size.

Force Ranges:	2.2 kN, 5 kN, 12 kN, 15 kN, & 25 kN
Operating Speeds:	0,20 mm/s to 1 mm/s
Maximum Travel Distances:	50mm to 80mm
Enclosure Rating:	IP65
Ambient Temperature Range:	-20°C to 70°C

Find Out More

The ARI-PREMIO Plus 2G Electric Thrust Actuator provides dependable operation across two force ranges: 2.2 to 5 kN and 12 to 25 kN, with speeds ranging from 0.20 mm/s to 1 mm/s. It features a maximum stroke of 50-65 mm, driven by a BLDC motor with a 24 V AC/DC supply. Power consumption depends on the model, reaching up to 137 VA, and it is rated IP65 for protection. Suitable for temperatures from -20°C to 70°C, it weighs between 5.4 and 11 kg, ensuring flexibility in various applications.

Force Ranges:	2.2 kN, 5 kN, 12 kN, 15 kN, & 25 kN
Operating Speeds:	0,20 mm/s to 1 mm/s
Maximum Travel Distances:	50mm to 65mm
Enclosure Rating:	IP65
Ambient Temperature Range:	-20°C to 70°C

Find Out More

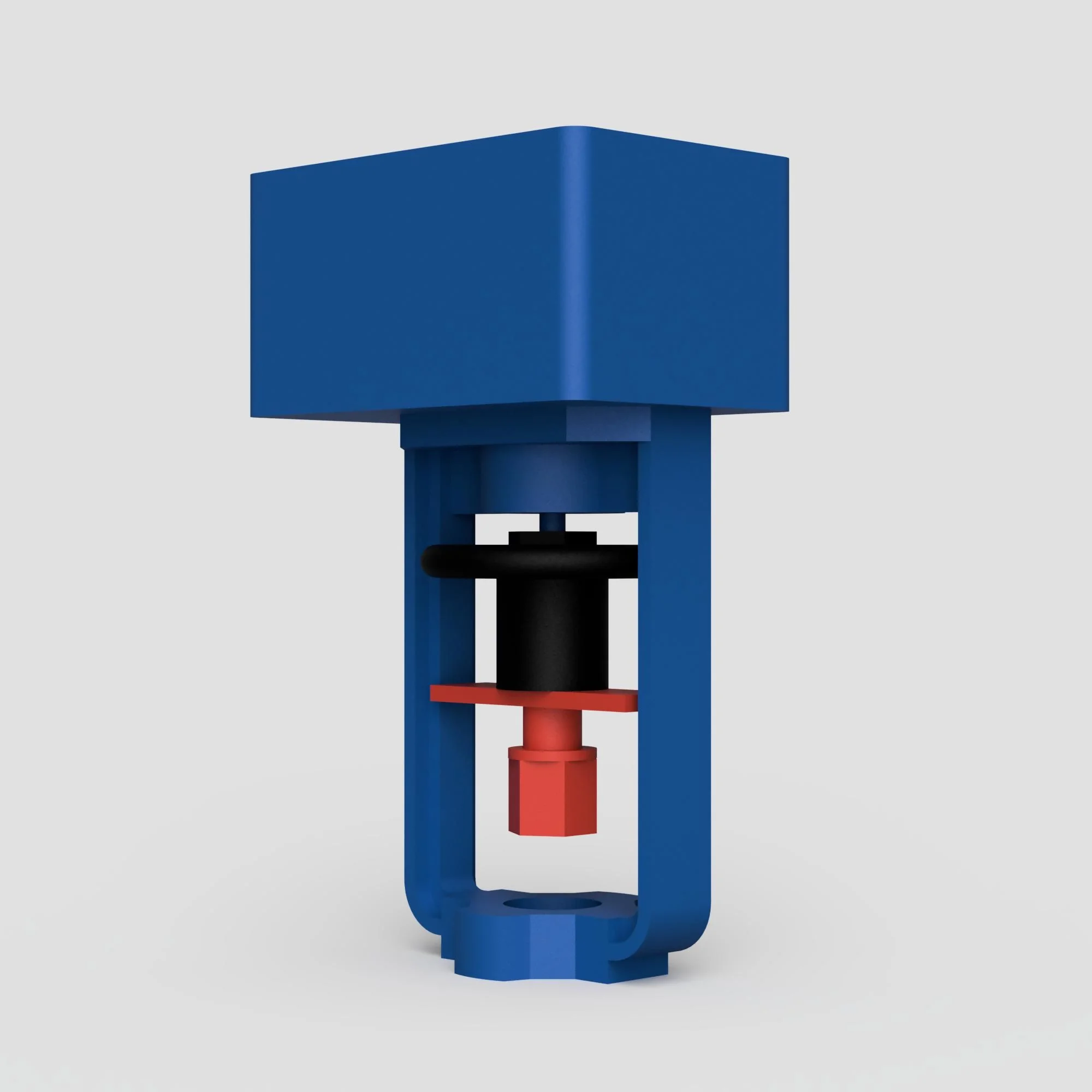

The ARI-PACO Electric Thrust Actuator provides precise control for heating and air conditioning systems, offering a force range of 0.85 kN with an operating speed of 0.11 mm/s and a maximum travel distance of 20mm. It is available in two versions, compatible with 230V or 24V, consuming 4.1 VA and 4.8 VA, respectively. With an IP54 rating, it operates reliably in temperatures from 0°C to 50°C. Weighing 1.3 kg, this actuator is designed for efficient performance across various applications.

Force Ranges:	0.85 kN
Operating Speeds:	0.11 mm/s
Maximum Travel Distances:	20mm
Enclosure Ratings:	IP54

Find Out More

Electric actuators can be highly energy-efficient, especially when compared to traditional hydraulic or pneumatic systems. They only consume electricity when in operation, and advancements in motor technology, such as brushless DC motors, contribute to increased efficiency.

Yes, there are electric actuators specifically designed for hazardous environments, including those with explosive atmospheres. These actuators adhere to industry-specific standards and certifications, such as ATEX or IECEx, to ensure safety in potentially dangerous settings.

An electric actuator is a device that converts electrical energy into mechanical movement to control the position or operation of a mechanism, typically used in industrial automation and various other applications.

Electric actuators work by receiving an electrical signal, usually from a controller or a computer, and converting it into linear or rotary motion. This is achieved through the use of electric motors, gears, and other mechanical components.

Electric actuators offer precise control, high efficiency, and low maintenance compared to other types of actuators. They are also cleaner and more environmentally friendly as they don't require hydraulic fluids.

There are various types of electric actuators, including linear actuators, rotary actuators, screw jack actuators, and others. Each type is designed for specific applications and motion requirements.

Electric actuators find applications in industries such as manufacturing, aerospace, automotive, robotics, water treatment, and more. They are used wherever precise and automated control of mechanical systems is required.

Yes, many electric actuators are designed to be weatherproof and can withstand harsh environmental conditions. However, it's essential to choose the right actuator with the appropriate protection ratings for outdoor use.

Yes, electric actuators can be easily integrated into various automation systems. They are compatible with programmable logic controllers (PLCs), distributed control systems (DCS), and other control devices.

Factors to consider include load requirements, speed, precision, environmental conditions, duty cycle, and available power supply. Choosing the right actuator depends on the specific needs of the application.

Electric actuators generally have lower maintenance requirements compared to hydraulic or pneumatic actuators. However, it's essential to follow the manufacturer's recommendations for periodic checks and lubrication.

Yes, electric actuators are often used as retrofit solutions to replace older mechanical or hydraulic systems. They offer advantages such as improved control, energy efficiency, and reduced maintenance costs in such applications.
