Lugged Bronze Disc Air Torque Actuated Butterfly Valves

The TTV 20L3040 and Air Torque actuator are the most popular butterfly valve assembly on today's market. This proven combination provides maximum flow with with robust construction features. It has been designed using rilsan-coated body butterfly valve and anodised aluminium pneuamtic actuator providing maximum life capacity for protection against non aggressive external factors whilst out in the field. The high corrosion resistant aluminium bronze disc, makes this the perfect valve for more harsh medias. Replaceable valve seats ensure maximum life capacity and sustainability for ongoing preventative maintenance schedules.
Shop

Key Features

Key features and benefits of the 20L3080AT Actuated Butterfly Valves.
1

Key Features

Air Torque actuators have a range of protection levels available other than the standard anodised alum housing. These include a full stainless steel body version, alodur coating for body and end caps, ENP plated carbon steel drive shafts and PTFE body coating.
2

Key Features

The Air Torque range of pneumatic actuators is extremely versatile and easy to install. Their lightweight design means they don't require heavy duty mounting points, so you can fit them anywhere on your production line without affecting product flow or increasing costs unnecessarily.
3

Key Features

The TTV range of bronze disc butterfly valves are an ideal solution to most marine applications and come with approvals from recognised bodies such as DNV, Bureau Veritas, Lloyds & ABS. Our products are corrosion resistant with the highest quality of foundry raw materials.

20L3080AT Ball Valve Technical Stuff

A B C A B C D E
SR SR SR DA DA DA SR/DA SR/DA
1" 84.50 245.00 153.50 84.50 245.00 153.50 TBA 33.00
2" 84.50 261.00 153.50 84.50 261.00 153.50 TBA 43.00
2.5" 93.00 283.00 203.50 84.50 266.00 153.50 TBA 46.00
3" 106.50 304.00 241.00 93.00 291.00 203.50 TBA 46.00
4" 108.50 334.00 259.00 106.00 322.00 241.00 TBA 52.00
5" 135.00 381.00 304.00 108.50 353.00 259.00 TBA 56.00
6" 166.00 422.00 394.50 136.00 390.00 304.00 TBA 56.00
8" 181.00 481.00 422.50 166.00 432.00 394.50 TBA 60.00
10" 221.50 543.00 528.00 181.00 474.00 422.50 TBA 68.00
12" 262.00 628.50 605.00 200.00 550.50 474.00 TBA 78.00
14" 262.00 648.50 605.00 221.50 595.00 528.00 TBA 78.00
16" 330.00 720.00 710.00 262.00 688.50 605.00 TBA 102.00
18" 330.00 770.00 710.00 330.00 770.00 710.00 TBA 114.00
20" 528.00 1038.00 950.00 371.00 873.00 812.00 TBA 127.00
24" 528.00 1105.00 950.00 418.00 967.00 876.00 TBA 154.00

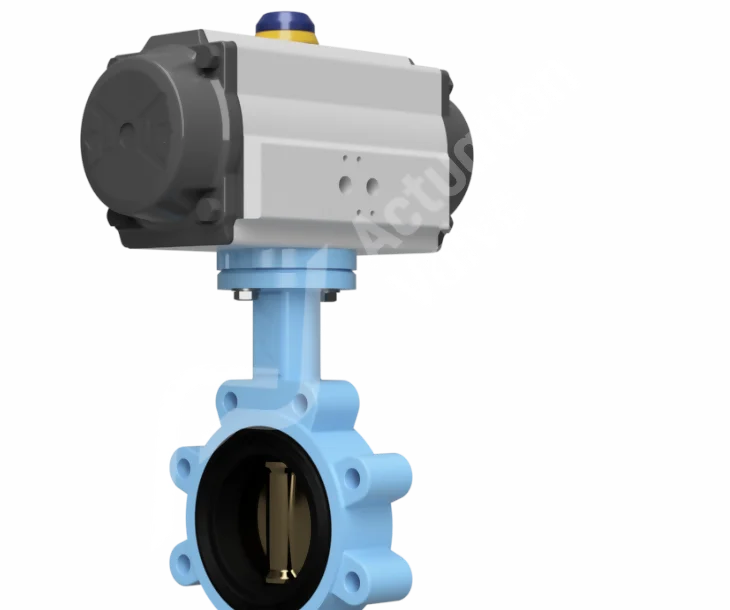

20L3080AT Ball Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Why Air Torque

We have stock!

We understand the importance of minimising downtime and ensuring seamless operations. That's why we maintain a comprehensive stock of Air Torque actuators, ready for immediate dispatch.

Superior Durability and Reliability

Air Torque actuators are built to last, featuring a robust anodised aluminium housing that offers excellent resistance to corrosion and wear.

3D Step Files Available

These detailed 3D models facilitate seamless integration into your design and engineering processes. By providing precise geometrical representations, these files allow for accurate planning and simulation within CAD software.

Expert Customer Support

When you choose Air Torque actuators from Actuation Valve, you gain access to our exceptional customer support team. Our experts are dedicated to providing comprehensive assistance, from selecting the right product to troubleshooting and maintenance guidance.

SMALL Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

AT101
  • PDF
DRAWINGS & SCHEMATICS

AT201
  • PDF
DRAWINGS & SCHEMATICS

AT251
  • PDF
DRAWINGS & SCHEMATICS

AT301
  • PDF
DRAWINGS & SCHEMATICS

AT351
  • PDF
DRAWINGS & SCHEMATICS

AT401

Big Actuator Data

  • Document
Drawings & Schematics

AT451
  • Document
Drawings & Schematics

AT501
  • Document
DRAWINGS & SCHEMATICS

AT551
  • Document
DRAWINGS & SCHEMATICS

AT601
  • Document
DRAWINGS & SCHEMATICS

AT651
  • Document
drawings & schematics

AT701

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff
Body Material: GJS500-7 Ductile Iron Rilsan Coated
Seats Material: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Actuator Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

SIL
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

SAFETY MANUAL
  • PDF
CERTIFICATES & APPROVALS

BUREAU VERITAS

Choose Your Rubber

Material Applications Temperature
EPDM Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines -20°C +110°C
High Temperature EPDM Super Heated Water -20°C +130°C
NBR Buna Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air -10°C +80°C
Hypalon Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions -10°C +80°C
Viton Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels -5°C +180°C
Polyisoprene Water, Alcohols, Abrasive Substances (Call To Check), Ketones, -10°C +60°C
Silicone Low & High Temperature Resistance Applications -30°C +150°C
High Temp Silicone Super Heated Water -50°C +160°C
Epichlorohydrin Ozone Resistance, Hydrocarbons, Aromatic Oils -25°C +145°C

Take A Seat
