Actuation Valve - Oil & Gas Industry Valve Solutions

Within the Oil & Gas Industry, specifying the correct products that you need to do your job is critical. Whether this be for exploration, drilling, pumping or transportation of materials through the refining stage Actuation Valve have the experience, products and infrastructure to meet almost any application requirements.

80LM580 - Lugged Pattern Butterfly Valves - Marine Duty

The 80LM580 Actuated Butterfly Valve builds on the previously succesful 80LK8N & TTV-ABABM ranges of Aluminium Bronze Butterfly Valves that are predominantly supplied for seawater applications or valves that are exposed to the open marine environment. Actuation Valve have extensive experience providing Actuated Butterfly Valves within the Marine and Offshore Industry sectors providing quality product solutions for some of the most remote and demanding environments. Alumiunium Bronze Butterfly Valves are available for next day delivery for sizes up to 12".

Size Range: DN32-DN1600 (1 1/4"-64")
Body Materials: B148 C9500 Aluminium Bronze
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Pneumatic, Electric, De-Clutchable Gear, Fail Safe, Spring Return, Battery Backup, Double Acting
Applications: Potable/Waste/Sea Water, Cooling Systems, Oil, Gases, Air, Desalination, Marine Applications
Find Out More

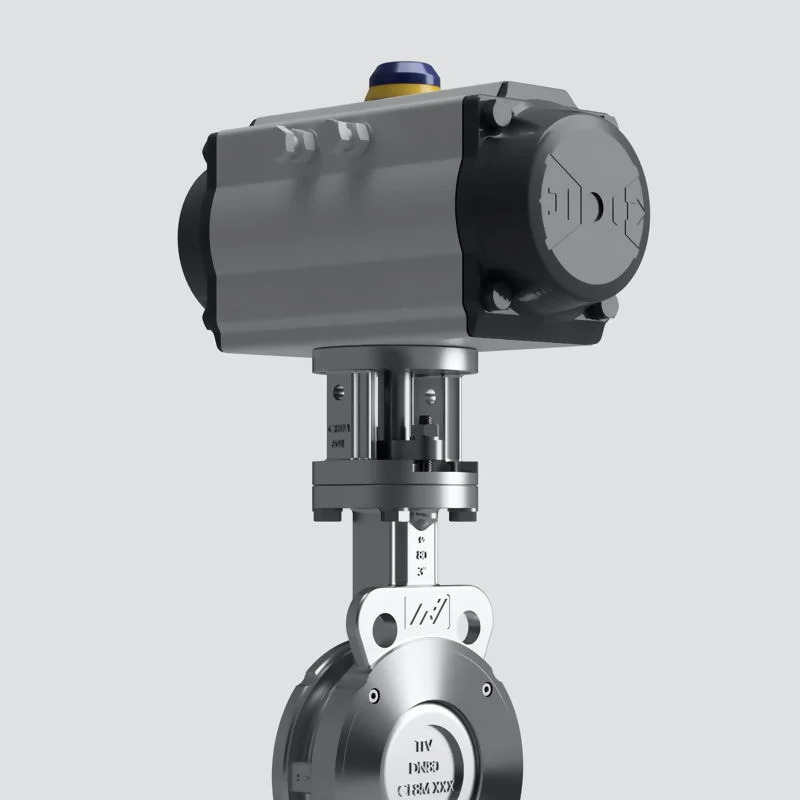

TTV-AT High Performance Actuated Butterfly Valves - Double Offset

High-performance Double Offset Butterfly Valves are the ultimate solution to your needs for extreme conditions. No matter whether you're working with gases or liquids, these valves can deliver when it matters most. The Colossus is available in two versions Metal and PTFE seated. Compliance to NAMUR interface standard allows the actuator to be packaged with a wide range of accessories. This makes it easy to integrate the El-O-Matic Pneumatic Actuator into existing systems where there are already components available for attachment on site. EL-O-Matic offers an affordable solution with their F Series line of pneumatic actuators which can run continuously without failure for over 1 million cycles. The F Series has been tested by independent laboratories and proven reliable in continuous duty applications.

Size Range: DN50-DN600 (2"-24")
Body Materials: Cast Carbon Steel A216 WCB, Stainless Steel CF8M
Disc Materials: Stainless Steel CF8M
Seat Materials: RPTFE Soft Seat, F-316L Stainless Steel Hard Seat, Stellite, Hard Chromium
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Vacuum, Chemical, LPG/LNG, Hydrocarbons, Steam, Air, Bitumen, Corrosive, Thermal Oil
Find Out More

Floating Production, Storage & Offloading

Floating Production, Storage & Offloading units are used within the Oil & Gas Industry for the production and processing of Hydrocarbons and storage of Oil until it can be offloaded onto a Tanker, or less commonly, transported via a pipeline.

TTV-AT High Performance Actuated Butterfly Valves - Double Offset

Double offset butterfly valves are designed for use in exceptionally harsh conditions with critical shutoff isolation and throttling control applications. The Colossus is available in Metal Seated or PTFE seated designs depending on the application needs of the End User. For safety or security reasons the Air Torque actuator can be provided as locked in a permanent position through the manufacturers Lock-Out Capability. This has proven popular for many actuated valve applications and utilises a bespoke design to prevent unwanted operation. At Actuation Valve & Control, all of our in-house assembly and testing is done by highly skilled team engineers. We offer Direct Mount valves as well as custom build bracket/shaft assemblies for many applications.

Size Range: DN50-DN600 (2"-24")
Body Materials: Cast Carbon Steel A216 WCB, Stainless Steel CF8M
Disc Materials: Stainless Steel CF8M
Seat Materials: RPTFE Soft Seat, F-316L Stainless Steel Hard Seat, Stellite, Hard Chromium
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Vacuum, Chemical, LPG/LNG, Hydrocarbons, Steam, Air, Bitumen, Corrosive, Thermal Oil
Find Out More

20W3080EK - Wafer Koei Actuated Butterfly Valves - Bronze Disc

The TTV range of bronze disc butterfly valves come with approvals from recognised bodies  such as DNV, ABS, LR and Bureau Veritas. The bronze disc valves are commonly used in oil and gas processing plants as well as marine. The Koei UNIC Electric Actuator has a number of safety features including an easy to use Allen Key Manual Override, overload protection system and end-of travel electric stop for when you need it most. The concentric design of the butterfly valves allows for an elastic, replaceable seat that takes on both shape and size to form a perfect seal. This TTV Butterfly Valve is suitable for use in either off or throttling applications with no loss of functionality.

Size Range: DN32-DN350 (1 1/4"-14")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: B148 C9500 Aluminium Bronze
Seat Materials: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Actuated Function: Electric, Manual Override, FailSafe (Optional) Battery Backup, 24VDC/AC, 110V/230VAC
Applications: Sea Water, Desalination, Cooling Water, Ballast, Oil, Gases
Find Out More

Petrochemical Solutions

Actuation Valve are heavily involved in this Hazardous, Corrosive & Abrasive industry and have sourced quality, reliable and robust cost effective products with proven track records.

Actuation Valve - Oil & Gas Industry

Within the Oil & Gas Industry, specifying the correct products that you need to do your job is critical. Whether this be for exploration, drilling, pumping or transportation of materials through the refining stage Actuation Valve have the experience, products and infrastructure to meet almost any application requirements. Working only with recognised industry leading Manufacturers with a passion for innovative, compact and reliable Valve, Actuation & Ancillary solutions we also have the ability to offer short lead times for bespoke items from our UK & European stock facilities, talk to Actuation Valve today and see how we can help you.

Typical applications include Petrochemical, Distribution, Production, Coal Seam Gas, LNG, Floating Production, Fire Protection & Cooling Water.

Circumstances and location for Oil & Gas Industry can be significantly varied from Subsea, Offshore to Land Based productions, however one attribute common to all are the high demands placed upon products and components. High and low pressure, temperature, flow rates and abrasive or corrosive media are common practice.

Working to recognised industry standards and approvals, Actuation Valve have a reputation for offering products that are designed to maximise output with engineered solutions to minimise downtime, lower risks, reduce energy and maintenance costs with extended life cycles. We feel not only can we meet your high expectations or requirements, but exceed them.

Fire Protection

Fire Protection is critical when working within the Oil & Gas Industry. With safety and reliability required to the highest of standards, Actuation Valve have provided industry leading solutions for this sector for decades.

Petrochemical

Petrochemicals are produced from crude oil and natural gas with the two most common petrochemical classes being Olefins and Aromatics. It is these compounds that provide the building blocks for many household products including detergents, plastics, solvents, adhesives, lubricants & gels. Actuation Valve are heavily involved in this hazardous, corrosive & abrasive industry and have sourced quality, reliable and robust cost effective products with proven track records. Our High Performance Valves & Automation service (Up to 48″ in-house) enable us to offer a complete package of design, sales, assembly & testing under the same roof from our modern facilities.

FPSO

Floating Production, Storage & Offloading units are used within the Oil & Gas Industry for the production and processing of Hydrocarbons and storage of Oil until it can be offloaded onto a Tanker, or less commonly, transported via a pipeline. FPSO vessels can be converted from previous Oil Tankers or purpose built for frontier offshore regions since they do not require a local pipeline infrastructure for transportation. Actuation Valve’s work within FPSO include Fire Protection Sprinkler Systems, Wastewater, Potable Water, Cooling & Ballast.

Desalination Valves

Desalination is common practice amongst the Marine related Industries where sea (Saltwater) is desalinated to produce potable, drinking water for human consumption.

Desalination

Desalination is common practice amongst the Marine related Industries where sea (Saltwater) is desalinated to produce potable, drinking water for human consumption. Actuation Valve have provided numerous project Valve & Actuator supplies for Desalination over the past 20 years, working closely with Quality European Manufacturers such as Mariani, TTV, Air Torque & Koei. With high energy costs required for such installations, it is paramount that products used remain reliable, low maintenance and long lasting. Actuation Valve provide fit and forget solutions for this very reason.

Fire Protection

Fire Protection is critical when working within the Oil & Gas Industry. With safety and reliability required to the highest of standards, Actuation Valve have provided industry leading solutions for this sector for decades. Continuous product investment and development combined with modern technology has allowed Actuation Valve to be specified amongst prestigious projects including BP-Bruce North Sea & Schiehallion FPSO, a joint venture between BP and various partners. In more recent years, Actuation Valve’s Fire Protection work has become the blueprint for future MOD Naval Vessels.
