Actuation Valve - HVAC Valve Actuator Solutions

Actuation Valve have extensive product supply experience within the Heating, Ventilating & Air Conditioning industries. Working with quality European Manufacturers our Valves, Actuators & Ancillary products have a proven track record for delivering reliable, cost effective solutions to some of the most demanding environments and flow applications.

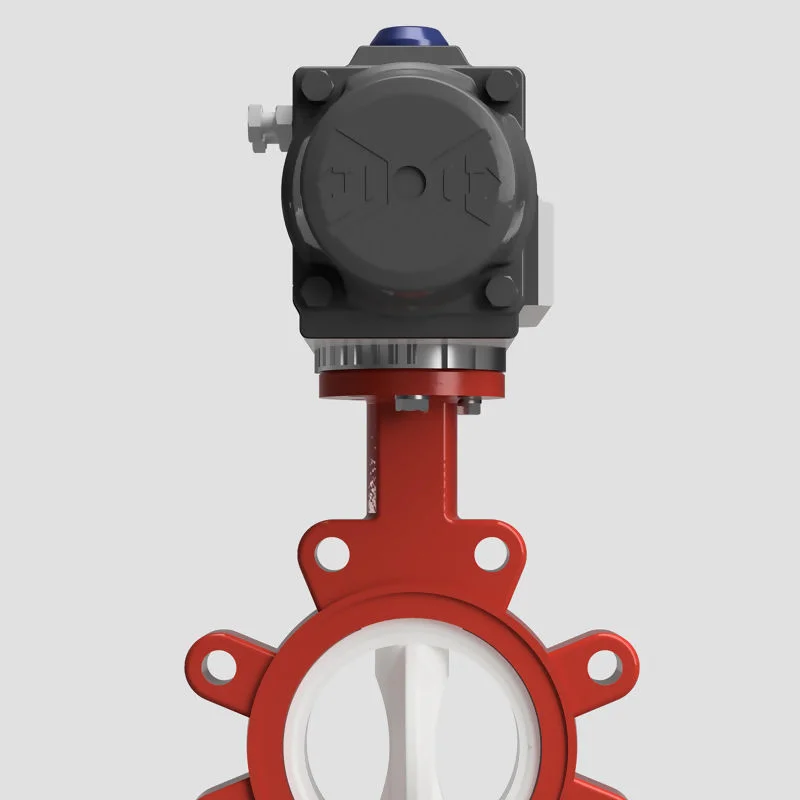

20LP4040F0TAT - Lugged Actuated Air Torque PTFE Lined Valves

We’ve got you covered with the best valves around. Our High Performance Lugged Pattern PTFE Butterfly Valve is a high-temperature, chemical resistant unit that can handle extreme conditions and aswell as having a non toxic material for sensitive applications. Air torque pneumatic actuators have been optimised for performance and durability at every stage of its development, from design through production and testing. With over 30 years of experience designing durable, reliable components, you can trust us with your project's success.

Size Range: DN40-DN300 (1 1/2"-12")
Body Materials: GJS500-7 Ductile Iron Rilsan Coated
Disc Materials: CF8M, CF8M Coated PTFE FDA Approved
Seat Materials: PTFE FDA Approved, UHMWPE
Actuated Function: Solenoid Pilot Operation, Pneumatic, De-Clutchable Gear Override, Spring Return, Double Acting, 4-20mA
Applications: Chemical, Pharmaceutical, Petrochemical, Corrosive, Food & Beverage, Water, Vacuum
Find Out More

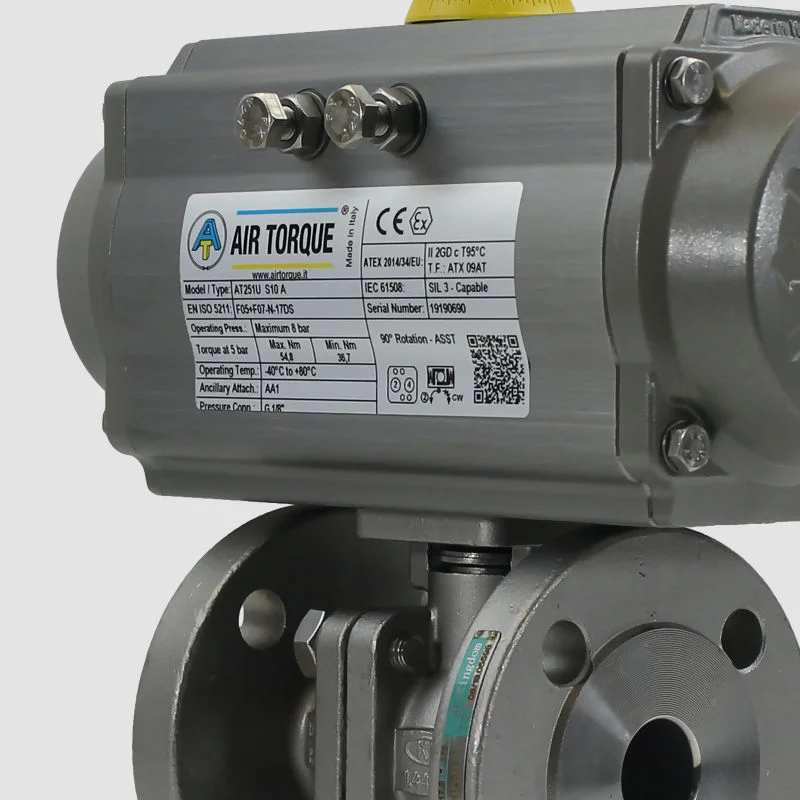

High Pressure PN40 Air Torque Actuated Stainless Steel Ball Valves

By switching from conventional ball valves to our low torque AV-L6N00 Ball Valve, you'll save money on installation costs and maintenance while improving overall reliability. Our product is designed with the end-user in mind and we understand what works best for industrial automation. The AV-L6N00 Ball Valve is an excellent choice for high volume pneumatic systems because it has low torque requirements, which reduce the costs of Actuated Valves with smaller actuators able to automate valves usually demanding large units. Our air torque actuators are made of high quality materials and have been designed for years of reliable service. However, it doesn't stop there - we also offer our customers with the option to choose from multiple materials including stainless steel or epoxy coated options.

Size Range: DN15-DN150 (1/2"-6")
Body Materials: Stainless Steel A351 CF8M 316
Body Type: Full Bore, 2 Piece
Applications: Water, Gas, Air, Oil, Waste Water (See Chart For More)
Pressure Rating: 40 Bar
End Connections: Flanged DIN PN40
Find Out More

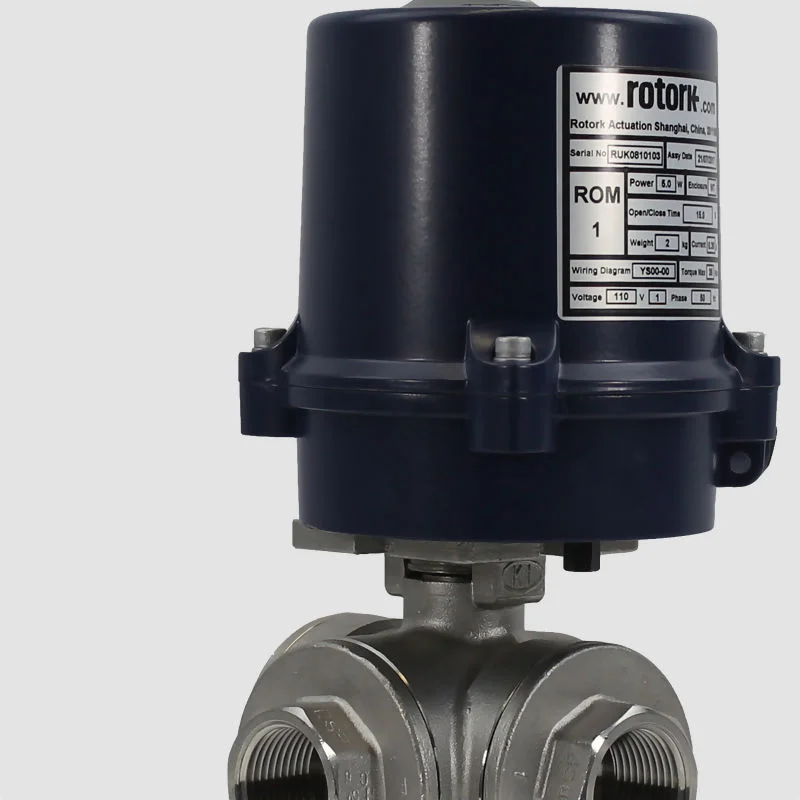

3-Way Full Bore Screwed Stainless Steel Rotork Ball Valves

The AV-L5300ROM & AV-L5400ROM L & T port full bore actuated ball valves offer a full flow diverting solution for 90 and 180 degree operation. 1000 PSI of pressure enable this valve to be used in almost all process and industrial applcations with a casting approved by TUV. 3-Way Ball Valves are available as an L Port or T Port can be used in heating and hot water applications to regulate temperature. The valves control the flow of liquid passing through them to either allow flow in one direction or another, or divert flow from one path to another. With its gear trains pre-lubricated at the factory, Rotork provides a more reliable and efficient way to operate your valves and dampers. The specially formulated lubricant offers extended life cycles whilst also covering temperature options for various ambient conditions during operation.

Size Range: DN08-DN100 (1/4"-4")
Body Materials: Stainless Steel A351 CF8M 316
Body Type: Full Bore, 3-Way, Diverting, L Port, T Port
Applications: Water, Gas, Air, Oil, Waste Water (See Chart For More)
Pressure Rating: 1000 PSI
End connections: Screwed BSPP/NPT
Find Out More

Hot Water Service Solenoid Valves

Many ranges of ASCO valve can cope with hot water duty, but depending on how hot the maximum temperature gets,Âthe specific valve model to be chosen varies. Standard NBR seals can cope with water temps up to +85°C. EPDM increases the maximum temperature capability up to 150°C (3/8" to 3/4") & 130°C (1" to 1½"). Anything hotter and the Steam valve ranges should be used instead. Hot Water Valves include 238, 222, 210 & 220 Series.

Size Range: 3/8" - 1 1/2"
Function: 2/2 Normally Closed
Operation: Direct Acting
Voltages: 24VAC, 48VAC, 115VAC, 230VAC
Applications: Warm Water, Hot Water
End Connections: BSPT
Pressure Rating: 0-3.5 Bar Steam @ 150°C (3/8" - 3/4"), 0-2 Bar Steam @ 130°C (1" - 1½") or 0-9 Bar Water
Find Out More

Industrial Heating

Heating systems play a vital role in generating a buildings heat and can be achieved through several methods including Central Heating systems, Boiler Systems, Furnace or Heat Pumps with Water/Steam.

Actuation Valve HVAC Industry Applications

Actuation Valve have extensive product supply experience within the Heating, Ventilating & Air Conditioning industries. Working with quality European Manufacturers our Valves, Actuators & Ancillary products have a proven track record for delivering reliable, cost effective solutions to some of the most demanding environments and flow applications. Whether this be for Low/High Pressure Systems, Central Heating, Boiler, Heat Pump, Furnace or Air Conditioning our sales engineers are capable of offering tailored supply packages to suit your requirements. Give Actuation Valve a call today to see how we can help your business.

Actuation Valve provide fully automated Valve solutions to companies worldwide who are looking to maintain climate controlled environments using thermal comfort technology. Typical installations will include Large Office Buildings, Ships, Swimming Pool/Leisure Facilities and also Industrial Buildings where safe and healthy air conditions are not only required but monitored for temperature and humidity.

Working to recognised industry standards and approvals, Actuation Valve have a reputation for offering products that are designed to maximise output with engineered solutions to minimise downtime, lower risks, reduce energy and maintenance costs with extended life cycles. We feel not only can we meet your high expectations or requirements, but exceed them.

Heating systems play a vital role in generating a buildings heat and can be achieved through several methods including Central Heating systems, Boiler Systems, Furnace or Heat Pumps with Water/Steam. This heat can then be transferred to the surrounding environment through conduction, convection or radiation. Such systems can often require high pressure, high temperature valve solutions with reliability and safety amongst the applications most important requirements. At Actuation Valve, our products are designed to meet the most demanding industry specifications and offer fit and forget solutions throughout our range.

Air Conditioning

Actuation Valve have provided numerous project Valve & Actuator supplies for Industrial Air Conditioning over the past 20 years, working closely with Quality European Manufacturers such as TTV, Air Torque & Koei.

Ventilation

The replenishment of air within a confined space can involve Temperature Control, Oxygen Replenishment, Moisture/Odour removal, Bacteria or  Dust. This can be achieved by both internal and external circulation and ventilation methods and plays one of the most important factors in maintaining a healthy, indoor air quality. Actuation Valve are committed to providing its customers with the best possible processing solutions whether this be for Cleanliness, Material Construction or future Maintenance access. Our team operate to the most stringent of International Standards and can deliver results for you.

Air Conditioning

Actuation Valve have provided numerous project Valve & Actuator supplies for Industrial Air Conditioning over the past 20 years, working closely with Quality European Manufacturers such as TTV, Air Torque & Koei. With high energy costs required for such installations, it is paramount that products used remain reliable, low maintenance and long lasting. Significant stock investment in key areas has enabled us to provide off the shelf packages for both small and large projects, minimising any production or installation delays and in the process maximising our clients’ efficiency and profitability.
